2003 MERCEDES-BENZ G55AMG turn signal bulb

263 Practical hints
What to do if …
.
TURN SIGNAL F, L
CHECK LAMP
SUBSTITUTE LAMP ON!
The left front turn signal lamp is mal-
functioning. A backup bulb is being
used.

Replace the bulb as soon as
possible.
2
TURN SIGNAL F, R
CHECK LAMP
SUBSTITUTE LAMP ON!
The right front turn signal lamp is
malfunctioning. A backup bulb is be-
ing used.

Replace the bulb as soon as
possible.
2
TURN SIGNAL R, L
CHECK LAMP
SUBSTITUTE LAMP ON!
The left rear turn signal lamp is mal-
functioning. A backup bulb is being
used.

Replace the bulb as soon as
possible.
2
TURN SIGNAL R, R
CHECK LAMP
SUBSTITUTE LAMP ON!
The right rear turn signal lamp is
malfunctioning. A backup bulb is be-
ing used.

Replace the bulb as soon as
possible.
2
!
(Canada
only)
;
(USA only)
PARKING BRAKE
RELEASE PARKING BRAKE!
You are driving with the parking
brake set.

Release the parking brake
(page 44).
1
A
RESERVE FUEL
VISIT FILLING STATION!
The fuel level has dropped below the
reserve mark.

Refuel at the next gas station
(page 214).
2
Display
Possible cause
Suggested solution
Category

279 Practical hints
Replacing bulbs
Replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Light Truck Center
for headlamp adjustment.
Bulbs Front lamps
iBackup bulbs will be brought into use
when the following lamps malfunction:

Parking lamps


Turn signal lamps


Tail lamps
Lamp
Type
1
Additional turn sig-
nal lamp
LED
2
S i d e t u r n s i g na l l a m p
WY 5 W
3
Turn signal lamp
1156 NA
4
High and low beam
H4 60 (55 W)
Parking and stand-
ing lamps
T 4 W
5
Side marker lamp
T 4 W
6
Fog lamp
H3 (55 W)

280 Practical hintsReplacing bulbsRear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs for the following lamps
replaced by an authorized Mer-
cedes-Benz Light Truck Center.

The additional turn signals in the ex-
terior rear view mirrors


The high mounted brake lamp
Lamp
Type
7
High mounted brake
lamp
LED
8
Turn signal lamp
PY 21 W
Brake lamp
P 21 W
Tail, parking and
standing lamps
R 5 W
9
Backup lamp
P 21 W
10
License plate lamps
C 5 W
11
Side marker lamp
T 4 W
12
Rear fog lamp
P 21 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
iHave the headlamp settings checked
regularly by a Mercedes-Benz Light
Truck Center.
Do not turn the headlamp adjusting
screws. If the adjusting screws are
turned, the headlamp setting must be
checked by a Mercedes-Benz Light
Truck Center.

284 Practical hintsReplacing bulbsFront turn signal lamp
1Securing screw
2Turn signal lens
Switch off the lights.

Unscrew securing screws1.

Remove turn signal lens2.3Bulb

Push bulb3 into socket, turn counter-
clockwise and remove.

Insert new bulb3 in socket, push in
and turn clockwise until it clicks in.

Reinstall turn signal lens2 and screw
in securing screws1.Turn signal lamp, side
1Securing screw
2Turn signal lamp housing

Switch off the lights.

Unscrew securing screw1.

Remove turn signal lamp housing2.
iG55AMG:
Remove the protective grille before re-
placing bulbs.
iDo not overtighten securing screws1.
Otherwise turn signal lens2 could be
damaged.

285 Practical hints
Replacing bulbs
3Bulb socket
Pull out bulb socket3 from lamp
housing2.

Pull bulb out of bulb socket3.

Insert new bulb in bulb socket3.

Insert bulb socket3 in lamp housing2.

Reinstall lamp housing2 and screw in
securing screws.Side marker lamp
The following description applies to both
the front and the rear side marker lamps.
Front side marker shown1Securing screw
2Side marker lamp housing
Switch off the lights.

Unscrew securing screws1.

Remove side marker lamp housing2.3Dust cover

Remove dust cover3.

Press catch aside and pull out bulb
socket from side marker lamp
housing2.
iDo not overtighten the securing
screws. Otherwise turn signal lamp
housing2 could be damaged.

286 Practical hintsReplacing bulbs4Bulb
Push bulb4 into socket, turn counter-
clockwise and remove.

Insert new bulb4 in socket, push in
and turn clockwise until it clicks in.

Insert bulb socket in lamp housing2
and reinstall the dust cover.

Reinstall side marker lamp housing and
screw in securing screws.

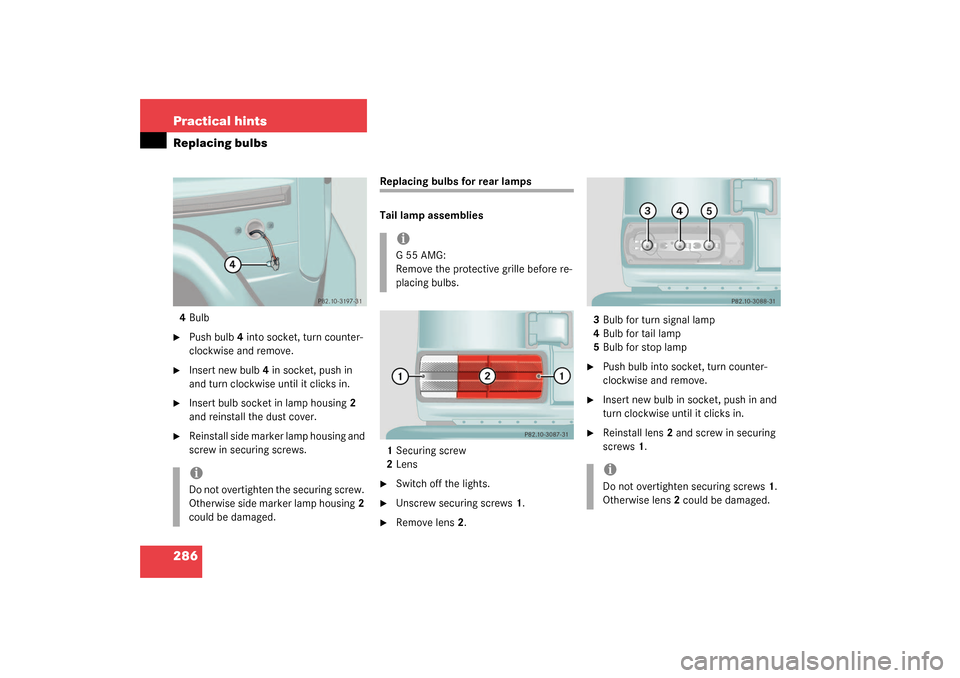

Replacing bulbs for rear lamps
Tail lamp assemblies
1Securing screw
2Lens
Switch off the lights.

Unscrew securing screws1.

Remove lens2.3Bulb for turn signal lamp
4Bulb for tail lamp
5Bulb for stop lamp

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
turn clockwise until it clicks in.

Reinstall lens2 and screw in securing
screws1.
iDo not overtighten the securing screw.
Otherwise side marker lamp housing2
could be damaged.
iG55AMG:
Remove the protective grille before re-
placing bulbs.
iDo not overtighten securing screws1.
Otherwise lens2 could be damaged.
