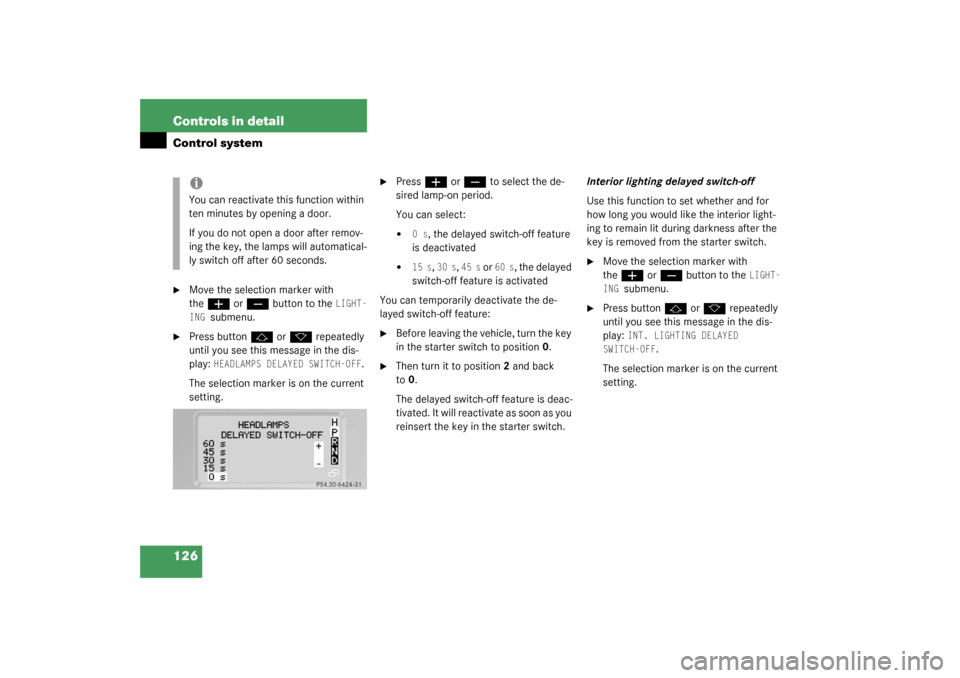

126 Controls in detailControl system
Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
HEADLAMPS DELAYED SWITCH-OFF
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on period.
You can select:


0 s
, the delayed switch-off feature
is deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
switch-off feature is activated
You can temporarily deactivate the de-
layed switch-off feature:

Before leaving the vehicle, turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed switch-off feature is deac-
tivated. It will reactivate as soon as you
reinsert the key in the starter switch.Interior lighting delayed switch-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
INT. LIGHTING DELAYED
SWITCH-OFF
.
The selection marker is on the current
setting.
iYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after remov-
ing the key, the lamps will automatical-
ly switch off after 60 seconds.

128 Controls in detailControl systemSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).
Move the selection marker with
the
æ
or
ç
button to the Vehicle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
AUTOMATIC DOOR LOCK
ON or
OFF
.Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel will
move back to facilitate exiting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
129
Set parking position for exterior
rear view mirror
130
Warning!
G
Make sure that no one can become trapped
or injured by the moving steering wheel
when the easy-entry/exit feature is in oper-
ation and the driver’s door is being opened
or the key is removed from the starter
switch. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause in an accident and/or seri-
ous personal injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

129 Controls in detail
Control system
After entering the vehicle, the steering
wheel will move into the position stored in
memory when

the driver’s door is closed


you put the key in the starter switch
and


press the appropriate stored position
button on the memory switch
(page 99)

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.
The following settings are available for the
easy-entry/exit featureSetting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 97).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
.
iTo cancel steering wheel movement,
do one of the following:

move the steering column stalk
(page 22)


press the memory switch
(page 98)
OFF
The easy-entry/exit
feature is deactivat-
ed
STEERING COLUMN
The easy-entry/exit
feature is activated

131 Controls in detail
Control system
Fuel consumption since last reset
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Time elapsed since last reset
2Average fuel consumption since last re-
set
3Average speed since last reset
4Distance driven since last resetResetting fuel consumption statistics

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset knob in the in-
strument cluster (
page 24) until the
value is reset to
0.Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the key in the starter
switch is turned to position0 or re-
moved from the starter switch.
Resetting will not occur if you turn the
key back to position1 or2 within this
time period.

138 Controls in detailAutomatic transmission
Gear selector lever position
Gear
range
Effect
ç
The transmission shifts
through second gear only.
Allows the use of engine’s
braking power when driving

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates
only in first gear
For maximum use of engine’s
braking effect on very steep
or lengthy downgrades.
Effect
P
Park position
Selector position when the vehicle is
parked. Only place selector lever in
positionP when vehicle is stopped.
The park position is not intended to
serve as a brake when the vehicle is
parked. Rather, the driver should al-
ways set the parking brake in addi-
tion to placing the selector lever in
positionP to secure the vehicle.
The key can only be removed from
the starter switch with the selector
lever in positionP. With the key re-
moved, the selector lever is locked in
positionP.
R
Reverse gear
Place selector lever in positionR only
when vehicle is stopped.
Effect
N
Neutral
No power is transmitted from the en-
gine to the drive axle. When the
brakes are released, the vehicle can
be moved freely (pushed or towed).
Do not engage N while driving ex-
cept:

to coast when the vehicle is in
danger of skidding (e.g. on icy
roads) when the ESP is deactivat-
ed or malfunctioning


when you have to shift the trans-
fer case
D
Drive
The transmission shifts automatical-
ly. All five forward gears are avail-
able.

139 Controls in detail
Automatic transmission
Accelerator position
Your driving style influences the transmis-
sion’s shifting behavior:
Less throttle Earlier upshifting
More throttle Later upshifting
Kickdown
Use kickdown when you want maximum
acceleration.
Press the accelerator past the point of
resistance.
The transmission shifts into a lower
gear.

Ease on the accelerator when you have
reached the desired speed.
The transmission shifts up again.
!Coasting the vehicle, or driving for any
other reason with selector lever inN
can result in transmission damage that
is not covered by the Mercedes-Benz
Limited Warranty.Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, positionP alone is not intend-
ed to or capable of preventing your vehicle
from moving, possibly hitting people or ob-
jects.
Always set the parking brake in addition to
shifting to positionP (
page 50).
When parked on an incline, turn the front
wheels towards the road curb.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could move the selector le-
ver from positionP, which could result in an
accident and/or serious personal injury.

142 Controls in detailTransfer case
Press upper half1 (“LOW”) of the
transfer case switch.
Once the shift is complete, gear
positionL is displayed in the transfer
case indicator.

Put gear selector in D.
Switching from LOW to HIGH

Press lower half2 (“HIGH”) of the
transfer case switch.
Once the shift is complete, gear
positionH is displayed in the transfer
case indicator.

Put gear selector in D.
Messages in the multifunction display
If a shift was not completed and the multi-
function display shows one of the following
messages:


TC SHIFT CONDITIONS NOT FULFILLEDThe shift does not occur. At least one
shift condition was not met.

Repeat the shift procedure.


TC IN NEUTRAL The shift does not occur. The transfer
case is in neutral. The gear positionN
is displayed in the transfer case
indicator1.

Repeat the shift procedure.


TC SHIFT – CANCELLEDThe shift did not take place.

Repeat the shift procedure.


TRANSFER CASE – VISIT WORKSHOP!There is a malfunction in the system.

Have the vehicle checked at your au-
thorized Mercedes-Benz Light Truck
Center as soon as possible.
More information can be found in the
“Practical hints” section (
page 266).
!The shift procedure can only be per-
formed when:

The engine is running.


The selector lever for the automatic
transmission is in positionN.


The vehicle speed does not exceed
40 mph (70 km/h).
Warning!
G
If TC is in neutral, transmission positionP
will not hold vehicle. The parking brake must
be applied to hold vehicle in place.
iIf the SmartKey is in starter switch
position0 or1, an alarm will sound if
the transfer case is in positionN and
the driver’s door is opened.
Engage transfer case to gear position
HIGH or LOW.

155 Controls in detail
Climate control
Rear window defroster
Turn the SmartKey in starter switch to
position2.
Activating
Press button
F
in the control panel
of the climate control.
The indicator lamp in the button lights
up.
Deactivating

Press button
F
in the control panel
of the climate control.
The indicator lamp in the button goes
out.
!Heavy accumulation of snow and ice
should be removed before activating
the defroster.
The defroster is automatically turned
off after approximately 6-17 minutes of
operation depending on the outside
temperature and vehicle speed.
If several power consumers are turned
on simultaneously, or the battery is
only partially charged, it is possible that
the defroster will automatically turn it-
self off.
When this happens, the indicator lamp
inside the switch starts blinking.
As soon as the battery has sufficient
voltage, the defroster turns itself back
on.
iThe rear window defroster uses a large
amount of power. To keep the battery
drain to a minimum, turn off the de-
froster as soon as the rear window is
clear.
