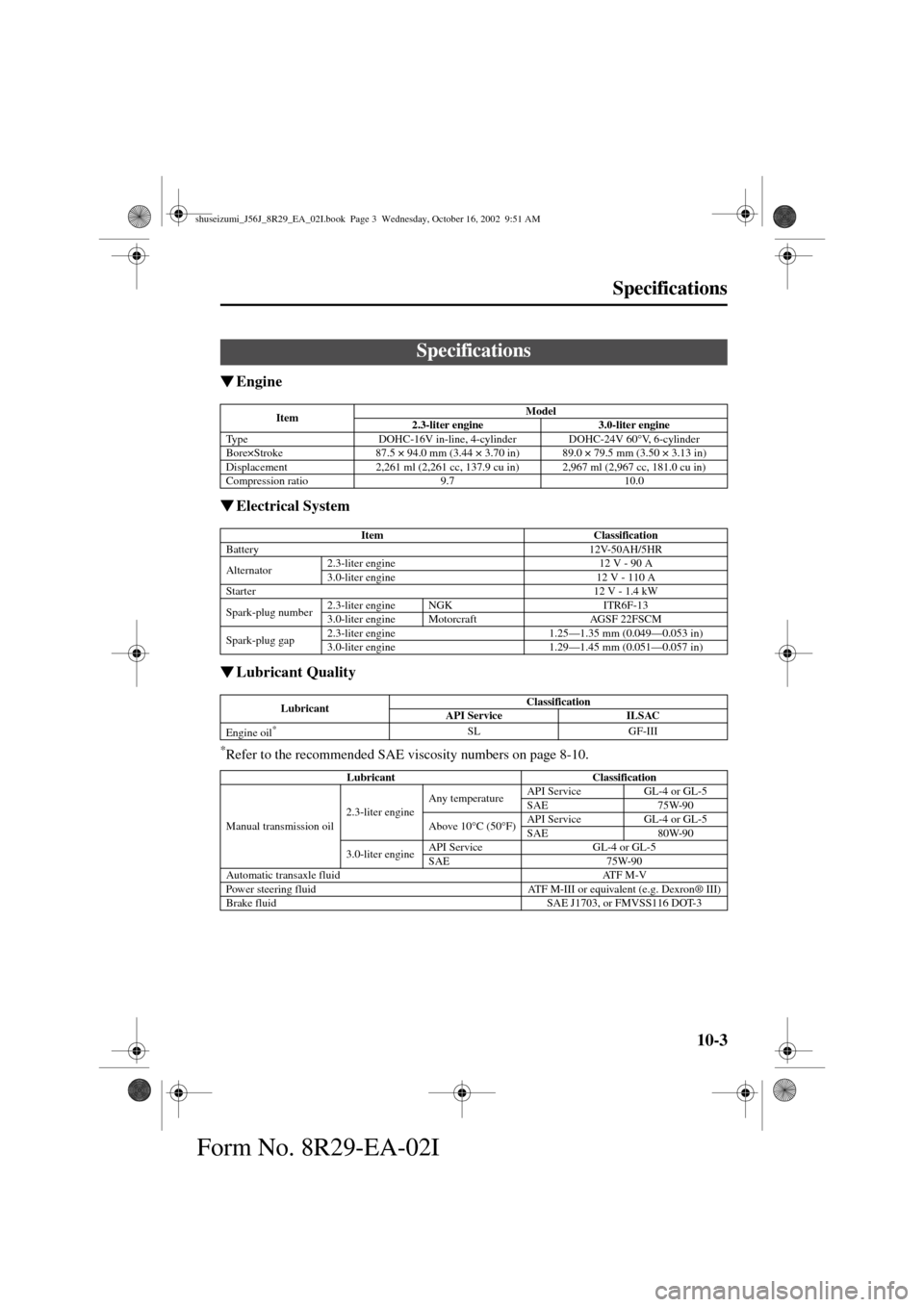

2003 MAZDA MODEL 6 Owners Manual (in English)

10-3
Form No. 8R29-EA-02I
Specifications

Engine

Electrical System

Lubricant Quality
*Refer to the recommended SAE viscosity numbers on page 8-10.
Specifications
ItemModel
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60
°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
Item Classification
Battery 12V-50AH/5HR
Alternator2.3-liter engine 12 V - 90 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number2.3-liter engine NGK ITR6F-13
3.0-liter engine Motorcraft AGSF 22FSCM
Spark-plug gap2.3-liter engine 1.25—1.35 mm (0.049—0.053 in)
3.0-liter engine 1.29—1.45 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil
*SL GF-III
Lubricant Classification
Manual transmission oil2.3-liter engineAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10
°C (50
°F)API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engineAPI Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
shuseizumi_J56J_8R29_EA_02I.book Page 3 Wednesday, October 16, 2002 9:51 AM

10-4
Specifications
Form No. 8R29-EA-02I

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
*116 inch wheel vehicle*217 inch wheel vehicle

We i g h t s

Air Conditioner
ItemUnit
L US qt Imp qt
Engine oil2.3-liter engineWith oil filter
replacement4.3 4.5 3.8
Without oil filter
replacement3.9 4.1 3.4
3.0-liter engineWith oil filter
replacement5.2 5.5 4.6
Without oil filter
replacement4.7 5.0 4.1
Coolant2.3-liter engine 7.5 7.9 6.6
3.0-liter engine 10.2 10.8 9.0
Manual transaxle oil2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid2.3-liter engine 7.2 7.6 6.3
3.0-liter engine 9.2 9.7 8.1
Fuel tank 68 18.0 (US gal) 15.0 (Imp gal)
Item Model
Overall length 4,745 mm (186.8 in)
Overall width 1,780 mm (70.1 in)
Overall height 1,440 mm (56.7 in)
Front tread
1,540mm
*1(60.6in), 1,530mm*2(60.2in)
Rear tread
1,540mm*1(60.6in), 1,530mm*2(60.2in)
Wheelbase 2,675 mm (105.3 in)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,958 kg (4,317 lb)
GAWR (Gross Axle Weight Rating)Front 1,070 kg (2,359 lb)
Rear 888 kg (1,958 lb)
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
shuseizumi_J56J_8R29_EA_02I.book Page 4 Wednesday, October 16, 2002 9:51 AM

10-5
Specifications
Form No. 8R29-EA-02I

Light Bulbs
*1Use a 28/7W type bulb.*2Use a 21/5W type bulb.

Tires
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-25.
Standard tire
Temporary spare tire

Fuses
Refer to the fuse rating on page 8-35.
Light bulb Wattage
HeadlightsHigh beam 55
Low beam 55
Front turn signal lights
28
*1
Parking lights5
Fog lights55
Side-marker lights5
High-mount brake lightsType A 18.4
Type B 4
Rear turn signal lights 21
Brake lights/Taillights 21/5
Taillights
5
*2
Reverse lights18.4
License plate lights5
Trunk light 3
Overhead light/Map lights 5
Courtesy lights5
Vanity mirror lights 1.2
Tire sizeInflation pressure
Front Rear
P205/60R16 91H
220 kPa (2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa (2.2 kgf/cm2, 32 psi or lb/po2)
P215/50 R17 93V
Tire size Inflation pressure
T115/70R15 420 kPa (60 psi)
shuseizumi_J56J_8R29_EA_02I.book Page 5 Wednesday, October 16, 2002 9:51 AM

10-6
Form No. 8R29-EA-02I
shuseizumi_J56J_8R29_EA_02I.book Page 6 Wednesday, October 16, 2002 9:51 AM

11-1
Form No. 8R29-EA-02I
