2003 MAZDA MODEL 6 Owners Manual (in English)

6-37
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
Multiple insertion
1. Press and hold the load button ( )
for about 2 seconds until a beep is
heard.
2. When "In" is displayed, insert the CD.
3. When "In" is displayed again, insert
the next CD.
Ejecting the CD
Normal ejection
1. Press the CD eject button ( ). The disc
number and "DISC OUT" will be
displayed.
2. Pull out the CD.
Ejecting CDs from desired tray number
1. Press and hold the CD eject button ( )
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired CD number within 5 seconds
after the beep is heard.
3. Pull out the CD.Multiple ejection
1. Press and hold the CD eject button ( )
for about 2 seconds until a beep is
heard.
2. Wait 5 seconds or press the CD eject
button ( ) again within 5 seconds after
the beep is heard.
3. Pull out the CD, then the next CD will
be ejected.
NOTE
The first-inserted CD will be played
automatically when:
•
No CD is inserted within 15
seconds after "In" is displayed.
•
The CD trays are full.
NOTE
When the CD is ejected during play,
the next CD will be played
automatically.
NOTE
•
CDs will be ejected starting with the
one with the lowest number.
•
All CDs in the tray will be ejected
continuously.
•
CDs can be ejected when the
ignition switch is off. Press and hold
the CD eject button ( ) for about 2
seconds and all CDs will eject.
shuseizumi_J56J_8R29_EA_02I.book Page 37 Wednesday, October 16, 2002 9:51 AM

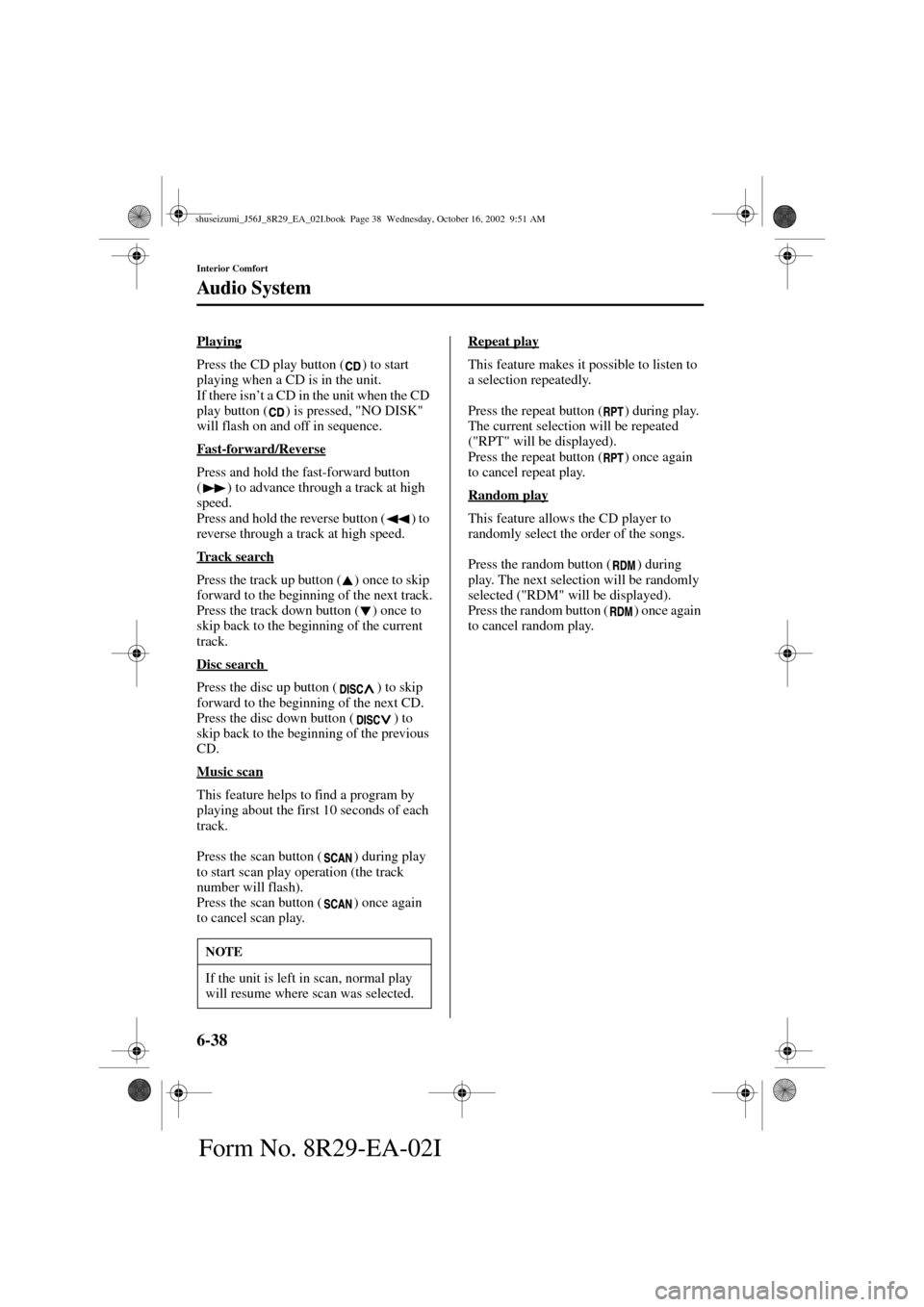

6-38
Interior Comfort
Audio System
Form No. 8R29-EA-02I
Playing
Press the CD play button ( ) to start
playing when a CD is in the unit.
If there isn’t a CD in the unit when the CD
play button ( ) is pressed, "NO DISK"
will flash on and off in sequence.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to skip
forward to the beginning of the next track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Disc search
Press the disc up button ( ) to skip
forward to the beginning of the next CD.
Press the disc down button ( ) to
skip back to the beginning of the previous
CD.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
shuseizumi_J56J_8R29_EA_02I.book Page 38 Wednesday, October 16, 2002 9:51 AM

6-39
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I

Error Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK MD MD is inserted upside downInsert the MD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CHECK MD MD is defectiveInsert another MD properly. If the error
indication does not disappear, consult an
Authorized Mazda Dealer
CHECK CD CD is inserted upside downInsert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CHECK CD CD is defective Check the CD for scratches or soiling
shuseizumi_J56J_8R29_EA_02I.book Page 39 Wednesday, October 16, 2002 9:51 AM

6-40
Interior Comfort
Audio System
Form No. 8R29-EA-02I

Adjusting the Volume
To increase the volume, press volume
button ( ).
To decrease the volume, press volume
button ( ).

Changing the Source
Press the mode switch ( ) to change
the audio source (AM radio>FM1
radio>FM2 radio>Cassette tape player or
MD player>CD player or CD
changer>cyclical).

Seek Switch
When listening to the radio
Press the seek switch ( , ) to recall
previously stored radio stations.
Press the seek switch ( , ), the radio
switches to the next/previous stored
station in the order that it was stored
(1~6).
Audio Control Switch
Operation
NOTE
Mazda installed this system to help
you avoid being too distracted using
audio controls on the dashboard.
Always make safe driving your first
priority.
shuseizumi_J56J_8R29_EA_02I.book Page 40 Wednesday, October 16, 2002 9:51 AM

6-41
Interior Comfort
Au d i o S y s t e m
Form No. 8R29-EA-02I
When playing a cassette tape
Press the seek switch ( ), release, and it
will advance to the next selection.
Press the seek switch ( ), release, and it
will repeat the selection being played.
When playing a CD or MD
Press the seek switch ( ) to skip to the
next track.
Press the seek switch ( ) to repeat the
current track.

Mute Switch
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
shuseizumi_J56J_8R29_EA_02I.book Page 41 Wednesday, October 16, 2002 9:51 AM

6-42
Interior Comfort
Au d i o S y st e m
Form No. 8R29-EA-02I
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
Safety Certification
•
This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
•
Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
•
Changes or modifications not expressly approved by Mazda may void the user’s
authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
CAUTION
shuseizumi_J56J_8R29_EA_02I.book Page 42 Wednesday, October 16, 2002 9:51 AM

6-43
Interior Comfort
Form No. 8R29-EA-02I
Interior Equipment
When you need a sunvisor, lower it for use
in front or swing it to the side.

Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
pull the cover up.

Illuminated Entry System
When the switch is in the DOOR position,
the overhead light and the courtesy lights
come on for:
•
About 30 seconds after the driver’s
door is unlocked and the ignition key is
removed.
•
About 15 seconds after all doors are
closed.
•
About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also goes out when:
•
The ignition switch is turned to the ON
position and all doors are closed.
•
The driver’s door is locked.
Sunvisors
Sunvisor
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
shuseizumi_J56J_8R29_EA_02I.book Page 43 Wednesday, October 16, 2002 9:51 AM

6-44
Interior Comfort
Interior Equipment
Form No. 8R29-EA-02I

Overhead Lights
Front
Center
OFF Light off
DOOR•Light on when any door is
open
•Light on or off when the
illuminated entry system is on
DOOR
OFF
With sunroof
DOOR
OFF
Without sunroof
OFF Light off
DOOR•Light on when any door is
open
•Light on or off when the
illuminated entry system is on
DOOR
OFF
shuseizumi_J56J_8R29_EA_02I.book Page 44 Wednesday, October 16, 2002 9:51 AM
