2003 MAZDA MODEL 6 Owners Manual (in English)

1-3
Your Vehicle at a Glance
Form No. 8R29-EA-02I

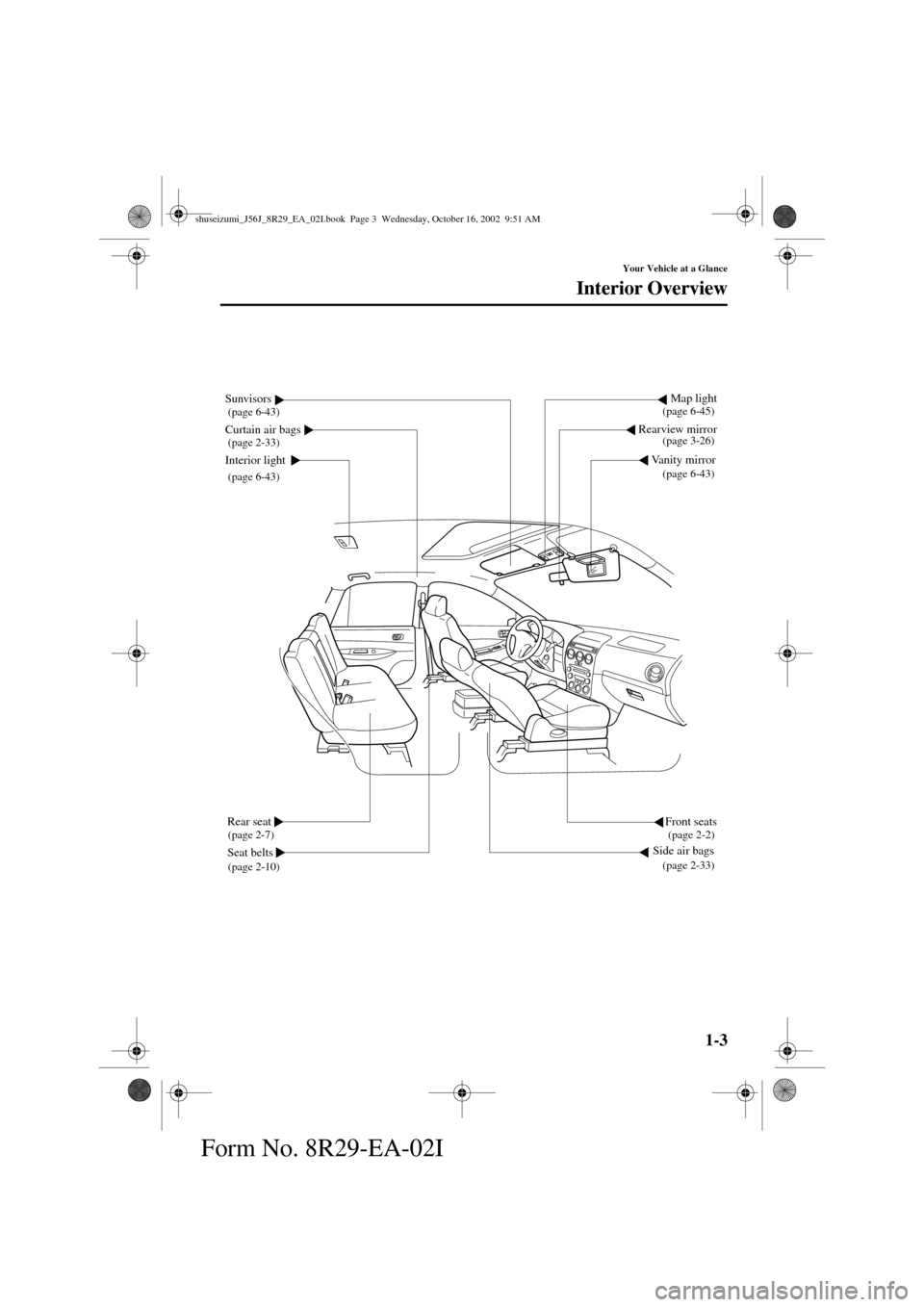

Interior Overview
Vanity mirror Rearview mirror
Seat beltsInterior light
Sunvisors
Front seats
Side air bags
Rear seat
Map light
Curtain air bags(page 6-43)
(page 2-10) (page 2-33)
(page 6-43)
(page 2-33) (page 2-7)(page 2-2) (page 6-43) (page 3-26) (page 6-45)
shuseizumi_J56J_8R29_EA_02I.book Page 3 Wednesday, October 16, 2002 9:51 AM

1-4
Your Vehicle at a Glance
Form No. 8R29-EA-02I

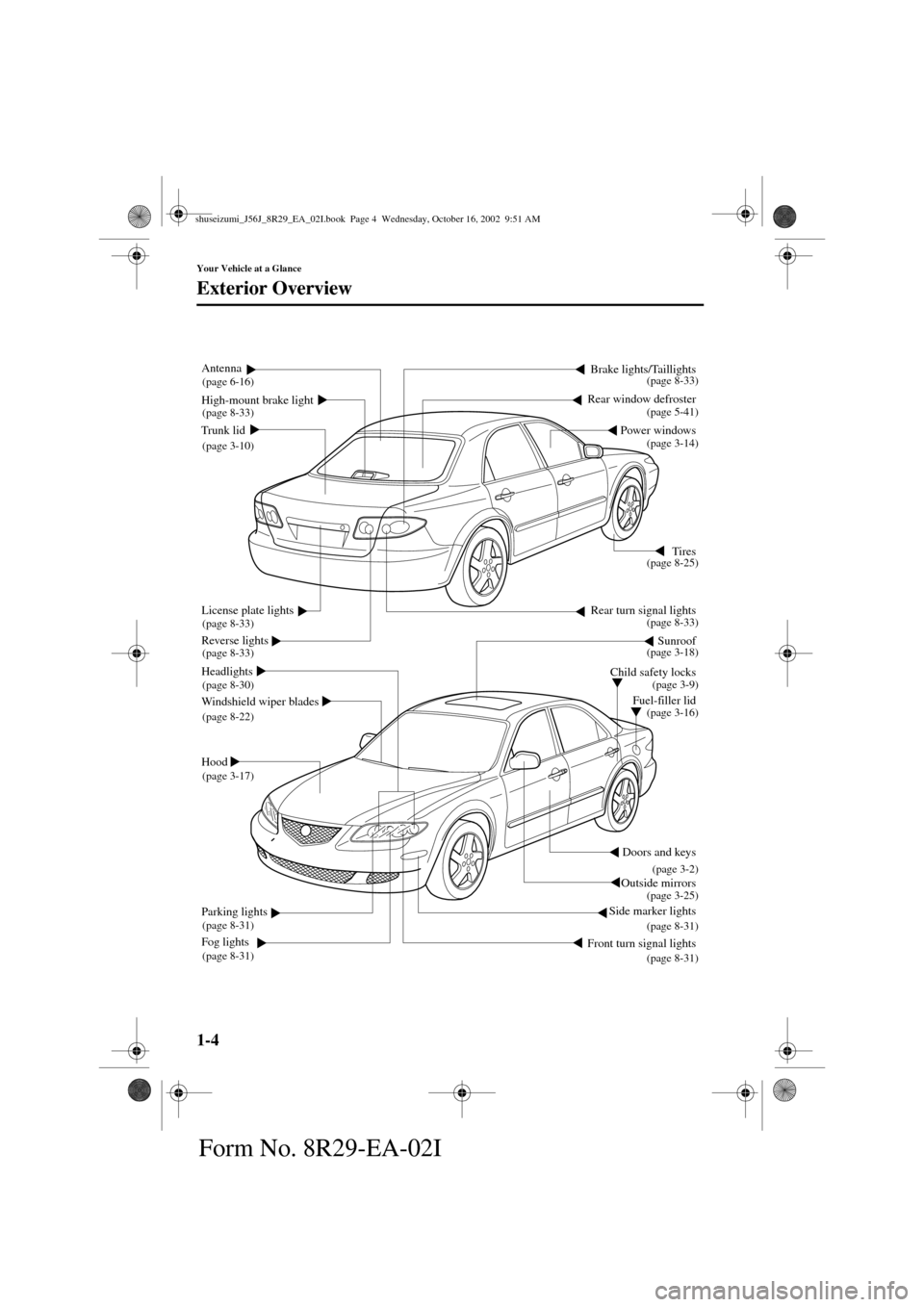

Exterior Overview
Doors and keys
Outside mirrors Headlights
Fuel-filler lid Child safety locksTires
Reverse lights
Windshield wiper blades
Hood
Front turn signal lights Fog lights Rear turn signal lights Brake lights/Taillights
Power windows Rear window defroster
Trunk lidHigh-mount brake light
License plate lights Antenna
Parking lightsSunroof
Side marker lights
(page 8-31) (page 8-31) (page 3-17) (page 8-22) (page 8-30) (page 8-33) (page 8-33) (page 3-10) (page 8-33) (page 6-16)
(page 8-31) (page 8-31) (page 3-25)(page 3-2) (page 3-16)(page 3-9) (page 3-18) (page 8-33) (page 8-25) (page 3-14) (page 5-41) (page 8-33)
shuseizumi_J56J_8R29_EA_02I.book Page 4 Wednesday, October 16, 2002 9:51 AM

2-1
Form No. 8R29-EA-02I
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats
................................................................................................ 2-2
Front Seats ................................................................................. 2-2
Rear Seat .................................................................................... 2-7
Seat Belt Systems
......................................................................... 2-10
Seat Belt Precautions ............................................................... 2-10
3-Point Type Seat Belt ............................................................. 2-13
Front Seat Belt Pretensioner and Load Limiting Systems ...... 2-15
Rear Center Position Seat Belt ................................................ 2-17
Seat Belt Extender ................................................................... 2-19
Seat Belt Warning Light .......................................................... 2-20
Child Restraint
............................................................................ 2-21
Child Restraint Precautions ..................................................... 2-21
Installing Child-Restraint Systems .......................................... 2-24
LATCH Child-Restraint Systems ............................................ 2-29
SRS Air Bags
............................................................................... 2-33
Supplemental Restraint Systems (SRS) Precautions ............... 2-33
Air Bag System Description .................................................... 2-38
shuseizumi_J56J_8R29_EA_02I.book Page 1 Wednesday, October 16, 2002 9:51 AM

2-2
Essential Safety Equipment
Form No. 8R29-EA-02I
Seats
(Manually operated seats)

(Electrically operated seats)

The seat-bottom tilt, seat height, seat
slide, and seat recline can be electrically
adjusted. Move them to the desired
positions by using the switch on the seat’s
lower side.

Seat Slide
(Manually operated seats)

To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward. Front Seats
Securing the Seats:Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
•
The seat-bottom power adjustment
is operated by motors. Avoid
extended operation because
excessive use can damage the
motors.
•
To prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a great
amount of electric power.
•
Don’t use the switch to make more
than one adjustment at a time.
WARNING
CAUTION
Driver’s Seat Adjustment:Adjusting the driver’s seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver’s seat only when the vehicle is
stopped.
WARNING
Lever
shuseizumi_J56J_8R29_EA_02I.book Page 2 Wednesday, October 16, 2002 9:51 AM

2-3
Essential Safety Equipment
Seats
Form No. 8R29-EA-02I
(Electrically operated seats)

To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Seat Recline
Slide lifter switch
Reclining:Sitting in a reclined position while the
vehicle is moving is dangerous
because you don’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Unlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
WARNING
shuseizumi_J56J_8R29_EA_02I.book Page 3 Wednesday, October 16, 2002 9:51 AM

2-4
Essential Safety Equipment
Seats
Form No. 8R29-EA-02I
(Manually operated seats)

To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.(Electrically operated seats)

Change the seatback angle by pressing the
front or rear side of the reclining switch.
When the seatback is at the desired angle,
release the switch.

Seat Height Adjustment (Driver’s
Seat)
(Manually operated seats)

To raise the seat, pull up the lever. Release
the lever at the desired position.
To lower the seat, push down the lever.
Release the lever at the desired position. When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Lever
CAUTION
Reclining switch
Up
Down
Lever
shuseizumi_J56J_8R29_EA_02I.book Page 4 Wednesday, October 16, 2002 9:51 AM

2-5
Essential Safety Equipment
Seats
Form No. 8R29-EA-02I
(Electrically operated seats)

Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.Height adjustment
Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.
Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.

Lumbar Support Adjustment
(Driver’s Seat)
To adjust the lumbar support, pull the
lever forward.
Switch
Switch
Switch
Lever
shuseizumi_J56J_8R29_EA_02I.book Page 5 Wednesday, October 16, 2002 9:51 AM

2-6
Essential Safety Equipment
Seats
Form No. 8R29-EA-02I

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.

Seat Warmer
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Head Restraints Adjustment:Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
ON
OFF
