Fig. 193: Checking Harness And Connector (Luggage Room J/B -Smoke Sensor)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE LUGGAGE ROOM J/B ECU
CIRCUIT DESCRIPTION
The intelligent swing register is controlled by the A/C amplifier. It is activated by selecting FACE or BI-
LEVEL on the mode select switch and turning the swing register switch on.
WIRING DIAGRAM

WIRING DIAGRAM
Fig. 47: Stereo Component Amplifier Assy Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.INSPECT STEREO COMPONENT AMPLIFIER ASSY (+B, +B2, ACC, GND, E)
a. Disconnect the stereo component amplifier assy connector S29, S30.
b. Measure the resistance according to the value (s) in the table below.
TESTER CONNECTION CONDITION CHART
Tester connectionConditionSpecified condition
GND - Body groundAlwaysBelow 1 ohms
E - Body groundAlwaysBelow 1 ohms

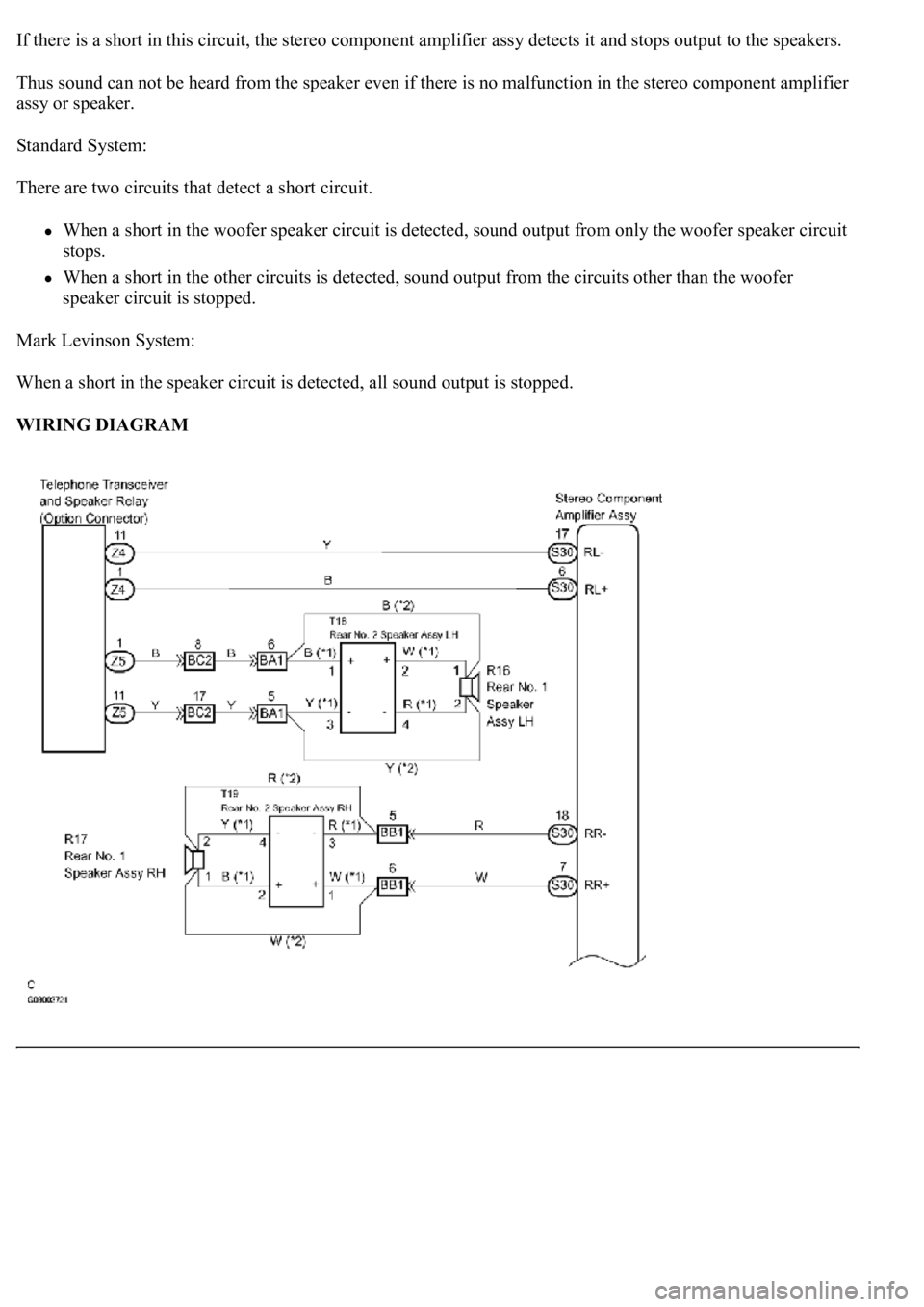

If there is a short in this circuit, the stereo component amplifier assy detects it and stops output to the speakers.
Thus sound can not be heard from the speaker even if there is no malfunction in the stereo component amplifier
assy or speaker.
Standard System:
There are two circuits that detect a short circuit.
When a short in the woofer speaker circuit is detected, sound output from only the woofer speaker circuit
stops.
When a short in the other circuits is detected, sound output from the circuits other than the woofer
speaker circuit is stopped.
Mark Levinson System:
When a short in the speaker circuit is detected, all sound output is stopped.
WIRING DIAGRAM

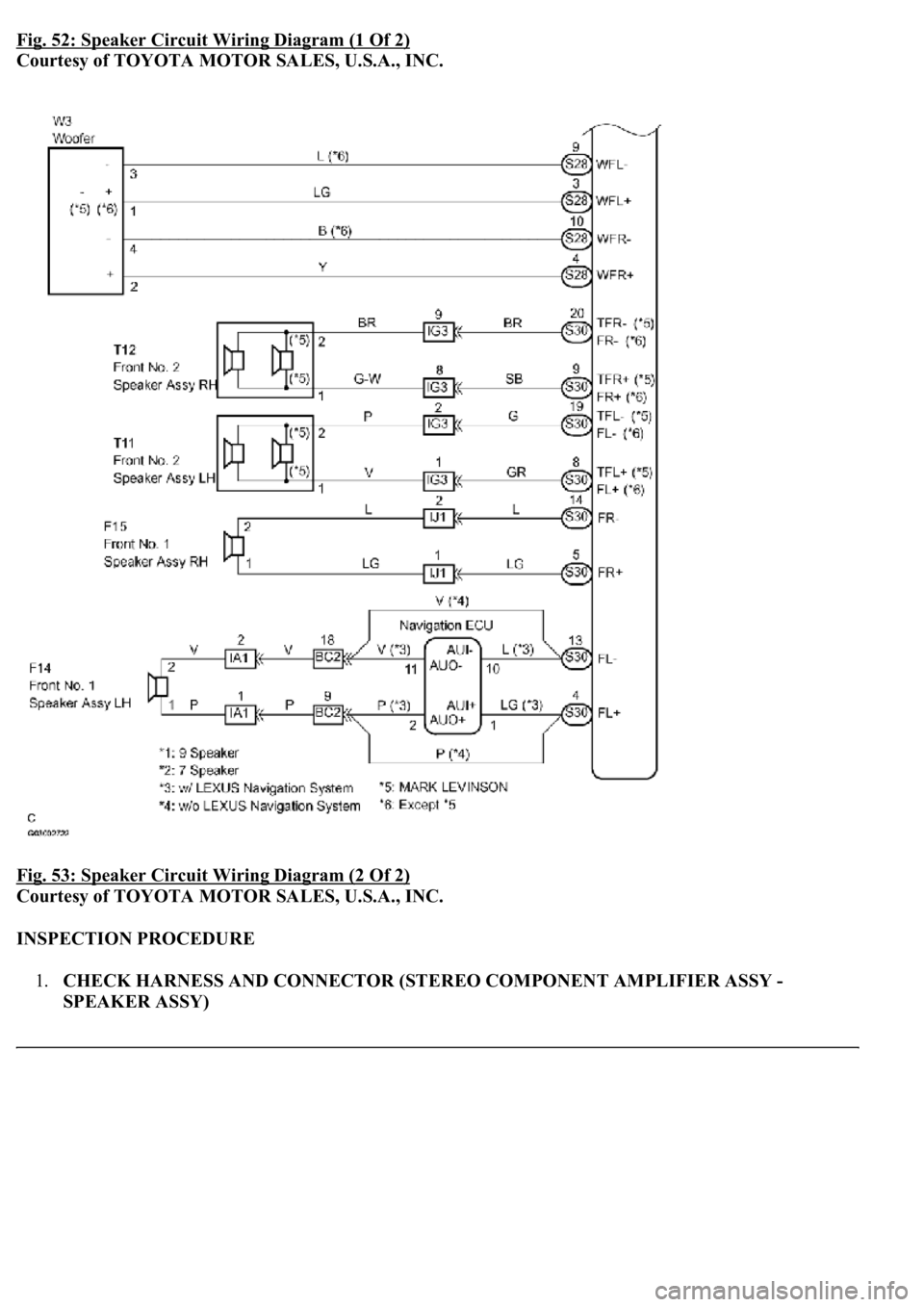

Fig. 52: Speaker Circuit Wiring Diagram (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 53: Speaker Circuit Wiring Diagram (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSY -
SPEAKER ASSY)

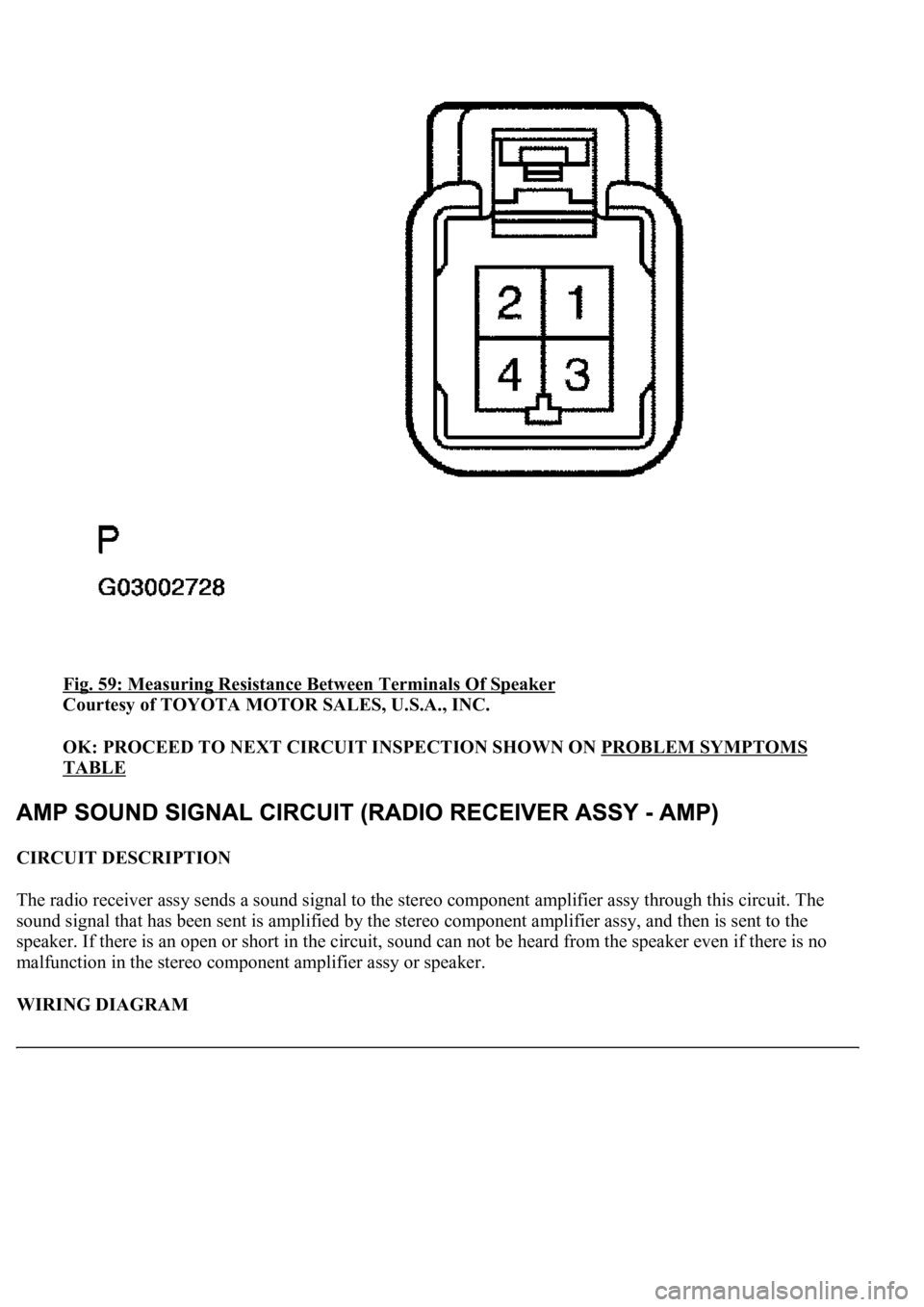

Fig. 59: Measuring Resistance Between Terminals Of Speaker
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The radio receiver assy sends a sound signal to the stereo component amplifier assy through this circuit. The
sound signal that has been sent is amplified by the stereo component amplifier assy, and then is sent to the
<0056005300480044004e0048005500110003002c004900030057004b0048005500480003004c00560003004400510003005200530048005100030052005500030056004b0052005500570003004c005100030057004b004800030046004c00550046005800
4c0057000f0003005600520058005100470003004600440051[<00030051005200570003004500480003004b00480044005500470003004900550052005000030057004b004800030056005300480044004e00480055000300480059004800510003004c004900030057004b0048005500480003004c005600030051005200
03[
malfunction in the stereo component amplifier assy or speaker.
WIRING DIAGRAM

Fig. 60: Identifying Radio Receiver Assy - Amp Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (RADIO RECEIVER ASSY - STEREO COMPONENT
AMPLIFIER ASSY)
a. Disconnect the connectors from the radio receiver assy R2 and stereo component amplifier assy
S29.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION CONDITION CHART
Tester connectionSpecified condition
L+ (R2) - L+ (S29)Below 1 ohms
L- (R2) - L- (S29)Below 1 ohms
R+ (R2) - R+ (S29)Below 1 ohms
R- (R2) - R- (S29)Below 1 ohms
L+ (R2 or S29) - Body ground10 kohms or higher
L- (R2 or S29) - Body ground10 kohms or higher
R+ (R2 or S29) - Body ground10 kohms or higher
R- (R2 or S29) - Body ground10 kohms or higher

Fig. 63: Identifying Stereo Components Amplifier
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The stereo component tuner sends a sound signal to the radio receiver assy through this circuit.
WIRING DIAGRAM

WIRING DIAGRAM
Fig. 67: Identifying Stereo Component Amplifier Assy Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECTION PROCEDURE
1.CHECK HARNESS AND CONNECTOR (STEREO COMPONENT AMPLIFIER ASSY -
COMBINATION METER ASSY)
a. Disconnect the connectors from the stereo component amplifier assy S29 and combination meter
assy C12.
b. Measure the resistance according to the value (s) in the table below.
Standard:
TESTER CONNECTION CONDITION CHART
Tester connectionConditionSpecified condition
SPD - +SAlwaysBelow 1 ohms
SPD - Body groundAlways10 kohms or higher
