2003 LEXUS LS430 tow

FORD MOTOR CO.
FORD MOTOR CO. - DOMESTIC CARS
1990On Left Fender Front Panel, Near SBEC
1991-92On Left Front Fender Panel, Near Shock
Tower
1993-94Near Battery
Spirit & Sundance
1985-87On Right Front Shock Tower
1989-90Under Left Side Of Dash
1991-92On Left Front Fender Panel, Near Shock
Tower
1993-94Near Battery
1995Behind Left Side Of Dash, Near Fuse Block
Talon
1990-94Above Left Kick Panel, Near Fuse Block
1995-98Under Left Side Of Dash, Near Center
Console
ApplicationConnector Location
Bobcat & PintoOn Center Of Right Fender Apron
Capri
1980-85On Center Of Left Front Fender Apron
1986On Left Rear Corner Of Engine Compartment
Continental
1984-89On Right Rear Corner Of Engine Compartment
1990-91On Right Rear Corner Of Firewall, On Electronic Assembly
Cover
1992On Right Fender Apron
1993-94VIP Connectors (2) On Right Rear Of Engine Compartment,
On PCM Cover
Contour & Mystique
1995On Left Rear Corner Of Engine Compartment
Cougar & Thunderbird
1982-90On Left Fender Apron
1991On Rear Of Right Front Fender Panel
1992Front Of Right Shock Tower
19932 Connectors In Right Rear Corner Of Engine Compartment

1994On Right Side Of Engine Compartment & Below Glove Box

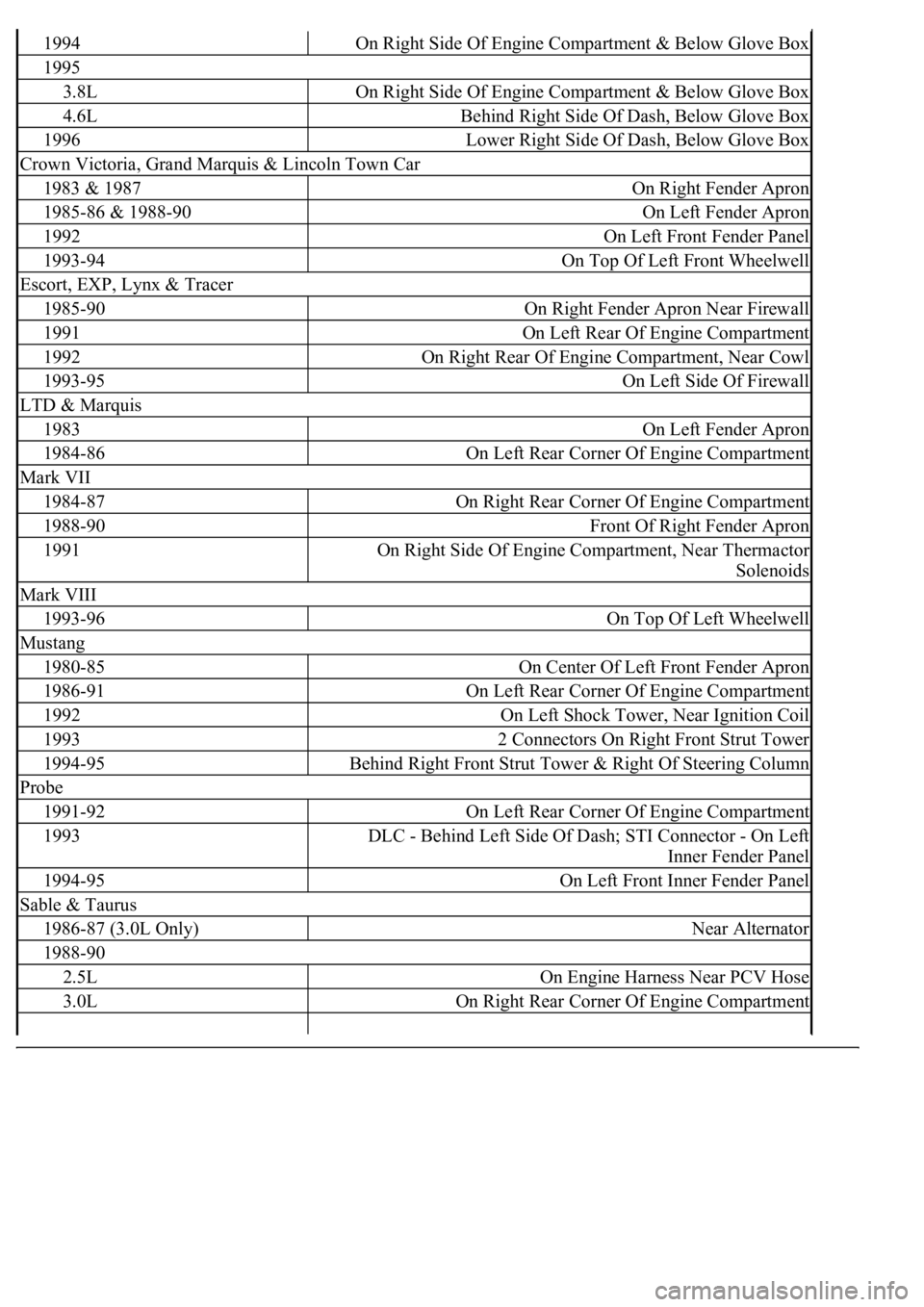

1995
3.8LOn Right Side Of Engine Compartment & Below Glove Box
4.6LBehind Right Side Of Dash, Below Glove Box
1996Lower Right Side Of Dash, Below Glove Box
Crown Victoria, Grand Marquis & Lincoln Town Car
1983 & 1987On Right Fender Apron
1985-86 & 1988-90On Left Fender Apron
1992On Left Front Fender Panel
1993-94On Top Of Left Front Wheelwell
Escort, EXP, Lynx & Tracer
1985-90On Right Fender Apron Near Firewall
1991On Left Rear Of Engine Compartment
1992On Right Rear Of Engine Compartment, Near Cowl
1993-95On Left Side Of Firewall
LTD & Marquis
1983On Left Fender Apron
1984-86On Left Rear Corner Of Engine Compartment
Mark VII
1984-87On Right Rear Corner Of Engine Compartment
1988-90Front Of Right Fender Apron
1991On Right Side Of Engine Compartment, Near Thermactor
Solenoids
Mark VIII
1993-96On Top Of Left Wheelwell
Mustang
1980-85On Center Of Left Front Fender Apron
1986-91On Left Rear Corner Of Engine Compartment
1992On Left Shock Tower, Near Ignition Coil
19932 Connectors On Right Front Strut Tower
1994-95Behind Right Front Strut Tower & Right Of Steering Column
Probe
1991-92On Left Rear Corner Of Engine Compartment
1993DLC - Behind Left Side Of Dash; STI Connector - On Left
Inner Fender Panel
1994-95On Left Front Inner Fender Panel
Sable & Taurus
1986-87 (3.0L Only)Near Alternator
1988-90
2.5LOn Engine Harness Near PCV Hose
3.0LOn Right Rear Corner Of Engine Compartment

GENERAL MOTORS
GENERAL MOTORS - DOMESTIC CARS
1991On Right Rear Corner Of Engine Compartment, On ECA
Cover
1992On Right Rear Corner Of Engine Compartment, Below MAP
Sensor
1993-95Right Rear Of Engine Compartment
Tempo & Topaz
1984-92On Right Rear Corner Of Engine Compartment
1993-94In Engine Compartment, On Left Strut Tower
ApplicationConnector Location
AllanteEnter Diagnostic Mode By Pressing OFF & WARM Buttons
On Instrument Panel
Bonneville (1980-81)ECU Connector On Upper Right Kick Panel
Brougham (1987-92)Bottom Center Of Instrument Panel
Camaro & Firebird (1980)Diagnostic Ground Lead Connector On Right Shroud Above
ECM
Caprice Classic
1980-81ECU Connector On Upper Right Kick Panel
1982-88Under Center Of Instrument Panel
CatalinaECU Connector On Upper Right Kick Panel
Cavalier (1982-88)On Side Of Fuse Block
CimarronOn Side Of Fuse Block
CenturyUnder Left Of Dash Ashtray
Corvette (1980-83)In Center Console, Under Ashtray
Custom Cruiser
1980-81ECU Connector On Upper Right Kick Panel
1982-88Under Center Of Instrument Panel
DeVille (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
Delta 88ECU Connector On Upper Right Kick Panel
Eldorado (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
Electra (1980-81)ECU Connector On Upper Right Kick Panel
Estate WagonECU Connector On Upper Right Kick Panel
FieroUnder Ashtray Or Cigar Lighter Panel Within Center Console
FirenzaOn Side Of Fuse Block

CHRYSLER GROUP LLC
Fleetwood (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
Fleetwood BroughamOn Bottom Center Of Dash, Near Ashtray
Impala (1982-88)Under Center Of Instrument Panel
LeMansECM Connector On Right Kick Panel Or Under Left Side Of
Dash
LeSabre (1980-81)ECU Connector On Upper Right Kick Panel
LeSabre Wagon (1982-88)Under Center Of Instrument Panel
MonzaUnder Right Side Of Dash
Ninety-Eight (1980-81)ECU Connector On Upper Right Kick Pane
NovaBehind Right Strut Tower
ParisienneUnder Center Of Instrument Panel
Reatta
1988-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
1991-93Above Parking Brake Pedal
Riviera
1980-85 (Carbureted)Under Left Or Center Of Dash
1986-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
SafariUnder Center Of Instrument Panel
Seville (1981-88)Enter Diagnostic Mode By Pressing OFF & WARMER
Buttons On Instrument Panel
SkyhawkUnder Right Side Of Dash
StarfireUnder Right Side Of Dash
SunbirdOn Side Of Fuse Block, Under Right Side Of Dash
Toronado
1980-85 (Carbureted)Under Left Or Center Of Dash
1986-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
Trofeo
1988-92 (MFI)Enter Diagnostic Mode By Pressing OFF & WARM
Buttons On Instrument Panel
1991-93Above Parking Brake Pedal
2000On Side Of Fuse Block

CHRYSLER GROUP LLC - DOMESTIC LIGHT TRUCKS & VANS
FORD MOTOR CO.
FORD MOTOR CO. - DOMESTIC LIGHT TRUCKS & VANS
ApplicationConnector Location
Caravan, Grand Caravan, Grand Voyager, Mini Ram Van, Town & Country, & Voyager
1984-92On Left Side Fender Apron
1993On Left Fender Front Fender Panel, Near SBEC
1994-95On Wiring Harness, On Center Of Firewall
Dakota
1987-88On Right Side Fender Apron
1989On Left Side Of Firewall
1990-92On Right Side Of Firewall
1993-95On Right Rear Corner Of Engine Compartment
Jeep
Cherokee (1992-95)On Left Front Fender Apron, Behind Air Cleaner
ComancheOn Left Front Fender Apron, Behind Air Cleaner
Grand Cherokee & Wagoneer
1993-95
PCMOn Right Rear Of Engine Compartment,
Near PCM
TCMBehind Left Side Of Instrument Panel
Wrangler (1992-95)On Left Side Of Firewall, Near PCM
Pickup & Ramcharger
1985-90On Left Side Of Firewall
1991-93On Left Front Fender Panel, Next To
SBEC/PCM
1995 PickupOn Right Side Of Firewall
Ram Wagon & Van
1985-90On Left Side Of Firewall
1991-95On Center Of Firewall, Near SBEC/PCM
ApplicationConnector Location
Aerostar
1986-90On Left Front Fender
1991Near Starter Relay
1992On Left Front Inner Fender Panel
1993-95On Left Side Of Firewall

DAIHATSU
DAIHATSU - IMPORTED CARS & TRUCKS
CHRYSLER GROUP LLC
CHRYSLER GROUP LLC - IMPORTED CARS & TRUCKS
1992-95Outside Of Engine Compartment
Fuse/Relay Block
528eOn Intake Manifold Bracket, Behind
Thermostat Housing
635CSiOn Bracket, Next To Fuse/Relay Block
735i
1986-87On Bracket, On Top Of Engine
1988-92On Right Side Of Engine
Compartment, On Shock Tower
740 & 750Under Left Side Of Dash, Behind Panel
Labeled OBD
740i & 740iL (1993-01)Behind Cover On Lower Left Corner Of
A/C Control Panel
750iLBehind Cover On Lower Left Corner Of
A/C Control Panel
ApplicationConnector Location
CharadeAt Upper Section Of Transmission
RockyOn Right Front Fender Panel
ApplicationConnector Location
Colt & Summit
1986-87Above Inside Of Glove Compartment
1988On Left Rear Corner Of Engine
Compartment
1989-98Under Left Side Of Dash, Near Fuse/Relay
Block
Colt Vista
1987Behind Glove Compartment

GENERAL MOTORS
GENERAL MOTORS & GEO - IMPORTED CARS & TRUCKS
Compartment
1.6LOn Right Rear Corner Of Engine
Compartment
1993-94On Right Rear Corner Of Engine
Compartment
Festiva
1992-93
1.3LOn Left Rear Corner Of Engine
Compartment
1.6LOn Right Rear Corner Of Engine
Compartment
Merkur XR4TiOn Right Front Fender Apron, Near Battery
ScorpioOn Right Rear Corner Of Engine Compartment
TracerOn Left Rear Corner Of Engine Compartment
ApplicationConnector Location
LeMansBehind Right Kick Panel, Above ECM
Metro
1989-95Under Left Side Of Dash, Near Fuse Block
1996Under Right Side Of Dash, Near Center
Console
1997-01Under Left Side Of Dash
Prizm & Prizm LSi
1989-95On Left Front Strut Tower
1996-02Under Left Side Of Dash
SpectrumUnder Right Side Of Dash, Above A/C-Heater
Blower Motor
SprintOn Left Front Shock Tower, Near Battery
Storm
1990-91Behind Right Side Of Dash, Above A/C-
Heater Blower Motor
1992-93Behind Right Kick Panel
Tracker
1989-95Under Left Side Of Dash, Near Fuse Block
1996In Engine Compartment, Near MAP Sensor
1997-Under Left Side Of Dash

KIA - IMPORTED CARS & TRUCKS
LAND ROVER
LAND ROVER - IMPORTED CARS & TRUCKS
LEXUS
LEXUS - IMPORTED CARS & TRUCKS
ApplicationConnector Location
Sephia
1994On Center Of Firewall
1995 & 1996
1.6LUnder Center Of Dash, Mounted On
Floorboard
2.0LUnder Right Side Of Dash, Near Kick
Panel
Sportage
1994On Center Of Firewall
1995 & 1996
1.6LUnder Center Of Dash, Mounted On
Floorboard
2.0LUnder Right Side Of Dash, Near Kick
Panel
ApplicationConnector Location
Defender 90Behind Fuse Cover, In Center Of Console
Range RoverUnder Right Side Of Dash, In Footwell
ApplicationConnector Location
ES Series
1990-91
DLCNear Left Shock Tower
