2003 LEXUS LS430 torque

Fig. 168: Installing Parking Brake Intermediate Lever Sub-Assy To Floor Panel With Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
41.INSTALL YAWRATE SENSOR
a. Install the yawrate sensor with the 2 nuts.
Torque: 14 N.m (142kgf.cm, 10 ft.lbf)

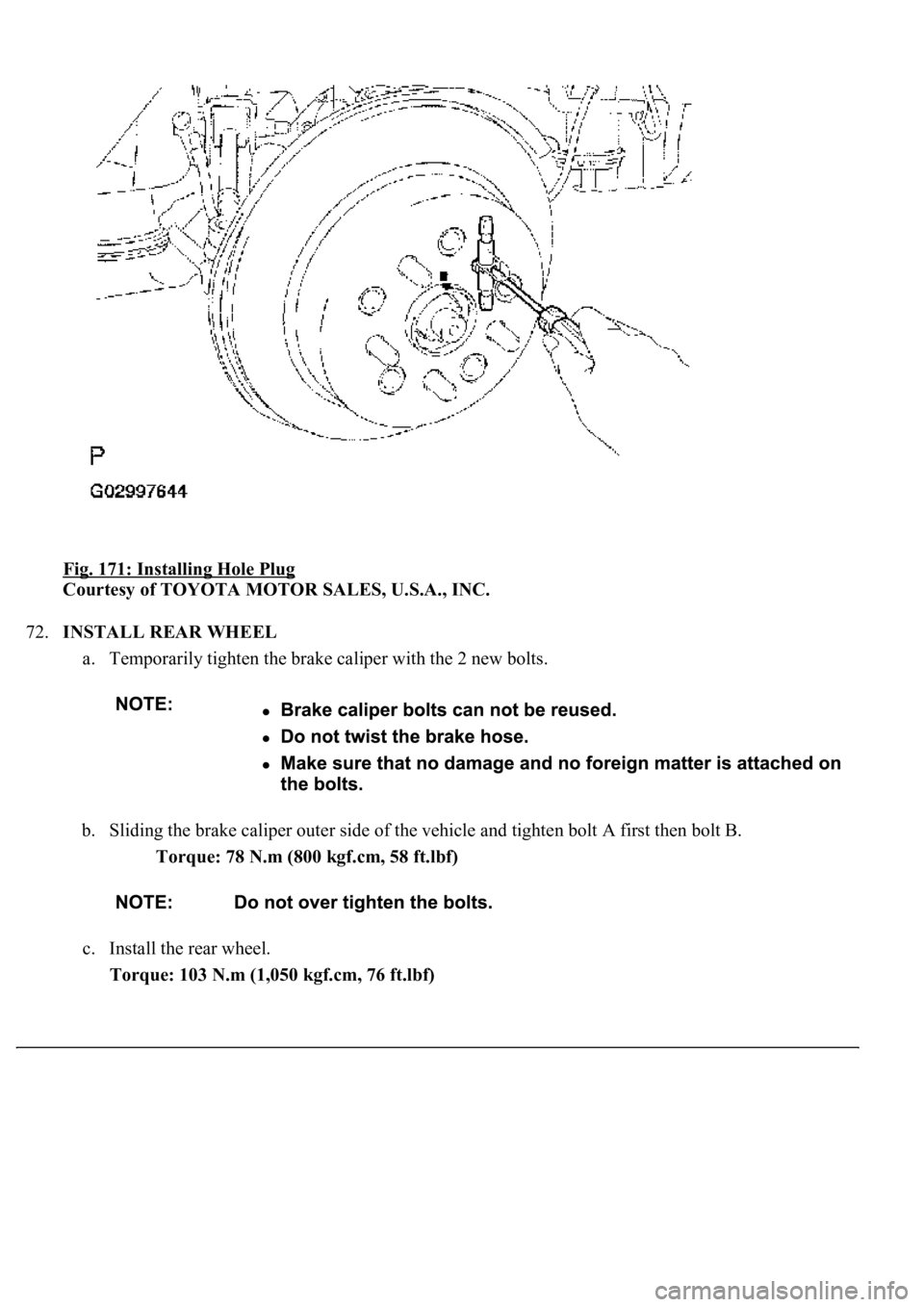

Fig. 171: Installing Hole Plug
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
72.INSTALL REAR WHEEL
a. Temporarily tighten the brake caliper with the 2 new bolts.
b. Sliding the brake caliper outer side of the vehicle and tighten bolt A first then bolt B.
Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)
c. Install the rear wheel.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

Fig. 182: Removing Bolts And Parking Brake Cable No.1 Clamp From Body
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
12.INSTALL PARKING BRAKE CABLE ASSY NO.3
a. Install the parking brake cable No.5 clamp and anchor block.
b. Install the parking brake cable No.2 clamp and No.3 clamp to the parking brake cable assy No.3.
c. Place the parking brake cable No.1 clamp to the body and tighten the 2 bolts.
Torque: 6 N.m (61 kgf.cm, 53 in.lbf)
d. Attach the parking brake cable assy No.3 to the parking brake intermediate lever sub-assy.
e. Attach the parking brake cable assy No.3 to the 2 clamps and tighten bolts A, B and C.
Torque:
Bolt A: 6 N.m (61 kgf.cm, 53 in.lbf)
Bolt B, C: 19 N.m (194 kgf.cm, 14 ft.lbf)
f. Install parking brake cable assy No.3 to the rear axle carrier with the 2 nuts.
Torque: 8 N.m (81 kgf.cm, 70 in.lbf)

Fig. 191: Installing Hole Plug
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
i.INSTALL REAR DISC BRAKE CALIPER ASSY LH
a. Temporarily tighten the brake caliper with the 2 new bolts.
b. Pulling the brake caliper towards the outer side of the vehicle and tighten bolt A first then
bolt B.
Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)

j.INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
k.INSTALL FRONT FLOOR HEAT INSULATOR NO.1 (SEE REPLACEMENT
)
l.INSTALL EXHAUST PIPE ASSY (SEE REPLACEMENT
)
m.INSTALL OXYGEN SENSOR (SEE REPLACEMENT
)
n.SETTLING PARKING BRAKE SHOES AND DISC
a. Drive the vehicle at approximately 50 km/h (31 mph) on a safe, level and dry road.
b. Depress the parking brake pedal with a force of 150 N (15 kgf.cm, 34 lbf).
c. Drive the vehicle for approximately 400 meters (0.25 mile) in this condition.
d. Repeat this procedure 2 or 3 times.
o.CHECK PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT
)
p.ADJUST PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT
)
COMPONENTS

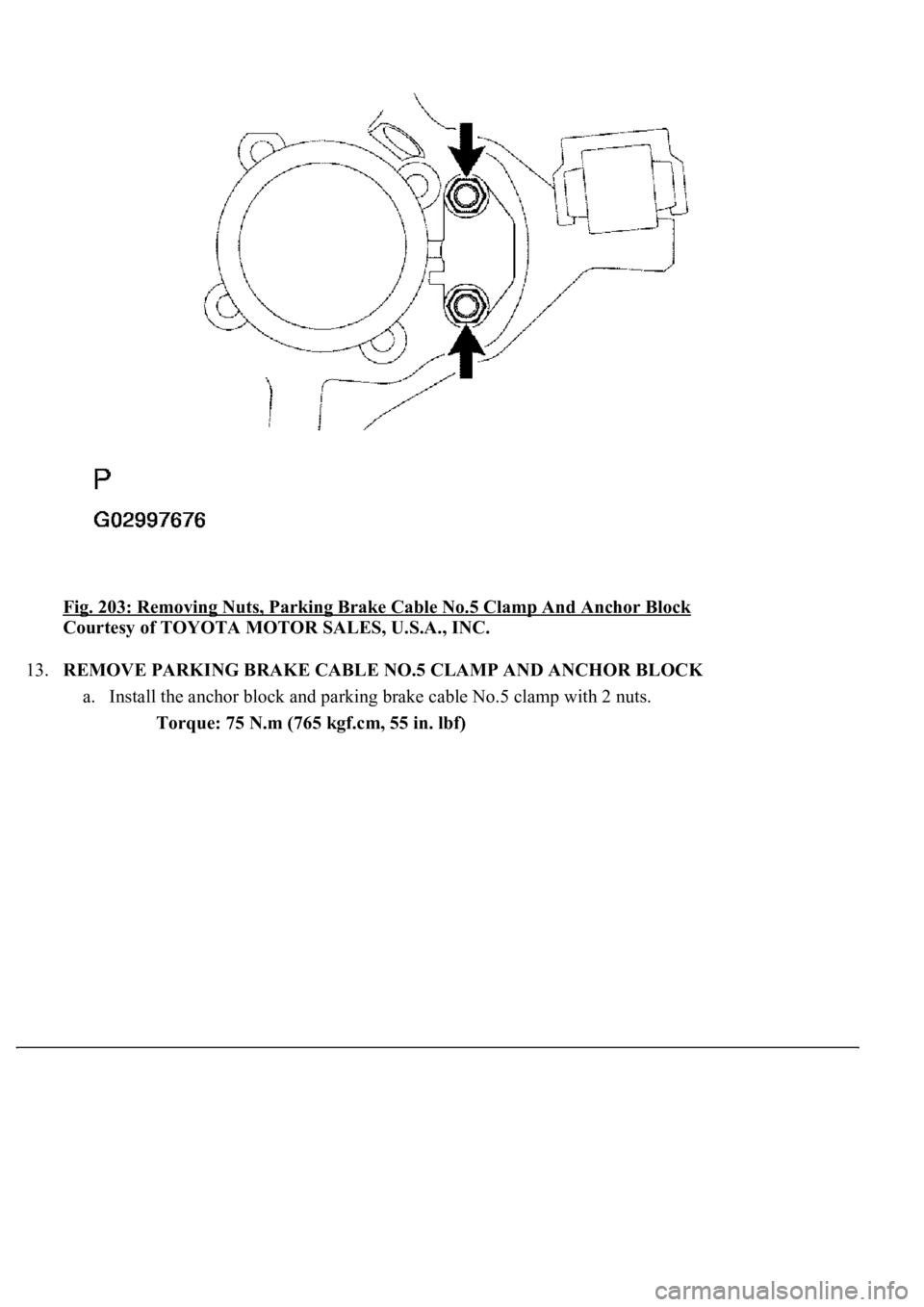

Fig. 203: Removing Nuts, Parking Brake Cable No.5 Clamp And Anchor Block
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
13.REMOVE PARKING BRAKE CABLE NO.5 CLAMP AND ANCHOR BLOCK
a. Install the anchor block and parking brake cable No.5 clamp with 2 nuts.
Torque: 75 N.m (765 kgf.cm, 55 in. lbf)

Fig. 212: Installing Hole Plug
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
22.INSTALL REAR DISC BRAKE CALIPER ASSY LH
a. Temporarily tighten the brake caliper with the 2 new bolts.
b. Pulling the brake caliper towards the outer side of the vehicle and tighten bolt A first then bolt B.
Torque: 78 N.m (800 kgf.cm, 58 ft.lbf)

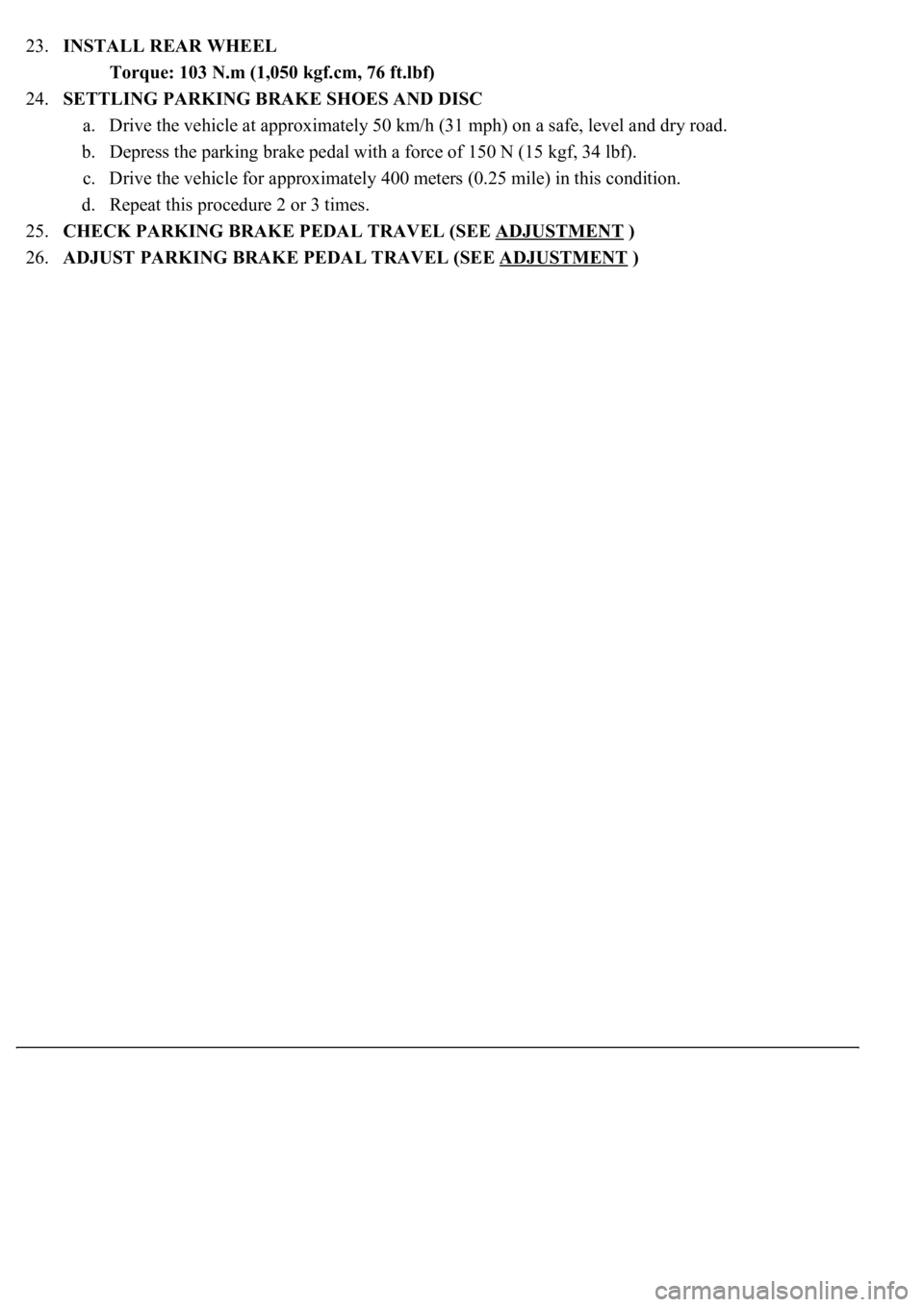

23.INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
24.SETTLING PARKING BRAKE SHOES AND DISC
a. Drive the vehicle at approximately 50 km/h (31 mph) on a safe, level and dry road.
b. Depress the parking brake pedal with a force of 150 N (15 kgf, 34 lbf).
c. Drive the vehicle for approximately 400 meters (0.25 mile) in this condition.
d. Repeat this procedure 2 or 3 times.
25.CHECK PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT
)
26.ADJUST PARKING BRAKE PEDAL TRAVEL (SEE ADJUSTMENT
)
