CONTROLS AND EQUIPMENT1- 7

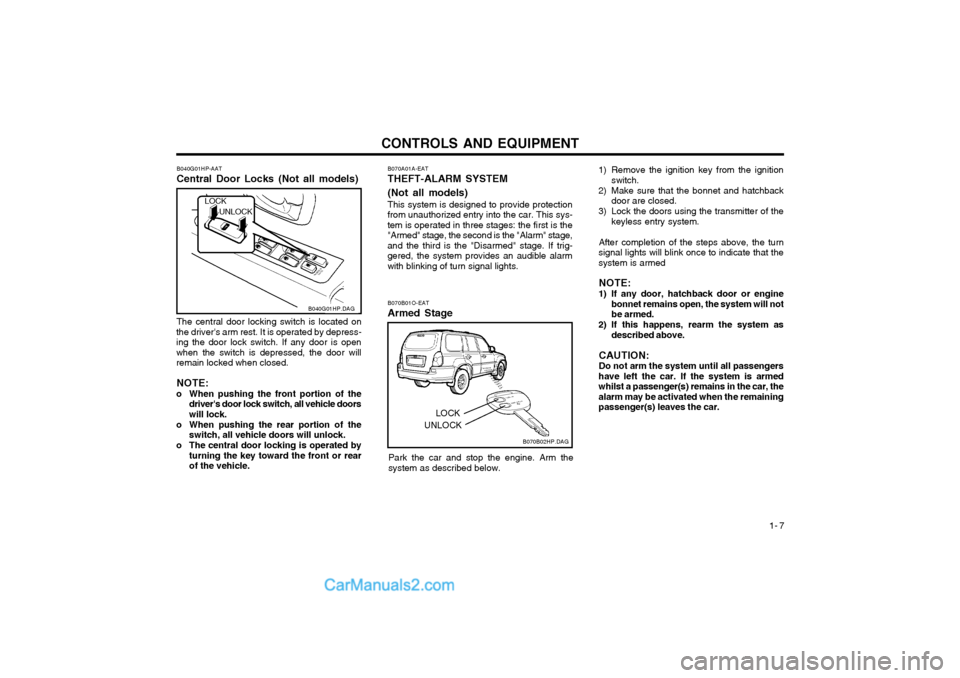

B070A01A-EAT THEFT-ALARM SYSTEM (Not all models) This system is designed to provide protection
from unauthorized entry into the car. This sys- tem is operated in three stages: the first is the"Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If trig-gered, the system provides an audible alarmwith blinking of turn signal lights.
B070B01O-EAT Armed Stage
B070B02HP.DAG
Park the car and stop the engine. Arm the
system as described below.
UNLOCK LOCK
B040G01HP-AAT Central Door Locks (Not all models)
The central door locking switch is located on
the driver's arm rest. It is operated by depress- ing the door lock switch. If any door is openwhen the switch is depressed, the door willremain locked when closed.
NOTE:
o When pushing the front portion of the driver's door lock switch, all vehicle doorswill lock.
o When pushing the rear portion of the switch, all vehicle doors will unlock.
o The central door locking is operated by turning the key toward the front or rearof the vehicle.
B040G01HP.DAG 1) Remove the ignition key from the ignition
switch.
2) Make sure that the bonnet and hatchback door are closed.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the system is armed
NOTE:
1) If any door, hatchback door or engine bonnet remains open, the system will notbe armed.
2) If this happens, rearm the system as described above.
CAUTION:Do not arm the system until all passengers
have left the car. If the system is armedwhilst a passenger(s) remains in the car, thealarm may be activated when the remainingpassenger(s) leaves the car.
LOCK
UNLOCK

CONTROLS AND EQUIPMENT
1- 8
B070D01HP-EAT Disarmed StageThe system will be disarmed when the driver's or passenger's door is unlocked by depressingthe "UNLOCK" button on the transmitter. After completion of the step above, the turn signal lights will blink twice to indicate that thesystem is disarmed. If any door, hatchback door or engine bonnet is not opened within 30 seconds, the system willbe rearmed. CAUTION: Only the transmitter can disarm the armed stage. If the transmitter does not disarm thesystem, it is necessary to take the followingsteps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" posi- tion.
3. Wait for 30 seconds. After completion of the steps above, the system will be disarmed.
B070C01HP-EAT Alarm Stage
B070F01A-EATKeyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit- ter.
2. At the same time all doors unlock, the turn signal lights will blink twice to indicate thatthe system is disarmed.
B070C01HP
The alarm will be activated if any of the follow-
ing occurs whilst the car is parked and the system is armed.
1) A front or rear door is opened without using the transmitter.
2) The hatchback door is opened without using the transmitter.
3) The engine bonnet is opened.
The siren will sound and the turn signal lights
will blink continuouly for 27 seconds. To turn off the system, unlock the door or hatchback doorwith the transmitter.
CAUTION: Avoid trying to start the engine whilst the
system is armed.

CONTROLS AND EQUIPMENT1- 9
B060A03L-DAT POWER WINDOWS
B060A01HP.DAG
(1)
(2)
The power windows operate when the ignition
key is in the "ON" position. The main switches are located on the driver's armrest and controlthe front and rear windows on both sides of thevehicle. The windows may be opened by de-pressing the appropriate window switch andclosed by pulling up the switch. To open thewindow on the driver's side, press the switch(1)halfway down. The window moves as long asthe switch is operated. To fully open the driver'swindow automatically, press the switch fullydown. In automatic operation, the window willfully open even if you let go of the switch. Tostop at the desired opening, pull up and re-lease the switch. In order to prevent operationof the passanger front and rear windows, awindow lock switch(2) is provided on the arm-rest of the driver's door. To disable the powerwindows, press the window lock switch. To
B070E02HP-GAT Replacing the batteryWhen the transmitter's battery begins to get
weak, it may take several pushes on the button to lock or unlock the doors, and the LED will notlight. Replace the battery as soon as possible.
Battery type : CR1616 Replacement instructions:
1. Carefully separate the case with a phillips screwdriver. 2. Take off the battery cover after separating
the transmitter.
3. Remove the old battery from the transmitter with a blade screwdriver inserted in the hole and note the polarity. Make sure the polarityof the new battery is the same(+side facingup), then insert it in the transmitter.
HMXOM033-2
Transmitter
Case
HMXOM033-3Battery
Hole
Battery cover

CONTROLS AND EQUIPMENT
1- 10
ZB060A8-E Front Seat Fore/Aft Adjustment
B080B01HP-D
Front seat fore/aft adjustment is facilitated by turning the lever located on the front centre ofthe seat base and sliding the seat forwards orbackwards as required. When the seat is at the desired position, re- lease the lever and ensure that the lockingmechanism is engaged by rocking the seat toand fro. WARNING:
o Seat adjustment should not be made whilst the vehicle is in motion since loss of control of the vehicle may occur.
o To ensure the seat is locked securely, attempt to move the seat forward or rear-ward without using the lock release le-ver.
SB070A1-E FRONT SEAT ADJUSTMENT WARNING:
Front seat adjustments must not be under- taken whilst the vehicle is in motion. Loss ofcontrol of the vehicle may result if seat ad-justments are made whilst the vehicle is inmotion.
B060A02HP.DAG
revert to normal operation, press the window lock switch a second time.
NOTE:The power windows can be operated for 30seconds after the ignition key is turned to the"ACC" or "LOCK" positions, or removed fromthe ignition switch.If the front doors are opened during this 30second period, the power windows can nolonger be operated without the ignition keyturned to the "ON" position. (2) Never try to operate the main switch on
the driver's door and the individual doorwindow switch in opposing directionsat the same time. If this is done, thewindow will stop and cannot be openedor closed.
(3) Do not leave children alone in the car. Always remove the ignition key for theirsafety.
WARNING:
(1) Be careful that someone's head, hands and body are not trapped by a closingwindow.

CONTROLS AND EQUIPMENT1- 11
To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner control lever at the outside edge of the seat.Now lean back until the desired seatback angleis achieved. To lock the seatback into position,release the recliner control lever.
WARNING: To minimize risk of personal injury in event
of a collision or sudden stop, both the driver and passenger seatbacks should always bein a nearly upright position whilst the ve-hicle is in motion. The protection providedby the seat belts and airbags may be re-duced significantly when the seatbacks arereclined. There is greater risk that the pas-senger will slide under the belt resulting inserious injury when the seatbacks are re-clined. ZB060C1-E Adjusting Seatback Angle
B080C01HP.DAG
To adjust the lumbar support, turn the handle on the inboard side of the seat. To increase theamount of lumbar support, pull the lever for-ward. To decrease it, push the lever toward therear.
B080D02L-EAT Adjustable Headrests (Not all models) Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it,
push it down whilst pressing the lock knob.
If equipped with a horizontally adjustable type
of headrest, pull on the top.
WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjust- ed so the top of the headrest is at thesame height as the top of the occupant'sears. The use of a cushion that holds thebody away from the seatback is not rec-ommended.
o Do not operate the vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of an B080E01A-EAT Driver's Seat Lumbar Support Control
(Not all models)
B080E01HP.DAG
B080D01HP
Lock knob accident. Headrests may provide protec- tion against severe neck injuries whenproperly adjusted.

CONTROLS AND EQUIPMENT
1- 12
YB060F4-A Seat Cushion Height Adjustment (Not all models) (Driver's Seat Only)
B080F01HP.DAG
To adjust the height of the seat cushion, turn
the seat cushion control knob in the appropriate direction. B090B01L-AAT Adjusting Seat Forward and RearwardPull the control knob forward or backward to move the seat forward or backward to thedesired position. Release the knob and the seatwill lock at that position.
1. Reclining Control Knob
2. Sliding and Height Adjusting Control Knob
B085B01HP-D
1
2
B090A02Y-EAT POWER DRIVER'S SEAT (Not all models) The driver's seat can be adjusted appropriately by using the control knob on the right side of theseat. Before driving, adjust the seat to theproper position so as to easily control thesteering wheel, pedals and switches on theinstrument panel. CAUTION:
Do not operate two knobs at the same time.
WARNING:
o Never attempt to adjust the seat whist the vehicle is moving. This could result in loss of control or an accident causingdeath, serious injury, or property dam-age.
o Do not sit or lean unnecessarily close to the airbag.

CONTROLS AND EQUIPMENT1- 13
B090C01Y-AAT Seat Cushion Height Adjustment Move the front portion of the control knob up or
down to raise or lower the front part of the seat cushion. Move the rear portion of the controlknob up or down to raise or lower the rear partof the seat cushion.
B085C01HP-D B080G01O-EAT UNDER TRAY (Not all models)B080G01HP.DAG
The tray is located under the front passenger seat. It is opend by pulling forward. WARNING: To avoid the possibility of injury in case of an accident or a sudden stop, the tray shouldbe kept closed when the car is in motion.B085D01HP-D
B090D01Y-AAT Adjusting Seatback Angle Rotate the upper portion of the control knob
forward or backward to recline the seatback to the desired position. Release the control knoband then the seatback will lock in that position.
WARNING: To minimize the risk of personal injury in the
event of a collision or a sudden stop, both the driver's and passenger's seatbacksshould remain in an upright position whilstthe car is in motion. The protection providedby the seat belts and airbags may be re-duced significantly when the seatbacks arereclined. There is a greater risk that the seatoccupants will slide under the belt resultingin serious injury if a crash occurs when theseatbacks are reclined. The seat belt cannotprovide full protection to an occupant if theseatback is reclined.

CONTROLS AND EQUIPMENT
1- 14
B100A01HP-EAT SEAT WARMER (Not all models) The seat warmer is provided to warm the front
seats during cold weather. With the ignition key in the "ON" position, push either of the switchesto warm the driver's seat or the passenger'sseat.
During mild weather or under conditions where
the operation of the seat warmer is not needed,keep the switches in the "OFF" position.
o The seat warmer will not operate if ambient temperature is higher than 98.6 ± 37.4°F (37 ± 3°C).
o If the seat warmer doesn't work when ambi- ent temperature is lower than 82.4 ± 37.4°F(28 ± 3.5°C), it must be checked by autho-rized dealer.
B100A01HP.EAGHHP231-2
B090A01HP-EAT REAR SEAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the headrest is at the sameheight as the top of the occupant's ears.
The use of a cushion that holds the bodyaway from the seatback is not recom-mended.
o Do not operate vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of anaccident. Headrests may provide protec-tion against severe neck injuries whenproperly adjusted. B090C01HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the headrest, and release itafter the desired seatback angle is achieved. When you recline the seatback to desired posi- tion, always be sure it has locked into position.
Seatback folding lever
B090A01HP-1
Lock
Knob
