2003 Hyundai Terracan Owner's Manual

CONTROLS AND EQUIPMENT1- 39
B300A01Y-EAT SPEEDOMETER Your Hyundai's speedometer is calibrated in
miles per hour or kilometers per hour. B300A03HP-EB290A02A-EAT COOLANT TEMPERATURE GAUGE WARNING: Never remove the radiator cap when the
engine is hot. The coolant is under pressure and could erupt and cause severe burns.Wait until the engine is cool before remov-ing the radiator cap.
The needle on the coolant temperature gauge
should stay in the normal range. If it movesacross the dial to "H" (Hot), pull over and stopas soon as possible and turn off the engine.Then open the bonnet and check the coolantlevel and the water pump drive belt. If yoususpect cooling system trouble, have your cool-ing system checked by Hyundai dealer as soonas possible.
B280A01A-AAT FUEL GAUGE The needle on the gauge indicates the approx-
imate fuel level in the fuel tank. The fuel capac- ity is given in Section 9.
B280A01HPB290A01HP
Petrol Engine
Reset Knob
B300A01HP-E
Diesel EngineReset Knob

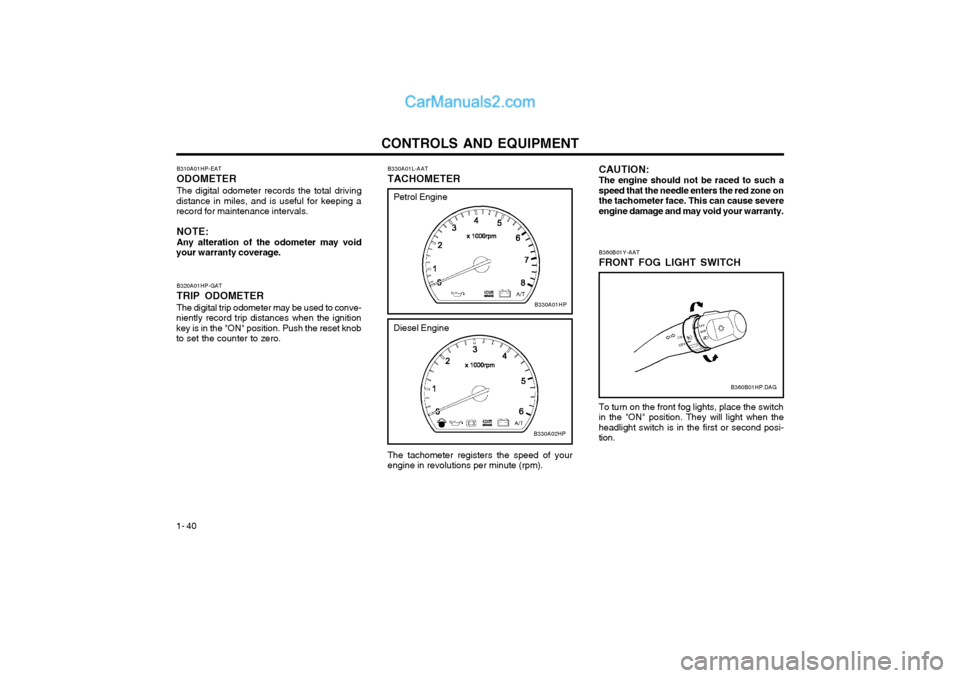

CONTROLS AND EQUIPMENT
1- 40 CAUTION: The engine should not be raced to such a speed that the needle enters the red zone onthe tachometer face. This can cause severeengine damage and may void your warranty.
B330A01L-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute (rpm).
B310A01HP-EAT ODOMETERThe digital odometer records the total driving
distance in miles, and is useful for keeping a record for maintenance intervals.
NOTE: Any alteration of the odometer may void
your warranty coverage.
B320A01HP-GAT TRIP ODOMETERThe digital trip odometer may be used to conve-
niently record trip distances when the ignition key is in the "ON" position. Push the reset knobto set the counter to zero.
B330A01HP
Petrol Engine
Diesel Engine
B330A02HP
B360B01HP.DAG
B360B01Y-AAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, place the switch in the "ON" position. They will light when theheadlight switch is in the first or second posi-tion.

CONTROLS AND EQUIPMENT1- 41
ZB120A1-E MULTI FUNCTION SWITCH Turn Signal Operation To signal an intention to turn right, the switch
lever should be pressed down. To signal an intention to turn left, the switch lever should bepushed upwards. In both instances, the turnsignal lamps on one side of the car will flashand the warning lamp located in the instrumentcluster will flash in sympathy. Upon completionof the manoeuvre, the lever will, under normalcircumstances, return to the "OFF" position.However, if the manoeuvre involved only asmall movement of the steering wheel, thesignal may need to be cancelled manually. Ifeither turn signal indicator flashes more rapidlythan normal or refuses to flash at all, a malfunc-tion of the turn signal system may exist.
B360A01HP-GAT REAR FOG LIGHT SWITCH
B360A01HP.DAG
To turn on the rear fog lights, push the switch.
They will light when the headlight switch is in the second position or the front fog light isturned on and the key is in the "ON" position.HPB220B1-E Lane Change Signal To indicate an intention to change lanes, mov-
ing the lever slightly towards the direction of the relevant turn signal will cause the turn signal lights to flash. The lever will either return auto-matically or will need to be manually moved tothe centre position when the lane change indi-cation has been completed. B340B01HP.DAG

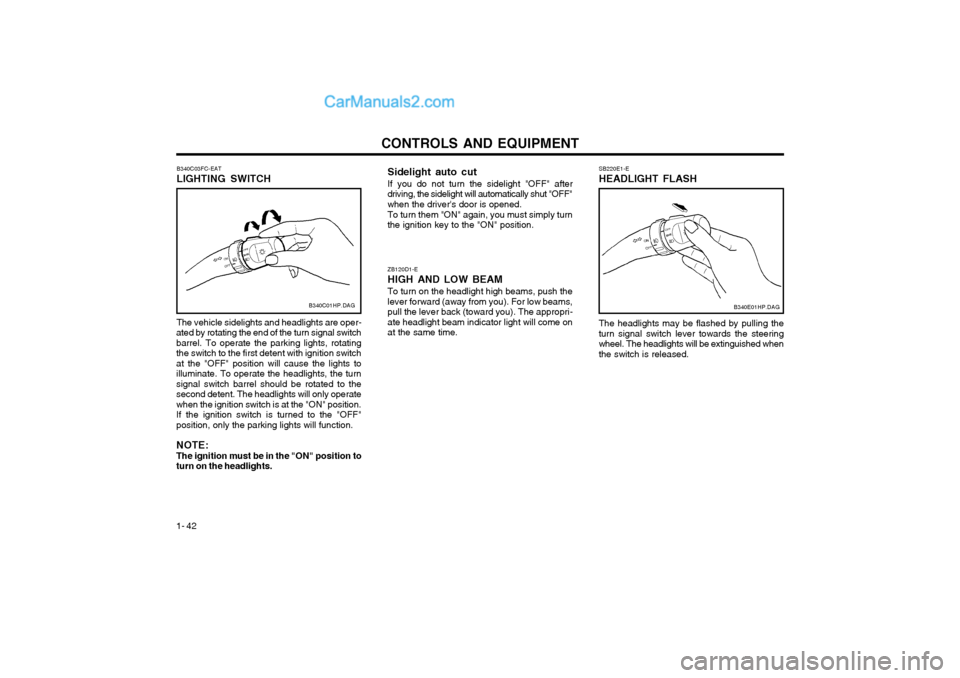

CONTROLS AND EQUIPMENT
1- 42 ZB120D1-E HIGH AND LOW BEAMTo turn on the headlight high beams, push the lever forward (away from you). For low beams,pull the lever back (toward you). The appropri-ate headlight beam indicator light will come onat the same time.
B340C03FC-EAT LIGHTING SWITCH The vehicle sidelights and headlights are oper-
ated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotatingthe switch to the first detent with ignition switchat the "OFF" position will cause the lights toilluminate. To operate the headlights, the turnsignal switch barrel should be rotated to thesecond detent. The headlights will only operatewhen the ignition switch is at the "ON" position.If the ignition switch is turned to the "OFF"position, only the parking lights will function. NOTE: The ignition must be in the "ON" position toturn on the headlights. B340C01HP.DAG
Sidelight auto cut If you do not turn the sidelight "OFF" after
driving, the sidelight will automatically shut "OFF" when the driver's door is opened.
To turn them "ON" again, you must simply turn
the ignition key to the "ON" position. SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pulling the turn signal switch lever towards the steeringwheel. The headlights will be extinguished whenthe switch is released.
B340E01HP.DAG

CONTROLS AND EQUIPMENT1- 43
ZB130A2-E WINDSCREEN WIPER ANDWASHER SWITCH The windscreen wiper switch has three posi-
tions.
1. Intermittent operation
2. Low speed operation
3. High speed operation
NOTE: To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula- tions of snow or ice. Accumulated snow andice should be removed manually. If there isonly a light layer of snow or ice, operate theheater in the defrost mode to melt the snowor ice before using the wiper. YB130B1-E WINDSCREEN WASHER OPERATION
To use the windscreen washer, pull the wiper/
washer lever toward the steering wheel. When the washer lever is operated, the wipers auto-matically make two passes across the wind-shield. The washer continues to operate untilthe lever is released.
NOTE: In winter conditions where screen washer
icing occurs, a winter screen wash additive containing an anti-freeze component maybe used. Only fluids specifically intendedfor this purpose should be used. Ensurethat undiluted additive is not spilt upon thevehicle paintwork and that engine coolantanti-freeze is not used for this purpose ordamage to the paintwork may occur. HXG199J
3
2
HXG119J
1
OFF
INT
LOW HI Mist Wiper Operation If a single wipe is desired in mist, push the
MIST operation switch at the end of the windscreen wiper and washer control lever. HXG201J

CONTROLS AND EQUIPMENT
1- 44
OB140A1-E VARIABLE INTERMITTENT WIPEFACILITY HXG198J
The variable intermittent wipe facility is operat-
ed by moving the windscreen wiper switch to the first position. The time period between wipesis adjusted by moving the rotary control on thewindscreen wiper switch barrel. This is alsovaried automatically depending on your roadspeed. NOTE:
o In icy or freezing weather, be sure the wiper blades are not frozen to the glassprior to operating the wipers.
o In areas where water freezes in winter, use windscreen washer antifreeze.
B390A01HP-EAT REAR WINDOW WIPER AND WASHER (Not all models)
B390A01HP.DAG
The rear window wiper and washer are turned on by depressing the button. Washer fluid is sprayedonto the glass as long as the " " is depressed.
1. When the "ON" position is depressed, the rear window wiper starts to operate continu-ously.
2. When the " " position is depressed, the rear window wiper starts to operate threetimes after the washer fluid sprays onto therear window.
Do not operate the washer continuously for morethan 15 seconds or when the fluid reservoir isempty; this could damage the system. Do notoperate the wiper when the window is dry; thiscan result in scratching as well as prematurewiper blade wear. For the reason stated above,do not operate the washer when the washer fluid reservoir is empty.
SB240A1-E HAZARD WARNING SYSTEM
B370A01HP.DAG
The hazard warning system should be used whenever it becomes necessary to stop the carin a hazardous location. The hazard warningsystem is operated by depressing the switch atwhich time all turn signal lights will flash simul-taneously and the turn signal warning lightslocated within the instrument cluster will flashsimultaneously. The hazard warning system may be turned off by depressing the switch again.

CONTROLS AND EQUIPMENT1- 45
SB250A1-E HEATED REAR WINDOW (Not all models)
B380A02HP
To operate the heated rear window depress the switch shown. The heated rear window willautomatically turn off after 20 minutes or whenthe ignition is turned off. The system may be turned off manually by depressing the switch again.
CAUTION:The inside of the rear windscreen shouldnever be cleaned with a hard or sharp imple-ment since damage to the heating elementmay occur. The glass should only be cleanedwith a soft cloth or chamois leather with theuse only of a mild detergent or proprietaryglass cleaner where necessary. Only hori-zontal movement of the cloth should be madewhen cleaning the glass and care should beexercised to ensure that the heating elements are not damaged by rings or jewellery whilstthe glass is being cleaned. NOTE: The ignition must be in the "ON" position forthe heated rear window to operate.
B400A01HP
B400A01HP-EAT DIGITAL CLOCK There are five control buttons for the digital
clock. Their functions are: 1. HOUR - Push "H" to advance the hour
indicated.
2. MIN - Push "M" to advance the minute
indicated.
3. RESET - Push "S" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done: Pressing "S" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "S" between 11 : 31 and 12 : 29 changes the readout to 12 : 00.
4. MODE - Push "MODE" button to display a
12- or 24-hour clock. When the 12-hour clock is in use, the letters AM or PM appear with the time.
5. - The time is displayed on the LCD by pushing in on the switch and is turned off bypushing in on the switch again.
Type A
Type B

CONTROLS AND EQUIPMENT
1- 46
B500D07O-EAT POWER OUTLET (Not all models) These supply 12V electric power to operate electric accessories or equipment only whenthe key is in the "ON" or "ACC" position.
CAUTION:Do not use the power outlet to connect elec-tric accessories or equipment other thanthose designed to operate on 12 volts.
B420A02A-EAT CIGAR LIGHTER For the cigar lighter to work, the key must be in
the "ACC" position or the "ON" position.
To use the cigar lighter, push it all the way into
its socket. When the element has heated, the lighter will pop out to the "ready" position.
Do not hold the cigar lighter pressed in. This
can damage the heating element and create afire hazard.
If it is necessary to replace the cigar lighter,
use only a genuine Hyundai replacement or itsapproved equivalent. CAUTION: Do not use electric accessories or equip-
ment other than the Hyundai genuine parts in the socket.
B420A01HP.DAG
ZB200A1-E RHEOSTAT SWITCH
The panel lamps may be dimmed by use of the
rheostat, turning the knob to decrease or in- crease the illumination intensity as required. B410A01HP.DAG
B500D01HP.DAG
