2003 Hyundai Terracan Owner's Manual

CONTROLS AND EQUIPMENT1- 71
B670C02HP-EAT Air Intake Control Switch This is used to select fresh outside air or
recirculation inside air.
To change the air intake control mode, push the
control button.
FRESH MODE ( ) : The indicator light on
the button is illuminated when the air intake control is fresh mode.
RECIRCULATION MODE ( ) : The indica-
tor light on the button is illuminated when the air
intake control is recirculation mode.
With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooledaccording to the function selected.
B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be con-
trolled manually as well as by pushing buttons other than the "AUTO" button. In this state, thesystem sequentially works according to the order of buttons selected.
The function of the buttons which are not se-
lected will be controlled automatically.
Press the "AUTO" button in order to convert to
automatic control of the system. B980B01Y-AAT Fan Speed Control
Pressing the AMB button displays the ambient
temperature on the display. The fan speed can be set to the desired speed
by pressing the appropriate fan speed control button. The higher the fan speed is, the more air is delivered. Pressing the "OFF" button turns offthe fan.
B995A01Y-AAT AMBIENT TEMPERATURE SWITCH
B995A01HPB980B01HPB980C01HP

CONTROLS AND EQUIPMENT
1- 72 B980D01Y-AAT Heating and Cooling System OffPress the "OFF" button to stop the operation of
the heating and cooling system. With the "Recirculation" mode selected, air from
within the passenger compartment will be drawn through the heating system heated or cooledaccording to the function selected. NOTE:
o It should be noted that prolonged opera- tion of the heating in "recirculation" modewill give rise to fogging of the windscreenand side windows and the air within thepassenger compartment will becomestale. In addition, prolonged use of theair conditioning with the "Recirculation"mode selected may result in the air withinthe passenger compartment becomingexcessively dry.
o When the ignition switch is turned "ON" the air intake control will be changed to"FRESH" mode (regardless of switch po-sition). This is normal operation. The airintake control operates in "AUTO" modewhen turning the ignition to the ON posi-tion if the "AUTO" mode was used beforeshutting off the engine. B980E01L-EAT Air Flow Control
B980E01HP
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, orwindscreen. Four symbols are used to repre-sent Face, Bi-Level, Floor and Floor-Defrost airposition.
Face-Level
When selecting the "Face" mode, the indicatorlight will come on, causing air to be dischargedthrough the face level vents.
B670D02HP-D
B670D03HP-D
Bi-Level
When selecting the "Bi-Level" mode, the indica- tor light will come on and the air will be dis-

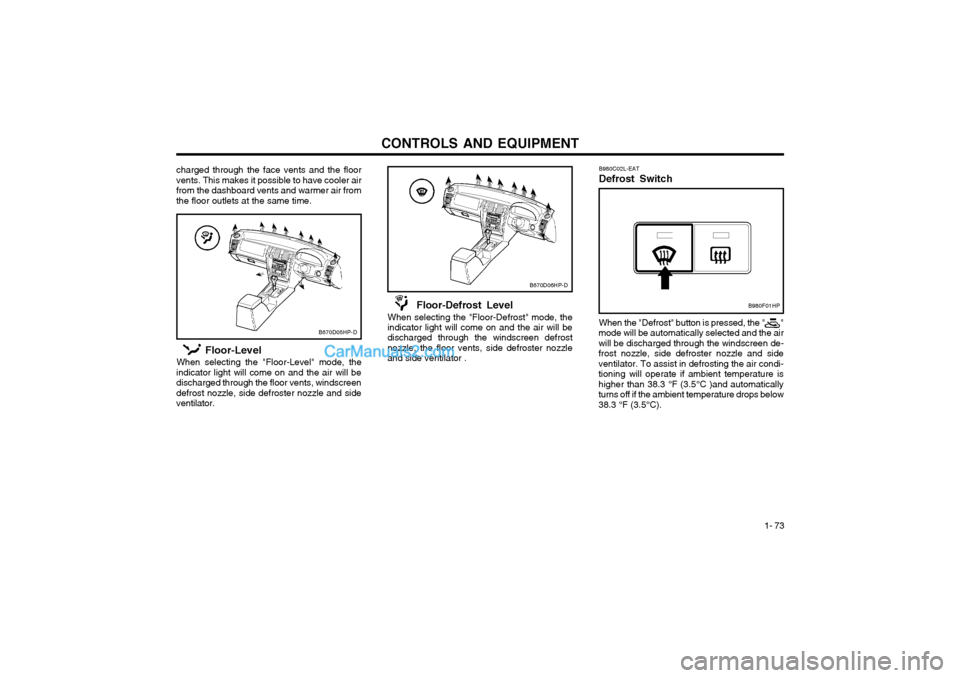

CONTROLS AND EQUIPMENT1- 73
Floor-Level
When selecting the "Floor-Level" mode, the
indicator light will come on and the air will be discharged through the floor vents, windscreendefrost nozzle, side defroster nozzle and sideventilator.
B670D05HP-D
charged through the face vents and the floor vents. This makes it possible to have cooler airfrom the dashboard vents and warmer air fromthe floor outlets at the same time.
B670D06HP-D
Floor-Defrost Level
When selecting the "Floor-Defrost" mode, the
indicator light will come on and the air will be discharged through the windscreen defrost nozzle, the floor vents, side defroster nozzleand side ventilator . B980C02L-EAT Defrost Switch
When the "Defrost" button is pressed, the " "
mode will be automatically selected and the air will be discharged through the windscreen de-frost nozzle, side defroster nozzle and sideventilator. To assist in defrosting the air condi-tioning will operate if ambient temperature ishigher than 38.3 °F (3.5°C )and automaticallyturns off if the ambient temperature drops below38.3 °F (3.5°C).
B980F01HP

CONTROLS AND EQUIPMENT
1- 74 B740D01Y-AAT Operation Tips
o If the interior of the car is hot when you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning system, keep all windows closed to keephot air out.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases enginespeed, which in turn increases the speed ofthe air conditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engine over-heating.
o During winter months or in periods when the air conditioning is not used regularly, run theair conditioning once every month for a fewminutes. This will help circulate the lubri-cants and keep your system in peak operat-ing condition.

CONTROLS AND EQUIPMENT1- 75
FM broadcasts are transmitted at high frequency and do not bend to follow the earth's surface.Because of this, FM broadcasts generally beginto fade at short distances from the station. Also,FM signals are easily affected by buildings, moun-tains, or other obstructions. These can result incertain listening conditions which might lead youto believe a problem exists with your radio. Thefollowing conditions are normal and do not indi-cate radio trouble:
Mountains
Buildings
Obstructed area
Unobstructed area
FM radio station
SSAR012A
Iron bridges
Ionosphere
SSAR011A
AM reception
AM broadcasts can be received at greater dis- tances than FM broadcasts. This is because AMradio waves are transmitted at low frequency.These long, low frequency radio waves canfollow the curvature of the earth rather thantravelling straight out into the ionosphere. Inaddition, they curve around obstructions so thatthey can provide better signal coverage.
B750A02A-AAT STEREO SOUND SYSTEM How Car Audio Works
Ionosphere
FM reception
SSAR010A
AM and FM radio signals are broadcast from transmitter towers located around your city. Theyare intercepted by the radio antenna on your car.This signal is then received by the radio and sentto your car speakers.When a strong radio signal has reached yourvehicle, the precise engineering of your audiosystem ensures high quality reproduction. How-ever, in some cases the signal coming to yourvehicle is not strong and clear. This can be dueto factors such as the distance from the radiostation, closeness of other strong radio stationsor the presence of buildings, bridges or otherlarge obstructions in the area.

CONTROLS AND EQUIPMENT
1- 76 B750B02Y-AAT Using a cellular phone or a two-way radio When a cellular phone is used inside the ve- hicle, noise may be produced from the audioequipment. This does not mean that somethingis wrong with the audio equipment. In such acase, use the cellular phone at a place as far aspossible from the audio equipment. CAUTION: When using a communication system sucha cellular phone or a radio set inside thevehicle, a separate external antenna mustbe fitted. When a cellular phone or a radioset is used with an internal antenna alone, itmay interfere with the vehicle's electricalsystem and adversely affect safe operationof the vehicle. WARNING: Don't use a cellular phone when you aredriving, you must stop at a safe place to usea cellular phone.
SSAR014A
o Station Swapping - As a FM signal weakens, another more powerful signal near the same frequency may begin to play. This is becauseyour radio is designed to lock onto the clearestsignal. If this occurs, select another stationwith a stronger signal.
o Multi-Path Cancellation - Radio signals being received from several directions can causedistortion or fluttering. This can be caused bya direct and a reflected signal from the samestation, or by signals from two stations withclose frequencies. If this occurs, select anoth-er station until the condition has passed.SSAR013A
o Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, wesuggest that you select another stronger sta-tion.
o Flutter/Static - Weak FM signals or large obstructions between the transmitter and yourradio can disturb the signal causing static orfluttering noises to occur. Reducing the treblelevel may lessen this effect until the distur-bance clears.

CONTROLS AND EQUIPMENT1- 77
B880C02B-EAT Glass Antenna (Not all models) When the radio power switch is turned on whilst the ignition key is in either the "ON" or "ACC"position, your car will receive both AM and FMbroadcast signals through the antenna in therear quarter glass. CAUTION:
o Do not clean the inner side of the rear quarter glass with an abrasive type of glass cleaner or use a scraper to removeforeign deposits from the inner surfaceof the glass as this may cause damage tothe antenna elements.
o Avoid adding metallic coating such as Ni, Cd, and so on. These can disturbreceiving AM and FM broadcast signals.
B870C01HP
B870A01A-GAT ANTENNA Fixed Rod Antenna Your car uses a fixed rod antenna to receive
both AM and FM broadcast signals.
This antenna is a removable type. To remove
the antenna, turn the antenna counterclock- wise. To install the antenna, turn the antennaclockwise.
CAUTION: Be sure to remove the antenna before wash-
ing the car in an automatic car wash or the antenna may be damaged.
B870D01HP

DRIVING YOUR HYUNDAI 2- 1
YC010A1-A
2. DRIVING THE HYUNDAI
C010A01O-EAT WARNING: ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust gases are potentially lethal. If at any time engine exhaust gas is detected within the passenger compartment, move the vehicle to an open area and open all windows. o Never inhale exhaust gas. Exhaust gases contain Carbon Monoxide which is colourless and odourless. Carbon Monoxide is poisonous and can cause unconsciousness and death by asphyxiation. o Exhaust System Maintenance. Ensure that the exhaust system is maintained in good condition and is free from excessive corrosion and damage which may result in leakage. If the vehicle is driven over an object which strikes the exhaust system, ensure that the exhaustsystem is inspected at the first available opportunity to ensure that no leakage exists. o Confined Areas. Do not run the engine in confined spaces, allowing the engine to idle in a garage, even when the doors are open is dangerous practice. Only start the engine immediately prior to moving the vehicle out of the garage. o Prolonged Idling. If it is necessary to allow the vehicle to idle for prolonged periods, ensure that the heating system air intake control is set to the "Fresh" position, the blower is set to high speed operation and that the vehicle is standing in an open area. o Load Carrying. If it is necessary to carry long objects which do not permit the hatchback door to be fully closed, the side windows must remain closed and the heating air intake control set to the "Fresh" position with the blower running at the highest speedsetting. To ensure correct operation of the heater system, the air intake grilles at the base of the windscreen must not be obstructed by snow leaves etc..
2
