2003 FORD MUSTANG sensor

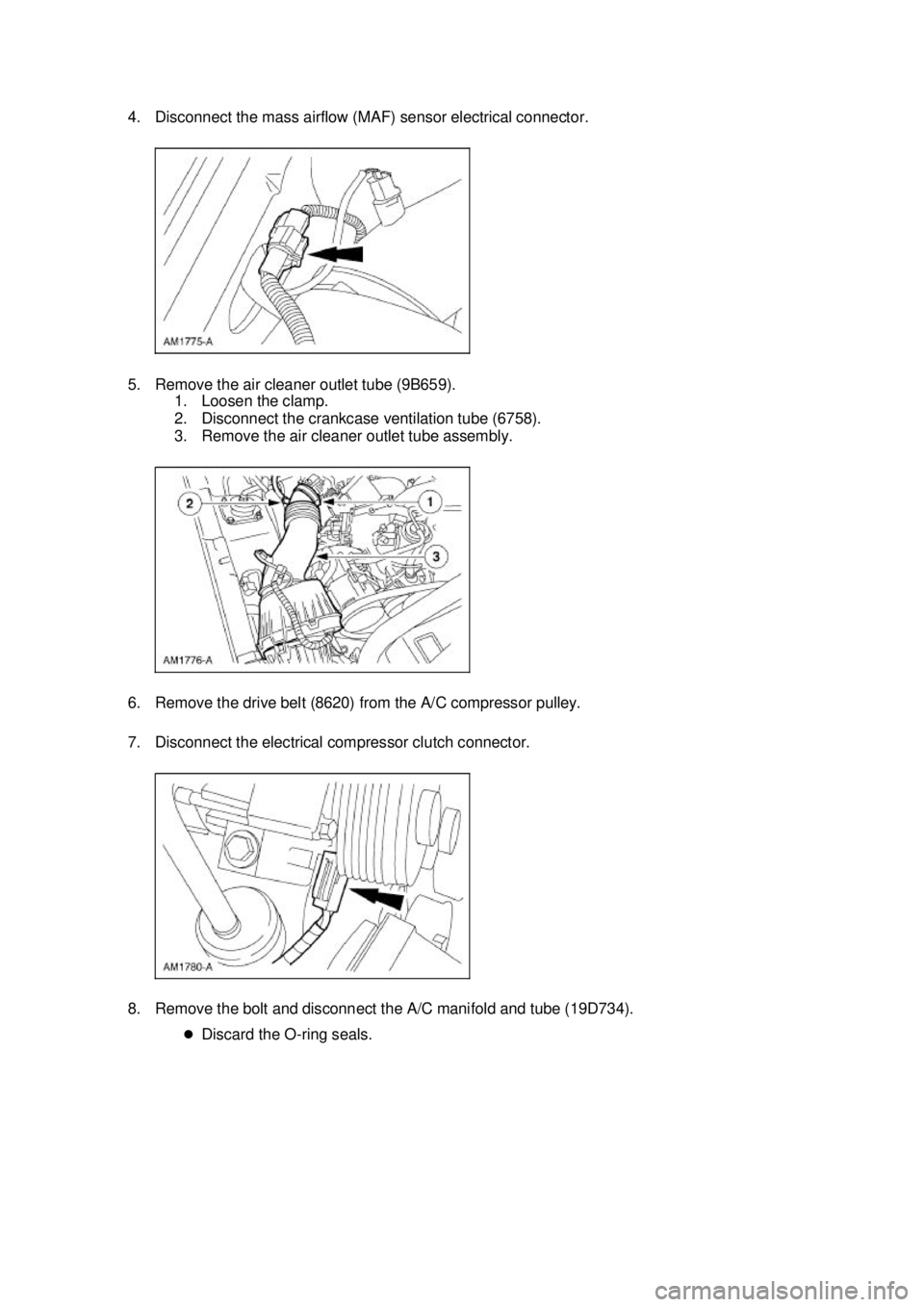

4. Disconnect the mass airflow (MAF) sensor electrical connector.
5. Remove the air cleaner outlet tube (9B659).
1. Loosen the clamp.
2. Disconnect the crankcase ventilation tube (6758).
3. Remove the air cleaner outlet tube assembly.
6. Remove the drive belt (8620) from the A/C compressor pulley.
7. Disconnect the electrical compressor clutch connector.
8. Remove the bolt and disconnect the A/C manifold and tube (19D734). zDiscard the O- ring seals. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Conditioning (A/C) Pressure Relief Valve —
3.8L
Removal and Installation 1. Recover the refrigerant. For additional information, refer to Section 412 - 00 .
2. Unlatch the breather.
3. Disconnect the mass air flow (MAF) sensor electrical connector.
4. Remove the air cleaner outlet tube. 1. Loosen the clamp.
2. Disconnect the crankcase ventilation tube.
3. Remove the air cleaner outlet tube.
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Material
Item Specification
PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (Motorcraft YN-
12- C) WSH-
M1C231-
B Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

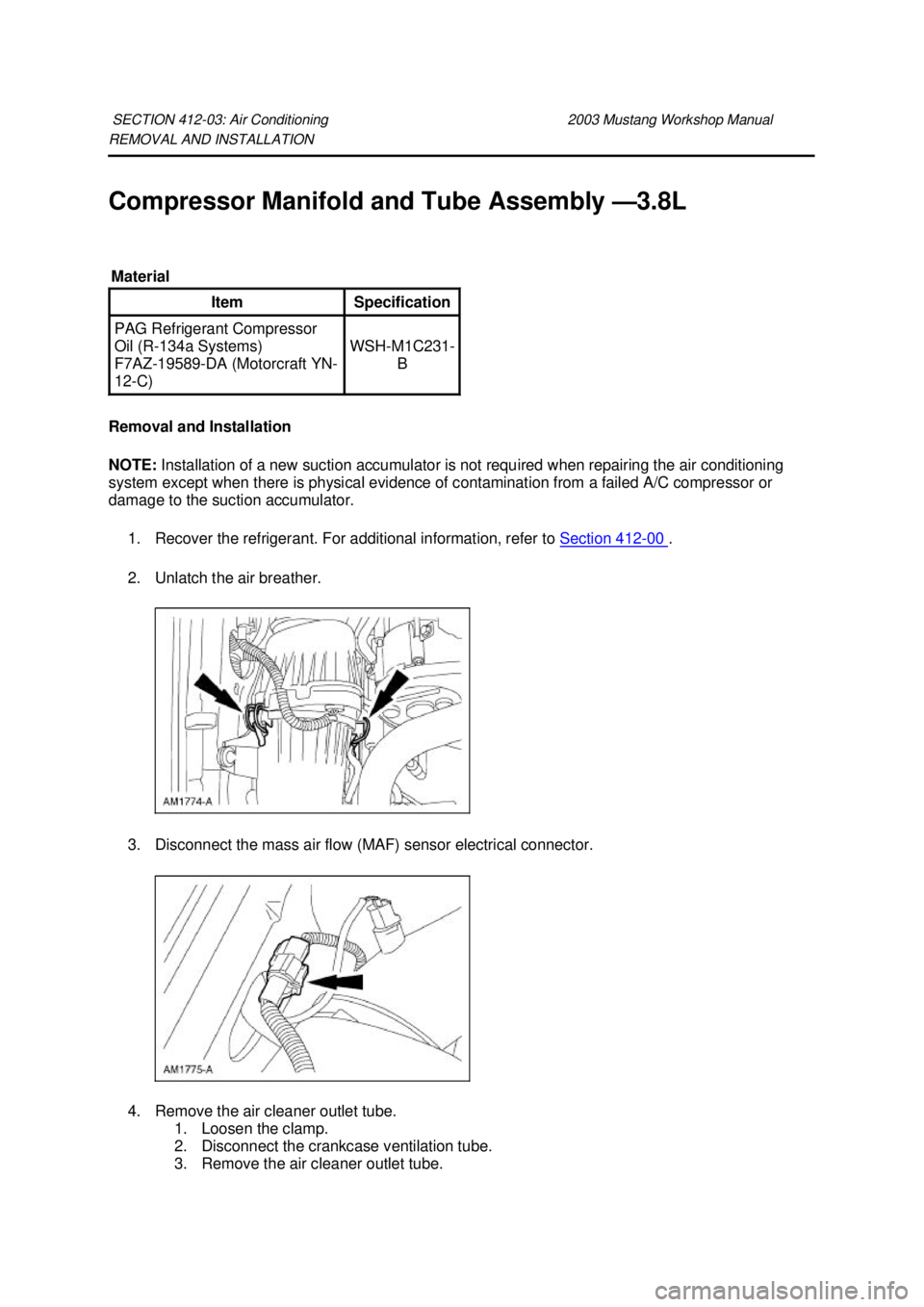

Compressor Manifold and Tube Assembly —
3.8L
Removal and Installation
NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning
system except when there is physical evidence of contamination from a failed A/C compressor or
damage to the suction accumulator.
1. Recover the refrigerant. For additional information, refer to Section 412 - 00 .
2. Unlatch the air breather.
3. Disconnect the mass air flow (MAF) sensor electrical connector.
4. Remove the air cleaner outlet tube. 1. Loosen the clamp.
2. Disconnect the crankcase ventilation tube.
3. Remove the air cleaner outlet tube.
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual Material
Item Specification
PAG Refrigerant Compressor
Oil (R-
134a Systems)
F7AZ- 19589- DA (Motorcraft YN-
12- C) WSH-
M1C231-
B Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Odometer
Display Description
GAGE Activates gauge sweep of all gauges, then displays present gauge values. Also
carries out the checksum tests on ROM and EE. All segments
illuminated Illuminates all odometer segments.
bulb Illuminates all micro-controlled indicators and LEDs. Install a new indicator or LED as
necessary. r Returns to normal operation of all micro-
controlled indicators and LEDs and displays
hexadecimal value for ROM level (used when requesting assistance from the hotline). EE Displays hexadecimal value for EE level (used when requesting assistance from the
hotline). dt Displays hexadecimal coding of final manufacturing test date (used when requesting
assistance from the hotline). dtc Displays continuous DTCs in hexadecimal format. Pressing the SELECT/RESET
button will display any DTCs stored before proceeding to the next step. enG Displays the English speed in mph. Speedometer will indicate present speed within
tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. m Displays the metric speed data (km/h). Speedometer will indicate present speed
within tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. tAc Displays the tachometer data received from the PCM via the SCP network within
tolerances. Tachometer will indicate present rpm. Display will show 0 if input is not received, if input received is invalid for one second or more, or if engine rpm is 0. FUEL Displays the code (0-255) for the fuel sender input to the instrument cluster. The fuel
gauge will display a filtered fuel level value. This filter will keep the pointer from moving suddenly or erratically.
z255 = open send +/- 0
z 232 = full stop +/- 0
z 215 = full mark +/- 10
z 178 = 3/4 mark +/- 8
z 138 = 1/2 mark +/- 7
z 93 = 1/4 mark +/- 5
z 41 = E mark +/- 4
z 54=LOW FUEL (0- 59)
z 0-18=short (0- 20 max) OIL Displays the code (0-
250) for the oil pressure switch input to the instrument cluster.
Oil pressure gauge will indicate present oil pressure. Normal oil pressure (greater
than 6 psi) will display a value between 000 and 176. A low oil pressure or an
inoperative engine oil pressure switch (less than 6 psi) will display a value greater
than 176. dEGC Display of engine temperature in degrees C input from cylinder head temperature
sensor.
z 49 C = "C" mark
z 60 C = normal band start
z 120 C = normal band end
z -40 C = no SCP message for 5 seconds bAtt Displays the code (0-255) for the battery voltage input to the instrument cluster.
Battery voltage gauge will indicate present battery voltage. Klj . 6 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Symptom Chart B1446 Wiper Park Sense Circuit
Failure GEM REFER to
Section 501 - 16 .
B1448 Wiper Park Sense Circuit Short
to Battery GEM REFER to
Section 501 - 16 .
B1450 Wiper Wash/Delay Switch
Circuit Failure GEM REFER to
Section 501 - 16 .
B1453 Wiper Wash/Delay Switch
Circuit Short to Ground GEM REFER to
Section 501 - 16 .
B1458 Wiper Washer Pump Motor
Relay Circuit Failure GEM REFER to
Section 501 - 16 .
B1460 Wiper Washer Pump Motor
Relay Coil Circuit Short to Battery GEM REFER to
Section 501 - 16 .
B1462 Safety Belt Switch Circuit
Failure GEM REFER to
Section 413 - 09 .
B1466 Wiper Hi/Low Speed Not
Switching GEM REFER to
Section 501 - 16 .
B1473 Wiper Low Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1476 Wiper High Speed Circuit Motor
Failure GEM REFER to
Section 501 - 16 .
B1551 Decklid Release Circuit Failure GEM REFER to
Section 501 - 14B .
B1553 Decklid Release Circuit Short to
Battery GEM REFER to
Section 501 - 14B .
B1555 Ignition Run/Start Circuit
Failure GEM REFER to
Section 211 - 05 .
B1687 Lamp Dome Input Circuit Short
to Battery GEM REFER to
Section 417 - 02 .
B2486 Parklamp Output Relay Driver
Circuit Failure GEM REFER to
Section 419 - 01 .
B2488 Parklamp Output Relay Driver
Short to Battery GEM REFER to
C1189 Brake Fluid Level Sensor Input
Short Circuit to Ground GEM Go To Pinpoint Test O .
C1223 Lamp Brake Warning Output
Circuit Failure GEM Go To Pinpoint Test O .
C1225 Lamp Brake Warning Output
Circuit Short to Battery GEM Go To Pinpoint Test O .

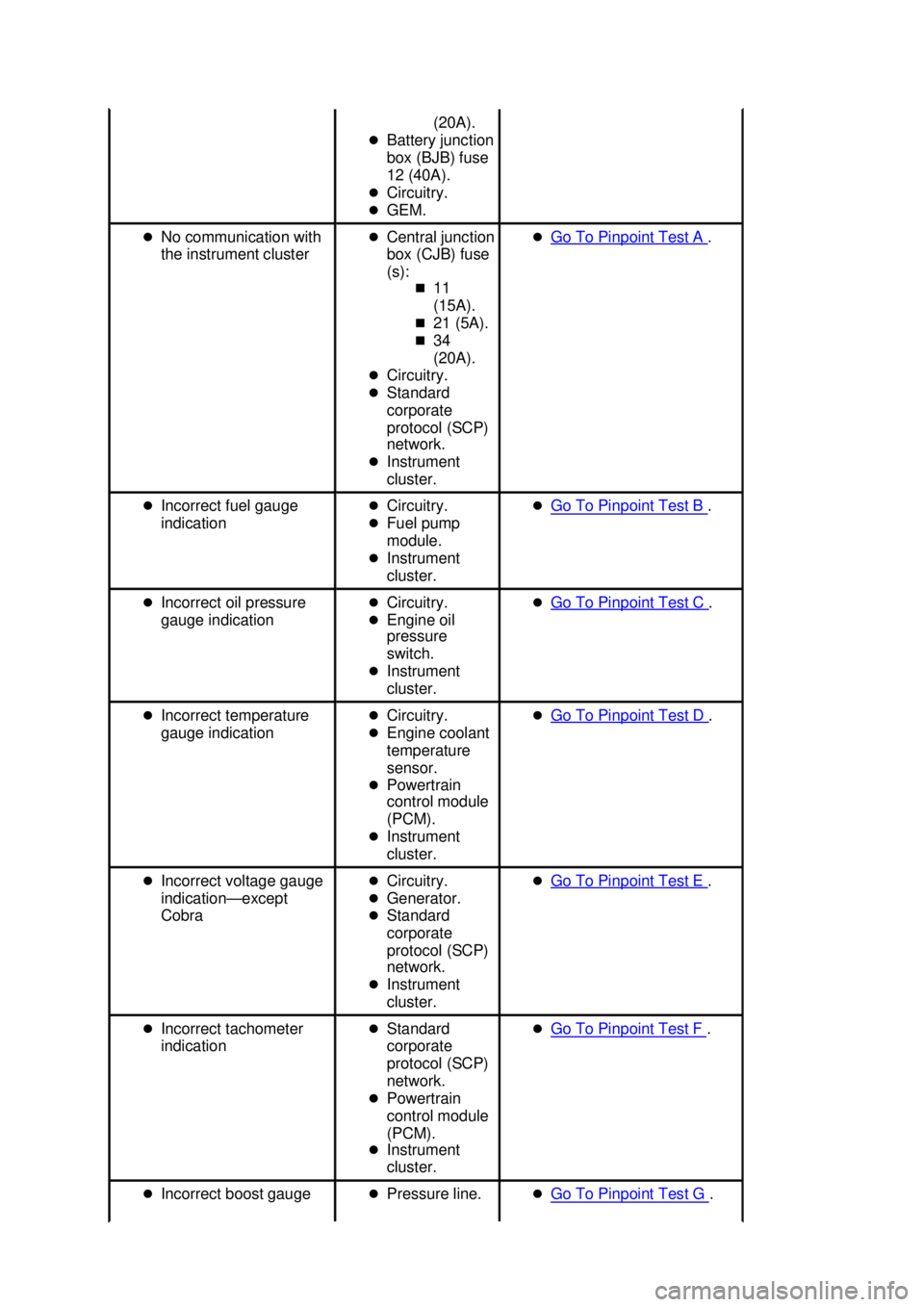

Symptom Chart Condition
Possible Sources Action
z No communication with
the generic electronic
module (GEM) z
Central junction
box (CJB) fuse
(s):
„7 (15A).
„ 39 (5A).
„ 43 z
Go To Pinpoint Test W Klj . 9 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

(20A).
z Battery junction
box (BJB) fuse
12 (40A).
z Circuitry.
z GEM.
z No communication with
the instrument cluster z
Central junction
box (CJB) fuse
(s):
„11
(15A).
„ 21 (5A).
„ 34
(20A).
z Circuitry.
z Standard
corporate
protocol (SCP)
network.
z Instrument
cluster. z
Go To Pinpoint Test A .
z Incorrect fuel gauge
indication z
Circuitry.
z Fuel pump
module.
z Instrument
cluster. z
Go To Pinpoint Test B .
z Incorrect oil pressure
gauge indication z
Circuitry.
z Engine oil
pressure
switch.
z Instrument
cluster. z
Go To Pinpoint Test C .
z Incorrect temperature
gauge indication z
Circuitry.
z Engine coolant
temperature
sensor.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test D .
z Incorrect voltage gauge
indication— except
Cobra z
Circuitry.
z Generator.
z Standard
corporate
protocol (SCP)
network.
z Instrument
cluster. z
Go To Pinpoint Test E .
z Incorrect tachometer
indication z
Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test F .
z Incorrect boost gauge zPressure line. zGo To Pinpoint Test G . Klj . 10 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

GENERAL PROCEDURES
Battery Disconnect
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery, always
shield your face and protect your eyes. Always provide ventilation. Failure to follow these
instructions may result in personal injury.
WARNING: To avoid accidental deployment and possible injury, the backup power supply
must be depleted before repairing or installing any front or side air bag supplemental restraint
system (SRS) components and before repairing, installing, adjusting or striking components
near the front or side air bag sensors, such as doors, instrument panel, console, door latches,
strikers, seats and hood latches. Failure to follow these procedures may result in personal
injury.
Refer to the appropriate vehicle shop manual to determine location of the front air bag sensors.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at
least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
Failure to follow these instructions may result in personal injury.
WARNING: When lifting a battery, excessive pressure on the end walls could cause acid
to spew through the vent caps, resulting in personal injury. Lift with a battery carrier or with
your hands on opposite corners. Failure to follow these instructions may result in personal
injury.
WARNING: Keep out of the reach of children. Batteries contain sulfuric acid. Avoid
contact with skin, eyes or clothing. Also, shield your eyes when working near the battery to
protect against possible splashing of the acid solution. In case of acid contact with the skin or
eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical
attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions
may result in personal injury.
1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms
may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to
relearn its strategy.
Disconnect the battery ground cable.
2. Disconnect the positive battery cable.
3. To install, reverse the removal procedure.
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Exterior Lighting
The exterior lighting system consists of the following components:
zheadlamps (13008)
z parking lamps
z rear lamps (13404)
z high mounted stoplamp
z license lamps
z front turn lamps
z reversing lamps
z fog lamps (if equipped)
z headlamp switch (11654)
z fog lamp switch (if equipped)
z brake pedal position (BPP) switch (13480)
z multifunction switch (13K359)
z digital transmission range (DTR) sensor (A/T)
z reversing lamp switch (M/T)
z electronic flasher
z fog lamp relays (if equipped)
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
