2003 FORD MUSTANG sensor

DIAGNOSIS AND TESTING
Exhaust System

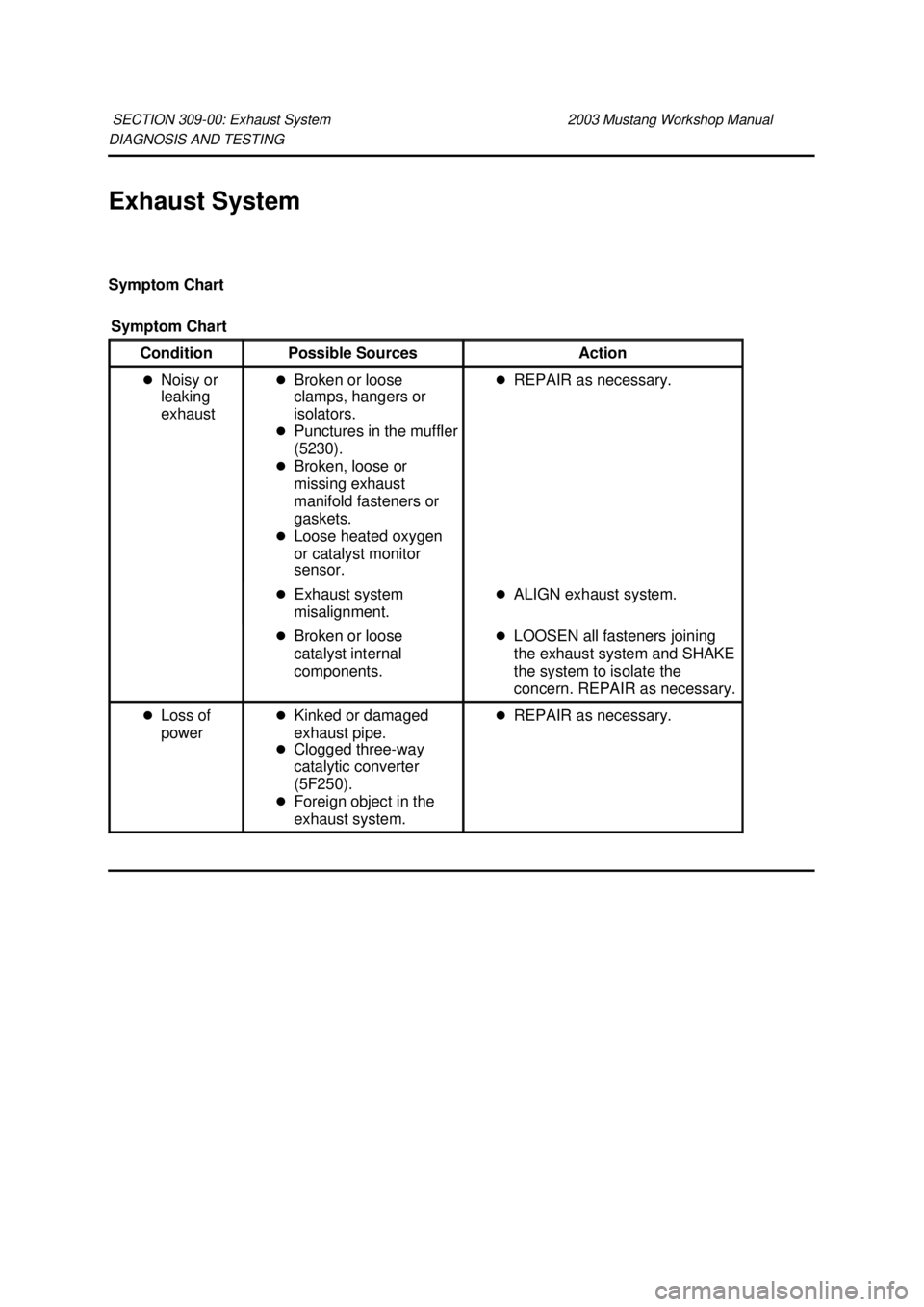

Symptom Chart
SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Symptom Chart
Condition
Possible Sources Action
z Noisy or
leaking
exhaust z
Broken or loose
clamps, hangers or
isolators.
z Punctures in the muffler
(5230).
z Broken, loose or
missing exhaust
manifold fasteners or
gaskets.
z Loose heated oxygen
or catalyst monitor
sensor. z
REPAIR as necessary.
z Exhaust system
misalignment. z
ALIGN exhaust system.
z Broken or loose
catalyst internal
components. z
LOOSEN all fasteners joining
the exhaust system and SHAKE
the system to isolate the
concern. REPAIR as necessary.
z Loss of
power z
Kinked or damaged
exhaust pipe.
z Clogged three- way
catalytic converter
(5F250).
z Foreign object in the
exhaust system. z
REPAIR as necessary. Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Dual Converter Y-
Pipe —3.8L
Removal
NOTE: The RH and LH catalytic converters are serviceable separately.
1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. CAUTION: When repairing the exhaust system or removing exhaust components,
disconnect all heated oxygen sensors (HO2S) (9F472) and catalyst monitor sensors at
the wiring connectors to prevent damage to the sensors and wiring harnesses.
Disconnect the RH and LH HO2S connectors.
3. Disconnect the RH and LH catalyst monitor sensor connectors.
4. Remove the dual converter assembly nuts.
SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

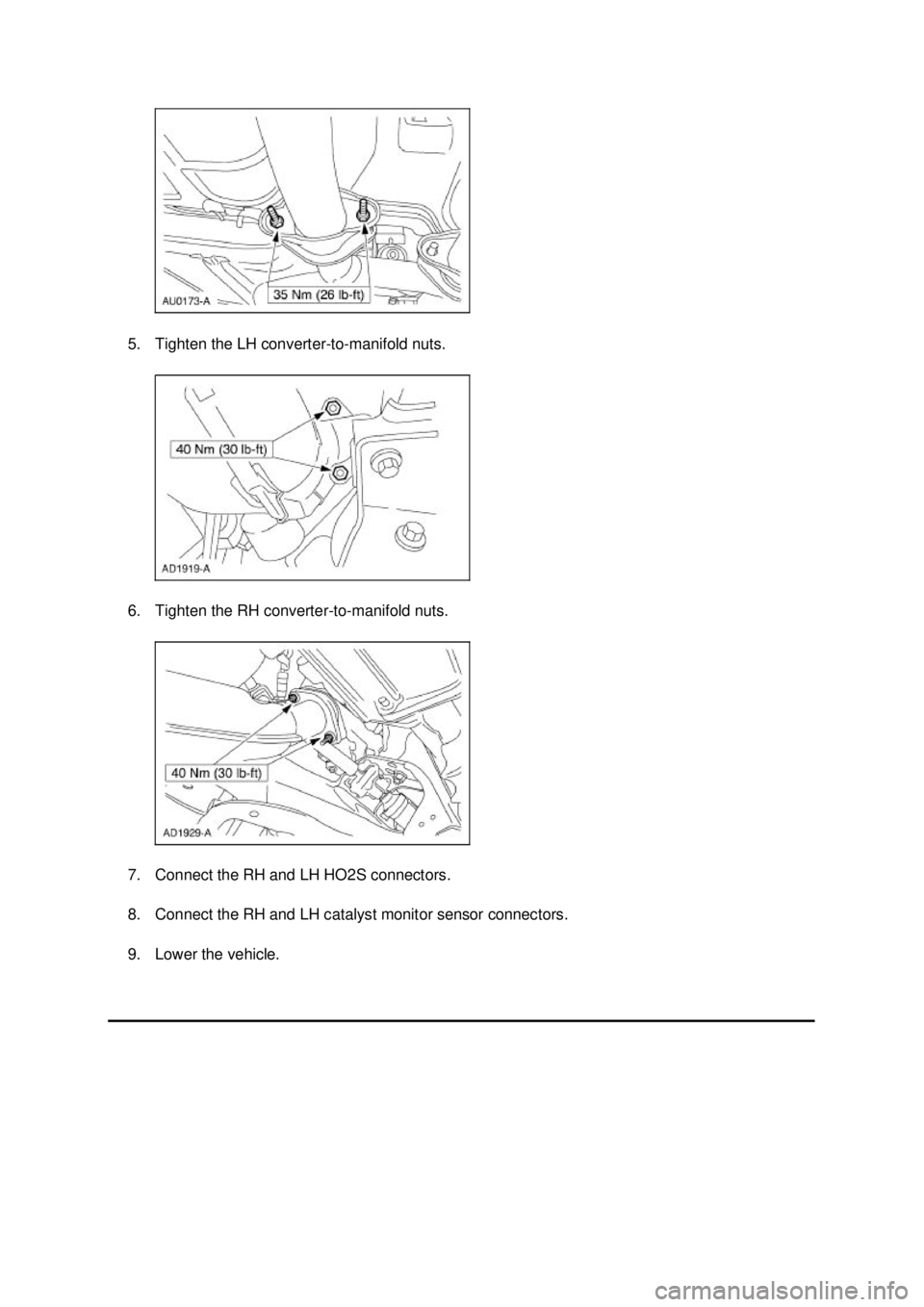

5. Tighten the LH converter-
to-manifold nuts.
6. Tighten the RH converter- to-manifold nuts.
7. Connect the RH and LH HO2S connectors.
8. Connect the RH and LH catalyst monitor sensor connectors.
9. Lower the vehicle. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Dual Converter H-
Pipe —4.6L (2V and 4V)
Removal
NOTE: The RH and LH catalytic converters are serviced separately.
1. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. CAUTION: When repairing exhaust system or removing the exhaust components,
disconnect all heated oxygen sensors (HO2S) (9F472) at the wiring connectors to prevent
damage to the heated oxygen sensors and wiring harness.
Disconnect the downstream RH and LH heated oxygen sensor connectors (9F472).
3. Disconnect the two upstream RH and LH catalyst monitor sensor connectors.
4. Remove the dual converter assembly nuts. (RH shown, LH similar.)
SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

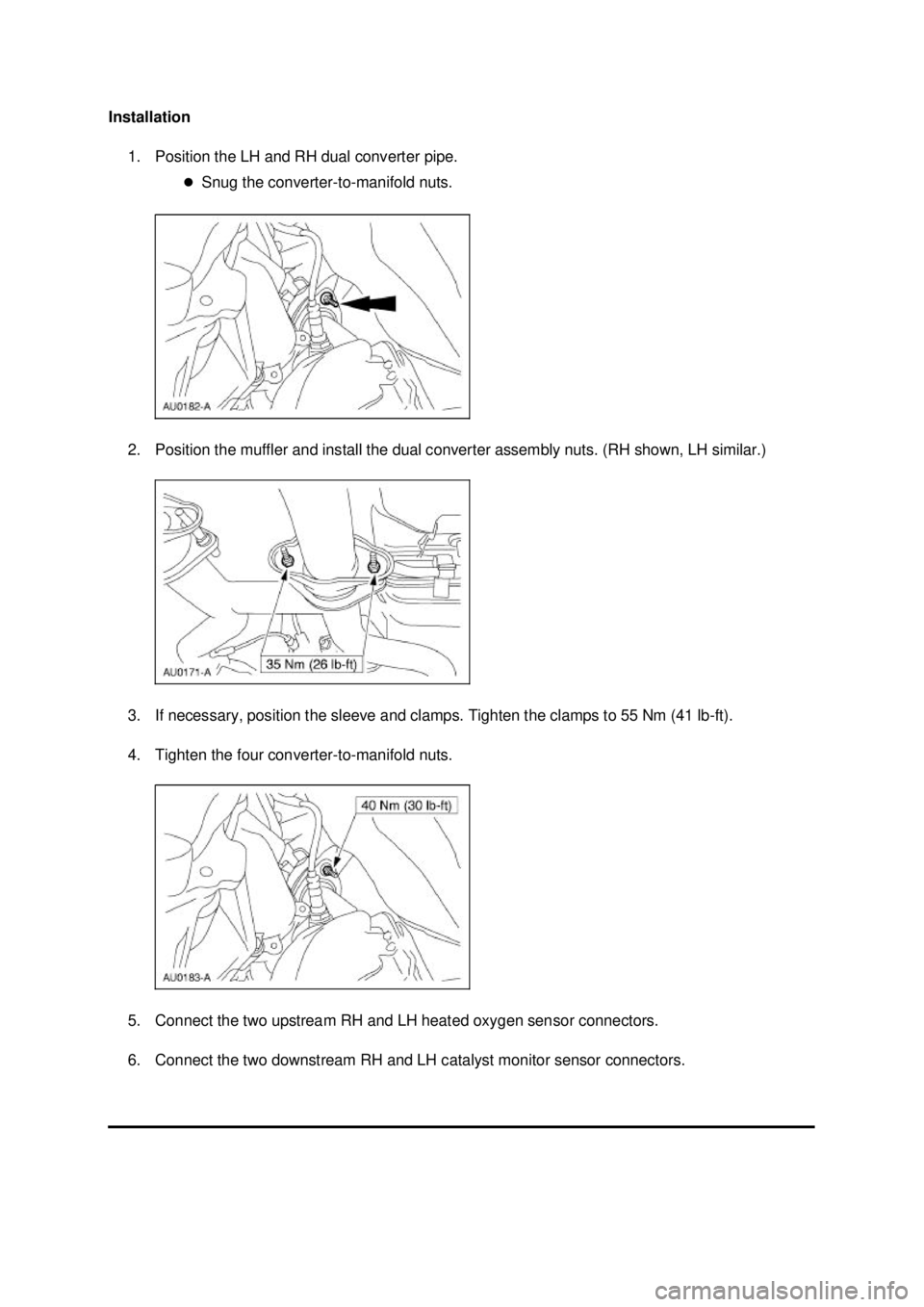

Installation
1. Position the LH and RH dual converter pipe. zSnug the converter- to-manifold nuts.
2. Position the muffler and install the dual converter assembly nuts. (RH shown, LH similar.)
3. If necessary, position the sleeve and clamps. Tighten the clamps to 55 Nm (41 lb- ft).
4. Tighten the four converter- to-manifold nuts.
5. Connect the two upstream RH and LH heated oxygen sensor connectors.
6. Connect the two downstream RH and LH catalyst monitor sensor connectors. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Fuel Tank And Lines
WARNING: Do not smoke, carry lighted tobacco or an open flame of any type when
working on or near any fuel- related component. Highly flammable mixtures are always present
and may be ignited, possibly resulting in personal injury.
The vehicle utilizes a returnless fuel system consisting of:
zthe fuel tank.
z a fuel tank filler pipe which contains a restrictor plate to permit only unleaded fuel to be pumped
into the fuel tank.
z a 1/8 turn fuel tank filler cap.
z a fuel filter providing filtration to protect the fuel injectors.
z a single fuel line accommodating the returnless fuel system.
z a fuel injection supply manifold which contains a differential pressure sensor and a fuel
temperature sensor.
z a fuel pump and sender assembly which provides pressurized fuel to the engine and contains:
„an inlet filter.
„ a check valve which maintains system pressure after the pump is shut off.
„ a pressure relief valve for overpressure protection in the event of restricted flow.
The fuel pump is controlled by an electronic fuel pump driver module which is enabled by the
powertrain control module (PCM). Electrical power to the fuel pump is provided through the inertia fuel
shutoff (IFS) switch, which is located in the luggage compartment. SECTION 310-
01: Fuel Tank and Lines 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION

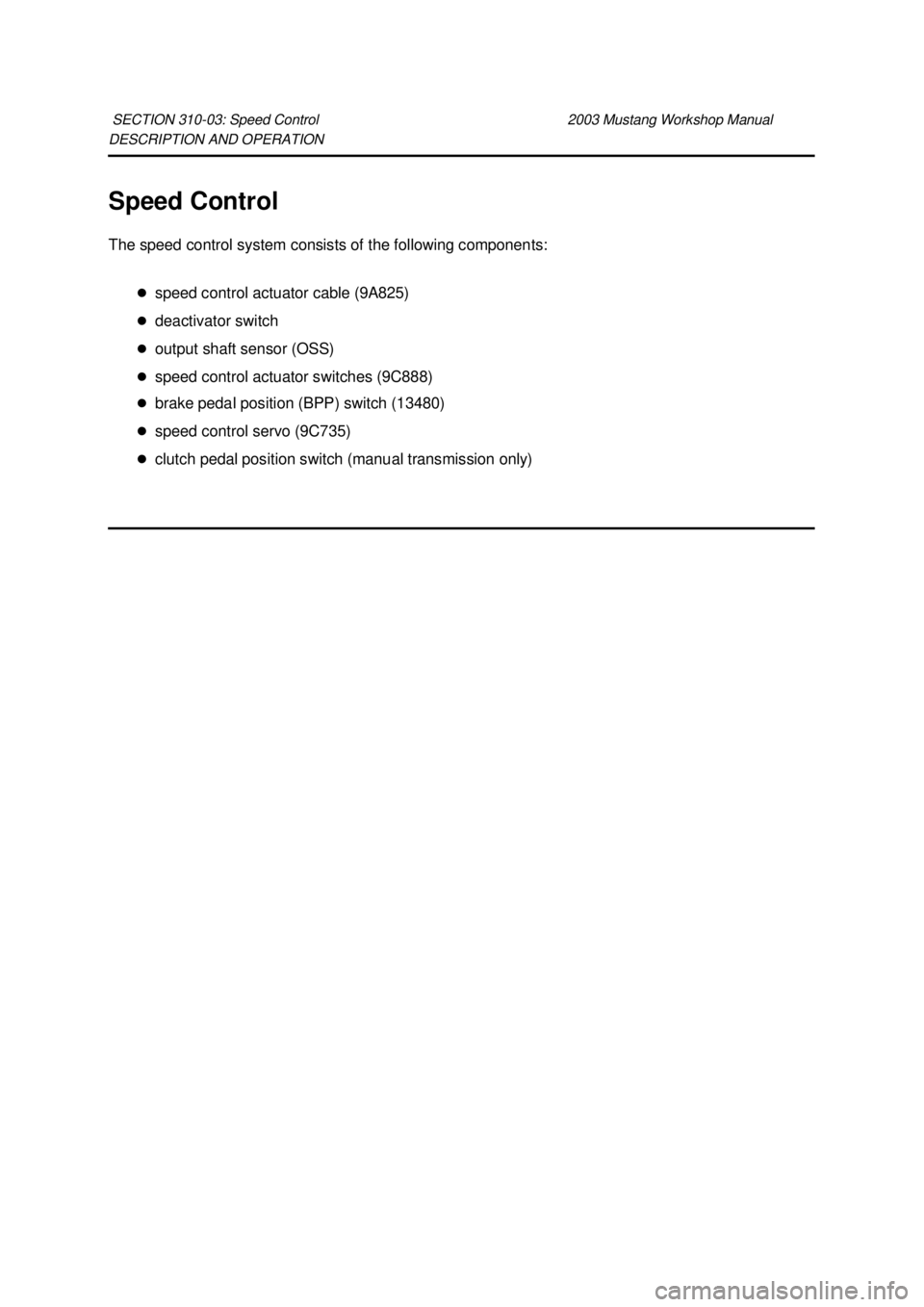

Speed Control
The speed control system consists of the following components:
zspeed control actuator cable (9A825)
z deactivator switch
z output shaft sensor (OSS)
z speed control actuator switches (9C888)
z brake pedal position (BPP) switch (13480)
z speed control servo (9C735)
z clutch pedal position switch (manual transmission only)
SECTION 310-
03: Speed Control 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

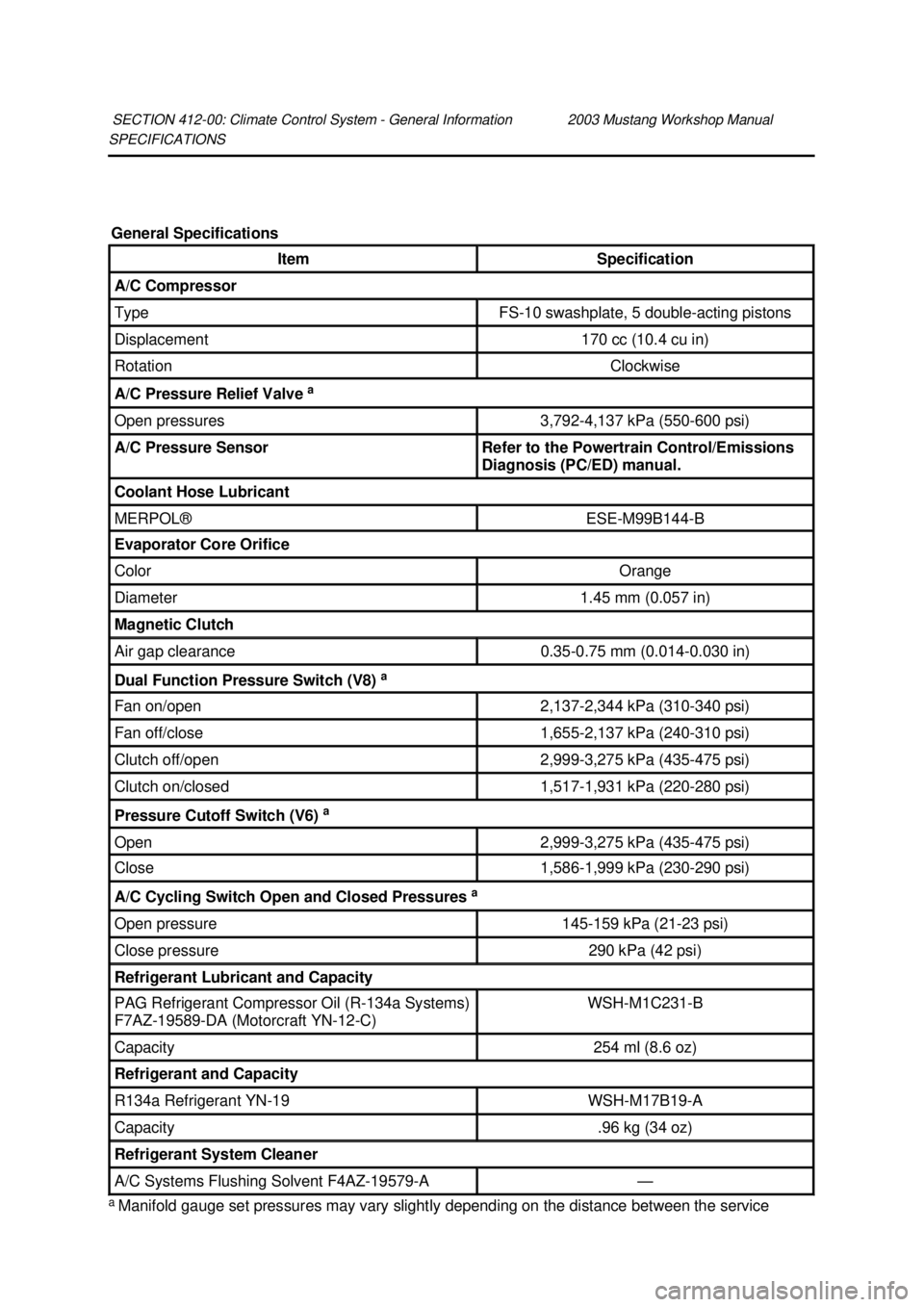

SPECIFICATIONS
a
Manifold gauge set pressures may vary slightly depending on the distance between the service
SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual General Specifications
Item Specification
A/C Compressor
Type FS-
10 swashplate, 5 double- acting pistons Displacement 170 cc (10.4 cu in)
Rotation Clockwise
A/C Pressure Relief Valve
a Open pressures 3,792-
4,137 kPa (550- 600 psi) A/C Pressure Sensor Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
Coolant Hose Lubricant
MERPOL® ESE-
M99B144- B Evaporator Core Orifice
Color Orange
Diameter 1.45 mm (0.057 in)
Magnetic Clutch
Air gap clearance 0.35-
0.75 mm (0.014- 0.030 in) Dual Function Pressure Switch (V8)
a Fan on/open 2,137-
2,344 kPa (310- 340 psi) Fan off/close 1,655-
2,137 kPa (240- 310 psi) Clutch off/open 2,999-
3,275 kPa (435- 475 psi) Clutch on/closed 1,517-
1,931 kPa (220- 280 psi) Pressure Cutoff Switch (V6)
a Open 2,999-
3,275 kPa (435- 475 psi) Close 1,586-
1,999 kPa (230- 290 psi) A/C Cycling Switch Open and Closed Pressures
a Open pressure 145-
159 kPa (21- 23 psi) Close pressure 290 kPa (42 psi)
Refrigerant Lubricant and Capacity
PAG Refrigerant Compressor Oil (R-134a Systems)
F7AZ- 19589- DA (Motorcraft YN-12- C) WSH-
M1C231- B Capacity 254 ml (8.6 oz)
Refrigerant and Capacity
R134a Refrigerant YN-
19 WSH-
M17B19- A Capacity .96 kg (34 oz)
Refrigerant System Cleaner
A/C Systems Flushing Solvent F4AZ-19579-
A — Klj . 1 ba
