2003 FORD MUSTANG sensor

13. Remove and discard the OSS sensor tone wheel lower retaining ring.
14. Remove and discard the rear mainshaft roller bearing snap ring.
15. Remove the upper spacer, the rear mainshaft roller bearing and the lower spacer.
zInspect the rear mainshaft roller bearing for wear or damage. Install a new bearing as
necessary.
16. Remove and discard the reverse gear snap ring. Klj . 5 ba
132003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

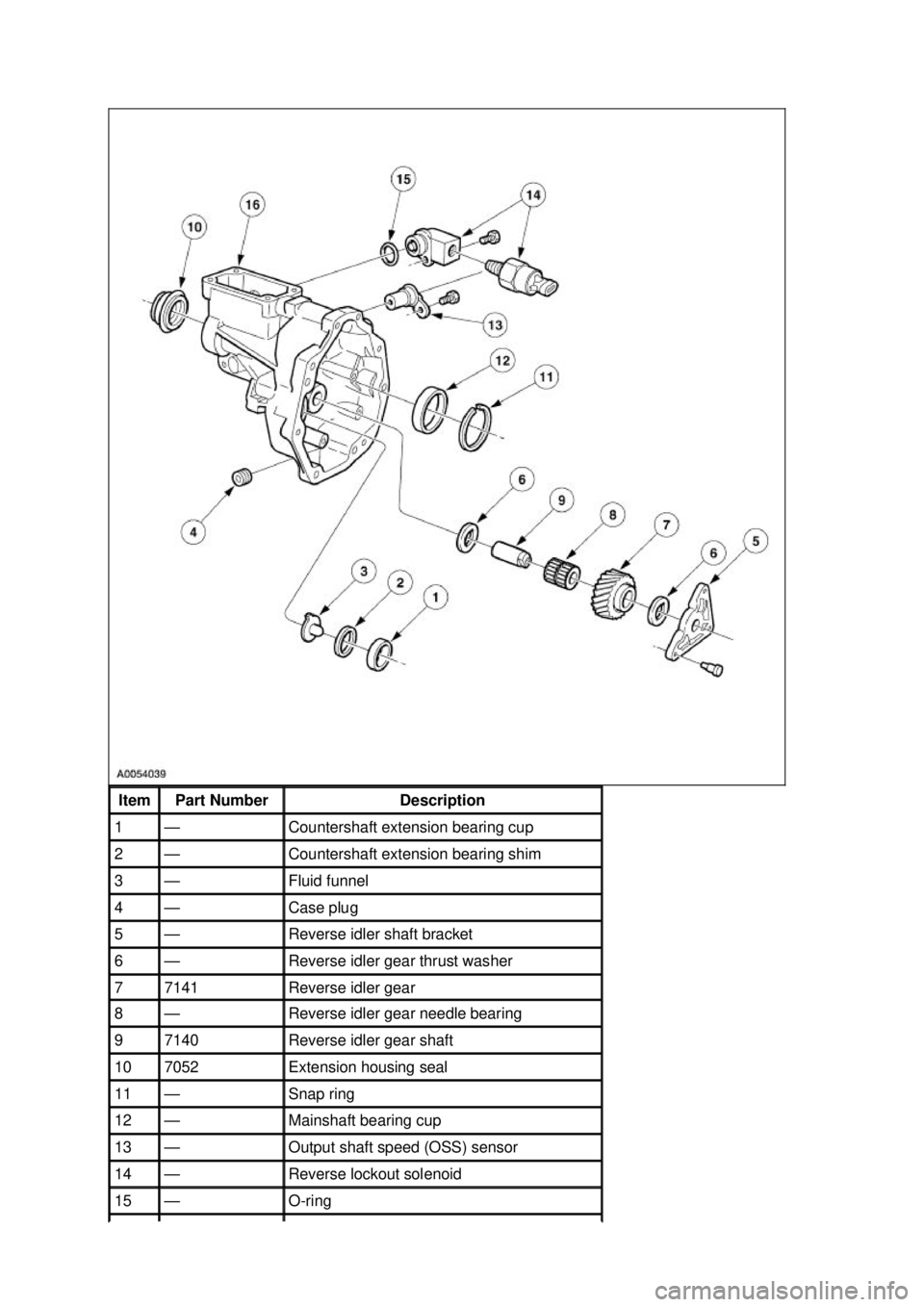

Item Part Number Description
1 — Countershaft extension bearing cup
2 — Countershaft extension bearing shim
3 — Fluid funnel
4 — Case plug
5 — Reverse idler shaft bracket
6 — Reverse idler gear thrust washer
7 7141 Reverse idler gear
8 — Reverse idler gear needle bearing
9 7140 Reverse idler gear shaft
10 7052 Extension housing seal
11 — Snap ring
12 — Mainshaft bearing cup
13 — Output shaft speed (OSS) sensor
14 — Reverse lockout solenoid
15 — O-
ring Klj . 2 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

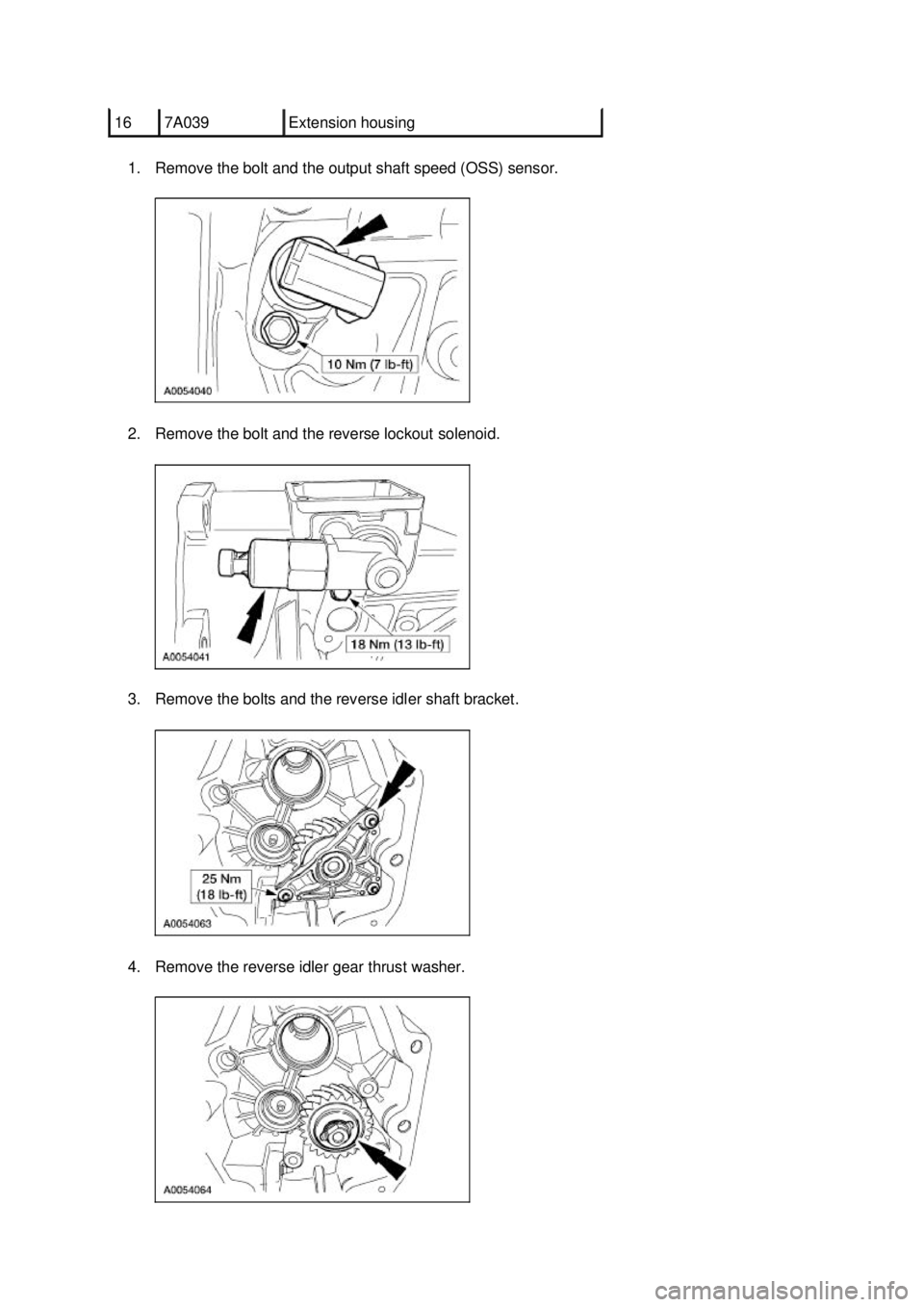

1. Remove the bolt and the output shaft speed (OSS) sensor.
2. Remove the bolt and the reverse lockout solenoid.
3. Remove the bolts and the reverse idler shaft bracket.
4. Remove the reverse idler gear thrust washer. 16 7A039 Extension housing Klj . 3 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

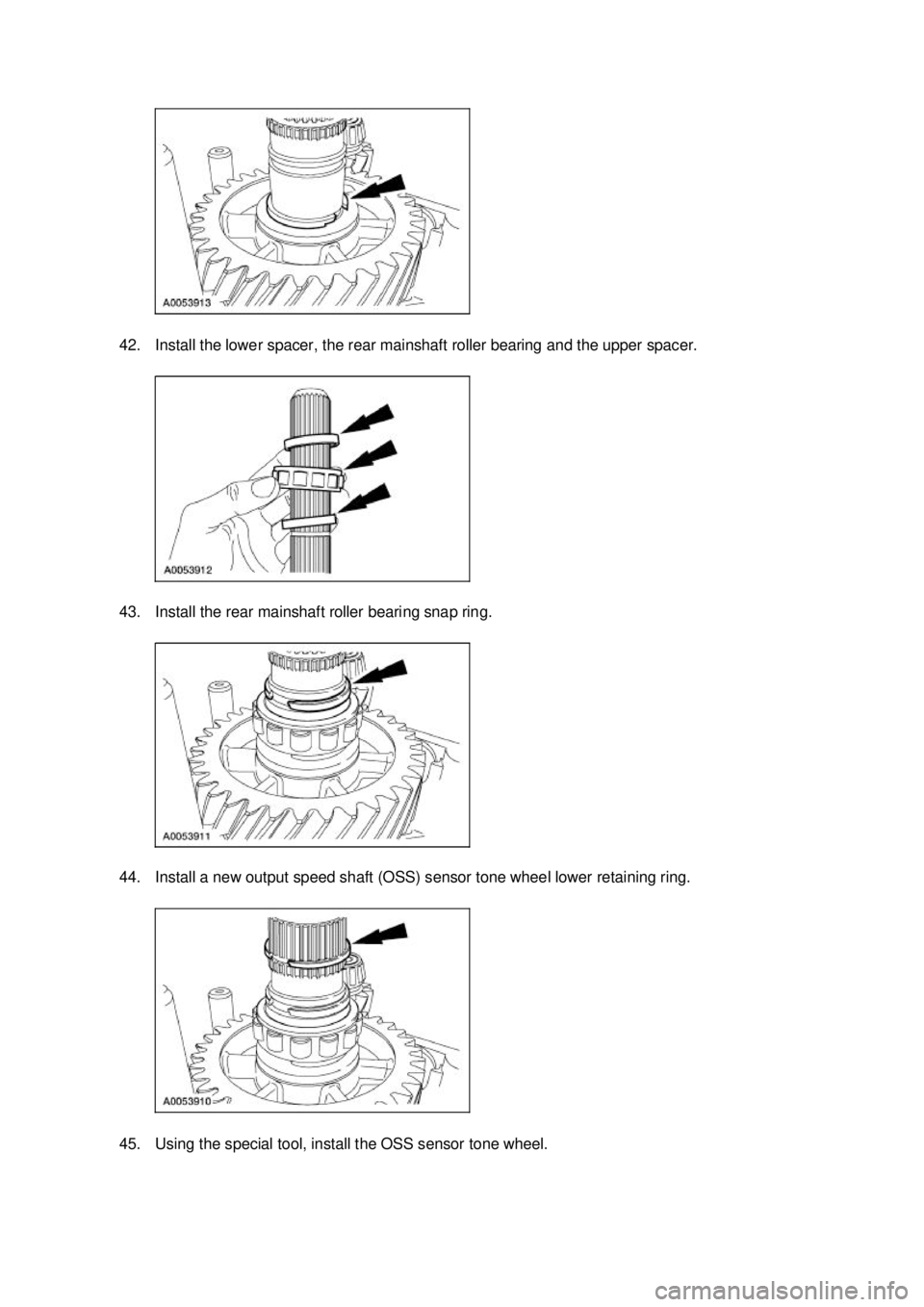

42. Install the lower spacer, the rear mainshaft roller bearing and the upper spacer.
43. Install the rear mainshaft roller bearing snap ring.
44. Install a new output speed shaft (OSS) sensor tone wheel lower retaining ring.
45. Using the special tool, install the OSS sensor tone wheel. Klj . 15 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

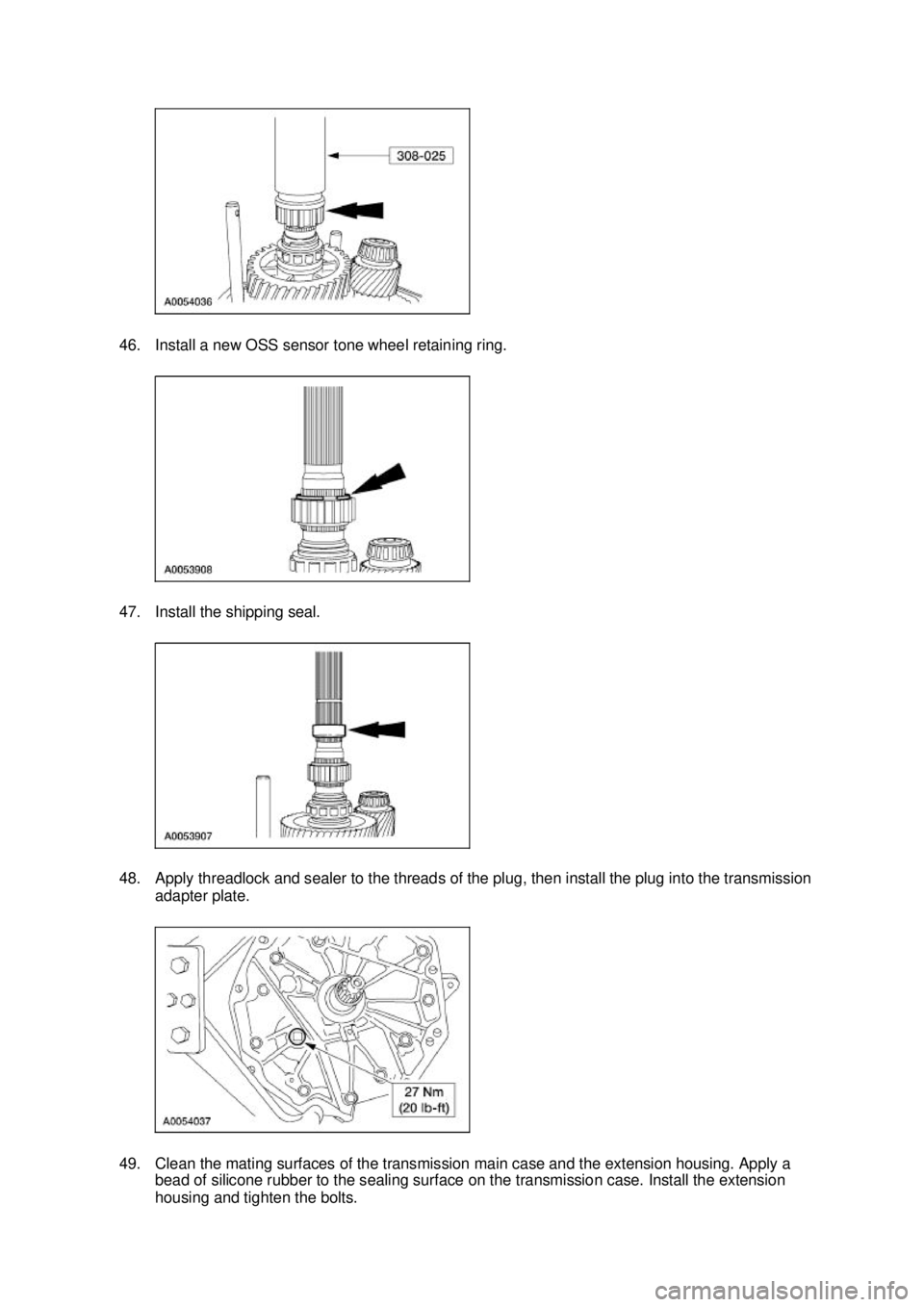

46. Install a new OSS sensor tone wheel retaining ring.
47. Install the shipping seal.
48. Apply threadlock and sealer to the threads of the plug, then install the plug into the transmission
adapter plate.
49. Clean the mating surfaces of the transmission main case and the extension housing. Apply a bead of silicone rubber to the sealing surface on the transmission case. Install the extension
housing and tighten the bolts. Klj . 16 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

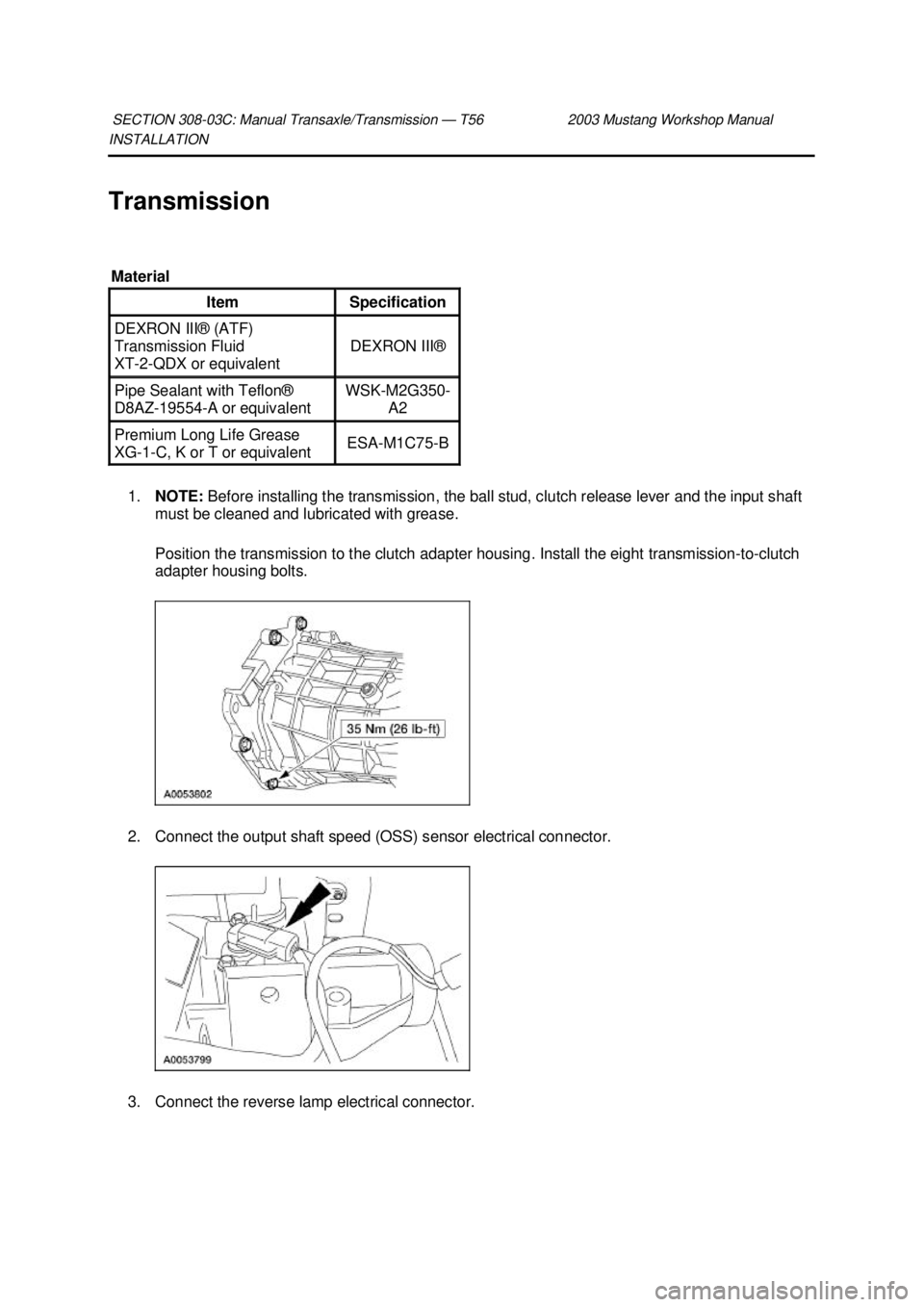

INSTALLATION
Transmission
1. NOTE: Before installing the transmission, the ball stud, clutch release lever and the input shaft
must be cleaned and lubricated with grease.
Position the transmission to the clutch adapter housing. Install the eight transmission- to-clutch
adapter housing bolts.
2. Connect the output shaft speed (OSS) sensor electrical connector.
3. Connect the reverse lamp electrical connector.
SECTION 308-
03C: Manual Transaxle/Transmission — T56 2003 Mustang Workshop Manual Material
Item Specification
DEXRON III® (
ATF)
Transmission Fluid
XT -2-QDX or equivalent DEXRON III®
Pipe Sealant with Teflon®
D8AZ-
19554- A or equivalent WSK-
M2G350-
A2 Premium Long Life Grease
XG
-1-C, K or T or equivalent ESA-
M1C75- B Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

8. Remove the transmission jack from the transmission.
9. Connect the heated oxygen sensor (HO2S) electrical connectors to the crossmember.
10. CAUTION: Align the index marks on the driveshaft flange and pinion flange, and the
driveshaft slip yoke and transmission output shaft.
Install the driveshaft. For additional information, refer to Section 205 - 01 .
11. Fill the transmission to capacity with the specified transmission fluid. Apply sealant to the fill plug threads and install the fill plug.
zThe total fill capacity is 3.9L (4.1 qt).
12. Lower the vehicle.
13. Connect the reverse lockout solenoid electrical connector. Klj . 3 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Exhaust System
WARNING: The normal operating temperature of the exhaust system is very high. Never
attempt to repair any part of the system until it has cooled. Be especially careful when working
around the three way catalytic converter. The temperature of the three way catalytic converter
rises to a high level after only a few minutes of engine operation.
CAUTION: When repairing exhaust system or removing exhaust components, disconnect
all heated oxygen sensors (HO2S) at the wiring connectors to prevent damage to the heated
oxygen sensors and wiring harness. For additional information, refer to Section 303 - 14 for
location of the heated oxygen sensors.
The exhaust system:
zcontains dual three- way catalytic converters.
z has a crossover pipe downstream of the three way catalytic converters (4.6L).
z has two upstream heated oxygen sensors mounted before the three- way catalytic converters.
z the production muffler and tailpipe assembly is a one- piece design exhaust system.
Exhaust System — 3.8L Exhaust System — 4.6L (2V) SECTION 309-
00: Exhaust System 2003 Mustang Workshop Manual Item Part Number Description
1 5F250 Dual converter assembly
2 5D255 Insulator bracket assembly
3 5A246 Insulator bracket, (tailpipe)
4 5D255 Insulator bracket assembly
5 5232 Muffler Klj . 1 ba
