Page 2607 of 4378
REMOVAL AND INSTALLATION

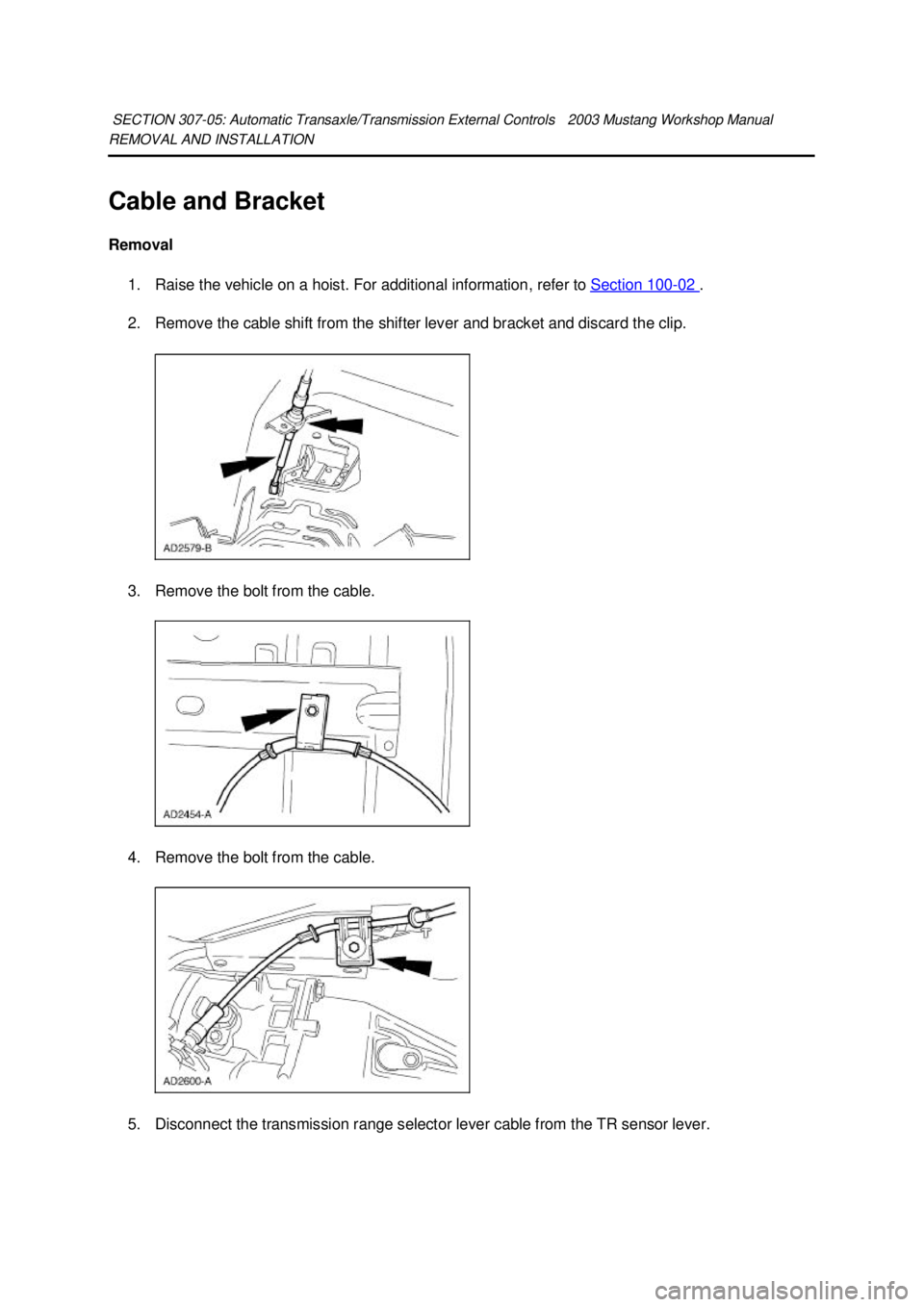

Cable and Bracket
Removal
1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 .
2. Remove the cable shift from the shifter lever and bracket and discard the clip.
3. Remove the bolt from the cable.
4. Remove the bolt from the cable.
5. Disconnect the transmission range selector lever cable from the TR sensor lever.
SECTION 307-
05: Automatic Transaxle/Transmission External Controls 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2625 of 4378

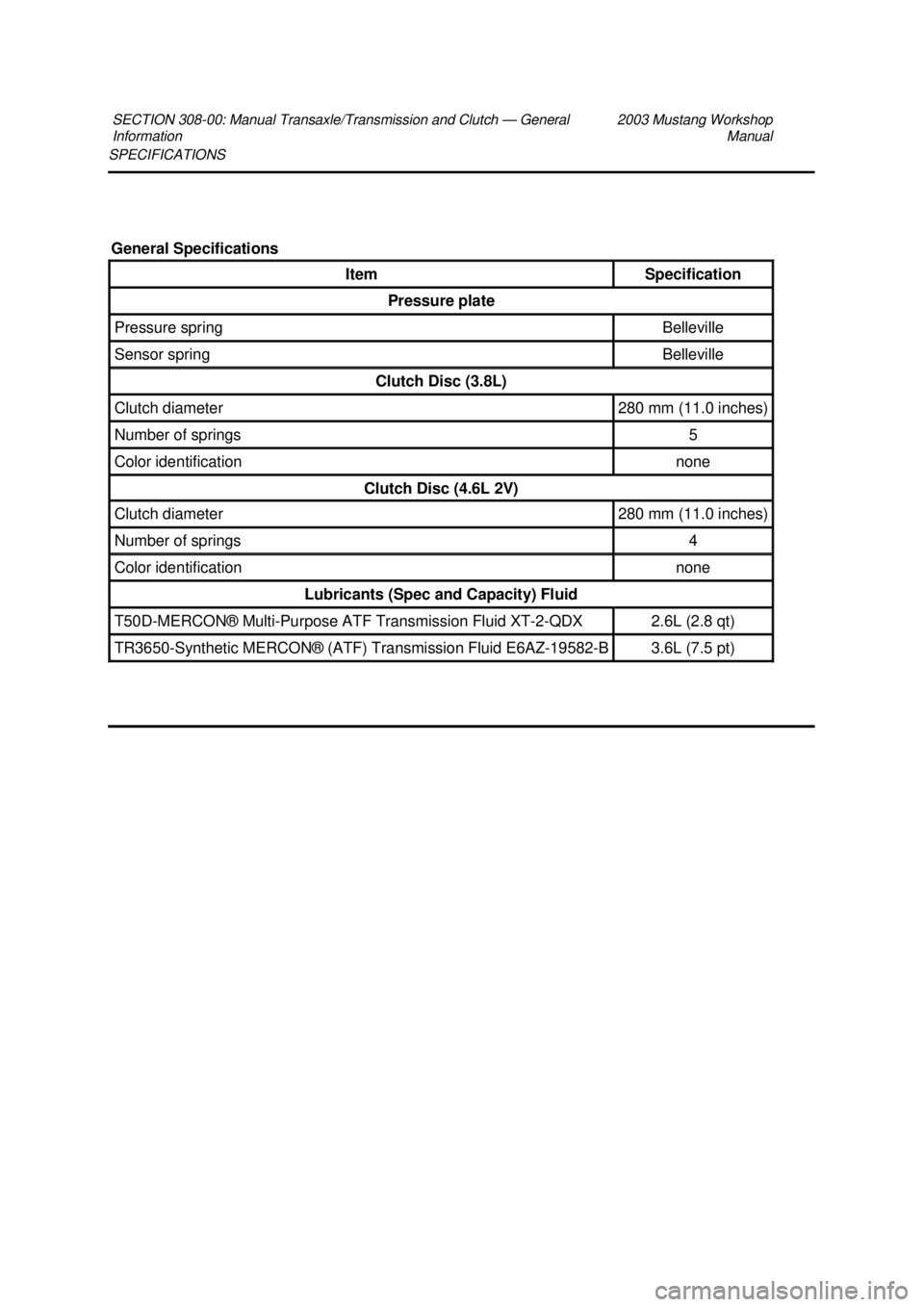

SPECIFICATIONS
SECTION 308-
00: Manual Transaxle/Transmission and Clutch — General
Information 2003 Mustang Workshop
Manual General Specifications
Item Specification
Pressure plate
Pressure spring Belleville
Sensor spring Belleville
Clutch Disc (3.8L)
Clutch diameter 280 mm (11.0 inches)
Number of springs 5
Color identification none
Clutch Disc (4.6L 2V)
Clutch diameter 280 mm (11.0 inches)
Number of springs 4
Color identification none
Lubricants (Spec and Capacity) Fluid
T50D-
MERCON® Multi- Purpose ATF Transmission Fluid XT -2-QDX 2.6L (2.8 qt)
TR3650-
Synthetic MERCON® ( ATF) Transmission Fluid E6AZ-19582- B 3.6L (7.5 pt) Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2700 of 4378
IN-
VEHICLE REPAIR
Output Shaft Speed (OSS) Sensor
Removal and Installation 1. With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. Disconnect the electrical connector.
3. Remove the output shaft speed (OSS) sensor.
4. To install, reverse the removal procedure.
SECTION 308-
03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2702 of 4378
REMOVAL

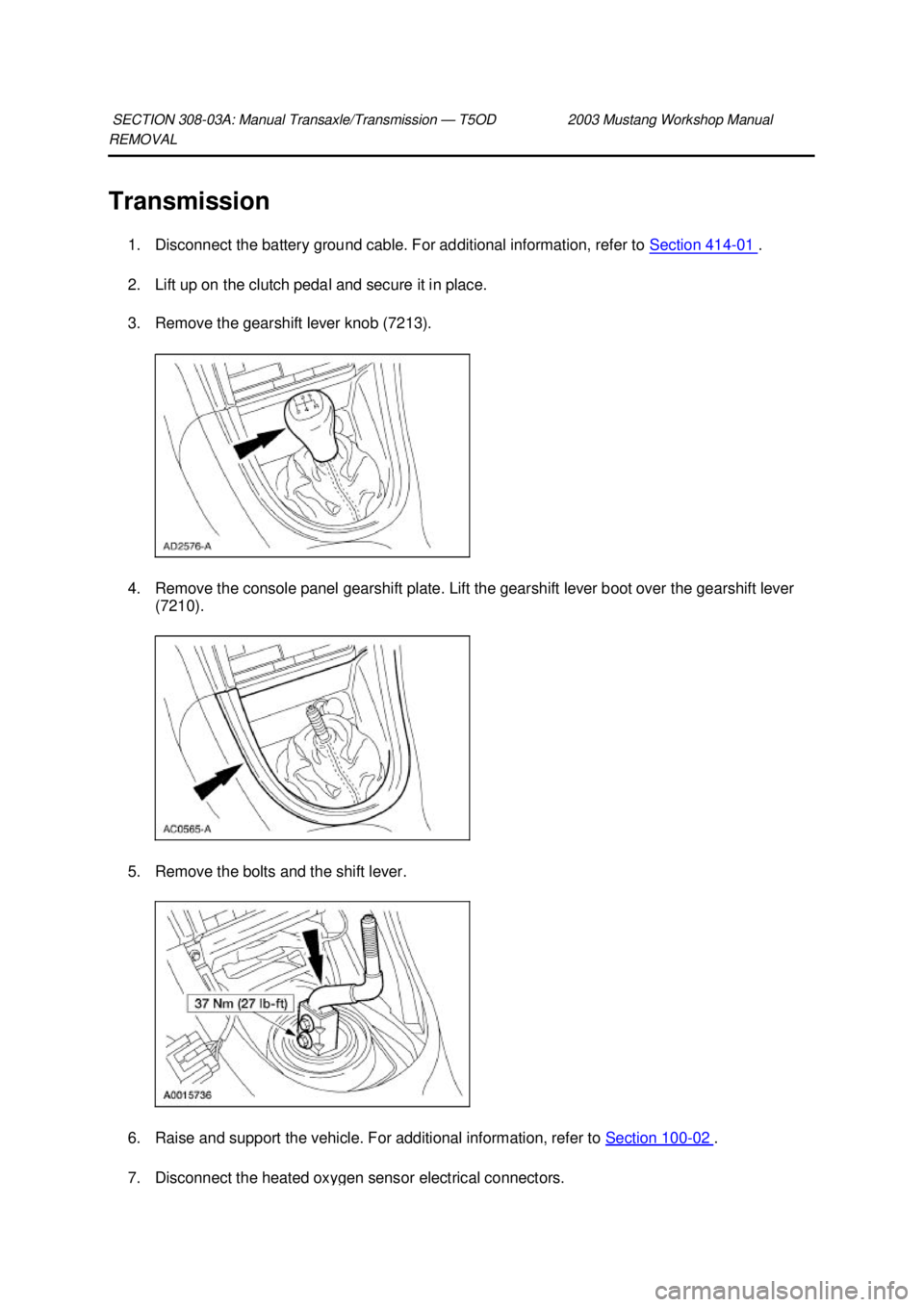

Transmission
1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
2. Lift up on the clutch pedal and secure it in place.
3. Remove the gearshift lever knob (7213).
4. Remove the console panel gearshift plate. Lift the gearshift lever boot over the gearshift lever (7210).
5. Remove the bolts and the shift lever.
6. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
7. Disconnect the heated oxygen sensor electrical connectors. SECTION 308-
03A: Manual Transaxle/Transmission — T5OD 2003 Mustang Workshop Manual Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2704 of 4378

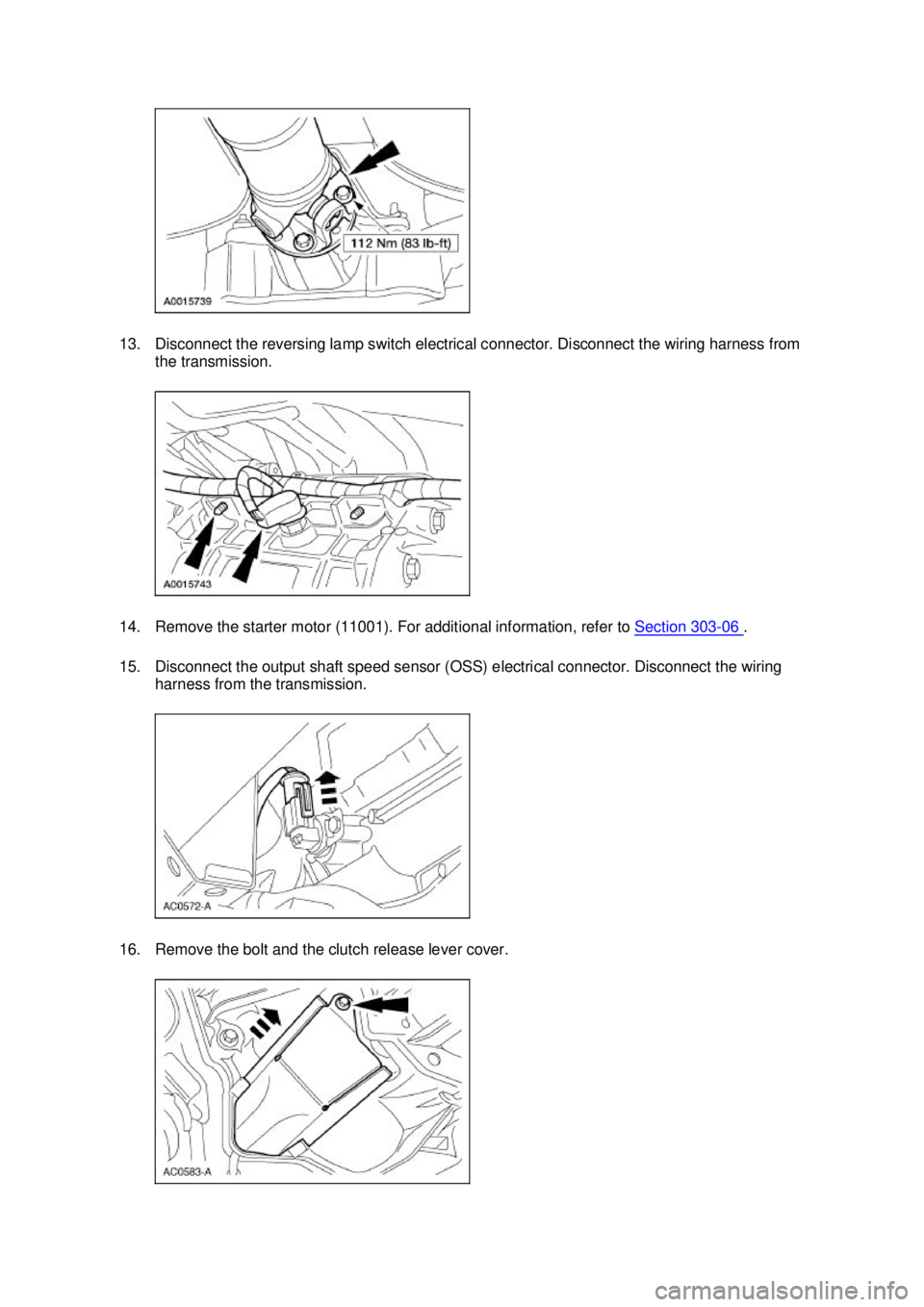

13. Disconnect the reversing lamp switch electrical connector. Disconnect the wiring harness from
the transmission.
14. Remove the starter motor (11001). For additional information, refer to Section 303 - 06 .
15. Disconnect the output shaft speed sensor (OSS) electrical connector. Disconnect the wiring harness from the transmission.
16. Remove the bolt and the clutch release lever cover. Klj . 3 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2761 of 4378

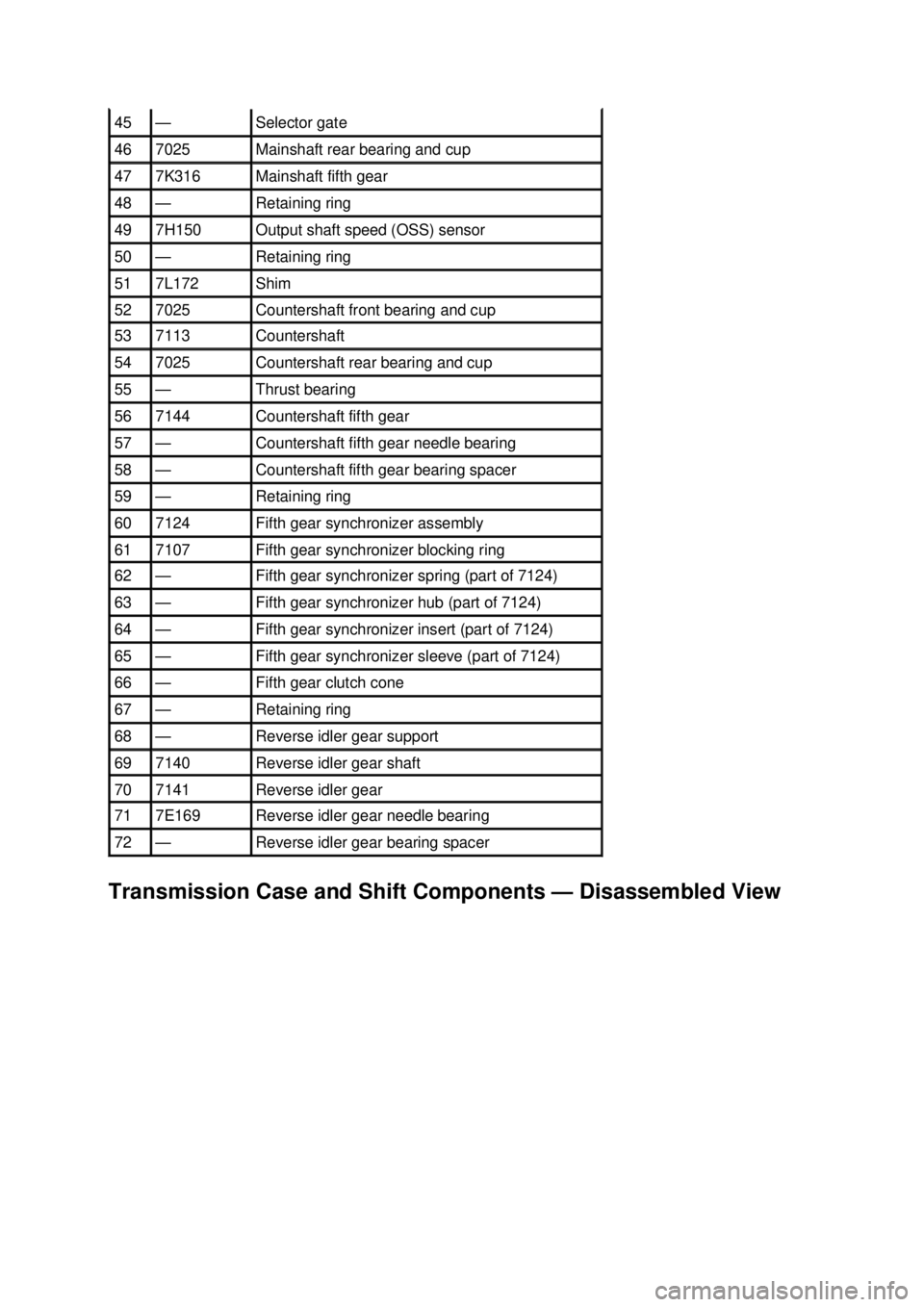

Transmission Case and Shift Components — Disassembled View 45 — Selector gate
46 7025 Mainshaft rear bearing and cup
47 7K316 Mainshaft fifth gear
48 — Retaining ring
49 7H150 Output shaft speed (OSS) sensor
50 — Retaining ring
51 7L172 Shim
52 7025 Countershaft front bearing and cup
53 7113 Countershaft
54 7025 Countershaft rear bearing and cup
55 — Thrust bearing
56 7144 Countershaft fifth gear
57 — Countershaft fifth gear needle bearing
58 — Countershaft fifth gear bearing spacer
59 — Retaining ring
60 7124 Fifth gear synchronizer assembly
61 7107 Fifth gear synchronizer blocking ring
62 — Fifth gear synchronizer spring (part of 7124)
63 — Fifth gear synchronizer hub (part of 7124)
64 — Fifth gear synchronizer insert (part of 7124)
65 — Fifth gear synchronizer sleeve (part of 7124)
66 — Fifth gear clutch cone
67 — Retaining ring
68 — Reverse idler gear support
69 7140 Reverse idler gear shaft
70 7141 Reverse idler gear
71 7E169 Reverse idler gear needle bearing
72 — Reverse idler gear bearing spacer Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2763 of 4378

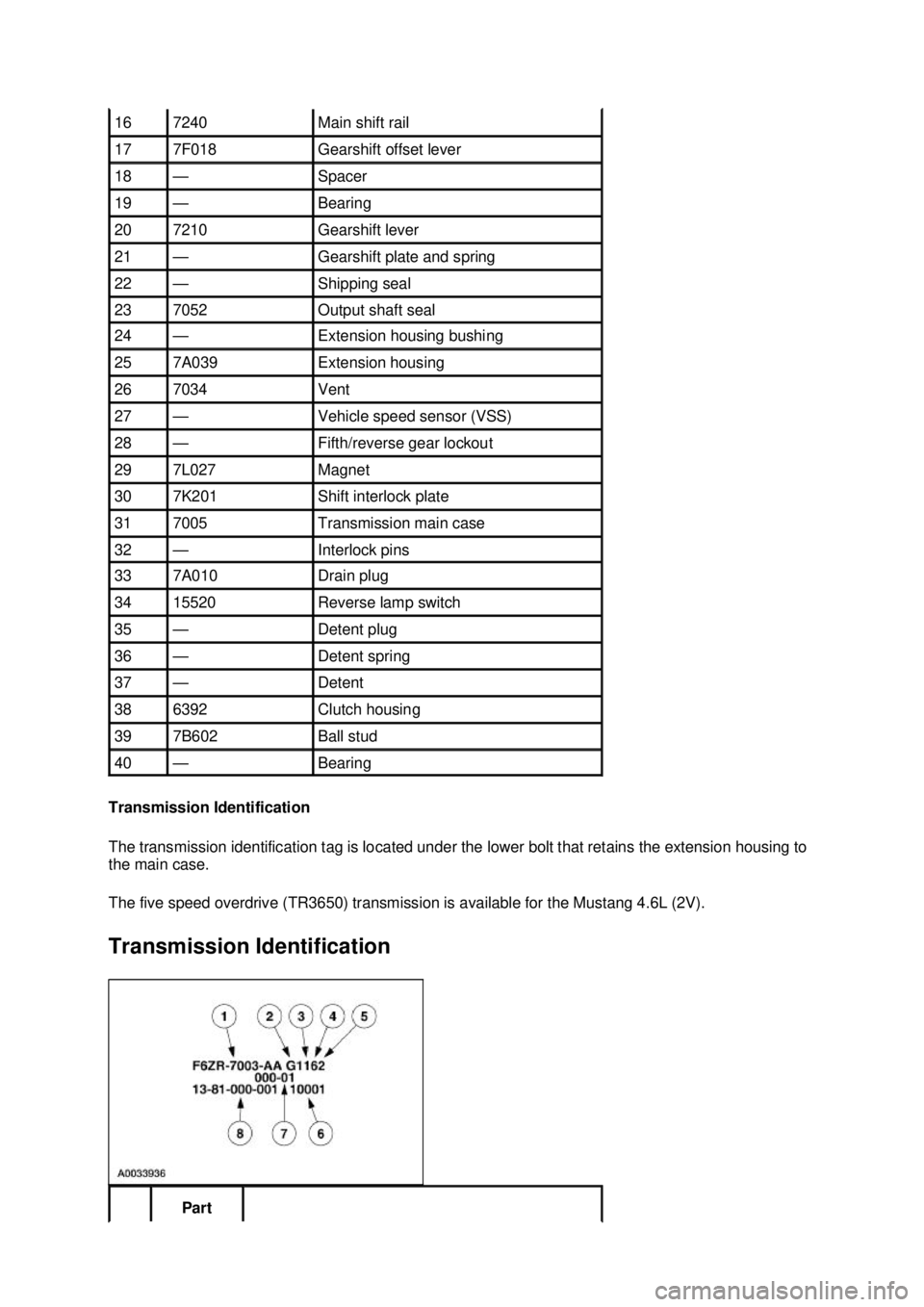

Transmission Identification
The transmission identification tag is located under the lower bolt that retains the extension housing to
the main case.
The five speed overdrive (TR3650) transmission is available for the Mustang 4.6L (2V).
Transmission Identification 16 7240 Main shift rail
17 7F018 Gearshift offset lever
18 — Spacer
19 — Bearing
20 7210 Gearshift lever
21 — Gearshift plate and spring
22 — Shipping seal
23 7052 Output shaft seal
24 — Extension housing bushing
25 7A039 Extension housing
26 7034 Vent
27 — Vehicle speed sensor (VSS)
28 — Fifth/reverse gear lockout
29 7L027 Magnet
30 7K201 Shift interlock plate
31 7005 Transmission main case
32 — Interlock pins
33 7A010 Drain plug
34 15520 Reverse lamp switch
35 — Detent plug
36 — Detent spring
37 — Detent
38 6392 Clutch housing
39 7B602 Ball stud
40 — Bearing
Part Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
Page 2774 of 4378
IN-
VEHICLE REPAIR

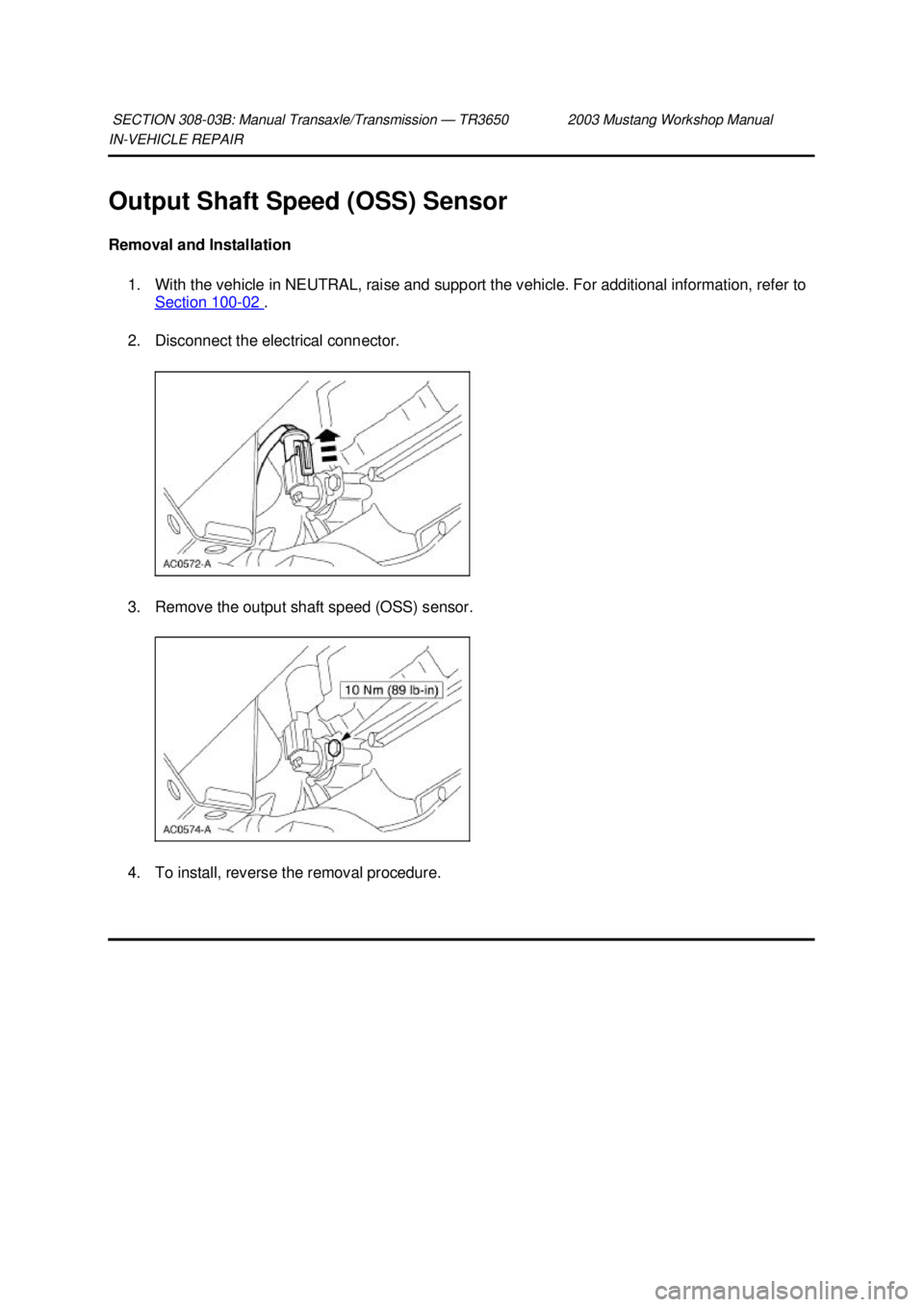

Output Shaft Speed (OSS) Sensor
Removal and Installation 1. With the vehicle in NEUTRAL, raise and support the vehicle. For additional information, refer to Section 100 - 02 .
2. Disconnect the electrical connector.
3. Remove the output shaft speed (OSS) sensor.
4. To install, reverse the removal procedure.
SECTION 308-
03B: Manual Transaxle/Transmission — TR3650 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
