2003 FORD MUSTANG steering

DIAGNOSIS AND TESTING
Communications Network
Refer to Wiring Diagrams Cell
14 , Multiplex Communication Network for schematic and connector
information.
Principles of Operation
The vehicle has two module communications networks. The standard corporate protocol (SCP) which
is an unshielded twisted pair cable (data bus plus, Circuit 914 [TN/OG] and data bus minus, Circuit 915
[PK/LB]), and the international standards organization (ISO) 9141 network which is a single wire
(Circuit 70 [LB/WH]). The diagnostic tool can connect to both networks through the data link connector
(DLC). This makes diagnosis and testing of these systems easier by allowing one smart tester to be
able to diagnose and control any module on the two networks from one connector. The DLC can be
found under the instrument panel between the steering column and the radio.
The ISO 9141 communication network does not permit inter- module communication. When the
diagnostic tool communicates to modules on the ISO 9141 communication network, the diagnostic tool
must ask for all information; the modules cannot initiate communications.
The SCP network will remain operational even with the severing of one of the bus wires.
Communications will also continue if one of the bus wires is shorted to ground or battery positive
voltage (B+) or if some, but not all, termination resistors are lost.
Unlike the SCP communication network, the ISO 9141 communication network will not function if the
wire is shorted to chassis ground or battery positive voltage (B+). Also, if one of the modules on the
ISO 9141 network loses power or shorts internally, communications to that module will fail.
The powertrain control module (PCM) is on the SCP communication network. The PCM controls the
engine for better fuel economy, emissions control, and failure mode detection and storage. Refer to
Powertrain Control/Emissions Diagnosis (PC/ED) manual Section 3 for diagnosis and testing of the
PCM.
The restraint control module (RCM) is on the ISO 9141 network. The RCM controls the deployment of
the air bags based on sensor input. For additional information, refer to Section 501 - 20B .
SECTION 418-
00: Module Communications Network 2003 Mustang Workshop Manual Special Tool(s)
73 Digital Multimeter or
equivalent
105-
R0051 Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent
diagnostic tool Klj . 1 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 419-

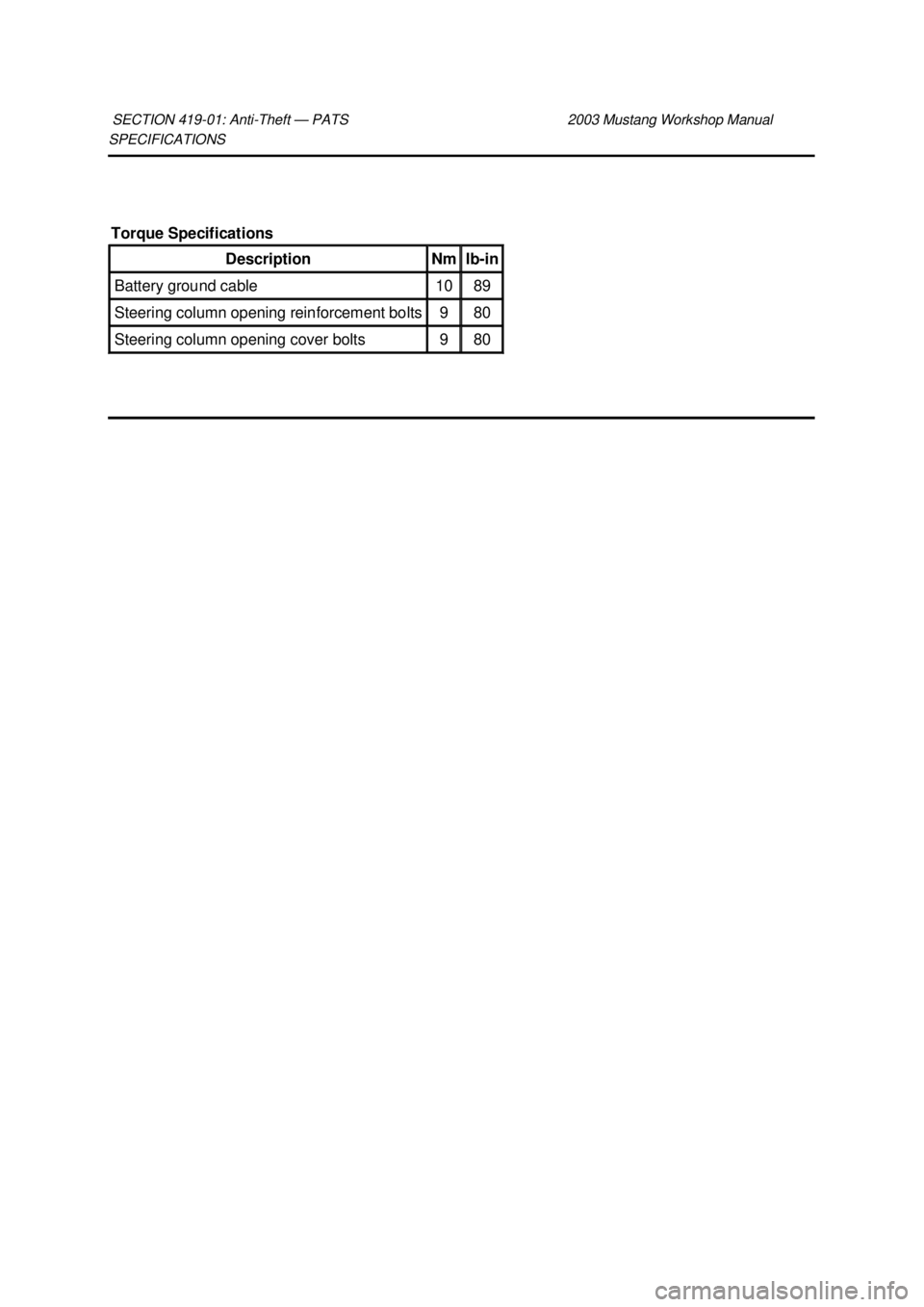

01: Anti-Theft — PATS 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable 10 89
Steering column opening reinforcement bolts 9 80
Steering column opening cover bolts 9 80 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Anti-
Theft — Passive Anti- Theft System (PATS)
The passive anti- theft system (PATS) contains the following components:
z theft indicator
z encoded ignition key
z transceiver module
z instrument cluster
z powertrain control module (PCM)
z standard corporate protocol (SCP) communication network
The PATS uses radio frequency identification technology to deter a driveaway theft. Passive means
that it does not require any activity from the user. This system is known as SecuriLock® in North
America, Safeguard® in the U.K. and PATS in continental Europe. This information can be found in
owners literature.
The PATS uses a specially encoded ignition key. Each encoded ignition key contains a permanently
installed electronic device called a transponder. Each transponder contains a unique electronic
identification code, with over 72 million billion combinations.
Each encoded ignition key must be programmed into the vehicle's instrument cluster (the instrument
cluster is also known as a hybrid electronic cluster [HEC]), before it can be used to start the engine.
There are special diagnostic procedures outlined in the workshop manual that must be carried out if
new encoded ignition keys are to be installed.
The encoded key is larger than a traditional ignition key. The key does not require batteries and should
last the life of the vehicle.
The transceiver module communicates with the encoded ignition key. This module is located behind
the steering column shroud and contains an antenna connected to a small electronics module. During
each vehicle start sequence, the transceiver module reads the encoded ignition key identification code
and sends the data to the instrument cluster.
The control functions are contained in the instrument cluster. This module carries out all of the PATS
functions such as receiving the identification code from the encoded ignition key and controlling engine
enable. The instrument cluster initiates the key interrogation sequence when the vehicle ignition switch
is turned to RUN or START.
The PATS uses the PCM to enable or disable the engine. The instrument cluster communicates with
the PCM over the SCP network in order to enable engine operation. The instrument cluster and the
PCM use sophisticated messages in order to prevent a theft. The instrument cluster and the PCM
share security data (when first installed together) that makes them a matched pair. After this security
data sharing, these modules will not function in other vehicles. The shared PCM ID is remembered
even if the battery is disconnected. The instrument cluster also stores the vehicle's key identification
code even if the battery is disconnected. There are special diagnostic procedures outlined in this
workshop manual that may be carried out if either a new instrument cluster or PCM needs to be
installed.
All elements of PATS must be functional before the engine is allowed to start. If any of the components
are not working correctly, the vehicle will not start.
PATS uses a visual theft indicator. This indicator will prove out for three seconds when the ignition SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Module —
Passive Anti- Theft Transceiver
Removal
1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to
these charges, damage may result.
Disconnect the battery ground cable (14301).
2. Remove the ignition switch lock cylinder (11582). 1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while
pushing out the ignition switch lock cylinder.
3. Unscrew the tilt wheel handle and shank and remove.
4. Remove the instrument panel steering column opening cover. 1. Remove the screws.
2. Remove the LH instrument panel steering column opening cover.
SECTION 419-
01: Anti-Theft — PATS 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

5.
NOTE: The steering wheel has been removed for clarity.
Remove the upper and lower steering column shrouds. 1. Remove the screws.
2. Remove the lower steering column shroud.
3. Remove the upper steering column shroud.
6. Remove the instrument panel steering column opening cover reinforcement. 1. Remove the bolts.
2. Remove the instrument panel steering column opening cover reinforcement.
7. NOTE: The steering wheel has been removed for clarity.
Remove the anti- theft transceiver module.
1. Remove the screw from the bottom of the transceiver module.
2. NOTE: Only apply pressure or leverage below the key cylinder lower rib.
Disconnect the electrical connector and remove the module. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 501-

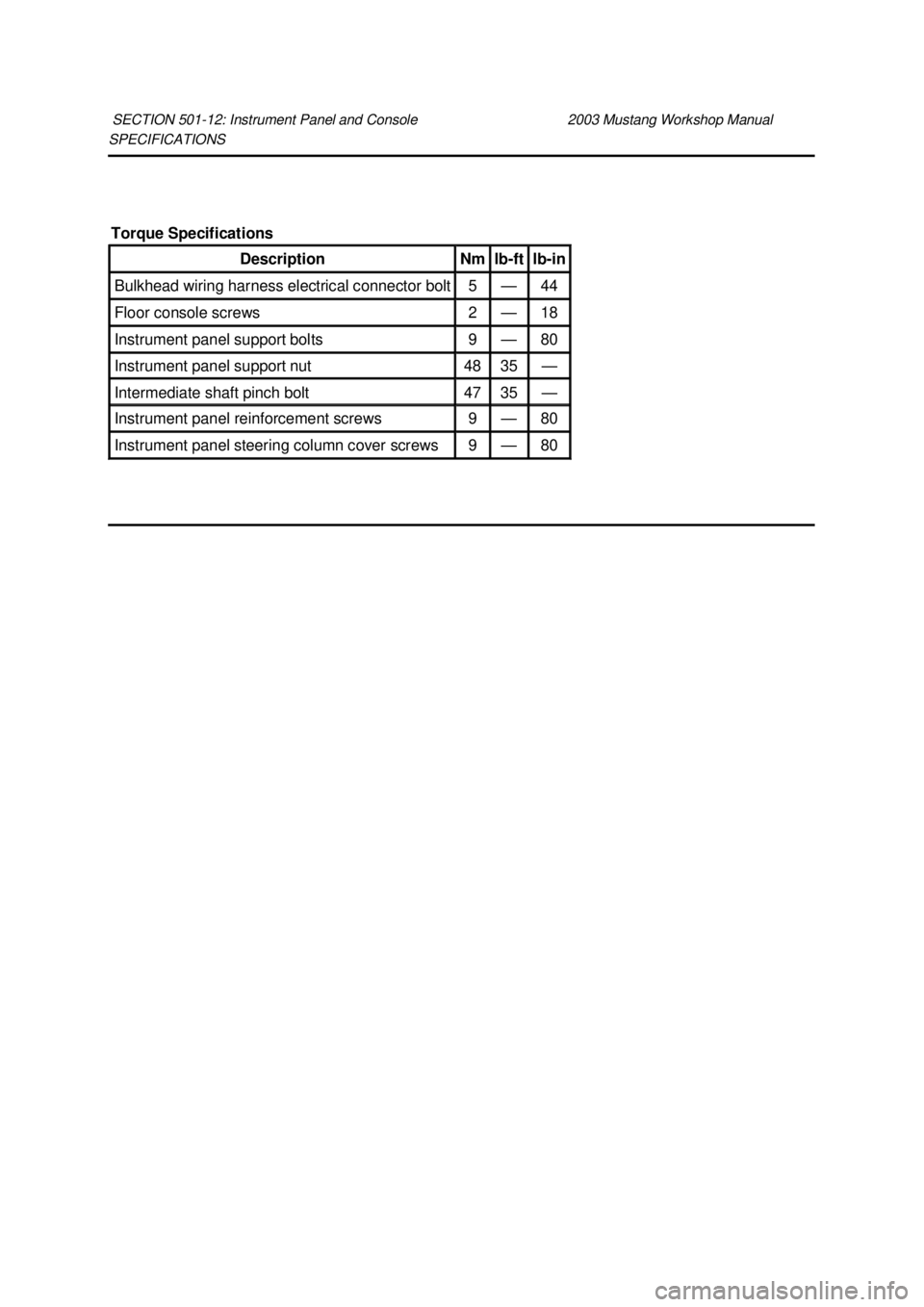

12: Instrument Panel and Console 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Bulkhead wiring harness electrical connector bolt 5 — 44
Floor console screws 2 — 18
Instrument panel support bolts 9 — 80
Instrument panel support nut 48 35 —
Intermediate shaft pinch bolt 47 35 —
Instrument panel reinforcement screws 9 — 80
Instrument panel steering column cover screws 9 — 80 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION

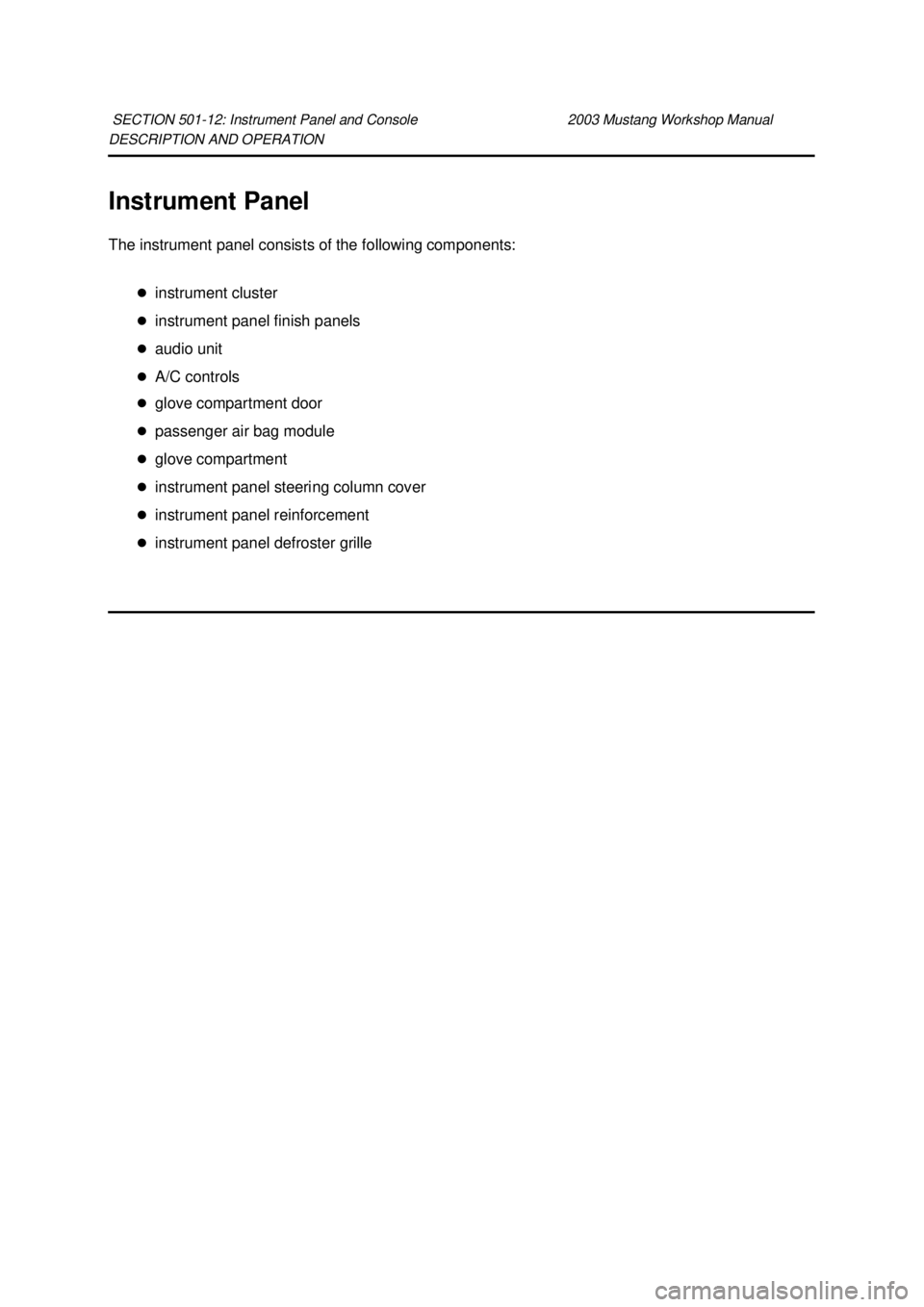

Instrument Panel
The instrument panel consists of the following components:
zinstrument cluster
z instrument panel finish panels
z audio unit
z A/C controls
z glove compartment door
z passenger air bag module
z glove compartment
z instrument panel steering column cover
z instrument panel reinforcement
z instrument panel defroster grille
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

18. Disconnect the climate control wiring harness connector.
19. Remove the instrument panel steering column cover.
1. Remove the screws.
2. Remove the instrument panel steering column cover.
20. Remove the instrument panel reinforcement. 1. Remove the screws.
2. Remove the instrument panel reinforcement.
21. Separate the intermediate shaft from the steering column shaft. 1. Remove the pinch bolt. Klj . 4 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
