2003 FORD MUSTANG steering

REMOVAL AND INSTALLATION
Register —
LH
Removal 1. Remove the instrument panel steering column cover bolts.
2. Unsnap and remove the instrument panel steering column cover.
3. Remove the bolts and the steering column reinforcement. 4. Remove the screws. SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

The boost pressure gauge on the instrument cluster receives and measures the boost pressure
directly from the intake manifold. The boost pressure gauge will display between 0.0-
0.48 kpa (0.0-10
psi) boost pressure dependent upon accelerator position, engine load, and engine rpm.
LOW FUEL Level Indicator
The low fuel level indicator is hardwired from the fuel sender to the instrument cluster. The instrument
cluster will illuminate the low fuel indicator when the usable fuel quantity is less than 1/8 tank (15%) of
fuel tank capacity.
Oil Pressure Gauge
The oil pressure gauge is hardwired from the oil pressure switch to the instrument cluster. The oil
pressure gauge will indicate either normal or no oil pressure.
CHECK FUEL CAP
The CHECK FUEL CAP indicator is used to indicate significant leaks in the fuel tank evaporative
system due to a loose fuel cap. Fuel tank pressure is monitored by the PCM. If a leak is detected the
PCM signals a fault to the instrument cluster via the SCP network. Once the PCM has detected a
loose fuel cap and the CHECK FUEL CAP indicator is illuminated, the indicator will remain illuminated
until the fuel cap is secured and the vehicle has been running for several minutes. For additional
information, refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual.
BRAKE Warning Indicator
The BRAKE warning indicator activates when the generic electronic module (GEM) detects the ignition
switch circuits are in the RUN state, when the GEM detects low brake fluid level, or that the parking
brake is applied. The BRAKE warning indicator will prove out starting when the GEM detects that the
ignition circuits have made a transition to RUN or START from OFF, ACC, or keyout and ending when
either three seconds have elapsed or when the GEM detects the ignition circuits have made a
transition to OFF, ACC, or keyout.
Safety Belt Warning Indicator
The safety belt switch is hardwired to the GEM. The safety belt warning indicator will be illuminated
when the GEM sends a ground signal to the instrument cluster.
ABS Warning Indicator
The ABS warning indicator will be illuminated when the anti- lock brake control module sends a ground
signal to the instrument cluster. The prove- out of the ABS indicator is controlled by the anti- lock brake
control module.
SERVICE ENGINE SOON Indicator
The SERVICE ENGINE SOON indicator receives its signal from the PCM over the SCP network. If the
instrument cluster does not receive a message from the PCM within five seconds, the instrument
cluster will illuminate the SERVICE ENGINE SOON indicator and log a diagnostic trouble code (DTC).
High Beam Indicator
The high beam indicator will illuminate when the steering column multifunction switch is in the high
beam position by sending a battery signal to the instrument cluster. Right and Left Turn Indicator Klj . 3 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

The right and left turn indicators will illuminate when the steering column multifunction switch is in
either turn signal position or hazard lamps position by sending a battery signal to the instrument
cluster.
AIR BAG Warning Indicator
The AIR BAG warning indicator will be illuminated when the restraint control module (RCM) sends a
ground signal to the instrument cluster. The prove-
out of the AIR BAG warning indicator is controlled
by the RCM.
THEFT Indicator
The THEFT indicator provides a passive anti- theft system (PATS) prove-out. The THEFT indicator will
prove out for three seconds following the ignition switch cycle and will flash following an ignition switch
OFF transition to indicate that PATS is active.
Charging System Indicator
The charging system indicator will be illuminated when the generator provides a ground signal to the
instrument cluster. The instrument cluster provides a prove- out when the ignition switch is in the RUN
position with the engine off. When the engine is started, the generator removes the ground to the
instrument cluster and extinguishes the charging system indicator.
Overdrive Off (O/D OFF) Indicator
The O/D OFF indicator is controlled by the off/on message sent from the PCM over the SCP network.
The instrument cluster does not provide a prove- out for the O/D OFF indicator, but will remain
illuminated if the overdrive has been commanded off following the instrument cluster prove- out.
Traction Control Indicator
During initialization, the instrument cluster will receive the traction control system state status message
from the traction control module to determine if the vehicle is equipped with traction control. If the
vehicle is equipped with traction control, this information will be stored in random access memory
(RAM) and the indicator will prove out for three seconds during each ignition cycle. If this message is
not received, the instrument cluster will assume that the vehicle is not traction control equipped and
the indicator will remain off. When the traction control is active, the traction control module sends the
instrument cluster a traction control active signal and the instrument cluster illuminates the traction
control indicator. When the traction control is inactive, the traction control module removes the traction
control active signal and the instrument cluster turns off the indicator.
In the event of a traction control failure, the traction control indicator will remain off and the ABS
indicator will illuminate.
Inspection and Verification 1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical and electrical damage.
Visual Inspection Chart Mechanical Electrical
z
Fuel tank z
Central junction box (CJB) fuse(s): Klj . 4 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST T: THE TURN/HAZARD INDICATOR IS
NEVER/ALWAYS ON CLUSTER SERVICE ENGINE SOON
INDICATOR ACTIVE COMMAND
z
Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode
on the diagnostic tool: Instrument
Cluster Active Command.
z Trigger the instrument cluster active
command MIL.
z Did the SERVICE ENGINE SOON
indicator illuminate? Yes
REFER to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
No
GO to
S2 .
S2 CHECK FOR CORRECT
INSTRUMENT CLUSTER OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they seat
correctly.
z Operate the system and verify the
concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the
system for normal operation.
No
The system is operating correctly at this time.
Concern may have been caused by a loose or
corroded connector. CLEAR the DTCs. REPEAT
the self- test. Test Step Result / Action to
Take T1 CHECK THE TURN SIGNAL AND HAZARD LAMPS OPERATION
CAUTION: Use the correct probe adapter(s) when making
measurements. Failure to use the correct probe adapter(s) may
damage the connector.
z Key in ON position.
z Operate the left and right turn signals.
z Operate the hazard lamps.
z Do the turn signals and hazard lamps operate correctly? Yes
GO to
T2 .
No
REFER to Section 417 - 01 .
T2 CHECK THE CIRCUIT IN QUESTION —
CIRCUIT 2 (WH/LB) (RH)
OR CIRCUIT 3 (LG/WH) (LH) z
Key in OFF position.
z Disconnect: Instrument Cluster C220a (RH) or C220b (LH).
z Key in ON position.
z Measure the voltage between the instrument cluster C220a pin 3,
circuit 3 (LG/WH), harness side and ground, while the steering
column multifunction switch is placed in the left turn position (LH); or
between the instrument cluster C220b pin 3, circuit 2 (WH/LB),
harness side and ground, while the steering column multifunction
switch is placed in the right turn position (RH). Yes
GO to
T3 .
No
REPAIR the circuit
(s) in question.
TEST the system for
normal operation. Klj . 36 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Are the resistances correct? A4 CHECK WIRE BETWEEN HORN RELAY AND HORN
z
Key in OFF position.
z Disconnect: Horn C1262.
z Disconnect: Horn C1261.
z Measure the resistance between the horn relay connector Pin 3,
Circuit 1 (DB), harness side and horn C1261 or horn C1256
harness side; and between the horn relay connector Pin 3, Circuit
1 (DB), harness side and ground.
z Is the resistance less than 5 ohms between the horn relay and
the horns, and greater than 10,000 ohms between the horn
relay and ground? Yes
INSTALL new horns.
TEST the system for
normal operation.
No
REPAIR the circuit.
TEST the system for
normal operation.
A5 CHECK WIRE BETWEEN HORN RELAY AND AIR BAG SLIDING
CONTACT z
Key in OFF position.
z Deactivate the air bag system; refer to Section 501 - 20B .
z Disconnect: Air Bag Sliding Contact C218a.
z Measure the resistance between air bag sliding contact C218a Pin
2, Circuit 6 (YE/LG), harness side and horn relay connector Pin 1,
Circuit 6 (YE/LG) harness side.
z Is the resistance less than 5 ohms? Yes
GO to
A6 .
No
REPAIR the circuit.
TEST the system for
normal operation. A6 CHECK AIR BAG SLIDING CONTACT
z
Disconnect the steering wheel switch harness from the air bag
sliding contact.
z Measure the resistance between upper air bag sliding contact Yes
GO to
A7 . Klj . 3 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST B: THE HORN SOUNDS CONTINUOUSLY connector Pin 3, Circuit 6 (component side), and air bag sliding
contact C218a Pin 2, Circuit 6 (component side).
z Is the resistance less than 5 ohms? No
INSTALL a new air
bag sliding contact.
REFER to
Section 501 - 20B . TEST the
system for normal
operation. A7 CHECK THE STEERING WHEEL SWITCH HARNESS
z
Inspect the steering wheel switch harness for chafing, opens or
possible short to ground.
z Is the steering wheel switch harness OK? Yes
INSTALL a new horn
switch. REFER to
Switch
— Horn . TEST
the system for normal
operation.
No
INSTALL a new
steering wheel switch
harness. TEST the
system for normal
operation. Test Step Result / Action to Take
B1 CHECK HORN CIRCUIT 1 (DB)
z
Key in OFF position.
z Disconnect: Horn Relay.
z Does the horn continue to sound? Yes
REPAIR Circuit 1 (DB) for short to battery. TEST
the system for normal operation.
No
GO to
B2 .
B2 CHECK HORN RELAY
z
Check the horn relay; refer to Wiring
Diagrams Cell 149.
z Is the horn relay OK? Yes
REINSTALL the horn relay. GO to
B3 .
No
INSTALL a new horn relay. TEST the system for
normal operation. B3 CHECK CIRCUIT 6 (YE/LG)
z
Disconnect: Air Bag Sliding Contact
C218a .
z Does the horn continue to sound? Yes
GO to
B4 .
No
RECONNECT the air bag sliding contact. GO to
B5 .
B4 CHECK GEM INPUT
z
Disconnect: GEM C201e. Yes Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Does the horn continue to sound? REPAIR Circuit 6 (YE/LG). TEST the system for
normal operation.
No
INSTALL a new GEM; REFER to
Section 419 - 10 .

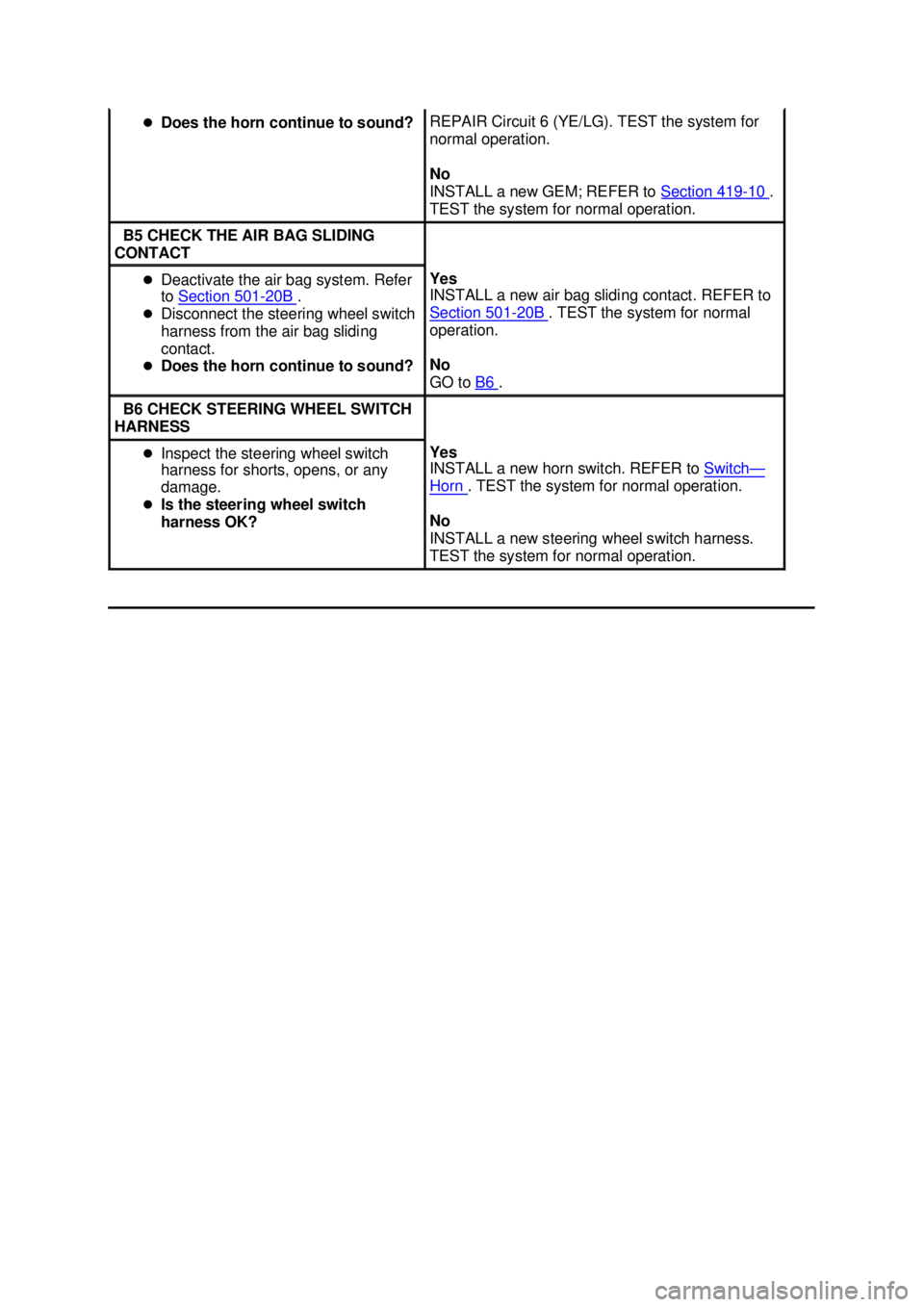

TEST the system for normal operation. B5 CHECK THE AIR BAG SLIDING
CONTACT z
Deactivate the air bag system. Refer
to Section 501 - 20B .
z Disconnect the steering wheel switch
harness from the air bag sliding
contact.
z Does the horn continue to sound? Yes
INSTALL a new air bag sliding contact. REFER to
Section 501
- 20B . TEST the system for normal
operation.
No
GO to B6 .
B6 CHECK STEERING WHEEL SWITCH
HARNESS z
Inspect the steering wheel switch
harness for shorts, opens, or any
damage.
z Is the steering wheel switch
harness OK? Yes
INSTALL a new horn switch. REFER to
Switch —
Horn . TEST the system for normal operation.
No
INSTALL a new steering wheel switch harness.
TEST the system for normal operation. Klj . 5 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Switch —
Key-In-Ignition Warning
Removal 1. Remove the ignition switch lock cylinder. 1. Insert the ignition key and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition switch lock cylinder.
2. Remove the key- in-ignition warning switch.
1. Release the clip.
2. Push the key- in-ignition warning switch off the rear of the ignition switch lock cylinder.
Installation 1. To install, reverse the removal procedure. zVerify ignition switch lock cylinder operation.
SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
