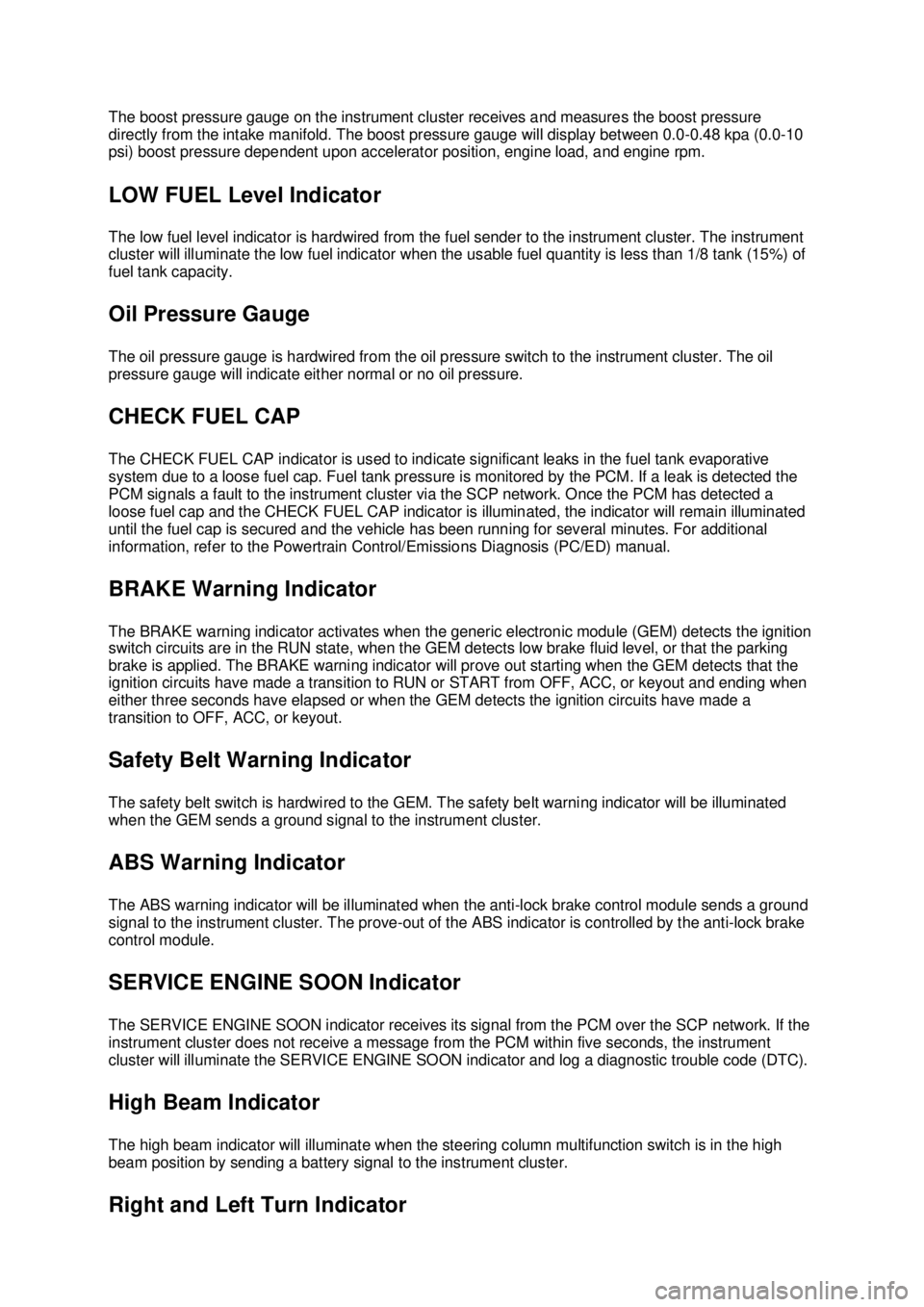

2003 FORD MUSTANG display

The boost pressure gauge on the instrument cluster receives and measures the boost pressure
directly from the intake manifold. The boost pressure gauge will display between 0.0-
0.48 kpa (0.0-10
psi) boost pressure dependent upon accelerator position, engine load, and engine rpm.
LOW FUEL Level Indicator
The low fuel level indicator is hardwired from the fuel sender to the instrument cluster. The instrument
cluster will illuminate the low fuel indicator when the usable fuel quantity is less than 1/8 tank (15%) of
fuel tank capacity.
Oil Pressure Gauge
The oil pressure gauge is hardwired from the oil pressure switch to the instrument cluster. The oil
pressure gauge will indicate either normal or no oil pressure.
CHECK FUEL CAP
The CHECK FUEL CAP indicator is used to indicate significant leaks in the fuel tank evaporative
system due to a loose fuel cap. Fuel tank pressure is monitored by the PCM. If a leak is detected the
PCM signals a fault to the instrument cluster via the SCP network. Once the PCM has detected a
loose fuel cap and the CHECK FUEL CAP indicator is illuminated, the indicator will remain illuminated
until the fuel cap is secured and the vehicle has been running for several minutes. For additional
information, refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual.
BRAKE Warning Indicator
The BRAKE warning indicator activates when the generic electronic module (GEM) detects the ignition
switch circuits are in the RUN state, when the GEM detects low brake fluid level, or that the parking
brake is applied. The BRAKE warning indicator will prove out starting when the GEM detects that the
ignition circuits have made a transition to RUN or START from OFF, ACC, or keyout and ending when
either three seconds have elapsed or when the GEM detects the ignition circuits have made a
transition to OFF, ACC, or keyout.
Safety Belt Warning Indicator
The safety belt switch is hardwired to the GEM. The safety belt warning indicator will be illuminated
when the GEM sends a ground signal to the instrument cluster.
ABS Warning Indicator
The ABS warning indicator will be illuminated when the anti- lock brake control module sends a ground
signal to the instrument cluster. The prove- out of the ABS indicator is controlled by the anti- lock brake
control module.
SERVICE ENGINE SOON Indicator
The SERVICE ENGINE SOON indicator receives its signal from the PCM over the SCP network. If the
instrument cluster does not receive a message from the PCM within five seconds, the instrument
cluster will illuminate the SERVICE ENGINE SOON indicator and log a diagnostic trouble code (DTC).
High Beam Indicator
The high beam indicator will illuminate when the steering column multifunction switch is in the high
beam position by sending a battery signal to the instrument cluster. Right and Left Turn Indicator Klj . 3 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible)
before proceeding to the next step.
4. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the
diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check the connections to the vehicle.
z check the ignition switch position.
5. If the diagnostic tool still does not power up, refer to the diagnostic tool operating manual.
6. Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with: zCKT914, CKT915 OR CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Section 418 -
00 .
z NO RESP/NOT EQUIP for the instrument cluster, Go To Pinpoint Test A or for the
generic electronic module (GEM), Go To Pinpoint Test W .
z SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs),
erase the continuous DTCs and carry out the self- test diagnostics for the instrument
cluster or the GEM.
7. If the DTCs retrieved are related to the concern, go to the Instrument Cluster Diagnostic Trouble Code (DTC) Index or the GEM Diagnostic Trouble Code Index to continue diagnostics.
8. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics.
Instrument Cluster Self- Diagnostic Mode
To enter the instrument cluster self- diagnostic mode, press and hold the instrument cluster
SELECT/RESET button, turn the ignition switch to the RUN position, and then continue pressing the
SELECT/RESET button (five seconds) until tESt is displayed in the odometer. The SELECT/RESET
button must be released within three seconds of the odometer tESt display to begin the self- diagnostic
mode. Press the SELECT/RESET button to advance through the following steps until dtc is displayed.
Depressing the SELECT/RESET button will display any stored continuous DTCs before proceeding to
the next step. z

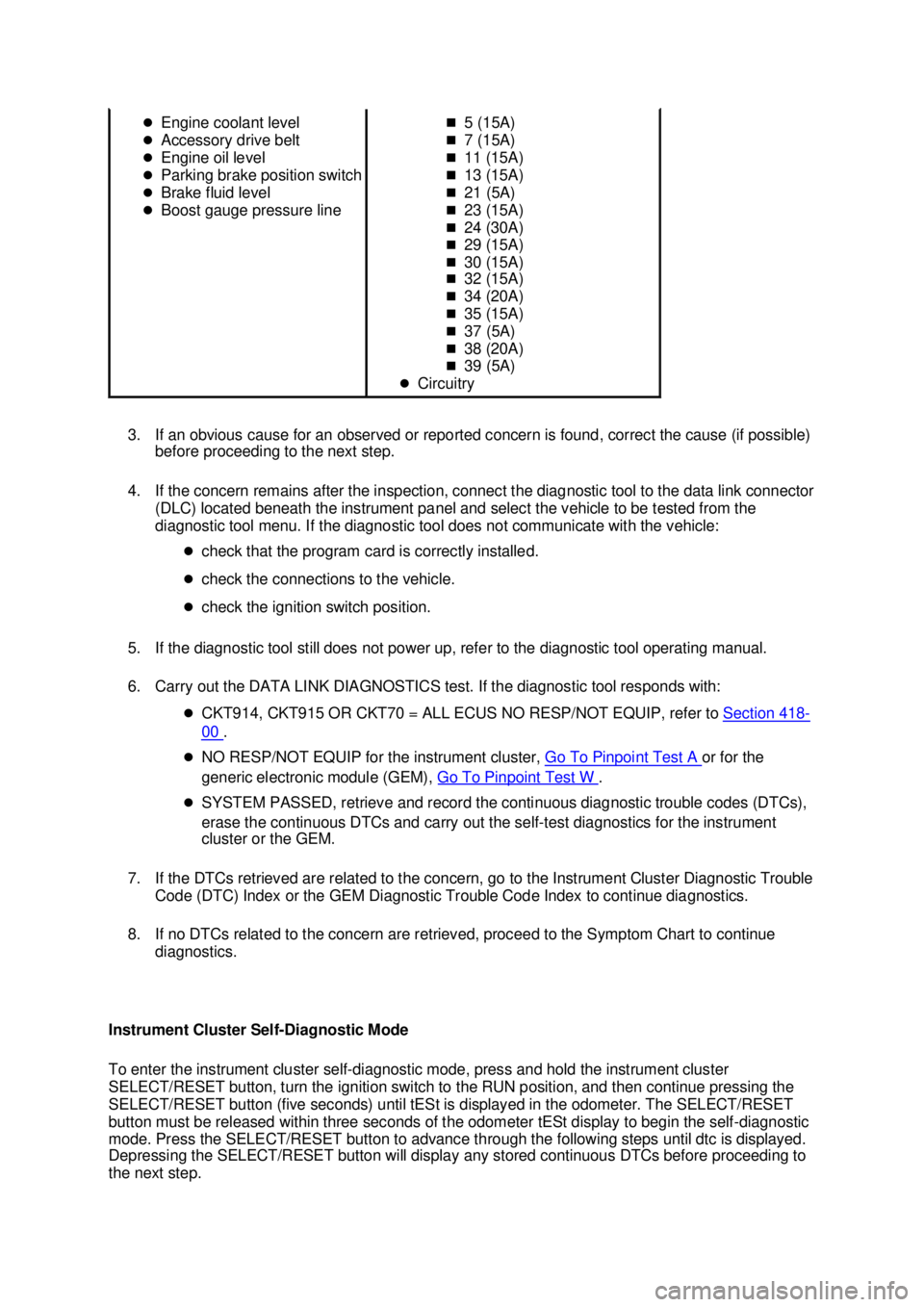

Engine coolant level
z Accessory drive belt
z Engine oil level
z Parking brake position switch
z Brake fluid level
z Boost gauge pressure line „
5 (15A)
„ 7 (15A)
„ 11 (15A)
„ 13 (15A)
„ 21 (5A)
„ 23 (15A)
„ 24 (30A)
„ 29 (15A)
„ 30 (15A)
„ 32 (15A)
„ 34 (20A)
„ 35 (15A)
„ 37 (5A)
„ 38 (20A)
„ 39 (5A)
z Circuitry Klj . 5 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

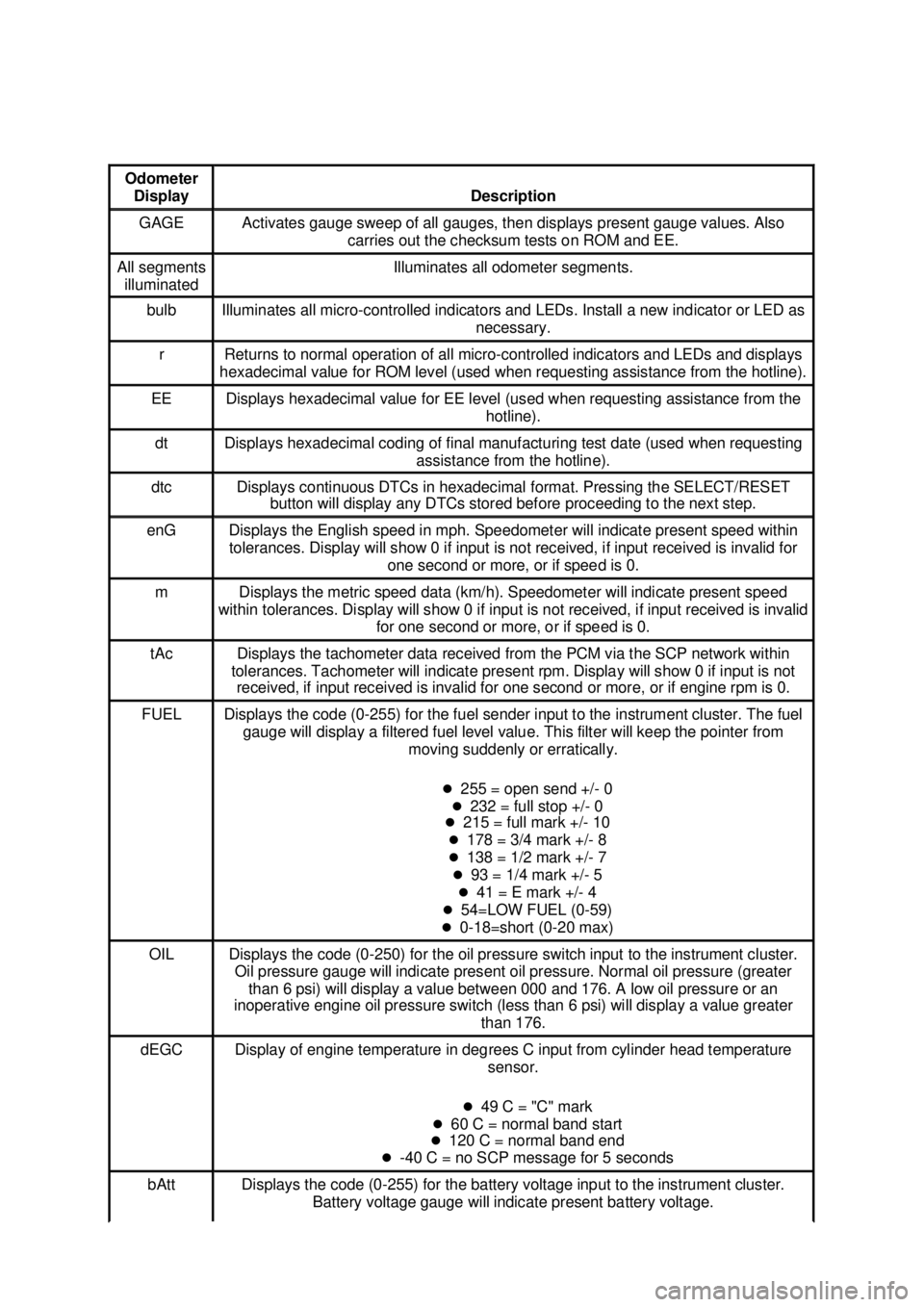

Odometer
Display Description
GAGE Activates gauge sweep of all gauges, then displays present gauge values. Also
carries out the checksum tests on ROM and EE. All segments
illuminated Illuminates all odometer segments.
bulb Illuminates all micro-controlled indicators and LEDs. Install a new indicator or LED as
necessary. r Returns to normal operation of all micro-
controlled indicators and LEDs and displays
hexadecimal value for ROM level (used when requesting assistance from the hotline). EE Displays hexadecimal value for EE level (used when requesting assistance from the
hotline). dt Displays hexadecimal coding of final manufacturing test date (used when requesting
assistance from the hotline). dtc Displays continuous DTCs in hexadecimal format. Pressing the SELECT/RESET
button will display any DTCs stored before proceeding to the next step. enG Displays the English speed in mph. Speedometer will indicate present speed within
tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. m Displays the metric speed data (km/h). Speedometer will indicate present speed
within tolerances. Display will show 0 if input is not received, if input received is invalid for one second or more, or if speed is 0. tAc Displays the tachometer data received from the PCM via the SCP network within
tolerances. Tachometer will indicate present rpm. Display will show 0 if input is not received, if input received is invalid for one second or more, or if engine rpm is 0. FUEL Displays the code (0-255) for the fuel sender input to the instrument cluster. The fuel
gauge will display a filtered fuel level value. This filter will keep the pointer from moving suddenly or erratically.
z255 = open send +/- 0
z 232 = full stop +/- 0
z 215 = full mark +/- 10
z 178 = 3/4 mark +/- 8
z 138 = 1/2 mark +/- 7
z 93 = 1/4 mark +/- 5
z 41 = E mark +/- 4
z 54=LOW FUEL (0- 59)
z 0-18=short (0- 20 max) OIL Displays the code (0-
250) for the oil pressure switch input to the instrument cluster.
Oil pressure gauge will indicate present oil pressure. Normal oil pressure (greater
than 6 psi) will display a value between 000 and 176. A low oil pressure or an
inoperative engine oil pressure switch (less than 6 psi) will display a value greater
than 176. dEGC Display of engine temperature in degrees C input from cylinder head temperature
sensor.
z 49 C = "C" mark
z 60 C = normal band start
z 120 C = normal band end
z -40 C = no SCP message for 5 seconds bAtt Displays the code (0-255) for the battery voltage input to the instrument cluster.
Battery voltage gauge will indicate present battery voltage. Klj . 6 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

To exit the instrument cluster self-
diagnostic mode, turn the ignition switch to the OFF position or press
and hold the SELECT/RESET button for three or more seconds and release. z
93- 102 = 6.9- 9.1 volts (low voltage)
z 115- 124 = 8.5- 10.7 volts (norm band start)
z 215- 225 = 15.8- 18 volts (norm band end)
z 230- 241 = 16.9- 19.1 volts (high voltage) rhEo Displays the present decimal rheostat dimming input, 0-
255 (used when requesting
assistance from the hotline). rhi
rhS rho Not used.
Cr Displays the present RUN/START sense input. Display will show -
h for high input with
the ignition switch in the START position and - L for low input with the ignition switch in
the RUN position. PA-
PE7 Not used.
GAGE Repeats test display cycle.

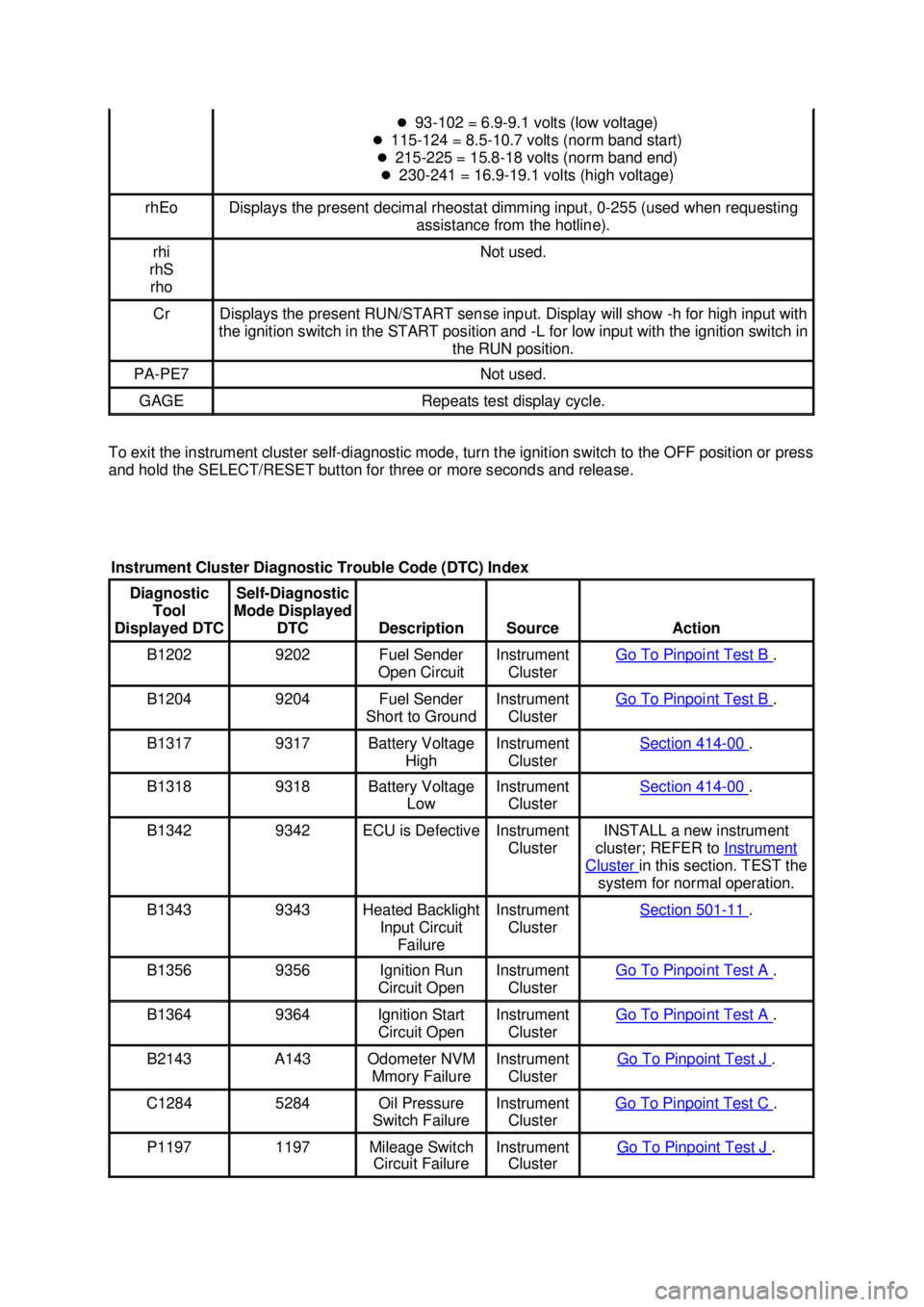

Instrument Cluster Diagnostic Trouble Code (DTC) Index Diagnostic
Tool
Displayed DTC Self-
Diagnostic
Mode Displayed DTC Description Source Action
B1202 9202 Fuel Sender
Open Circuit Instrument
Cluster Go To Pinpoint Test B .
B1204 9204 Fuel Sender
Short to Ground Instrument
Cluster Go To Pinpoint Test B .
B1317 9317 Battery Voltage
High Instrument
Cluster Section 414 - 00 .
B1318 9318 Battery Voltage
Low Instrument
Cluster Section 414 - 00 .
B1342 9342 ECU is Defective Instrument
Cluster INSTALL a new instrument
cluster; REFER to Instrument Cluster in this section. TEST the
system for normal operation. B1343 9343 Heated Backlight
Input Circuit Failure Instrument
Cluster Section 501 - 11 .
B1356 9356 Ignition Run
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B1364 9364 Ignition Start
Circuit Open Instrument
Cluster Go To Pinpoint Test A .
B2143 A143 Odometer NVM
Mmory Failure Instrument
Cluster Go To Pinpoint Test J .
C1284 5284 Oil Pressure
Switch Failure Instrument
Cluster Go To Pinpoint Test C .
P1197 1197 Mileage Switch
Circuit Failure Instrument
Cluster Go To Pinpoint Test J . Klj . 7 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

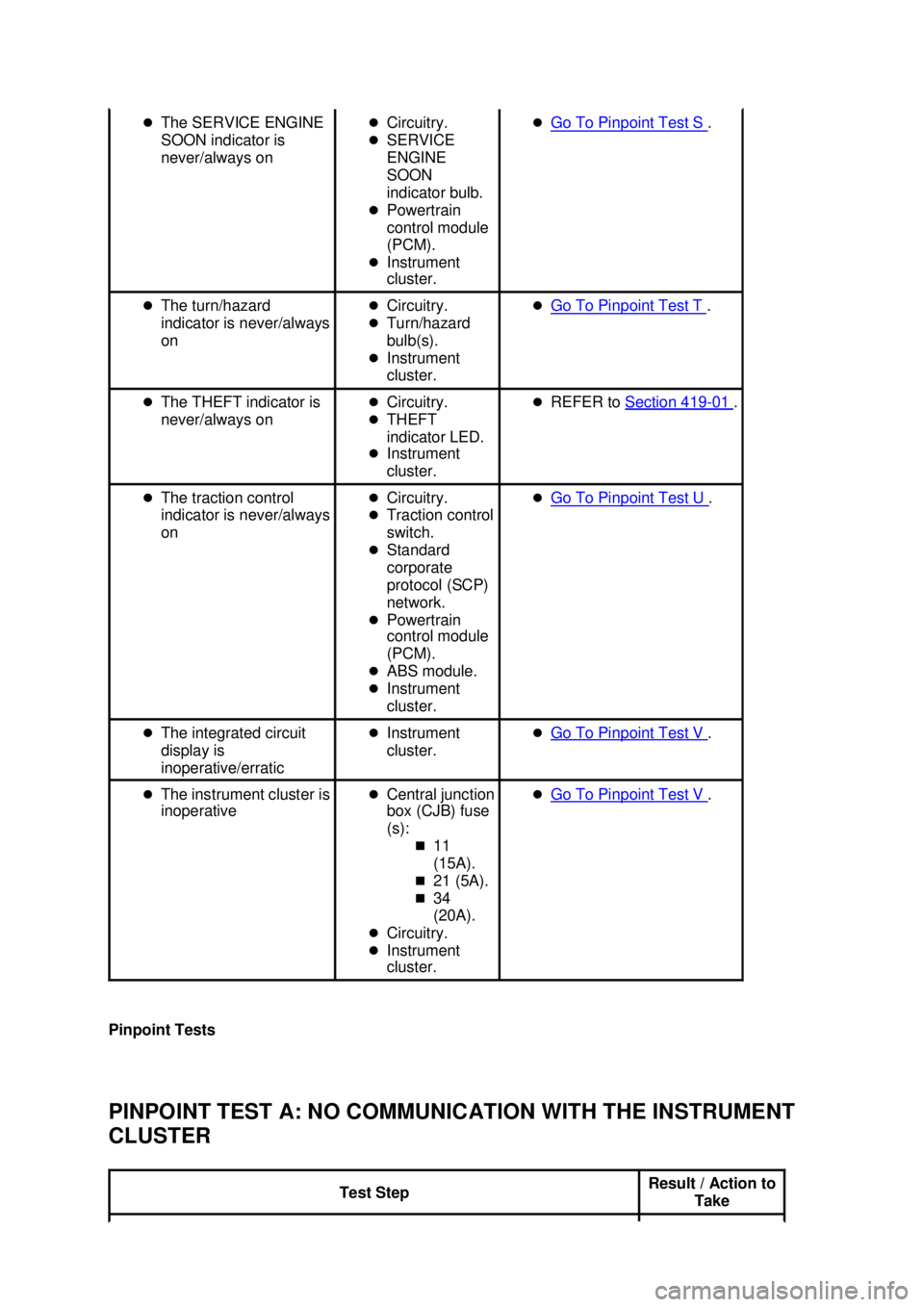

Pinpoint Tests
PINPOINT TEST A: NO COMMUNICATION WITH THE INSTRUMENT
CLUSTER z
The SERVICE ENGINE
SOON indicator is
never/always on z
Circuitry.
z SERVICE
ENGINE
SOON
indicator bulb.
z Powertrain
control module
(PCM).
z Instrument
cluster. z
Go To Pinpoint Test S .
z The turn/hazard
indicator is never/always
on z
Circuitry.
z Turn/hazard
bulb(s).
z Instrument
cluster. z
Go To Pinpoint Test T .
z The THEFT indicator is
never/always on z
Circuitry.
z THEFT
indicator LED.
z Instrument
cluster. z
REFER to Section 419 - 01 .
z The traction control
indicator is never/always
on z
Circuitry.
z Traction control
switch.
z Standard
corporate
protocol (SCP)
network.
z Powertrain
control module
(PCM).
z ABS module.
z Instrument
cluster. z
Go To Pinpoint Test U .
z The integrated circuit
display is
inoperative/erratic z
Instrument
cluster. z
Go To Pinpoint Test V .
z The instrument cluster is
inoperative z
Central junction
box (CJB) fuse
(s):
„11
(15A).
„ 21 (5A).
„ 34
(20A).
z Circuitry.
z Instrument
cluster. z
Go To Pinpoint Test V .
Test Step Result / Action to
Take Klj . 13 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST B: INCORRECT FUEL GAUGE INDICATION A4 CHECK GROUND CIRCUIT 397 (BK/WH) FOR AN OPEN
z
Key in OFF position.
z Measure the resistance between the instrument cluster C220b pin
20, circuit 397 (BK/WH), harness side and ground.
z Is the resistance less than 5 ohms? Yes
GO to
A5 .
No
REPAIR the circuit.
TEST the system
for normal
operation. A5 CHECK GROUND CIRCUIT 1205 (BK) FOR OPEN
z
Measure the resistance between the instrument cluster C220b pin 1,
circuit 1205 (BK), harness side and ground.
z Is the resistance less than 5 ohms? Yes
REFER to
Section 418 - 00 .
No
REPAIR the circuit.
TEST the system
for normal
operation. Test Step Result / Action to
Take B1 CARRY OUT THE INSTRUMENT CLUSTER FUEL GAUGE
ACTIVE COMMAND CAUTION: Use the correct probe adapter(s) when
making measurements. Failure to use the correct probe
adapter(s) may damage the connector. NOTE: Fuel fills of less
than 9.5 liters (2.5 gallons) require at least 10 minutes to update
the fuel gauge indication.
z Key in ON position.
z Select the instrument cluster FUELLEVEL active command.
Trigger, monitor, and scroll FUELLEVEL at: 0% , 50%, and
100%.
z Does the fuel gauge display: below E at 0%, half at 50%, and
F at 100%? Yes
GO to
B2 .
No
GO to B8 .
B2 CHECK THE FUEL GAUGE OPERATION
z
Key in OFF position.
z Disconnect: Fuel Pump Assembly C463.
z Connect one lead of the Instrument Gauge System Tester to the
fuel pump module C463 pin 5, circuit 29 (YE/WH), harness side
and the other lead of the Instrument Gauge System Tester to the Yes
GO to
B3 .
No
GO to B5 . Klj . 15 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST C: INCORRECT OIL PRESSURE GAUGE
INDICATION z
Operate the system and verify the concern is still present.
z Is the concern still present? normal operation.
No
The system is
operating correctly at
this time. Concern may
have been caused by
a loose or corroded
connector. CLEAR the
DTCs. REPEAT the
self-
test. Test Step Result / Action to
Take C1 CHECK THE INSTRUMENT CLUSTER OPERATION
CAUTION: Use the correct probe adapter(s) when
making measurements. Failure to use the correct probe
adapter(s) may damage the connector.
z Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Instrument Cluster Active Command.
z Trigger the instrument cluster active command OIL GAUGE.
Scroll to 0%, 50%, and 100%.
z Did the gauge display L at 0%, the middle of the gauge at
50%, and H at 100%? Yes
GO to
C2 .
No
GO to C3 .
C2 CHECK CIRCUIT 31 (WH/RD) FOR OPEN OR SHORT TO
GROUND z
Key in OFF position.
z Disconnect: Instrument Cluster C220b.
z Disconnect: Oil Pressure Switch C103.
z Measure the resistances between the instrument cluster C220b
pin 16, circuit 31 (WH/RD), harness side and the oil pressure
switch C103, circuit 31 (WH/RD), harness side; and between the
instrument cluster C220b pin 16, circuit 31 (WH/RD), harness
side and ground.
z Is the resistance less than 5 ohms between the instrument
cluster and the oil pressure switch, and greater than 10,000
ohms between the instrument cluster and ground? Yes
INSTALL a new oil
pressure switch. TEST
the system for normal
operation.
No
REPAIR the circuit.
TEST the system for
normal operation.
C3 CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
z
Disconnect all instrument cluster connectors. Yes
INSTALL a new Klj . 18 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

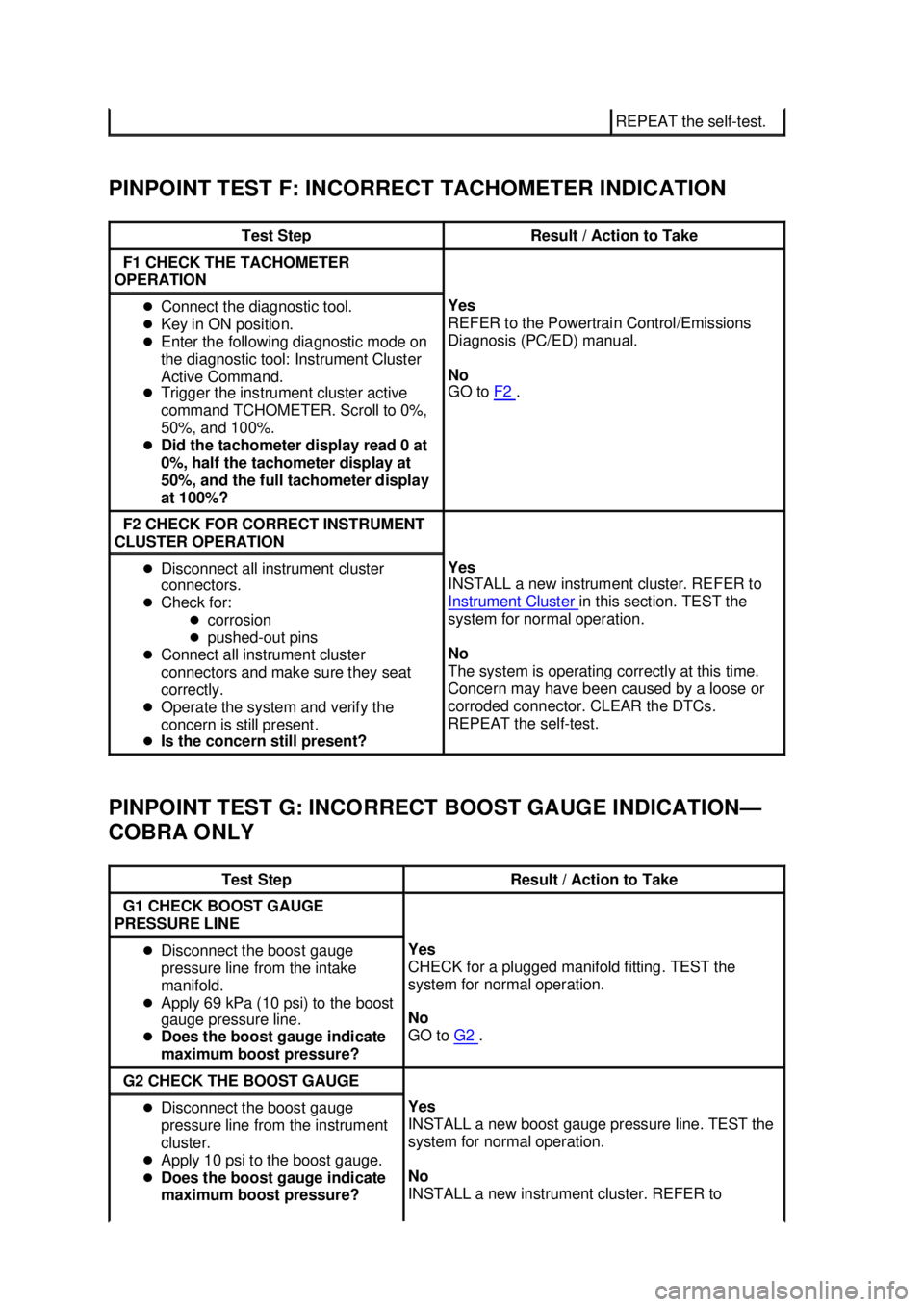

PINPOINT TEST F: INCORRECT TACHOMETER INDICATION
PINPOINT TEST G: INCORRECT BOOST GAUGE INDICATION—
COBRA ONLY REPEAT the self-
test. Test Step Result / Action to Take
F1 CHECK THE TACHOMETER
OPERATION z
Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on
the diagnostic tool: Instrument Cluster
Active Command.
z Trigger the instrument cluster active
command TCHOMETER. Scroll to 0%,
50%, and 100%.
z Did the tachometer display read 0 at
0%, half the tachometer display at
50%, and the full tachometer display
at 100%? Yes
REFER to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
No
GO to
F2 .
F2 CHECK FOR CORRECT INSTRUMENT
CLUSTER OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they seat
correctly.
z Operate the system and verify the
concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the
system for normal operation.
No
The system is operating correctly at this time.
Concern may have been caused by a loose or
corroded connector. CLEAR the DTCs.
REPEAT the self- test. Test Step Result / Action to Take
G1 CHECK BOOST GAUGE
PRESSURE LINE z
Disconnect the boost gauge
pressure line from the intake
manifold.
z Apply 69 kPa (10 psi) to the boost
gauge pressure line.
z Does the boost gauge indicate
maximum boost pressure? Yes
CHECK for a plugged manifold fitting. TEST the
system for normal operation.
No
GO to
G2 .
G2 CHECK THE BOOST GAUGE
z
Disconnect the boost gauge
pressure line from the instrument
cluster.
z Apply 10 psi to the boost gauge.
z Does the boost gauge indicate
maximum boost pressure? Yes
INSTALL a new boost gauge pressure line. TEST the
system for normal operation.
No
INSTALL a new instrument cluster. REFER to Klj . 21 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
