2. Turn the ignition switch to the RUN position.
3. Follow manufacturer's instructions for the scan tool being used.
4. PIDs are continuously updated on the display.
Active Commands
This command allows the technician to verify operation of the air bag indicator and chime. When the
air bag output command is executed, the indicator and the chime are activated simultaneously for
approximately four seconds. Both devices are deactivated automatically.

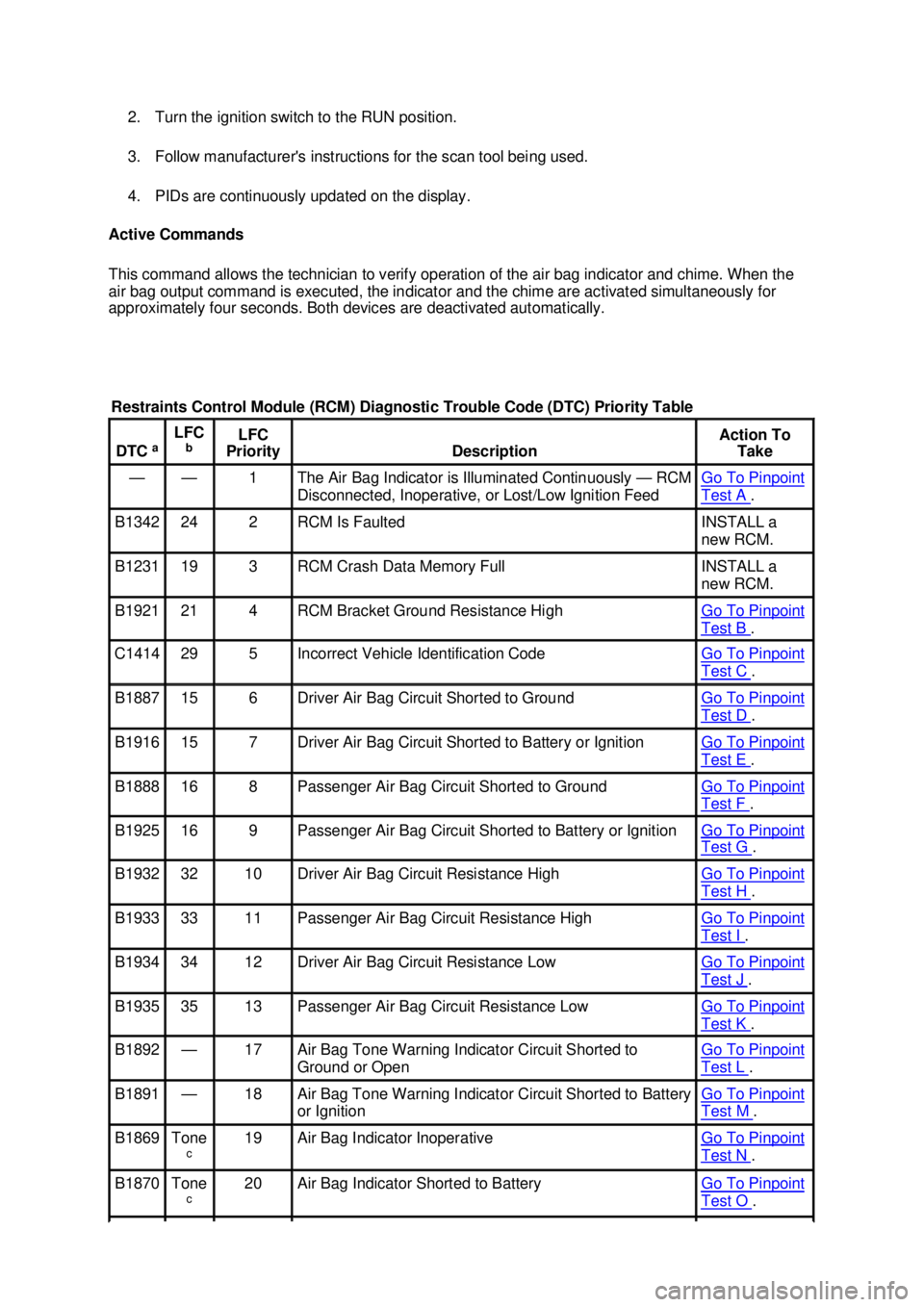

Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Priority Table DTC
a LFC
b LFC
Priority Description Action To
Take — — 1 The Air Bag Indicator is Illuminated Continuously —
RCM
Disconnected, Inoperative, or Lost/Low Ignition Feed Go To Pinpoint
Test A .
B1342 24 2 RCM Is Faulted INSTALL a
new RCM.
B1231 19 3 RCM Crash Data Memory Full INSTALL a
new RCM.
B1921 21 4 RCM Bracket Ground Resistance High Go To Pinpoint
Test B .
C1414 29 5 Incorrect Vehicle Identification Code Go To Pinpoint
Test C .
B1887 15 6 Driver Air Bag Circuit Shorted to Ground Go To Pinpoint
Test D .
B1916 15 7 Driver Air Bag Circuit Shorted to Battery or Ignition Go To Pinpoint
Test E .
B1888 16 8 Passenger Air Bag Circuit Shorted to Ground Go To Pinpoint
Test F .
B1925 16 9 Passenger Air Bag Circuit Shorted to Battery or Ignition Go To Pinpoint
Test G .
B1932 32 10 Driver Air Bag Circuit Resistance High Go To Pinpoint
Test H .
B1933 33 11 Passenger Air Bag Circuit Resistance High Go To Pinpoint
Test I .
B1934 34 12 Driver Air Bag Circuit Resistance Low Go To Pinpoint
Test J .
B1935 35 13 Passenger Air Bag Circuit Resistance Low Go To Pinpoint
Test K .
B1892 — 17 Air Bag Tone Warning Indicator Circuit Shorted to
Ground or Open Go To Pinpoint
Test L .
B1891 — 18 Air Bag Tone Warning Indicator Circuit Shorted to Battery
or Ignition Go To Pinpoint
Test M .
B1869 Tone
c 19 Air Bag Indicator Inoperative Go To Pinpoint
Test N .
B1870 Tone
c 20 Air Bag Indicator Shorted to Battery Go To Pinpoint
Test O . Klj . 3 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
DIAGNOSIS AND TESTING
Pinpoint Tests —
Air Bag Supplemental Restraint System
(SRS)
Restraint System Diagnostic Tool Warning
WARNING: This tool is for restraint system service only. Remove from vehicle prior to
road use. Failure to remove could result in injury and possible violation of vehicle safety
standards.
Pinpoint Test Note
Do not carry out any pinpoint test unless directed by the Symptom Chart.
Pinpoint Test A: The Air Bag Warning Indicator Is Illuminated Continuously — RCM
Disconnected, Inoperative or Lost/Low Ignition Feed
Normal Operation
NOTE: During normal operation the air bag indicator will be lit continuously for 6 seconds after the
ignition switch is placed in the RUN position and after five cycles of a lamp fault code (LFC) if a fault
exists. Be sure to cycle the ignition switch and look for a 6 second indicator prove- out without LFCs.
The restraints control module (RCM) will communicate diagnostic trouble codes (DTCs) to the scan
tool through the data link connector (DLC). If the scan tool displays NO COMMUNICATION when
retrieving continuous DTCs, Go To Pinpoint Test P to troubleshoot the system.
Possible Causes SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter
105-
R0057 or equivalent Diagnostic Tool, Restraint
System
418-
F088 (105- R0012) Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
