2003 FORD MUSTANG display

PINPOINT TEST J: THE ODOMETER IS INOPERATIVE
PINPOINT TEST K: THE SAFETY BELT INDICATOR IS INOPERATIVE
(CHIME IS OPERATIVE)/DOES NOT OPERATE CORRECTLY GO to
I2 .
I2 CHECK FOR CORRECT
INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they
seat correctly.
z Operate the system and verify
the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the system for
normal operation.
No
The system is operating correctly at this time. Concern
may have been caused by a loose or corroded
connector. CLEAR the DTCs. REPEAT the self- test. Test Step Result / Action to Take
J1 CHECK THE ODOMETER
DISPLAY z
Key in ON position.
z Is the odometer displaying all
dashes? Yes
REFER to the Powertrain Control/Emissions Diagnosis
(PC/ED) manual.
No
GO to
J2 .
J2 CHECK FOR CORRECT
INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they
seat correctly.
z Operate the system and verify
the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the system for
normal operation.
No
The system is operating correctly at this time. Concern
may have been caused by a loose or corroded
connector. CLEAR the DTCs. REPEAT the self- test. Test Step Result / Action to Take
K1 CHECK IF THE GEM IS RECEIVING THE CORRECT
IGNITION SWITCH STATUS CAUTION: Use the correct probe adapter(s) when
making measurements. Failure to use the correct probe
adapter(s) may damage the connector.
z Connect the diagnostic tool. Yes
GO to
K2 .
No
REFER to Section 211 - 05 . Klj . 23 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

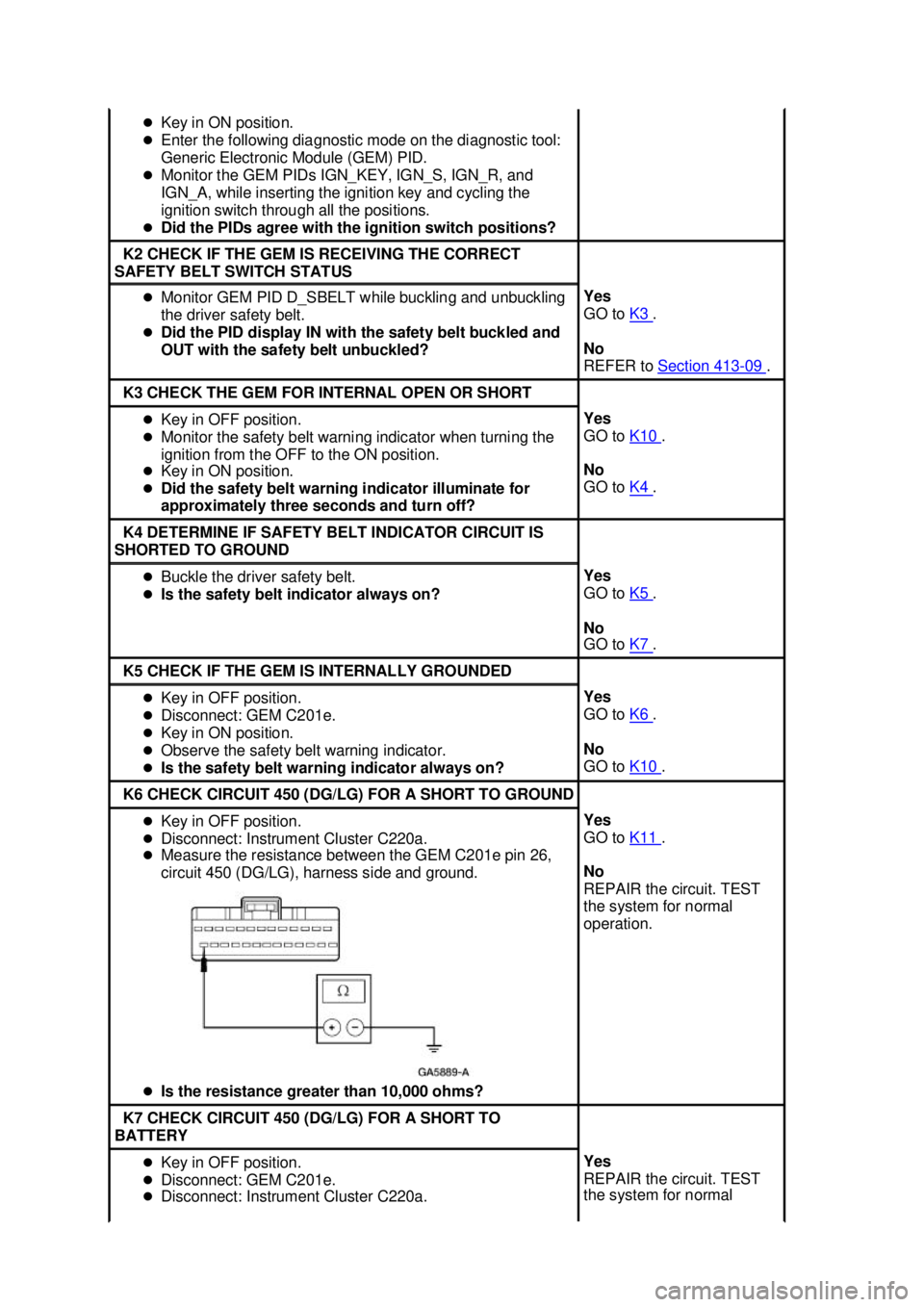

z
Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
Generic Electronic Module (GEM) PID.
z Monitor the GEM PIDs IGN_KEY, IGN_S, IGN_R, and
IGN_A, while inserting the ignition key and cycling the
ignition switch through all the positions.
z Did the PIDs agree with the ignition switch positions? K2 CHECK IF THE GEM IS RECEIVING THE CORRECT
SAFETY BELT SWITCH STATUS z
Monitor GEM PID D_SBELT while buckling and unbuckling
the driver safety belt.
z Did the PID display IN with the safety belt buckled and
OUT with the safety belt unbuckled? Yes
GO to
K3 .
No
REFER to Section 413 - 09 .
K3 CHECK THE GEM FOR INTERNAL OPEN OR SHORT
z
Key in OFF position.
z Monitor the safety belt warning indicator when turning the
ignition from the OFF to the ON position.
z Key in ON position.
z Did the safety belt warning indicator illuminate for
approximately three seconds and turn off? Yes
GO to
K10 .
No
GO to K4 .
K4 DETERMINE IF SAFETY BELT INDICATOR CIRCUIT IS
SHORTED TO GROUND z
Buckle the driver safety belt.
z Is the safety belt indicator always on? Yes
GO to
K5 .
No
GO to K7 .
K5 CHECK IF THE GEM IS INTERNALLY GROUNDED
z
Key in OFF position.
z Disconnect: GEM C201e.
z Key in ON position.
z Observe the safety belt warning indicator.
z Is the safety belt warning indicator always on? Yes
GO to
K6 .
No
GO to K10 .
K6 CHECK CIRCUIT 450 (DG/LG) FOR A SHORT TO GROUND
z
Key in OFF position.
z Disconnect: Instrument Cluster C220a.
z Measure the resistance between the GEM C201e pin 26,
circuit 450 (DG/LG), harness side and ground.
z Is the resistance greater than 10,000 ohms? Yes
GO to
K11 .
No
REPAIR the circuit. TEST
the system for normal
operation. K7 CHECK CIRCUIT 450 (DG/LG) FOR A SHORT TO
BATTERY z
Key in OFF position.
z Disconnect: GEM C201e.
z Disconnect: Instrument Cluster C220a. Yes
REPAIR the circuit. TEST
the system for normal Klj . 24 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST L: INACCURATE SPEEDOMETER READING
PINPOINT TEST M: THE O/D OFF INDICATOR IS NEVER ON Concern may have been
caused by a loose or
corroded connector. CLEAR
the DTCs. REPEAT the self-
test.

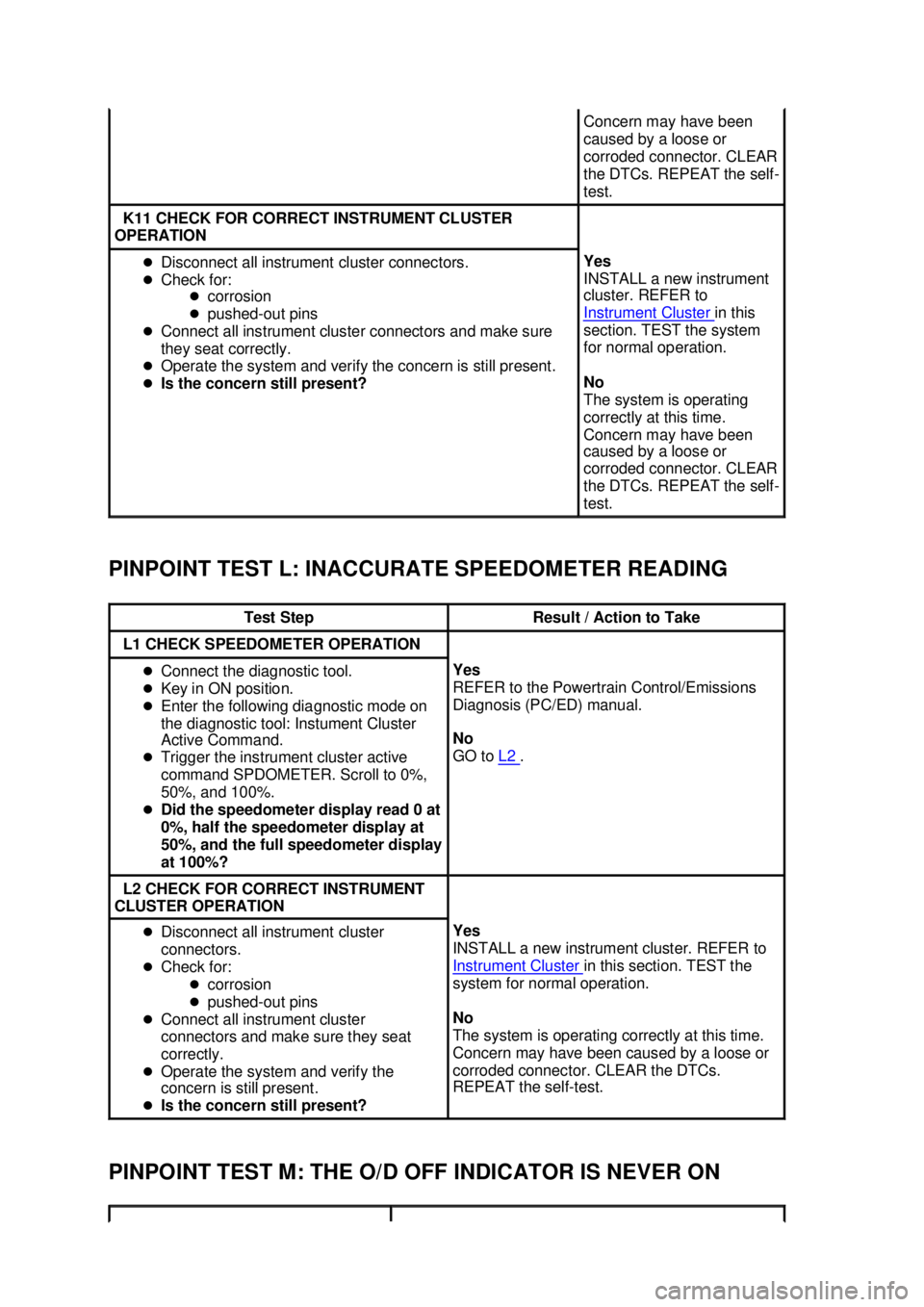

K11 CHECK FOR CORRECT INSTRUMENT CLUSTER
OPERATION z
Disconnect all instrument cluster connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster connectors and make sure
they seat correctly.
z Operate the system and verify the concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument
cluster. REFER to
Instrument Cluster
in this
section. TEST the system
for normal operation.
No
The system is operating
correctly at this time.
Concern may have been
caused by a loose or
corroded connector. CLEAR
the DTCs. REPEAT the self-
test. Test Step Result / Action to Take
L1 CHECK SPEEDOMETER OPERATION
z
Connect the diagnostic tool.
z Key in ON position.
z Enter the following diagnostic mode on
the diagnostic tool: Instument Cluster
Active Command.
z Trigger the instrument cluster active
command SPDOMETER. Scroll to 0%,
50%, and 100%.
z Did the speedometer display read 0 at
0%, half the speedometer display at
50%, and the full speedometer display
at 100%? Yes
REFER to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual.
No
GO to
L2 .
L2 CHECK FOR CORRECT INSTRUMENT
CLUSTER OPERATION z
Disconnect all instrument cluster
connectors.
z Check for:
zcorrosion
z pushed- out pins
z Connect all instrument cluster
connectors and make sure they seat
correctly.
z Operate the system and verify the
concern is still present.
z Is the concern still present? Yes
INSTALL a new instrument cluster. REFER to
Instrument Cluster
in this section. TEST the
system for normal operation.
No
The system is operating correctly at this time.
Concern may have been caused by a loose or
corroded connector. CLEAR the DTCs.
REPEAT the self- test. Klj . 26 ba
412003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

correctly

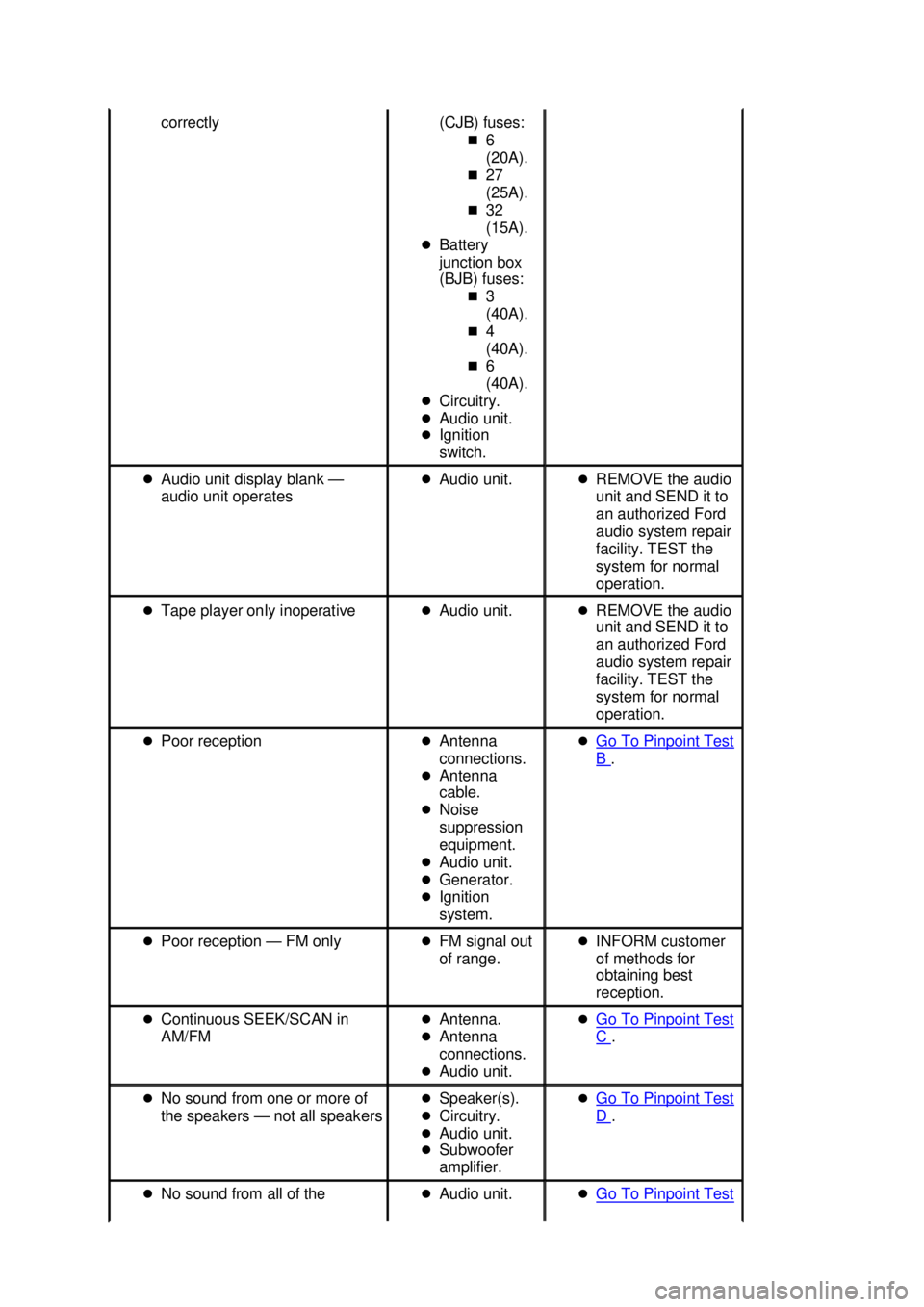

(CJB) fuses:
„6
(20A).
„ 27
(25A).
„ 32
(15A).
z Battery
junction box
(BJB) fuses:
„3
(40A).
„ 4
(40A).
„ 6
(40A).
z Circuitry.
z Audio unit.
z Ignition
switch.
z Audio unit display blank —
audio unit operates z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Tape player only inoperative zAudio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Poor reception zAntenna
connections.
z Antenna
cable.
z Noise
suppression
equipment.
z Audio unit.
z Generator.
z Ignition
system. z
Go To Pinpoint Test B .
z Poor reception — FM only zFM signal out
of range. z
INFORM customer
of methods for
obtaining best
reception.
z Continuous SEEK/SCAN in
AM/FM z
Antenna.
z Antenna
connections.
z Audio unit. z
Go To Pinpoint Test C .
z No sound from one or more of
the speakers — not all speakers z
Speaker(s).
z Circuitry.
z Audio unit.
z Subwoofer
amplifier. z
Go To Pinpoint Test D .
z No sound from all of the zAudio unit. zGo To Pinpoint Test Klj . 2 ba
242003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

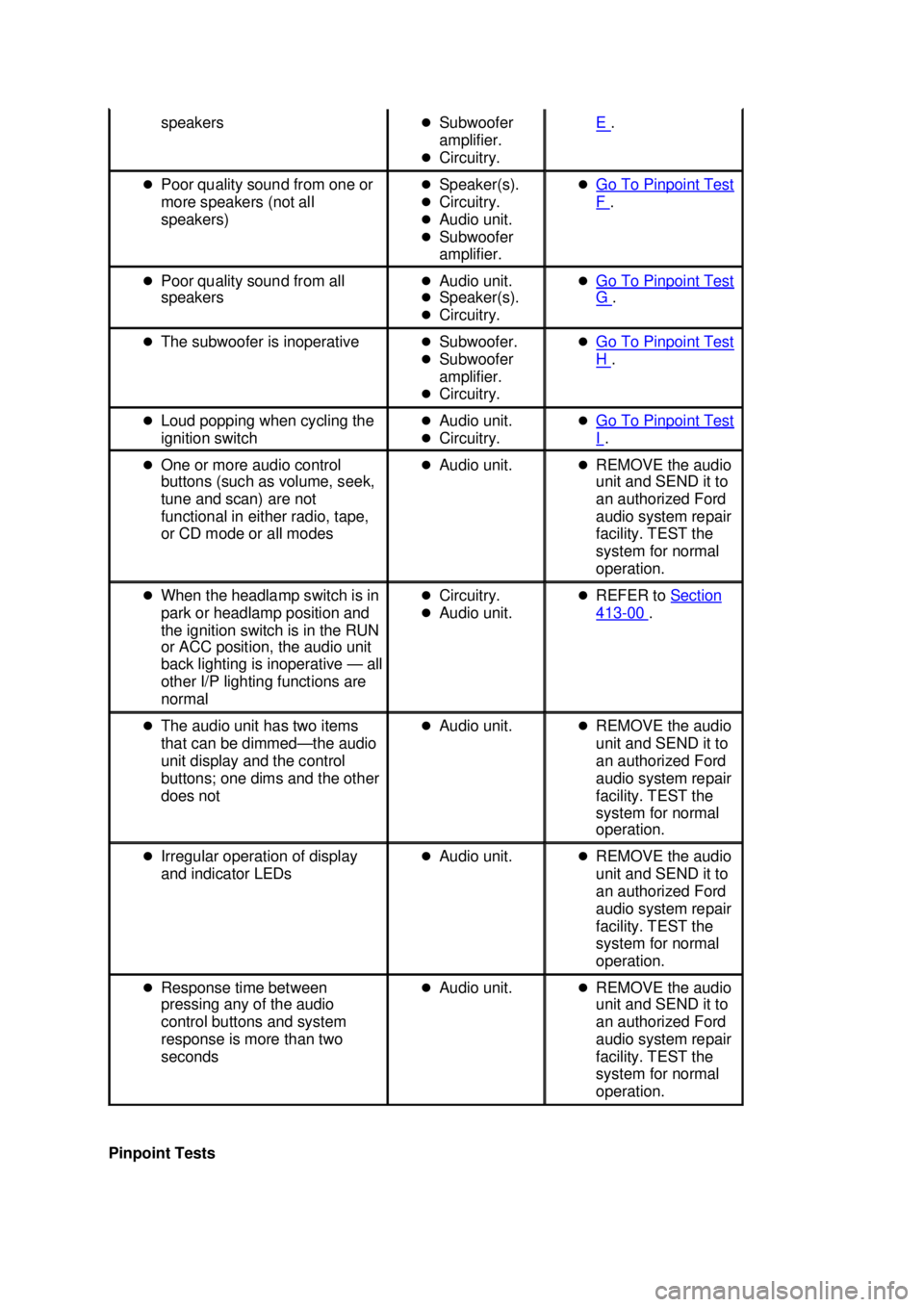

Pinpoint Tests speakers
zSubwoofer
amplifier.
z Circuitry. E .
z Poor quality sound from one or
more speakers (not all
speakers) z
Speaker(s).
z Circuitry.
z Audio unit.
z Subwoofer
amplifier. z
Go To Pinpoint Test F .
z Poor quality sound from all
speakers z
Audio unit.
z Speaker(s).
z Circuitry. z
Go To Pinpoint Test G .
z The subwoofer is inoperative zSubwoofer.
z Subwoofer
amplifier.
z Circuitry. z
Go To Pinpoint Test H .
z Loud popping when cycling the
ignition switch z
Audio unit.
z Circuitry. z
Go To Pinpoint Test I .
z One or more audio control
buttons (such as volume, seek,
tune and scan) are not
functional in either radio, tape,
or CD mode or all modes z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z When the headlamp switch is in
park or headlamp position and
the ignition switch is in the RUN
or ACC position, the audio unit
back lighting is inoperative — all
other I/P lighting functions are
normal z
Circuitry.
z Audio unit. z
REFER to Section 413 - 00 .
z The audio unit has two items
that can be dimmed— the audio
unit display and the control
buttons; one dims and the other
does not z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Irregular operation of display
and indicator LEDs z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation.
z Response time between
pressing any of the audio
control buttons and system
response is more than two
seconds z
Audio unit. zREMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the
system for normal
operation. Klj . 3 ba
242003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

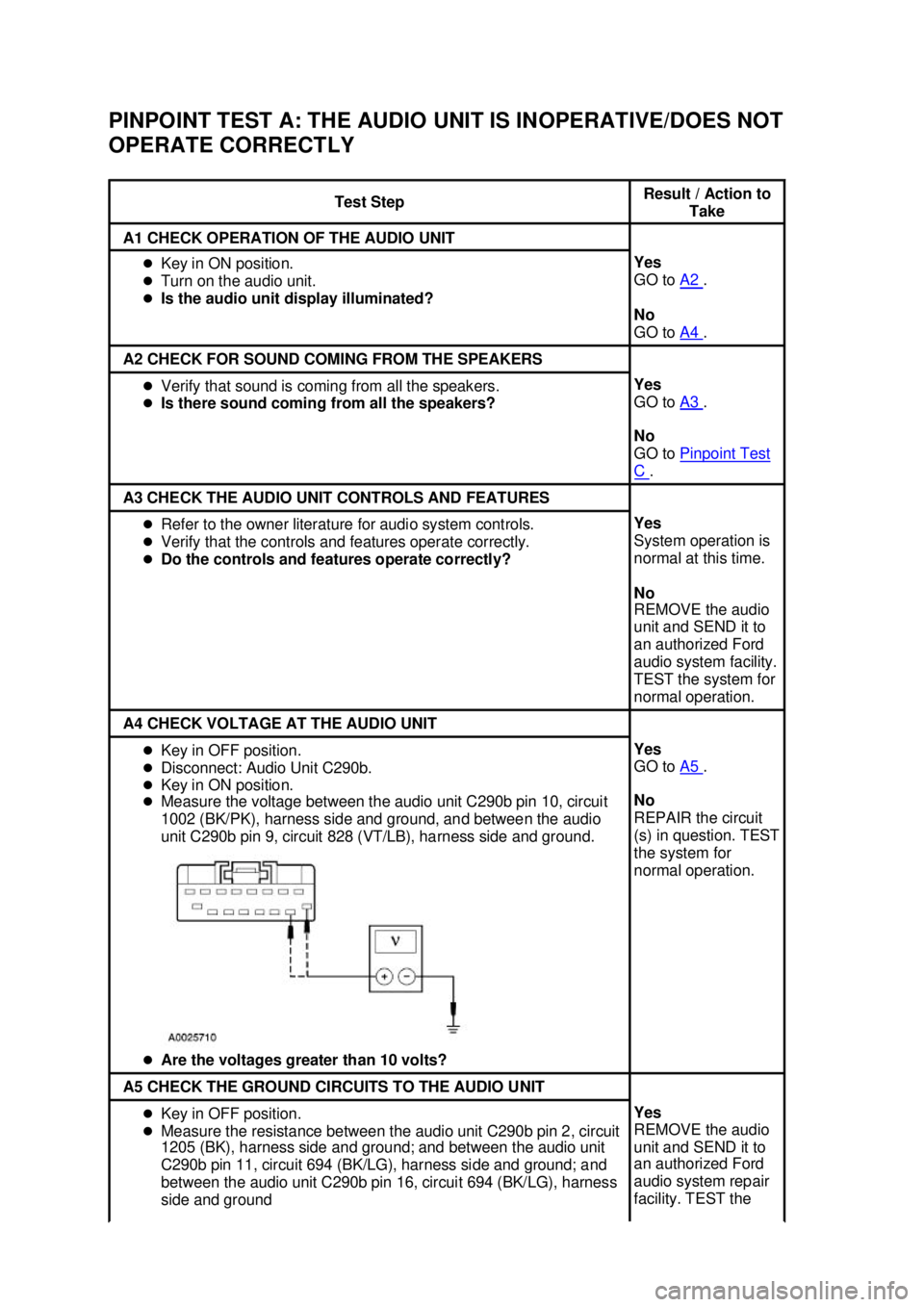

PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE/DOES NOT
OPERATE CORRECTLY
Test Step Result / Action to
Take A1 CHECK OPERATION OF THE AUDIO UNIT
z
Key in ON position.
z Turn on the audio unit.
z Is the audio unit display illuminated? Yes
GO to
A2 .
No
GO to A4 .
A2 CHECK FOR SOUND COMING FROM THE SPEAKERS
z
Verify that sound is coming from all the speakers.
z Is there sound coming from all the speakers? Yes
GO to
A3 .
No
GO to Pinpoint Test C .
A3 CHECK THE AUDIO UNIT CONTROLS AND FEATURES
z
Refer to the owner literature for audio system controls.
z Verify that the controls and features operate correctly.
z Do the controls and features operate correctly? Yes
System operation is
normal at this time.
No
REMOVE the audio
unit and SEND it to
an authorized Ford
audio system facility.
TEST the system for
normal operation.
A4 CHECK VOLTAGE AT THE AUDIO UNIT
z
Key in OFF position.
z Disconnect: Audio Unit C290b.
z Key in ON position.
z Measure the voltage between the audio unit C290b pin 10, circuit
1002 (BK/PK), harness side and ground, and between the audio
unit C290b pin 9, circuit 828 (VT/LB), harness side and ground.
z Are the voltages greater than 10 volts? Yes
GO to
A5 .
No
REPAIR the circuit
(s) in question. TEST
the system for
normal operation. A5 CHECK THE GROUND CIRCUITS TO THE AUDIO UNIT
z
Key in OFF position.
z Measure the resistance between the audio unit C290b pin 2, circuit
1205 (BK), harness side and ground; and between the audio unit
C290b pin 11, circuit 694 (BK/LG), harness side and ground; and
between the audio unit C290b pin 16, circuit 694 (BK/LG), harness
side and ground Yes
REMOVE the audio
unit and SEND it to
an authorized Ford
audio system repair
facility. TEST the Klj . 4 ba
242003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST E: NO SOUND FROM ALL OF THE SPEAKERS z
Disconnect: Respective Amplifier to Subwoofer Speaker Connector.
z Measure the resistance between the affected subwoofer speaker and
its respective amplifiers, and between the affected subwoofer
speaker and ground as follows:
z Is the resistance less than 5 ohms between the amplifier and
subwoofer speaker and greater that 10,000 ohms between the
subwoofer speaker harness and ground? Speaker Circuits—
Right Side Affected Subwoofer
Speaker Pin Respective Amplifier
Pin Circuit
1 4 176
(PK/LG) 3 3 179
(OR/RD) 2 4 189
(TN/LB) 4 3 187
(DB/OR)
Speaker Circuits— Left Side Affected Subwoofer
Speaker Pin Respective Amplifier
Pin Circuit
1 4 176
(PK/LG) 3 3 179
(OR/RD) 2 4 189
(TN/LB) 4 3 187
(DB/OR) INSTALL a new
subwoofer
amplifier.
No
REPAIR the circuit
(s) in question.
TEST the system
for normal
operation.
Test Step Result / Action to Take
E1 CHECK FOR AUDIO UNIT
OPERATION z
Key in ON position.
z Turn the audio unit on.
z Does the audio unit
display illuminate? Yes
GO to
E2 .
No
GO to Pinpoint Test A .
E2 CHECK THE SPEAKER
OPERATION z
Check the operation of all
speakers.
z Are all speakers
inoperative? Yes
REMOVE the audio unit and SEND it to an authorized Ford
audio system repair facility. TEST the system for normal
operation. Klj . 12 ba
242003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

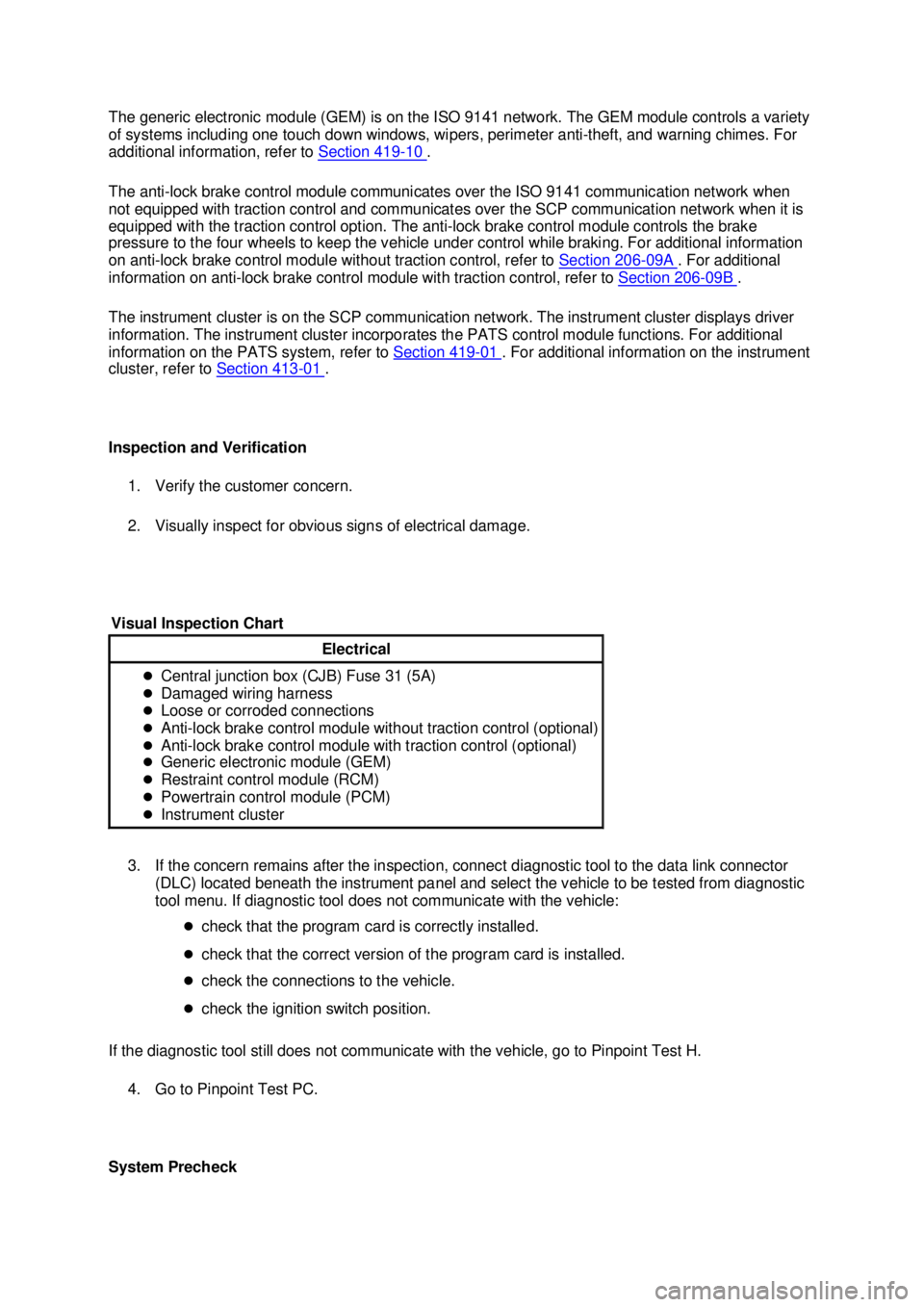

The generic electronic module (GEM) is on the ISO 9141 network. The GEM module controls a variety
of systems including one touch down windows, wipers, perimeter anti-
theft, and warning chimes. For
additional information, refer to Section 419 - 10 .
The anti- lock brake control module communicates over the ISO 9141 communication network when
not equipped with traction control and communicates over the SCP communication network when it is
equipped with the traction control option. The anti- lock brake control module controls the brake
pressure to the four wheels to keep the vehicle under control while braking. For additional information
on anti- lock brake control module without traction control, refer to Section 206 - 09A . For additional
information on anti- lock brake control module with traction control, refer to Section 206 - 09B .
The instrument cluster is on the SCP communication network. The instrument cluster displays driver
information. The instrument cluster incorporates the PATS control module functions. For additional
information on the PATS system, refer to Section 419 - 01 . For additional information on the instrument
cluster, refer to Section 413 - 01 .
Inspection and Verification 1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.
3. If the concern remains after the inspection, connect diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from diagnostic
tool menu. If diagnostic tool does not communicate with the vehicle:
zcheck that the program card is correctly installed.
z check that the correct version of the program card is installed.
z check the connections to the vehicle.
z check the ignition switch position.
If the diagnostic tool still does not communicate with the vehicle, go to Pinpoint Test H. 4. Go to Pinpoint Test PC.
System Precheck Visual Inspection Chart Electrical
z
Central junction box (CJB) Fuse 31 (5A)
z Damaged wiring harness
z Loose or corroded connections
z Anti- lock brake control module without traction control (optional)
z Anti- lock brake control module with traction control (optional)
z Generic electronic module (GEM)
z Restraint control module (RCM)
z Powertrain control module (PCM)
z Instrument cluster Klj . 2 ba
212003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
