Page 769 of 2177

DODGE TOWN AND COUNTRY 2003 Service Manual ProCarManuals.com

Page 770 of 2177

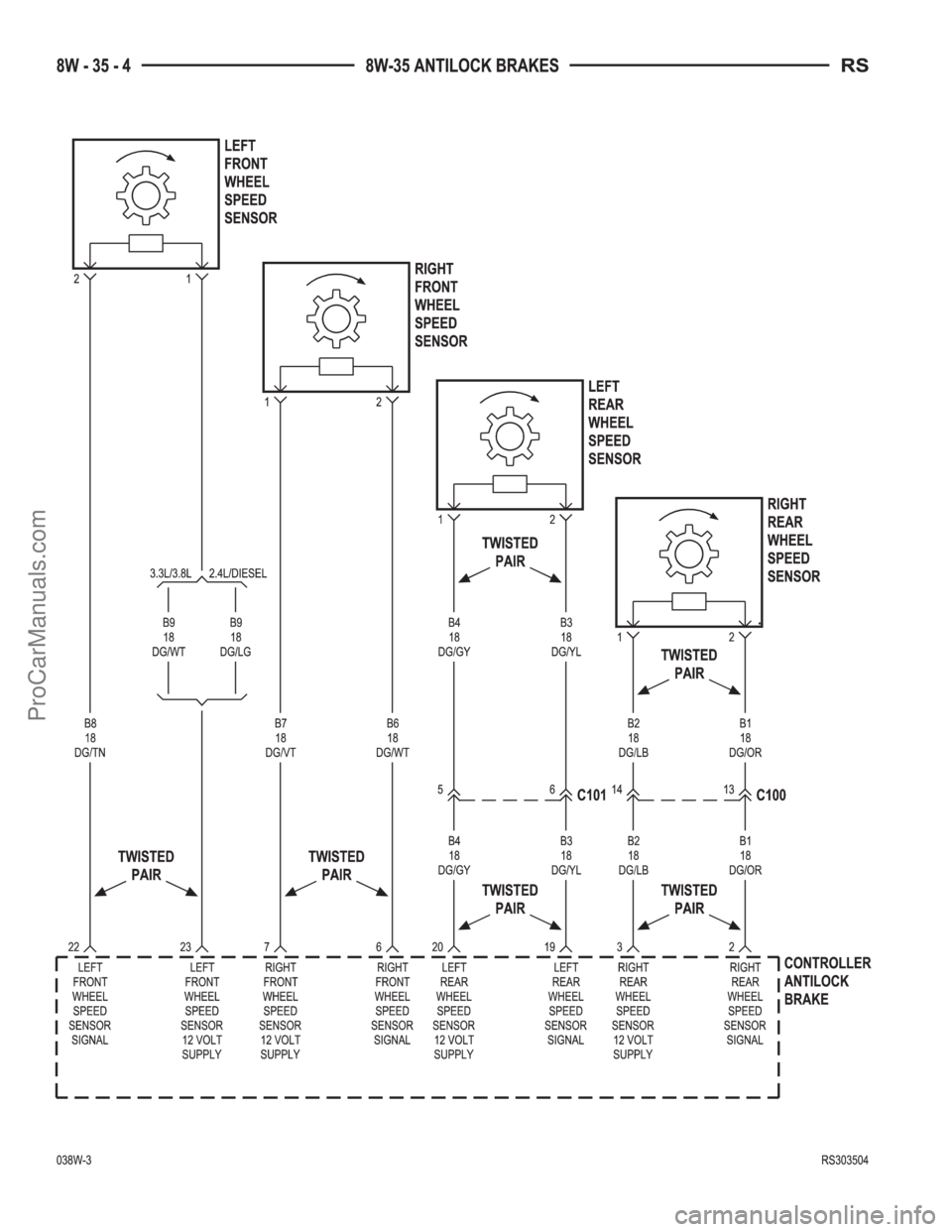

DODGE TOWN AND COUNTRY 2003 Service Manual 8W-35 ANTILOCK BRAKES
Component Page
Body Control Module................. 8W-35-2
Brake Lamp Switch.................. 8W-35-3
Controller Antilock Brake.......... 8W-35-2, 3, 4
Engine Control Module...

Page 771 of 2177

Page 772 of 2177

Page 773 of 2177

Page 774 of 2177

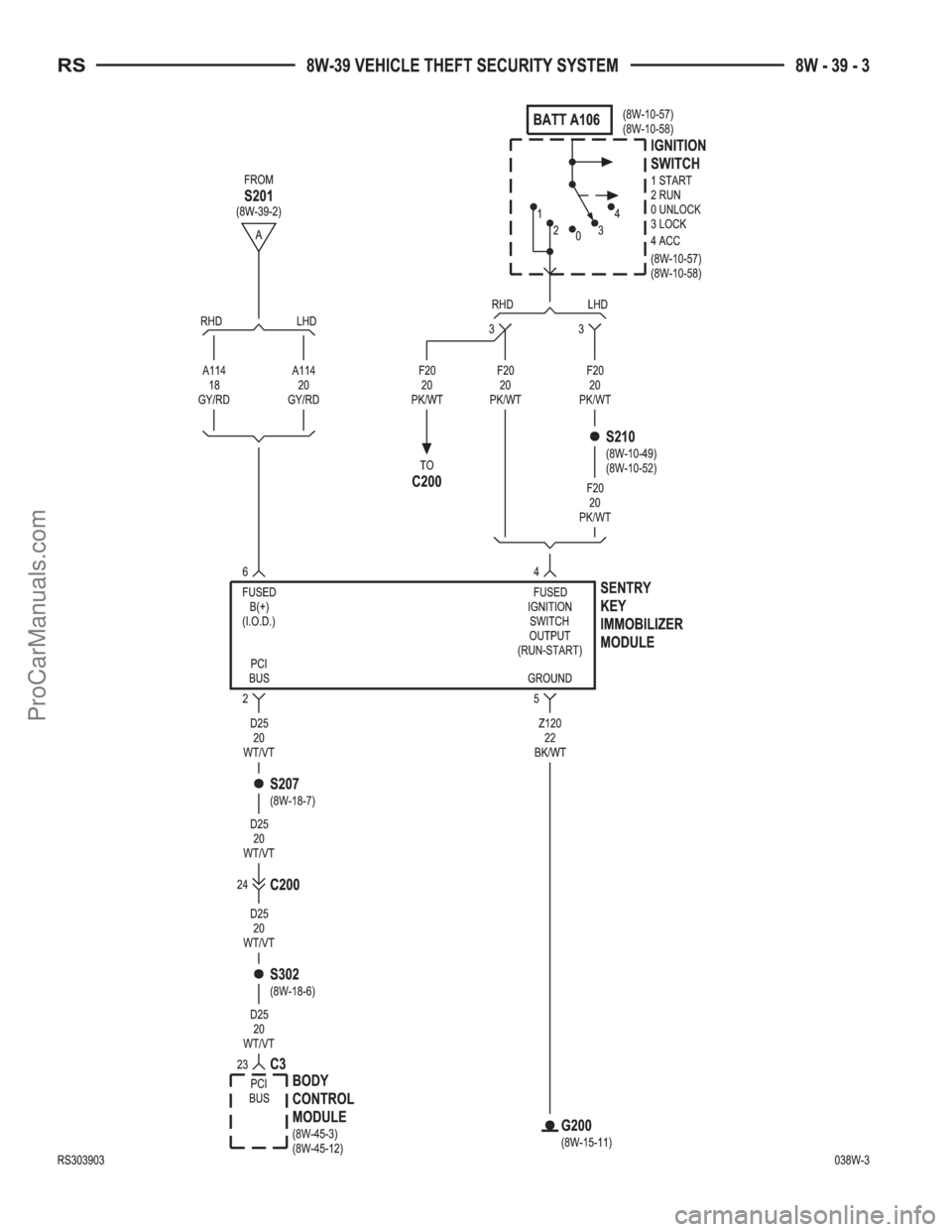

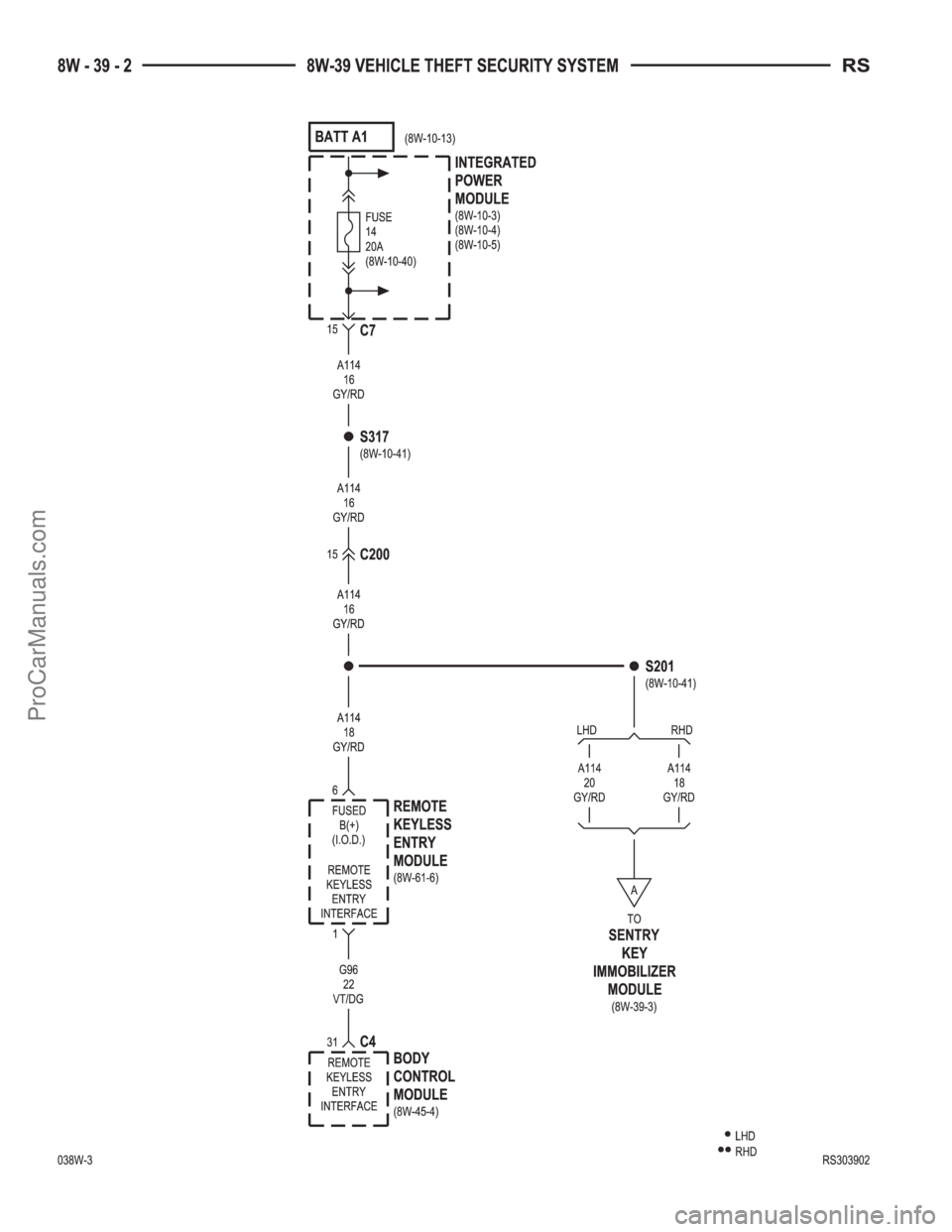

DODGE TOWN AND COUNTRY 2003 Service Manual 8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module.... 8W-39-2, 3, 4, 7, 8, 9, 10,
11, 12, 13, 14, 15
Clockspring........................ 8W-39-6
Driver Door Lock Switch...........

8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module.... 8W-39-2, 3, 4, 7, 8, 9, 10,
11, 12, 13, 14, 15
Clockspring........................ 8W-39-6
Driver Door Lock Switch........... 8W-39-12, 13
Front Control Module............... 8W-39-4, 6
Front Intrusion Sensor................ 8W-39-5
Fuse 8............................ 8W-39-6
Fuse 14............................ 8W-39-2
G102.............................. 8W-39-6
G200.............................. 8W-39-3
G300........... 8W-39-7, 8, 9, 10, 11, 12, 13, 14
G301.............. 8W-39-7, 8, 9, 10, 11, 12, 13
G302............................. 8W-39-15
G303.......................... 8W-39-14, 15
High Note Horn..................... 8W-39-6
Hood Ajar Switch................... 8W-39-14
Horn Relay......................... 8W-39-6
Horn Switch........................ 8W-39-6
Ignition Switch.................... 8W-39-3, 4
Integrated Power Module.......... 8W-39-2, 4, 6
Left Cylinder Lock Switch......... 8W-39-12, 13
Left Front Door Ajar Switch............ 8W-39-7
Left Front Door Lock Motor/Ajar
Switch........................ 8W-39-7, 8
Left Sliding Door Control Module..... 8W-39-9, 10
Left Sliding Door Latch Sensing Switch . . . 8W-39-9Component Page
Left Sliding Door Lock Motor.......... 8W-39-10
Left Sliding Door Lock Motor/Ajar
Switch.......................... 8W-39-11
Liftgate Ajar Switch................. 8W-39-15
Liftgate Cinch/Release Motor.......... 8W-39-15
Liftgate Cylinder Lock Switch......... 8W-39-14
Low Note Horn...................... 8W-39-6
Passenger Door Lock Switch........ 8W-39-12, 13
Power Liftgate Module............... 8W-39-15
Rear Intrusion Sensor................ 8W-39-5
Remote Keyless Entry Module.......... 8W-39-2
Right Cylinder Lock Switch........ 8W-39-12, 13
Right Front Door Ajar Switch........... 8W-39-7
Right Front Door Lock Motor/Ajar
Switch........................ 8W-39-7, 8
Right Sliding Door Control Module.... 8W-39-9, 10
Right Sliding Door Latch Sensing
Switch.......................... 8W-39-9
Right Sliding Door Lock Motor......... 8W-39-10
Right Sliding Door Lock Motor/Ajar
Switch.......................... 8W-39-11
Sentry Key Immobilizer Module....... 8W-39-2, 3
Siren............................. 8W-39-4
Thatcham Alarm Indicator............. 8W-39-5
Thatcham Alarm Module............ 8W-39-4, 5
RS8W-39 VEHICLE THEFT SECURITY SYSTEM8W-39-1
ProCarManuals.com

Page 775 of 2177

Page 776 of 2177
