Page 809 of 2177

DODGE TOWN AND COUNTRY 2003 Service Manual ProCarManuals.com

Page 810 of 2177

DODGE TOWN AND COUNTRY 2003 Service Manual 8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch......... 8W-42-14, 16, 19
A/C Compressor Clutch Relay.... 8W-42-14, 16, 19
A/C Pressure Sensor........... 8W-42-14, 16, 19
A/C-Heater

8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch......... 8W-42-14, 16, 19
A/C Compressor Clutch Relay.... 8W-42-14, 16, 19
A/C Pressure Sensor........... 8W-42-14, 16, 19
A/C-Heater Control............. 8W-42-2, 3, 4, 5
A/C-Heater Control................... 8W-42-7
ATC Remote Sensor................. 8W-42-11
Auto Temp Control..... 8W-42-8, 9, 10, 11, 12, 13
Battery........................... 8W-42-17
Blower Motor Resistor................ 8W-42-2
Body Control Module.......... 8W-42-4, 7, 9, 13
Driver Blend Door Actuator......... 8W-42-5, 10
ECM/PCM Relay................... 8W-42-17
Engine Control Module............ 8W-42-16, 17
Evaporator Temperature Sensor...... 8W-42-5, 10
Front Blower Module................ 8W-42-11
Front Blower Motor............... 8W-42-2, 11
Front Blower Motor Relay.......... 8W-42-2, 11
Front Control Module......... 8W-42-2, 6, 11, 12
Fuse 10......................... 8W-42-2, 11
Fuse 12......................... 8W-42-6, 12
Fuse 14............................ 8W-42-8
Fuse 16........................... 8W-42-17
Fuse 18..................... 8W-42-14, 16, 19
Fuse 27..................... 8W-42-15, 18, 20
Fuselink.......................... 8W-42-17
G102....................... 8W-42-15, 18, 20Component Page
G103....................... 8W-42-14, 16, 19
G200.............. 8W-42-2, 3, 4, 6, 8, 9, 11, 12
G300........................... 8W-42-7, 13
G302............................. 8W-42-12
Integrated Power Module....... 8W-42-2, 6, 8, 11,
12, 14, 15, 16, 17, 18, 19, 20
Mode Door Actuator............... 8W-42-5, 10
Passenger Blend Door Actuator...... 8W-42-5, 10
Powertrain Control Module . . . 8W-42-14, 15, 19, 20
Radiator Fan No. 1......... 8W-42-15, 17, 18, 20
Radiator Fan No. 2............ 8W-42-15, 18, 20
Radiator Fan Relay............... 8W-42-15, 20
Radiator Fan Relay No. 1.......... 8W-42-17, 18
Radiator Fan Relay No. 2............. 8W-42-18
Radiator Fan Relay No. 3............. 8W-42-18
Rear A/C-Heater Unit............... 8W-42-6, 7
Rear Auto Temp Control Switch........ 8W-42-13
Rear Blower Front Control Switch....... 8W-42-6
Rear Blower Motor.................. 8W-42-12
Rear Blower Motor Power Module...... 8W-42-12
Rear Blower Motor Relay........... 8W-42-6, 12
Rear Blower Rear Control Switch...... 8W-42-6, 7
Rear Mode Motor................... 8W-42-12
Rear Temperature Motor............. 8W-42-12
Recirculation Door Actuator......... 8W-42-5, 10
RS8W-42 AIR CONDITIONING-HEATER8W-42-1
ProCarManuals.com

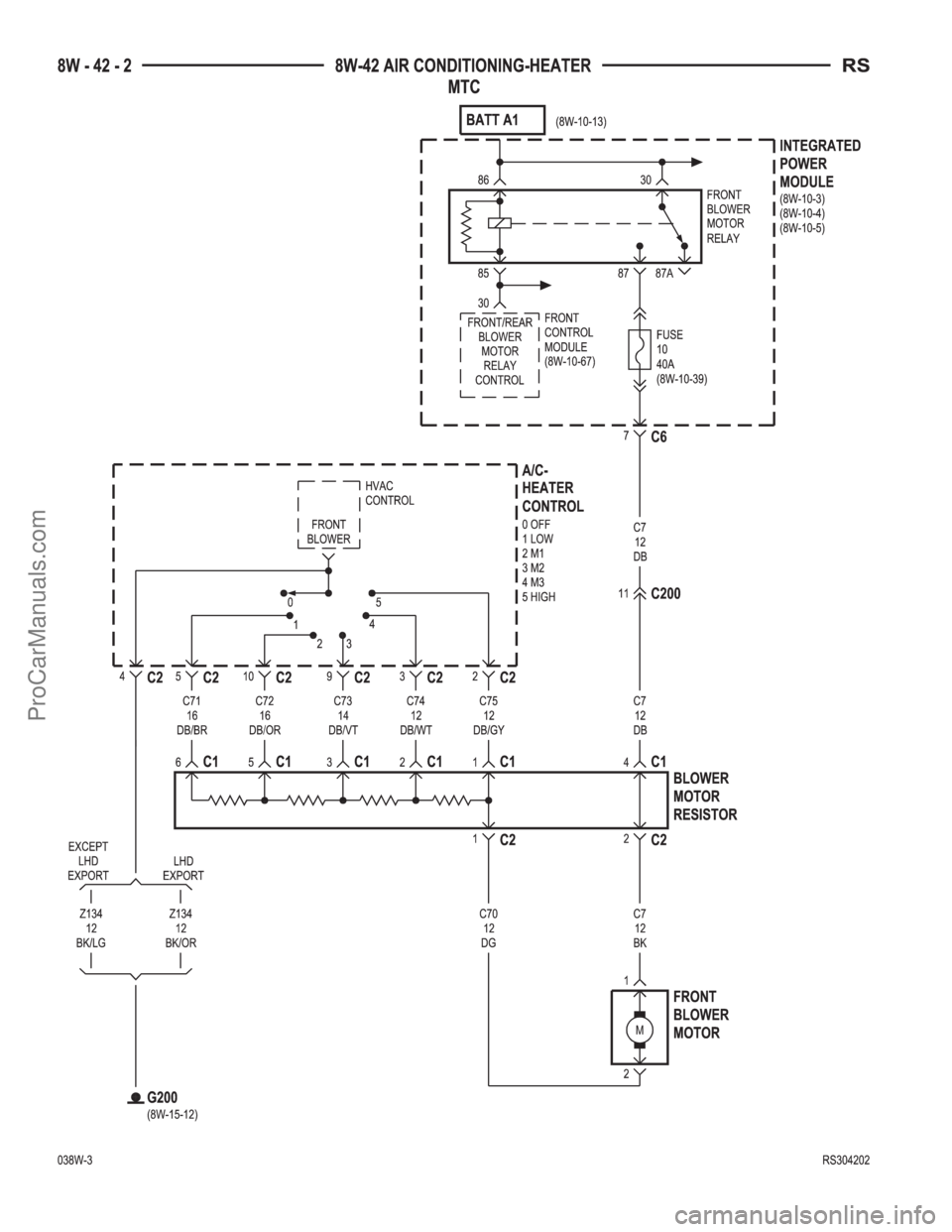

Page 811 of 2177

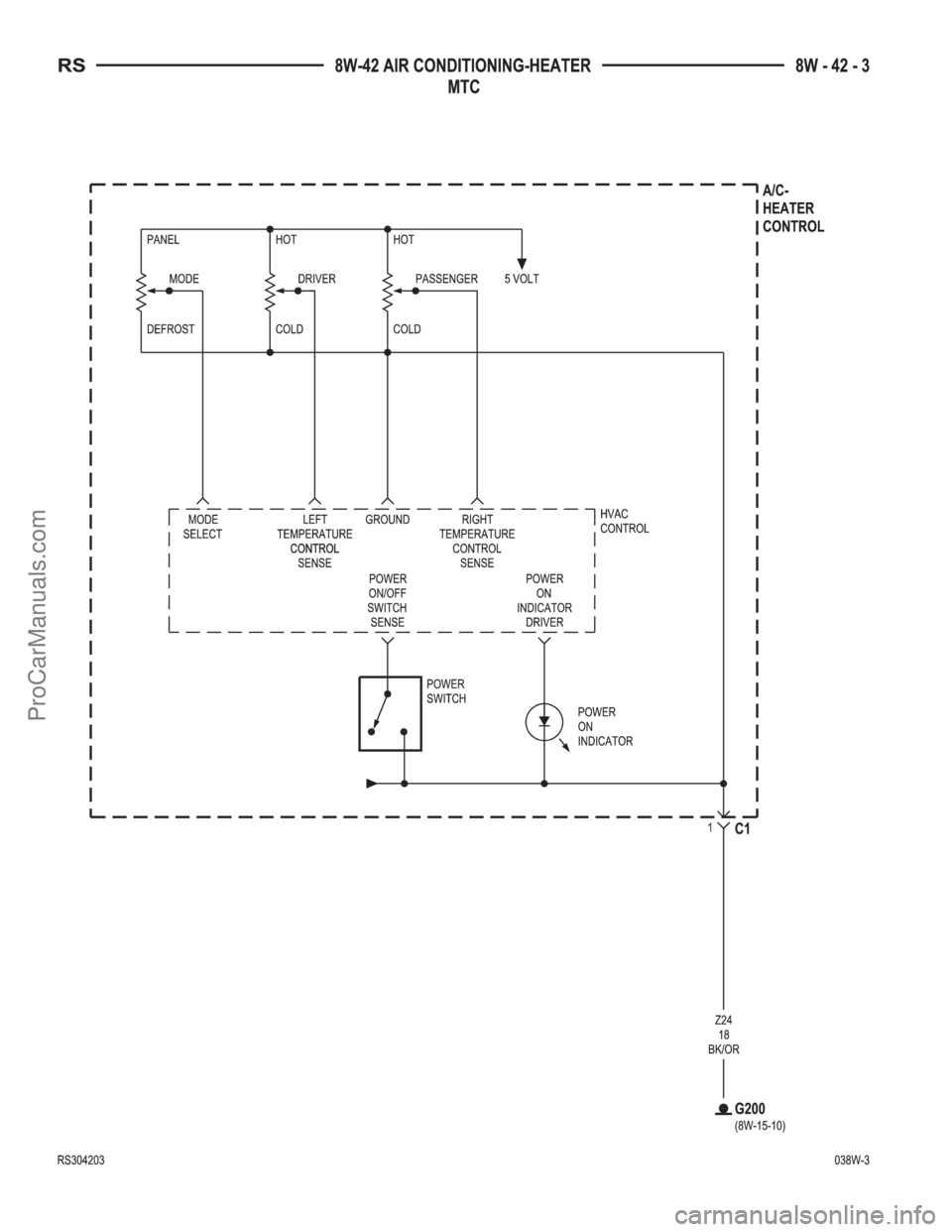

Page 812 of 2177

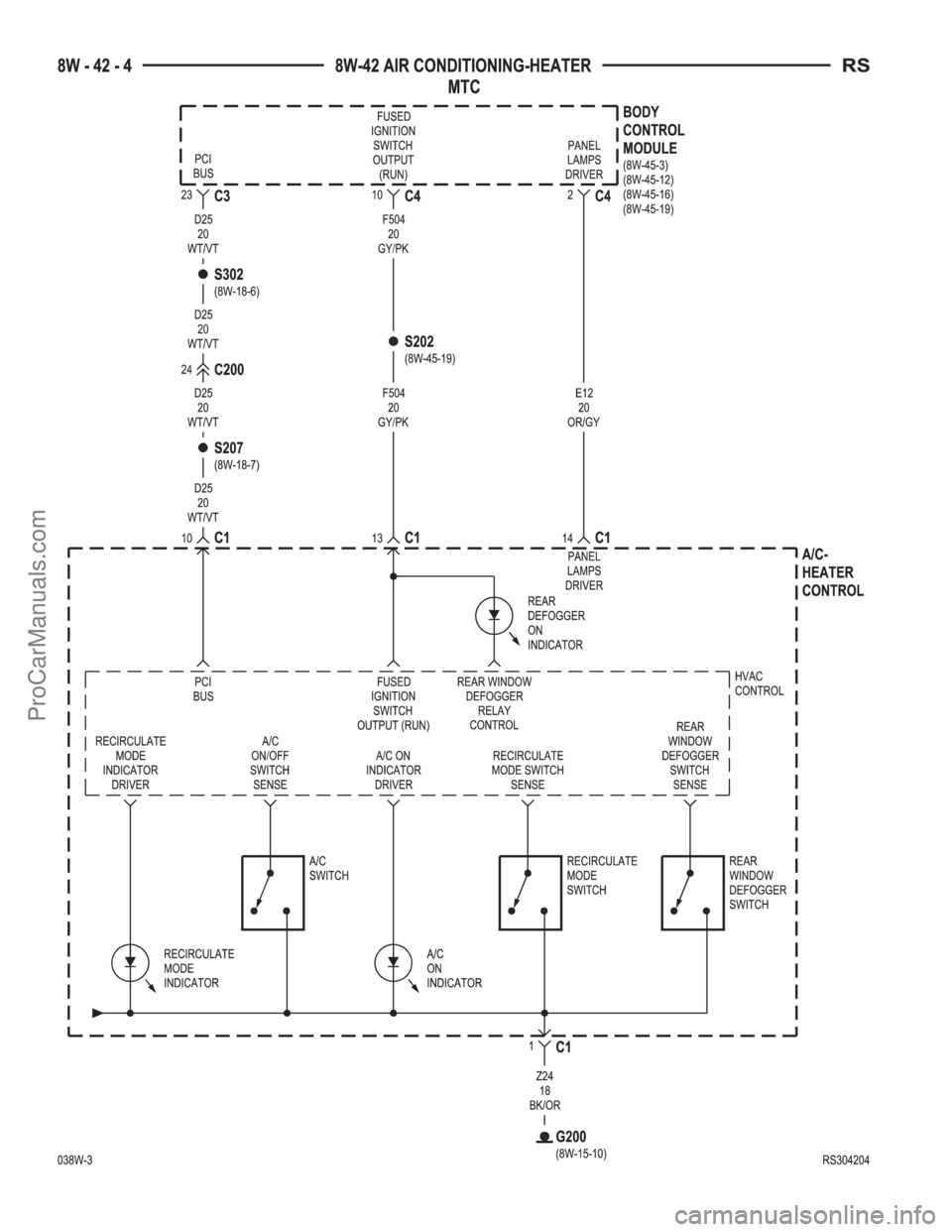

Page 813 of 2177

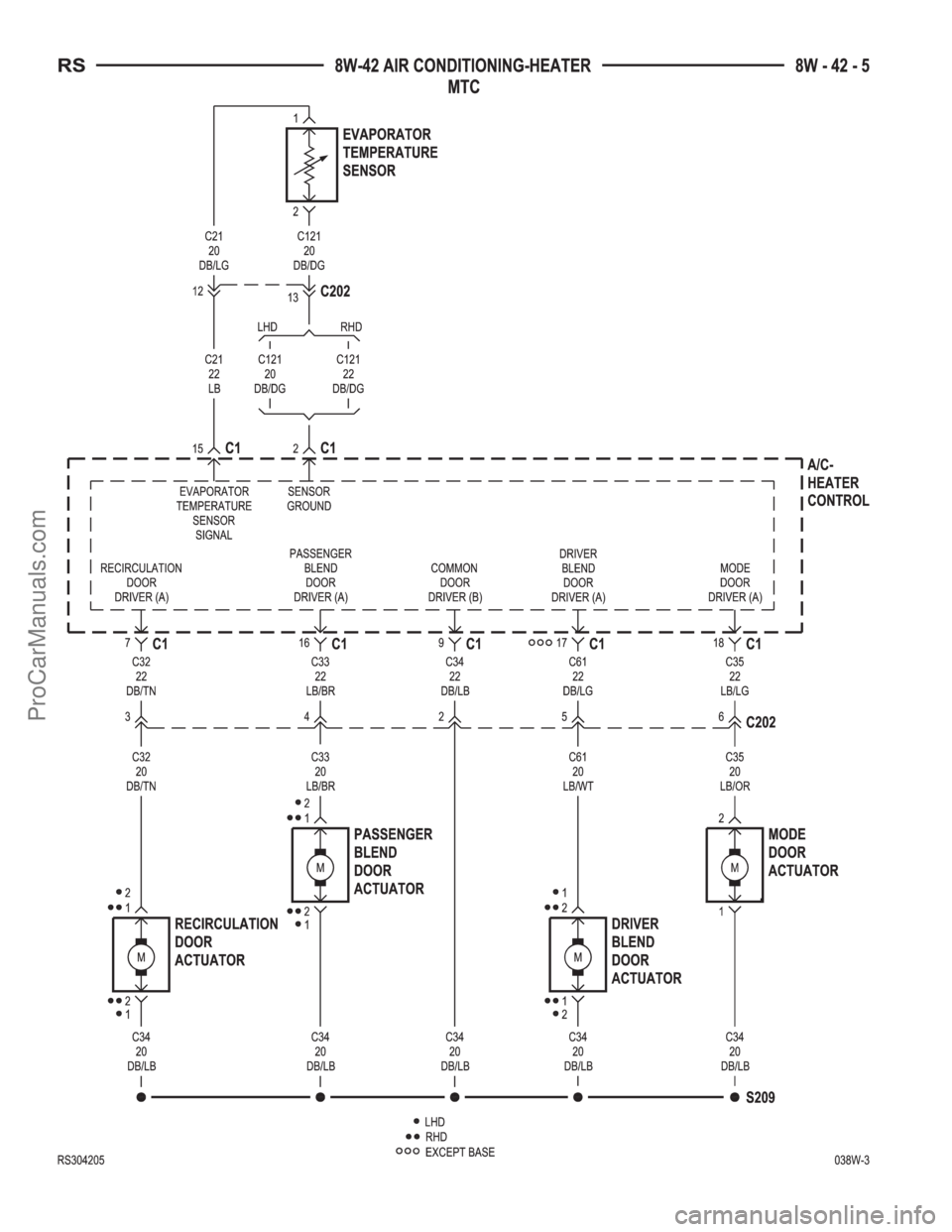

Page 814 of 2177

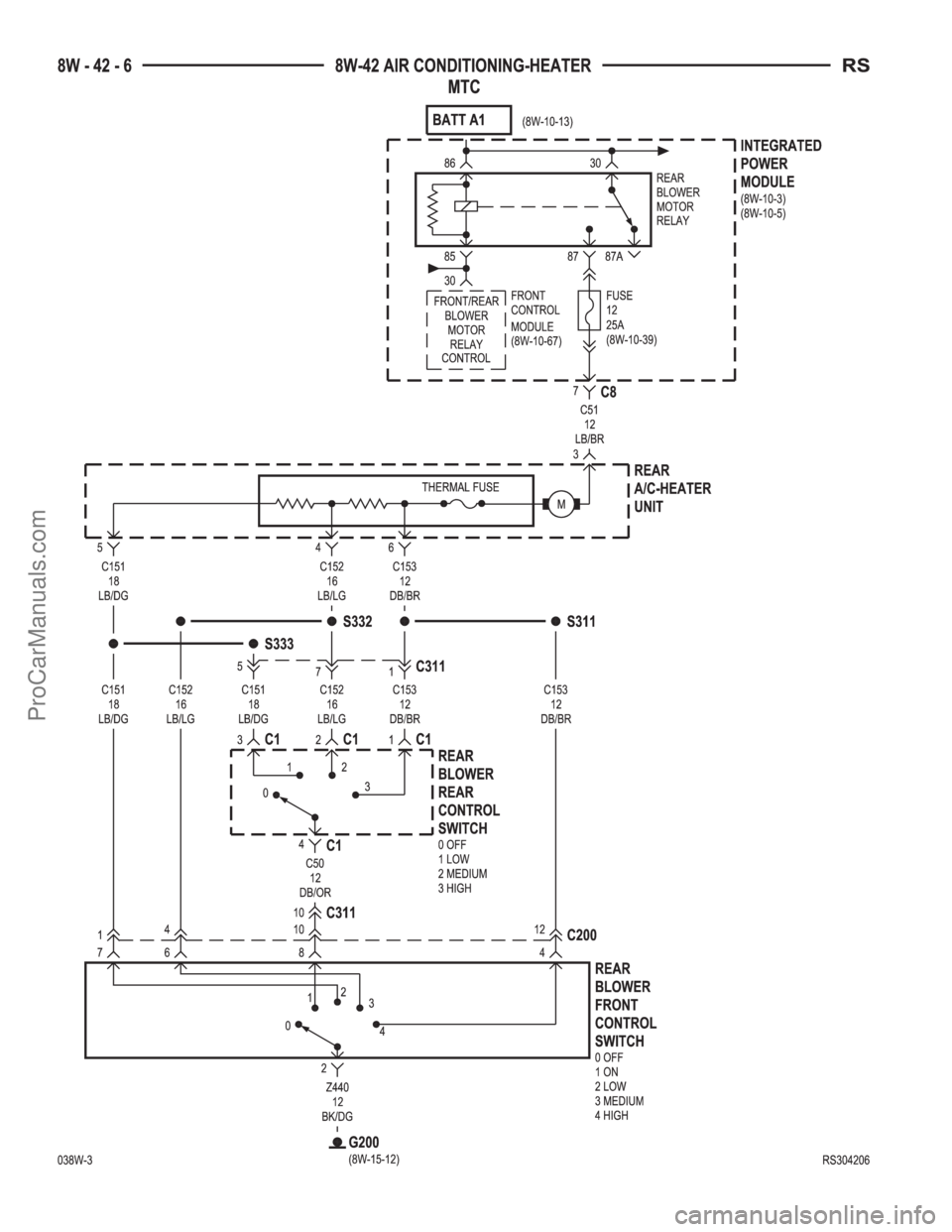

Page 815 of 2177

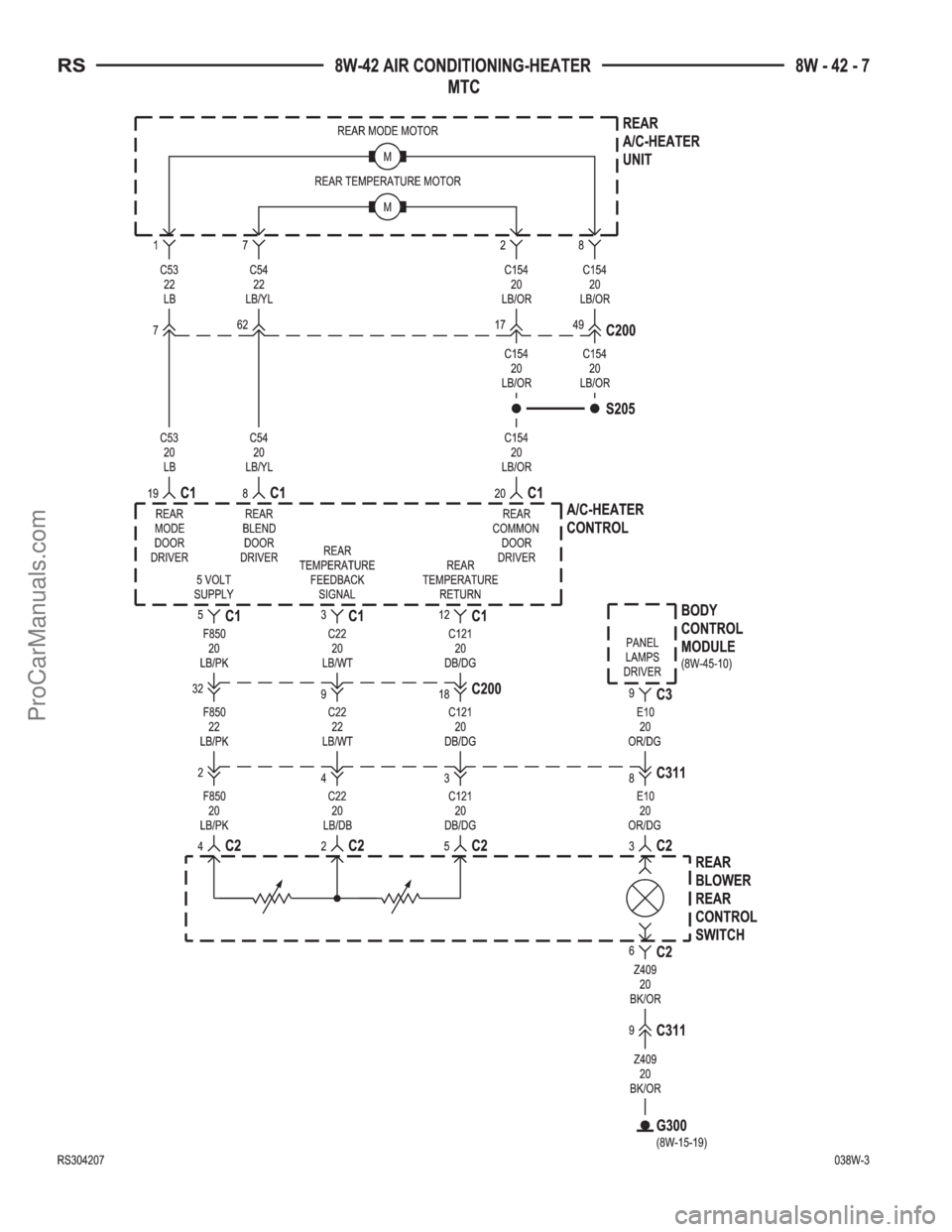

Page 816 of 2177
