2003 DODGE TOWN AND COUNTRY Service Manual

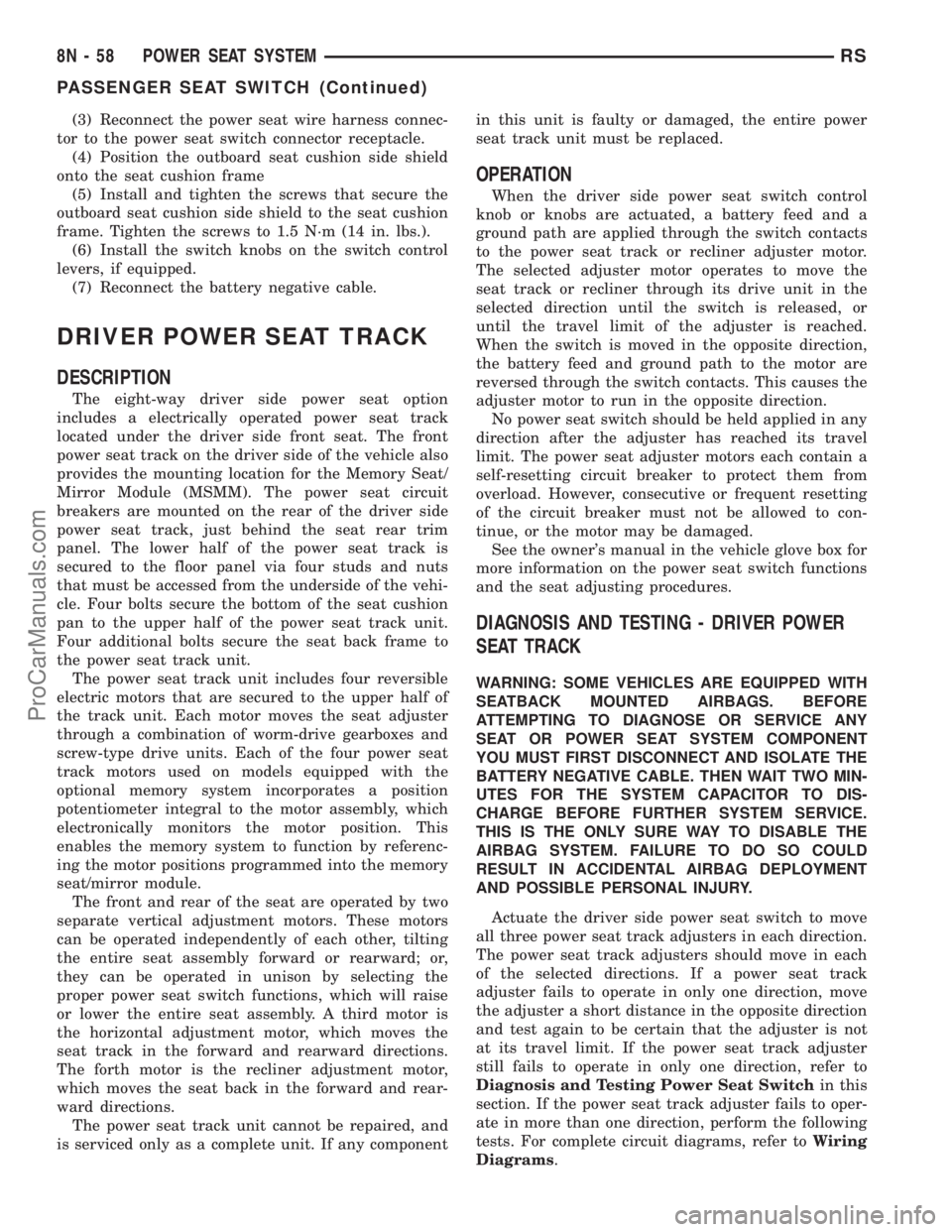

Page 513 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual (3) Reconnect the power seat wire harness connec-
tor to the power seat switch connector receptacle.
(4) Position the outboard seat cushion side shield
onto the seat cushion frame
(5) Install and tigh

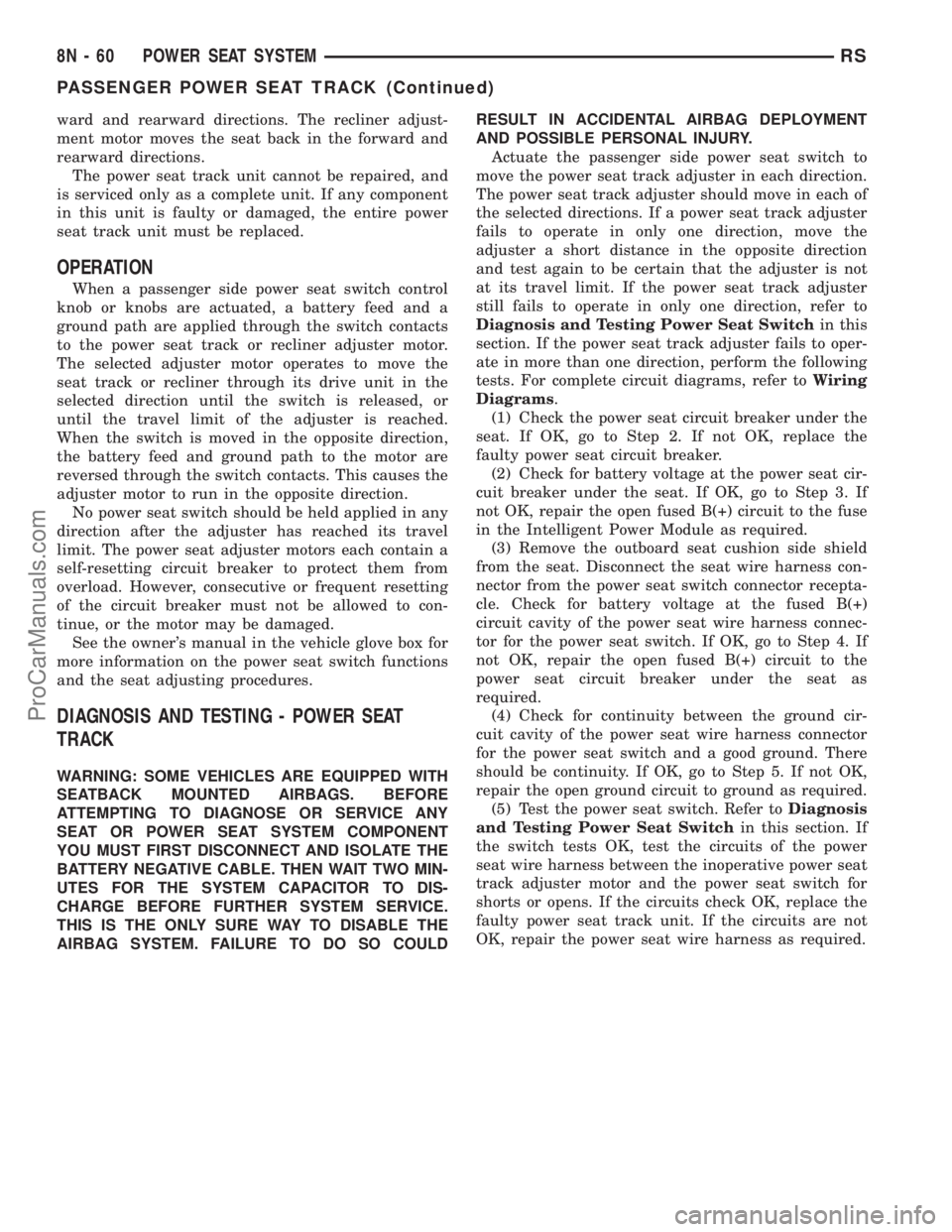

Page 514 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual TESTING POWER SEAT TRACK MOTORS
(1) Check the power seat circuit breaker under the
seat. If OK, go to Step 2. If not OK, replace the
faulty power seat circuit breaker.
(2) Check for battery voltage at

Page 515 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual ward and rearward directions. The recliner adjust-
ment motor moves the seat back in the forward and
rearward directions.
The power seat track unit cannot be repaired, and
is serviced only as a comple

Page 516 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual REMOVAL
WARNING: SOME VEHICLES ARE EQUIPPED WITH
SEATBACK MOUNTED AIRBAGS. BEFORE
ATTEMPTING TO DIAGNOSE OR SERVICE ANY
SEAT OR POWER SEAT SYSTEM COMPONENT
YOU MUST FIRST DISCONNECT AND ISOLATE THE
BA

Page 517 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual POWER WINDOWS
TABLE OF CONTENTS
page page
POWER WINDOWS
DESCRIPTION.........................62
OPERATION...........................62
DIAGNOSIS AND TESTING - POWER
WINDOWS...........................62

Page 518 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual WIRING VOLTAGE TEST
The following wiring test determines whether or
not voltage is continuous through the body harness
to switch.
(1) Remove the power window switch and bezel
assembly from the driver

Page 519 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual INSTALLATION
(1) Obtain new vent window motor.
(2) Snap the actuator link socket onto the quarter
window ball socket. Using a soft rubber mallet, push
the circular link tab flush with link surface.
(3

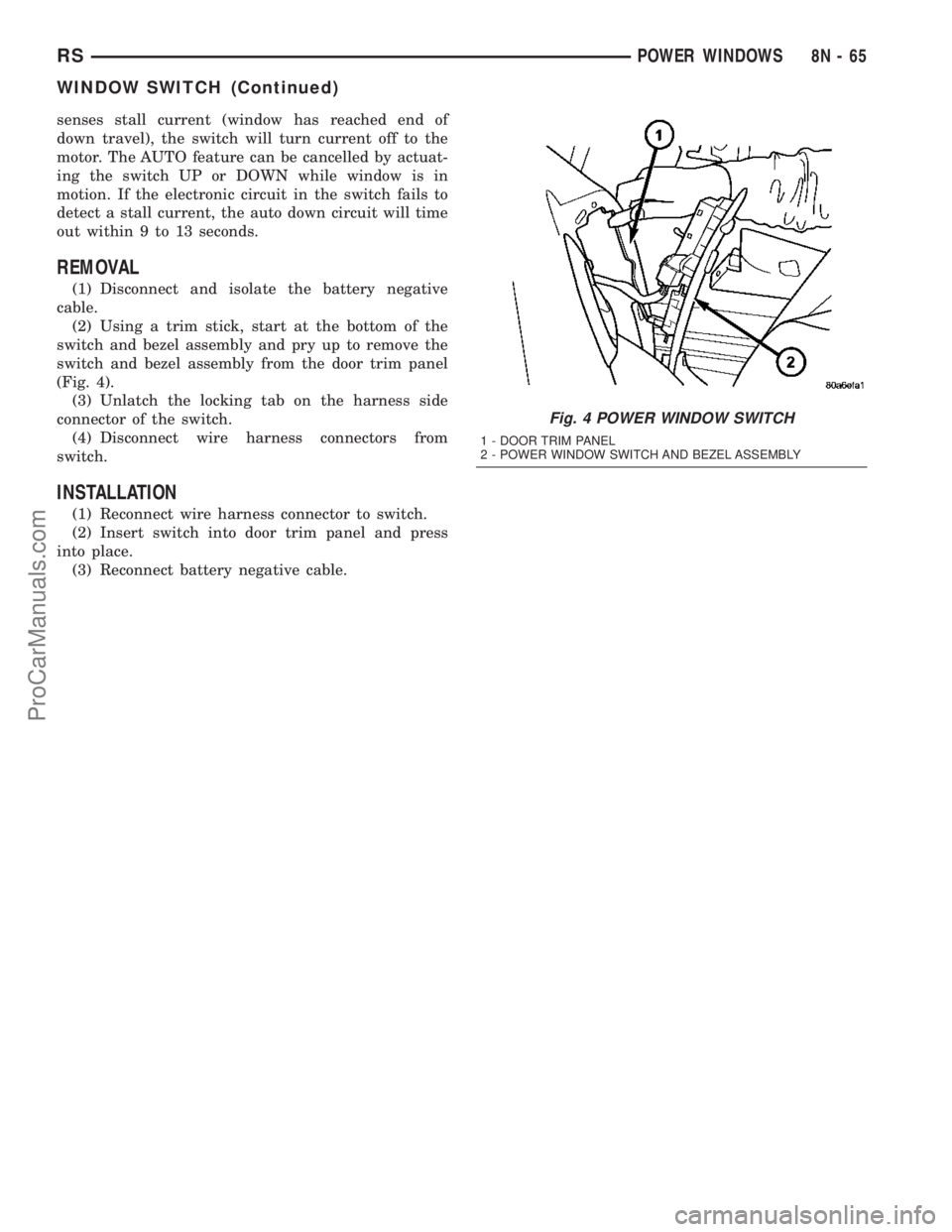

Page 520 of 2177

DODGE TOWN AND COUNTRY 2003  Service Manual senses stall current (window has reached end of
down travel), the switch will turn current off to the
motor. The AUTO feature can be cancelled by actuat-
ing the switch UP or DOWN while window is in
m
