COMPANION FLANGE AND EXTENSION HOUSING
(1) Install two bolts 180É apart into the front out-
put shaft companion flange.
(2) Place holder over the bolts and against the
companion flange (Fig. 3).
(3) Remove and discard the front companion flange
nut.
(4) Remove the companion flange from the front
output shaft. It may be necessary to use Flange
puller 8992 to remove the companion flange.
(5) Use a suitable chisel or pry tool to remove the
rear extension housing dust boot (Fig. 4).
(6) Use a suitable chisel or pry tool to remove the
rear extension housing seal.
(7) Remove rear extension bolts (Fig. 5).
Fig. 3 Remove Companion Flange Nut - Typical
1 - HOLDER 6719
2 - BOLTS
Fig. 4 Remove Extension Housing Dust Boot
1 - EXTENSION HOUSING
2 - DUST BOOT
Fig. 5 Remove Extension Housing Bolts
1 - EXTENSION HOUSING
2 - BOLTS
21 - 690 TRANSFER CASE - NV273DR
TRANSFER CASE - NV273 (Continued)

(2) Engage the oil pump pick-up tube (Fig. 84) into
the oil pump. Verify that the pick-up tube o-ring is
on the tube and is correctly installed to the oil pump.
(3) Apply bead of MopartGasket Maker, or equiv-
alent, to mating surface of rear extension housing.
Keep sealer bead width to maximum of 3/16 inch. Do
not use excessive amount of sealer as excess could be
displaced into output bearing.
(4) Install extension housing (Fig. 85) onto the
rear case half.(5) Install rear extension bolts (Fig. 86). Tighten
the bolts to 27-34 N´m (20-25 ft.lbs.).
(6) Install the extension housing dust boot and
seal assembly with Installer 9037 and Handle C-4171
(Fig. 87).
Fig. 84 Engage The Oil Pick-up To Oil Pump
1 - OIL PUMP
2 - OIL PICK-UP TUBE
Fig. 85 Install Extension Housing
1 - REAR CASE HALF
2 - EXTENSION HOUSING
Fig. 86 Install Extension Housing Bolts
1 - EXTENSION HOUSING
2 - BOLTS
Fig. 87 Install Extension Housing Seal
1 - EXTENSION HOUSING
2 - HANDLE C-4171
3 - INSTALLER 9037
21 - 712 TRANSFER CASE - NV273DR
TRANSFER CASE - NV273 (Continued)

EXTENSION HOUSING SEAL
AND DUST BOOT
REMOVAL
(1) Raise and support vehicle.
(2) Remove rear propeller shaft. (Refer to 3 - DIF-
FERENTIAL & DRIVELINE/PROPELLER SHAFT/
PROPELLER SHAFT - REMOVAL)
(3) Use a suitable chisel or pry tool to remove the
rear extension housing dust boot (Fig. 89).
(4) Use a suitable chisel or pry tool to remove the
rear extension housing seal.
INSTALLATION
(1) Clean fluid residue from sealing surface and
inspect for defects.
(2) Install the extension housing dust boot and
seal assembly with Installer 9037 and Handle C-4171
(Fig. 90).
(3) Install propeller shaft. (Refer to 3 - DIFFER-
ENTIAL & DRIVELINE/PROPELLER SHAFT/PRO-
PELLER SHAFT - INSTALLATION)
(4) Verify proper transfer case fluid level.
(5) Lower vehicle.
FLUID
STANDARD PROCEDURE - FLUID DRAIN AND
REFILL
The fill and drain plugs are both in the rear case
(Fig. 91).
(1) Raise vehicle.(2) Position drain pan under transfer case.
(3) Remove drain and fill plugs and drain lubri-
cant completely.
(4) Install drain plug. Tighten plug to 41-54 N´m
(30-40 ft. lbs.).
(5) Remove drain pan.
Fig. 89 Remove Extension Housing Dust Boot
1 - EXTENSION HOUSING
2 - DUST BOOT
Fig. 90 Install Extension Housing Seal
1 - EXTENSION HOUSING
2 - HANDLE C-4171
3 - INSTALLER 9037
Fig. 91 Drain and Fill Locations
1 - FILL HOLE
2 - DRAIN HOLE
21 - 716 TRANSFER CASE - NV273DR

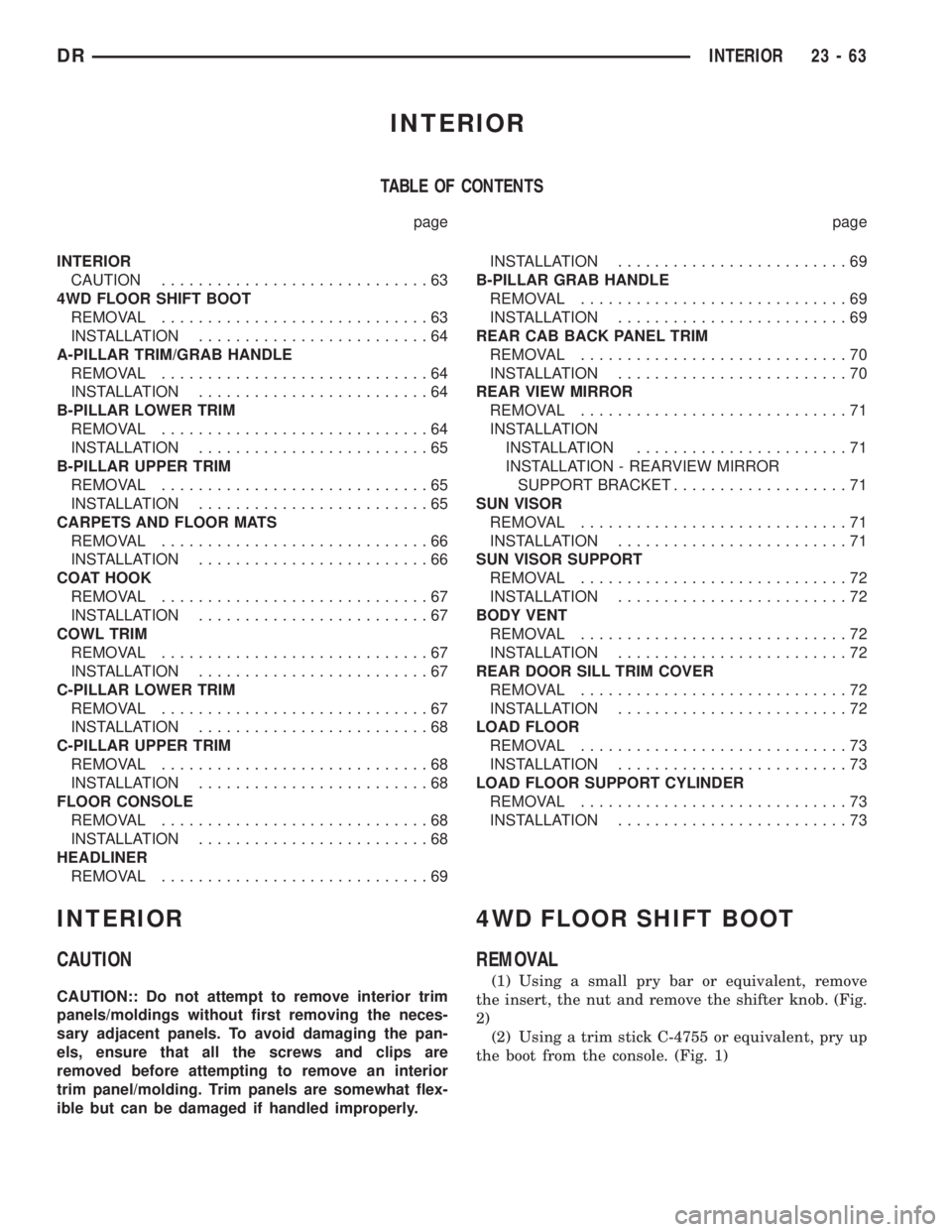

INTERIOR
TABLE OF CONTENTS
page page
INTERIOR
CAUTION.............................63
4WD FLOOR SHIFT BOOT
REMOVAL.............................63
INSTALLATION.........................64
A-PILLAR TRIM/GRAB HANDLE
REMOVAL.............................64
INSTALLATION.........................64
B-PILLAR LOWER TRIM
REMOVAL.............................64
INSTALLATION.........................65
B-PILLAR UPPER TRIM
REMOVAL.............................65
INSTALLATION.........................65
CARPETS AND FLOOR MATS
REMOVAL.............................66
INSTALLATION.........................66
COAT HOOK
REMOVAL.............................67
INSTALLATION.........................67
COWL TRIM
REMOVAL.............................67
INSTALLATION.........................67
C-PILLAR LOWER TRIM
REMOVAL.............................67
INSTALLATION.........................68
C-PILLAR UPPER TRIM
REMOVAL.............................68
INSTALLATION.........................68
FLOOR CONSOLE
REMOVAL.............................68
INSTALLATION.........................68
HEADLINER
REMOVAL.............................69INSTALLATION.........................69
B-PILLAR GRAB HANDLE
REMOVAL.............................69
INSTALLATION.........................69
REAR CAB BACK PANEL TRIM
REMOVAL.............................70
INSTALLATION.........................70
REAR VIEW MIRROR
REMOVAL.............................71
INSTALLATION
INSTALLATION.......................71
INSTALLATION - REARVIEW MIRROR
SUPPORT BRACKET...................71
SUN VISOR
REMOVAL.............................71
INSTALLATION.........................71
SUN VISOR SUPPORT
REMOVAL.............................72
INSTALLATION.........................72
BODY VENT
REMOVAL.............................72
INSTALLATION.........................72
REAR DOOR SILL TRIM COVER
REMOVAL.............................72
INSTALLATION.........................72
LOAD FLOOR
REMOVAL.............................73
INSTALLATION.........................73
LOAD FLOOR SUPPORT CYLINDER
REMOVAL.............................73
INSTALLATION.........................73
INTERIOR
CAUTION
CAUTION:: Do not attempt to remove interior trim
panels/moldings without first removing the neces-
sary adjacent panels. To avoid damaging the pan-
els, ensure that all the screws and clips are
removed before attempting to remove an interior
trim panel/molding. Trim panels are somewhat flex-
ible but can be damaged if handled improperly.
4WD FLOOR SHIFT BOOT
REMOVAL
(1) Using a small pry bar or equivalent, remove
the insert, the nut and remove the shifter knob. (Fig.
2)
(2) Using a trim stick C-4755 or equivalent, pry up
the boot from the console. (Fig. 1)
DRINTERIOR 23 - 63

INSTALLATION
(1) Position the shift boot over the shifter lever
fully seat onto the console.
(2) Install the shifter knob and nut and tighten to
27 N´m (20 ft. lbs.).
(3) Position the insert and seat into the knob fully.
A-PILLAR TRIM/GRAB HANDLE
REMOVAL
(1) Open the trim plugs and remove the bolts. (Fig.
3)
(2) Remove the a-pillar trim/grab handle from the
a-pillar.
INSTALLATION
(1) Position the bottom a-pillar locating tabs and
install the a-pillar trim.
(2) Install the bolts and tighten to 6 N´m (55 in.
lbs.).
(3) Close the trim plugs.
B-PILLAR LOWER TRIM
REMOVAL
(1) Remove the upper b-pillar trim. (Refer to 23 -
BODY/INTERIOR/B-PILLAR UPPER TRIM -
REMOVAL)
(2) Remove the cowl trim. (Refer to 23 - BODY/IN-
TERIOR/COWL TRIM - REMOVAL)
STANDARD CAB
(1) Remove the shoulder belt anchor bolt.
(2) Using a trim stick C-4755 or equivalent,
remove the lower b-pillar trim. (Fig. 4)
QUAD CAB
(1) Remove the rear door sill trim. (Refer to 23 -
BODY/INTERIOR/REAR DOOR SILL TRIM COVER
- REMOVAL)
(2) Using a trim stick C-4755 or equivalent,
remove the lower b-pillar trim.
Fig. 1 SHIFTER BOOT
1 - CONSOLE
2 - SHIFTER KNOB
3 - SHIFTER BOOT
Fig. 2 SHIFTER KNOB
1 - SHIFTER KNOB
2 - INSERT
3 - NUT
Fig. 3 A-PILLAR TRIM/GRAB HANDLE
1 - A-PILLAR
2 - A-PILLAR TRIM
3 - TRIM PLUG
4 - BOLTS (2)
23 - 64 INTERIORDR
4WD FLOOR SHIFT BOOT (Continued)

INSTALLATION
(1) Route the shoulder belt through the slot in the
trim.
(2) Position the trim and seat the attachment clips
fully.
(3) Install the seat belt anchor bolt and tighten to
40 N´m (30 ft. lbs.).
(4) Install the upper c-pillar trim. (Refer to 23 -
BODY/INTERIOR/C-PILLAR UPPER TRIM -
INSTALLATION)
C-PILLAR UPPER TRIM
REMOVAL
(1) Remove the seat belt turning loop. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT TURNING
LOOP ADJUSTER - REMOVAL)
(2) Using a trim stick C-4755 or equivalent,
remove the upper c-pillar trim. (Fig. 11)
INSTALLATION
(1) Position the upper c-pillar trim and seat the
attachment clips fully.
(2) Install the seat belt turning loop. (Refer to 8 -
ELECTRICAL/RESTRAINTS/SEAT BELT TURNING
LOOP ADJUSTER - INSTALLATION)
FLOOR CONSOLE
REMOVAL
(1) Remove the 4WD shifter boot. (Refer to 23 -
BODY/INTERIOR/4WD FLOOR SHIFT BOOT -
REMOVAL)
(2) Using a trim stick C-4755 or equivalent, pry up
the transmission shifter boot from the console.
(3) Remove the transmission shifter extension.
(4) Remove the console inserts. (Fig. 12)
(5) Remove and discard the three bolts. (Fig. 13)
(6) Lift up on the back and remove the console.
INSTALLATION
(1) Position the front of the console up under the
instrument panel.
(2) Lower the back of the console and install three
new screws.
(3) Install the inserts.
(4) Install the transmission shifter extension.
(5) Position the transmission shifter boot in place
and seat the attachment clips fully.
(6) Install the 4WD shifter boot. (Refer to 23 -
BODY/INTERIOR/4WD FLOOR SHIFT BOOT -
INSTALLATION)
Fig. 12 FLOOR CONSOLE INSERTS
1 - BIN PAD INSERT
2 - STORAGE BIN/SHIFT BOOT
3 - CUP HOLDER INSERT
4 - FLOOR CONSOLE
Fig. 13 FLOOR CONSOLE
1 - INSTRUMENT PANEL
2 - FLOOR CONSOLE
3 - BOLTS (3)
4 - SHIFTER LEVER
23 - 68 INTERIORDR
C-PILLAR LOWER TRIM (Continued)

BIN - INSTALLATION, STORAGE.........23-62
BIN - INSTALLATION, UNDER SEAT
STORAGE...........................23-81
BIN - REMOVAL, STORAGE.............23-62
BIN - REMOVAL, UNDER SEAT STORAGE . . 23-81
BIN COVERING - INSTALLATION, UNDER
SEAT STORAGE......................23-81
BIN COVERING - REMOVAL, UNDER
SEAT STORAGE......................23-81
BIN LATCH - INSTALLATION, UNDER
SEAT STORAGE......................23-81
BIN LATCH - REMOVAL, UNDER SEAT
STORAGE...........................23-81
BLADE - DESCRIPTION, WIPER.........8R-19
BLADE - INSTALLATION, WIPER.........8R-20
BLADE - OPERATION, WIPER...........8R-19
BLADE - REMOVAL, WIPER............8R-19
BLEEDING - STANDARD PROCEDURE......5-27
BLEEDING - STANDARD PROCEDURE,
ABS BRAKE..........................5-40
BLEEDING - STANDARD PROCEDURE,
MANUAL.............................5-5
BLEEDING - STANDARD PROCEDURE,
MASTER CYLINDER...................5-20
BLEEDING - STANDARD PROCEDURE,
PRESSURE...........................5-5
BLEND DOOR - INSTALLATION..........24-25
BLEND DOOR - REMOVAL.............24-24
BLEND DOOR ACTUATOR -
DESCRIPTION.......................24-16
BLEND DOOR ACTUATOR -
INSTALLATION.......................24-17
BLEND DOOR ACTUATOR - OPERATION . . . 24-16
BLEND DOOR ACTUATOR - REMOVAL....24-17
BLOCK - CLEANING, ENGINE . 9-127,9-200,9-249,
9-38,9-380
BLOCK - DESCRIPTION, BLOWER
MOTOR RESISTOR...................24-17
BLOCK - DESCRIPTION, ENGINE.....9-126,9-37
BLOCK - INSPECTION, ENGINE....9-127,9-200,
9-249,9-38,9-380
BLOCK - INSTALLATION, BLOWER
MOTOR RESISTOR...................24-18
BLOCK - INSTALLATION, BRAKE
JUNCTION...........................5-19
BLOCK - OPERATION, BLOWER MOTOR
RESISTOR..........................24-17
BLOCK - REMOVAL, BLOWER MOTOR
RESISTOR..........................24-18
BLOCK - REMOVAL, BRAKE JUNCTION....5-19
BLOCK HEATER - 5.9L DIESEL -
DESCRIPTION, ENGINE.................7-43
BLOCK HEATER - 5.9L DIESEL -
INSTALLATION, ENGINE................7-44
BLOCK HEATER - 5.9L DIESEL -
OPERATION, ENGINE...................7-43
BLOCK HEATER - 5.9L DIESEL -
REMOVAL, ENGINE....................7-43
BLOCK HEATER - DESCRIPTION, ENGINE . . . 7-42
BLOCK HEATER - DIAGNOSIS AND
TESTING, ENGINE.....................7-42
BLOCK HEATER - INSTALLATION,
ENGINE.............................7-43
BLOCK HEATER - OPERATION, ENGINE....7-42
BLOCK HEATER - REMOVAL, ENGINE......7-43
BLOCK REFACING - STANDARD
PROCEDURE, CYLINDER
...............9-312
BLOWER MOTOR - DESCRIPTION
.......24-25
BLOWER MOTOR - DIAGNOSIS AND
TESTING
...........................24-26
BLOWER MOTOR - INSTALLATION
.......24-26
BLOWER MOTOR - OPERATION
.........24-25
BLOWER MOTOR - REMOVAL
...........24-26
BLOWER MOTOR RESISTOR -
DIAGNOSIS AND TESTING
.............24-18
BLOWER MOTOR RESISTOR BLOCK -
DESCRIPTION
.......................24-17
BLOWER MOTOR RESISTOR BLOCK -
INSTALLATION
.......................24-18
BLOWER MOTOR RESISTOR BLOCK -
OPERATION
.........................24-17
BLOWER MOTOR RESISTOR BLOCK -
REMOVAL
..........................24-18
BLOWER MOTOR SWITCH -
DESCRIPTION
.......................24-18
BLOWER MOTOR SWITCH - DIAGNOSIS
AND TESTING
.......................24-18BLOWER MOTOR SWITCH -
INSTALLATION.......................24-19
BLOWER MOTOR SWITCH - OPERATION . . 24-18
BLOWER MOTOR SWITCH - REMOVAL . . . 24-19
BODY - ADJUSTMENTS, VALVE . . 21-308,21-487
BODY - ASSEMBLY, VALVE......21-299,21-477,
21-590
BODY & CABLE - DESCRIPTION,
ANTENNA...........................8A-4
BODY & CABLE - INSTALLATION,
ANTENNA...........................8A-6
BODY & CABLE - OPERATION, ANTENNA . . . 8A-4
BODY & CABLE - REMOVAL, ANTENNA....8A-6
BODY - CLEANING, VALVE......21-298,21-476,
21-588
BODY - DESCRIPTION, THROTTLE.......14-45
BODY - DESCRIPTION, VALVE . . . 21-267,21-445,
21-584
BODY - DISASSEMBLY, VALVE . . . 21-287,21-465,
21-586
BODY - INSPECTION, VALVE....21-298,21-476,
21-588
BODY - INSTALLATION, THROTTLE.......14-47
BODY - INSTALLATION, VALVE . . . 21-307,21-486,
21-590
BODY - OPERATION, THROTTLE.........14-45
BODY - OPERATION, VALVE.....21-272,21-450,
21-585
BODY - REMOVAL, THROTTLE..........14-45
BODY - REMOVAL, VALVE . 21-286,21-464,21-585
BODY AND CABLE - DIAGNOSIS AND
TESTING, ANTENNA...................8A-4
BODY CODE PLATE - DESCRIPTION.....Intro.-4
BODY ISOLATORS - INSTALLATION......23-37
BODY ISOLATORS - REMOVAL..........23-36
BODY LUBRICATION - STANDARD
PROCEDURE.........................23-3
BODY OPENING DIMENSIONS -
SPECIFICATIONS.....................23-99
BODY PANEL REPAIR - STANDARD
PROCEDURE, PLASTIC.................23-3
BODY SIDE MOLDINGS - INSTALLATION . . 23-36
BODY SIDE MOLDINGS - REMOVAL......23-36
BODY, SPECIAL TOOLS................23-14
BODY VENT - INSTALLATION...........23-72
BODY VENT - REMOVAL...............23-72
BOOST PRESSURE - DIAGNOSIS AND
TESTING, TURBOCHARGER.............11-10
BOOSTER - DESCRIPTION, POWER
BRAKE..............................5-25
BOOSTER - DIAGNOSIS AND TESTING,
HYDRAULIC..........................5-25
BOOSTER - DIAGNOSIS AND TESTING,
MASTER CYLINDER/POWER.............5-20
BOOSTER - INSTALLATION, HYDRO-
BOOST BRAKE........................5-27
BOOSTER - INSTALLATION, POWER
BRAKE..............................5-25
BOOSTER - OPERATION, POWER BRAKE . . . 5-25
BOOSTER - REMOVAL, HYDRO-BOOST
BRAKE..............................5-27
BOOSTER - REMOVAL, POWER BRAKE....5-25
BOOT - INSTALLATION, 4WD FLOOR
SHIFT..............................23-64
BOOT - INSTALLATION, EXTENSION
HOUSING SEAL AND DUST......21-652,21-716
BOOT - REMOVAL, 4WD FLOOR SHIFT....23-63
BOOT - REMOVAL, EXTENSION HOUSING
SEAL AND DUST..............21-652,21-716
BORE - DE-GLAZE - STANDARD
PROCEDURE, CYLINDER...............9-313
BORE HONING - STANDARD
PROCEDURE, CYLINDER . 9-126,9-233,9-360,9-37
BORE REPAIR - STANDARD
PROCEDURE, CAM...................9-315
BORE REPAIR - STANDARD
PROCEDURE, CYLINDER...............9-313
BOX - INSTALLATION, CARGO..........23-37
BOX - INSTALLATION, GLOVE...........23-53
BOX - REMOVAL, CARGO..............23-37
BOX - REMOVAL, GLOVE..............23-53
BOX - TIE DOWN - INSTALLATION,
CARGO
............................23-37
BOX - TIE DOWN - REMOVAL, CARGO
....23-37
BOX LAMP/SWITCH - INSTALLATION,
GLOVE
.............................8L-25
BOX LAMP/SWITCH - REMOVAL, GLOVE
. . 8L-25
BOX LATCH - INSTALLATION, GLOVE
.....23-53BOX LATCH - REMOVAL, GLOVE.........23-53
B-PILLAR GRAB HANDLE -
INSTALLATION.......................23-69
B-PILLAR GRAB HANDLE - REMOVAL....23-69
B-PILLAR LOWER TRIM - INSTALLATION . . 23-65
B-PILLAR LOWER TRIM - REMOVAL.....23-64
B-PILLAR UPPER TRIM - INSTALLATION . . 23-65
B-PILLAR UPPER TRIM - REMOVAL......23-65
BRACKET - INSTALLATION, REARVIEW
MIRROR SUPPORT...................23-71
BRACKET - INSTALLATION, STEERING
COLUMN OPENING SUPPORT...........23-62
BRACKET - REMOVAL, STEERING
COLUMN OPENING SUPPORT...........23-61
BRACKETS - INSTALLATION, SEAT BACK
REAR - FOOTMANS LOOP..............23-85
BRACKETS - REMOVAL, SEAT BACK
REAR - FOOTMANS LOOP..............23-85
BRAKE - CLEANING, REAR DRUM IN
HAT ................................5-33
BRAKE - DESCRIPTION, CONTROLLER
ANTILOCK...........................8E-3
BRAKE - DESCRIPTION, PARKING........5-30
BRAKE - INSPECTION, REAR DRUM IN
HAT ................................5-33
BRAKE - INSTALLATION, CONTROLLER
ANTILOCK...........................8E-3
BRAKE - OPERATION, CONTROLLER
ANTILOCK...........................8E-3
BRAKE - OPERATION, PARKING..........5-30
BRAKE - REMOVAL, CONTROLLER
ANTILOCK...........................8E-3
BRAKE BLEEDING - STANDARD
PROCEDURE, ABS.....................5-40
BRAKE BOOSTER - DESCRIPTION,
POWER.............................5-25
BRAKE BOOSTER - INSTALLATION,
HYDRO-BOOST.......................5-27
BRAKE BOOSTER - INSTALLATION,
POWER.............................5-25
BRAKE BOOSTER - OPERATION, POWER . . . 5-25
BRAKE BOOSTER - REMOVAL,
HYDRO-BOOST.......................5-27
BRAKE BOOSTER - REMOVAL, POWER....5-25
BRAKE CABLE - INSTALLATION, FRONT
PARKING............................5-32
BRAKE CABLE - INSTALLATION, REAR
PARK...............................5-32
BRAKE CABLE - REMOVAL, FRONT
PARKING............................5-31
BRAKE CABLE - REMOVAL, REAR PARK . . . 5-31
BRAKE CALIPER ADAPTER MOUNT -
INSTALLATION, DISC...................5-17
BRAKE CALIPERS - DESCRIPTION, DISC . . . 5-11
BRAKE CALIPERS - OPERATION, DISC.....5-12
BRAKE FLUID CONTAMINATION -
DIAGNOSIS AND TESTING..............5-18
BRAKE FLUID LEVEL - STANDARD
PROCEDURE.........................5-18
BRAKE FLUID, SPECIFICATIONS..........5-18
BRAKE HOSE - INSTALLATION, FRONT......5-9
BRAKE HOSE - INSTALLATION, REAR.......5-9
BRAKE HOSE - REMOVAL, REAR..........5-8
BRAKE INDICATOR - DESCRIPTION,
BRAKE/PARK........................8J-18
BRAKE INDICATOR - DIAGNOSIS AND
TESTING...........................8J-19
BRAKE INDICATOR - OPERATION,
BRAKE/PARK........................8J-19
BRAKE JUNCTION BLOCK -
INSTALLATION........................5-19
BRAKE JUNCTION BLOCK - REMOVAL.....5-19
BRAKE LAMP - INSTALLATION...........8L-8
BRAKE LAMP - REMOVAL...............8L-8
BRAKE LAMP SWITCH - DESCRIPTION....8L-8
BRAKE LAMP SWITCH - DIAGNOSIS
AND TESTING........................8L-9
BRAKE LAMP SWITCH - INSTALLATION . . . 8L-10
BRAKE LAMP SWITCH - OPERATION......8L-8
BRAKE LAMP SWITCH - REMOVAL.......8L-9
BRAKE PADS/SHOES - INSTALLATION.....5-10
BRAKE PADS/SHOES - REMOVAL
.........5-10
BRAKE PROPORTIONING -
DESCRIPTION, ELECTRONIC VARIABLE
....5-43
BRAKE PROPORTIONING - OPERATION,
ELECTRONIC VARIABLE
................5-43
BRAKE SHOES - ADJUSTMENT, PARKING
. . 5-34
BRAKE, SPECIFICATIONS - BASE
..........5-7
4 INDEXDR
Description Group-Page Description Group-Page Description Group-Page

DROP - STANDARD PROCEDURE,
TESTING FOR A VOLTAGE...........8W-01-10
DRUM IN HAT BRAKE - CLEANING,
REAR...............................5-33
DRUM IN HAT BRAKE - INSPECTION,
REAR...............................5-33
DUAL REAR WHEEL INSTALLATION -
STANDARD PROCEDURE...............22-12
DUCTS - INSTALLATION, FLOOR
DISTRIBUTION.......................24-27
DUCTS - INSTALLATION, INSTRUMENT
PANEL.............................24-29
DUCTS - REMOVAL, FLOOR
DISTRIBUTION.......................24-27
DUCTS - REMOVAL, INSTRUMENT
PANEL.............................24-29
DUST BOOT - INSTALLATION,
EXTENSION HOUSING SEAL.....21-652,21-716
DUST BOOT - REMOVAL, EXTENSION
HOUSING SEAL...............21-652,21-716
DUTY FRONT FRAME RAIL TIP
REPLACEMENT - STANDARD
PROCEDURE, LIGHT...................13-4
ECM - DESCRIPTION...................8E-4
ECM - OPERATION....................8E-4
EFFECTS OF INCORRECT FLUID LEVEL -
DIAGNOSIS AND TESTING......21-201,21-381,
21-541
ELECTRICAL CONTROLS - DIAGNOSIS
AND TESTING, OVERDRIVE......21-219,21-397
ELECTRONIC GOVERNOR -
DESCRIPTION................21-196,21-376
ELECTRONIC GOVERNOR -
INSTALLATION.................21-199,21-379
ELECTRONIC GOVERNOR - OPERATION . 21-196,
21-377
ELECTRONIC GOVERNOR - REMOVAL . . . 21-198,
21-378
ELECTRONIC VARIABLE BRAKE
PROPORTIONING - DESCRIPTION........5-43
ELECTRONIC VARIABLE BRAKE
PROPORTIONING - OPERATION..........5-43
ELECTRONIC VEHICLE INFO CENTER -
DESCRIPTION........................8M-7
ELECTRONIC VEHICLE INFO CENTER -
INSTALLATION......................8M-10
ELECTRONIC VEHICLE INFO CENTER -
OPERATION.........................8M-8
ELECTRONIC VEHICLE INFO CENTER -
REMOVAL..........................8M-10
ELECTRONIC VEHICLE INFORMATION
CENTER - DIAGNOSIS AND TESTING......8M-8
ELECTRONIC VEHICLE INFORMATION
CENTER PROGRAMMING - STANDARD
PROCEDURE.........................8M-8
ELECTRONICLY CONTOLLED VISCOUS
FAN DRIVE - DIAGNOSIS AND TESTING....7-56
ELECTROSTATIC DISCHARGE (ESD)
SENSITIVE DEVICES - STANDARD
PROCEDURE......................8W-01-8
ELEMENT - DESCRIPTION, HEATED SEAT . . 8G-5
ELEMENT - DIAGNOSIS AND TESTING,
HEATED SEAT ........................8G-6
ELEMENT - INSTALLATION, AIR
CLEANER........9-105,9-20,9-242,9-298,9-370
ELEMENT - INSTALLATION, HEATED
SEAT ...............................8G-6
ELEMENT - OPERATION, HEATED SEAT....8G-6
ELEMENT - REMOVAL, AIR CLEANER....9-105,
9-20,9-242,9-297,9-370
ELEMENT - REMOVAL, HEATED SEAT.....8G-6
EMISSION CONTROL INFORMATION
(VECI) - DESCRIPTION, VEHICLE.......Intro.-3
END - DIAGNOSIS AND TESTING, OUTER
TIE ROD............................19-31
END - INSTALLATION, OUTER TIE ROD . . . 19-32
END - INSTALLATION, TIE ROD.........19-37
END - REMOVAL, OUTER TIE ROD.......19-31
END - REMOVAL, TIE ROD.............19-36
ENGINE - 3.7L - DESCRIPTION............9-3
ENGINE - 5.7L - DESCRIPTION
..........9-178
ENGINE - 5.9L - DESCRIPTION
..........9-224
ENGINE - DESCRIPTION, COOLING
SYSTEM FLOW - 5.9L
...................7-1
ENGINE - DESCRIPTION, COOLING
SYSTEM FLOW 3.7L/4.7L
................7-1
ENGINE - DESCRIPTION, FUEL
REQUIREMENTS - DIESEL
...............0-1ENGINE - DIAGNOSIS AND TESTING,
COOLING SYSTEM DIESEL...............7-7
ENGINE - DIAGNOSIS AND TESTING,
DIESEL.............................11-3
ENGINE - DIAGNOSIS AND TESTING,
GAS................................11-2
ENGINE - FIRING ORDER / CABLE
ROUTING, 5.7L V-8....................8I-4
ENGINE - IGNITION COIL RESISTANCE,
8.0L V-10............................8I-6
ENGINE - INSTALLATION...............9-291
ENGINE - INSTALLATION, 5.9L DIESEL . . . 24-39,
24-42,24-44
ENGINE - INSTALLATION, 8.0L..........24-42
ENGINE - INSTALLATION, EXCEPT V-10
OR DIESEL.........................8R-17
ENGINE - INSTALLATION, GAS..........19-24
ENGINE - INSTALLATION, V-10 OR
DIESEL............................8R-17
ENGINE - REMOVAL..................9-290
ENGINE - REMOVAL, 5.9L DIESEL . . 24-37,24-40,
24-43,24-46
ENGINE - REMOVAL, 8.0L..............24-40
ENGINE - REMOVAL, EXCEPT V-10 OR
DIESEL............................8R-16
ENGINE - REMOVAL, GAS..............19-23
ENGINE - REMOVAL, V-10 OR DIESEL....8R-16
ENGINE - SPARK PLUG CABLE ORDER,
8.0L V-10............................8I-5
ENGINE - SPECIFICATIONS, 3.7L.........9-12
ENGINE - STANDARD PROCEDURE,
DRAINING COOLING SYSTEM
3.7L/4.7L/5.7L........................7-18
ENGINE - STANDARD PROCEDURE,
DRAINING COOLING SYSTEM 5.9L
DIESEL.............................7-19
ENGINE - STANDARD PROCEDURE,
DRAINING COOLING SYSTEM
5.9L/8.0L............................7-18
ENGINE - STANDARD PROCEDURE,
REFILLING COOLING SYSTEM
3.7L/4.7L/5.7L........................7-18
ENGINE - STANDARD PROCEDURE,
REFILLING COOLING SYSTEM 5.9L
DIESEL.............................7-19
ENGINE - STANDARD PROCEDURE,
REFILLING COOLING SYSTEM
5.9L/8.0L............................7-18
ENGINE 5.9L DIESEL - DESCRIPTION.....9-282
ENGINE 8.0L - DESCRIPTION...........9-353
ENGINE BLOCK - CLEANING . 9-127,9-200,9-249,
9-38,9-380
ENGINE BLOCK - DESCRIPTION.....9-126,9-37
ENGINE BLOCK - INSPECTION.....9-127,9-200,
9-249,9-38,9-380
ENGINE BLOCK HEATER - 5.9L DIESEL -
DESCRIPTION........................7-43
ENGINE BLOCK HEATER - 5.9L DIESEL -
INSTALLATION........................7-44
ENGINE BLOCK HEATER - 5.9L DIESEL -
OPERATION..........................7-43
ENGINE BLOCK HEATER - 5.9L DIESEL -
REMOVAL...........................7-43
ENGINE BLOCK HEATER - DESCRIPTION . . . 7-42
ENGINE BLOCK HEATER - DIAGNOSIS
AND TESTING........................7-42
ENGINE BLOCK HEATER - INSTALLATION . . . 7-43
ENGINE BLOCK HEATER - OPERATION.....7-42
ENGINE BLOCK HEATER - REMOVAL......7-43
ENGINE CONTROL MODULE -
INSTALLATION........................8E-5
ENGINE CONTROL MODULE - REMOVAL . . . 8E-4
ENGINE COOLANT - DESCRIPTION........7-36
ENGINE COOLANT - DESCRIPTION.........0-3
ENGINE COOLANT TEMPERATURE
SENSOR - DESCRIPTION...............7-44
ENGINE COOLANT TEMPERATURE
SENSOR - INSTALLATION...............7-47
ENGINE COOLANT TEMPERATURE
SENSOR - OPERATION
.................7-44
ENGINE COOLANT TEMPERATURE
SENSOR - REMOVAL
...................7-44
ENGINE COOLANT THERMOSTAT -
3.7L/4.7L - DESCRIPTION
...............7-50
ENGINE COOLANT THERMOSTAT -
3.7L/4.7L - INSTALLATION
..............7-51
ENGINE COOLANT THERMOSTAT -
3.7L/4.7L - OPERATION
.................7-51ENGINE COOLANT THERMOSTAT -
3.7L/4.7L - REMOVAL..................7-51
ENGINE COOLANT THERMOSTAT - 5.9L
DIESEL - DESCRIPTION................7-52
ENGINE COOLANT THERMOSTAT - 5.9L
DIESEL - INSTALLATION................7-53
ENGINE COOLANT THERMOSTAT - 5.9L
DIESEL - OPERATION..................7-52
ENGINE COOLANT THERMOSTAT - 5.9L
DIESEL - REMOVAL....................7-53
ENGINE COOLANT THERMOSTAT-
5.7L/5.9L - DESCRIPTION...............7-47
ENGINE COOLANT THERMOSTAT-
5.7L/5.9L - INSTALLATION..............7-49
ENGINE COOLANT THERMOSTAT-
5.7L/5.9L - OPERATION.................7-48
ENGINE COOLANT THERMOSTAT-
5.7L/5.9L - REMOVAL..................7-48
ENGINE DATA PLATE - DESCRIPTION.....9-297
ENGINE DIAGNOSIS - INTRODUCTION -
DIAGNOSIS AND TESTING . . . 9-178,9-225,9-353,
9-4,9-93
ENGINE DIAGNOSIS - LUBRICATION -
DIAGNOSIS AND TESTING . . . 9-183,9-230,9-358,
9-7
ENGINE DIAGNOSIS - MECHANICAL -
DIAGNOSIS AND TESTING . . . 9-181,9-184,9-228,
9-283,9-356,9-6,9-91
ENGINE DIAGNOSIS - PERFORMANCE -
DIAGNOSIS AND TESTING . . . 9-179,9-226,9-354,
9-4,9-89
ENGINE FIRING ORDER, 3.7L V-6.........8I-4
ENGINE FIRING ORDER, 4.7L V-8.........8I-4
ENGINE FIRING ORDER, 5.9L V-8...........8I-4
ENGINE GASKET SURFACE
PREPARATION - STANDARD
PROCEDURE.........................9-10
ENGINE OIL - STANDARD PROCEDURE . . . 9-269,
9-396
ENGINE OIL AND LUBRICANTS -
DESCRIPTION.........................0-2
ENGINE OIL LEAK - DIAGNOSIS AND
TESTING..................9-150,9-214,9-63
ENGINE OIL LEAKS - DIAGNOSIS AND
TESTING......................9-269,9-394
ENGINE OIL LEVEL - STANDARD
PROCEDURE........................9-341
ENGINE OIL PRESSURE - DIAGNOSIS
AND TESTING.............9-269,9-338,9-396
ENGINE OIL PRESSURE - DIAGNOSIS
AND TESTING, CHECKING.....9-150,9-214,9-64
ENGINE OIL SERVICE - STANDARD
PROCEDURE..........9-151,9-215,9-341,9-70
ENGINE, SPECIAL TOOLS - 4.7L.........9-102
ENGINE, SPECIAL TOOLS - 5.7L.........9-192
ENGINE, SPECIAL TOOLS - 5.9L.........9-240
ENGINE, SPECIAL TOOLS - 5.9L DIESEL . . 9-294
ENGINE, SPECIAL TOOLS - 8.0L.........9-367
ENGINE, SPECIFICATIONS - 4.7L.........9-98
ENGINE, SPECIFICATIONS - 5.7L........9-188
ENGINE, SPECIFICATIONS - 5.9L........9-235
ENGINE, SPECIFICATIONS - 8.OL........9-364
ENGINE TEMPERATURE GAUGE -
DESCRIPTION
.......................8J-23
ENGINE TEMPERATURE GAUGE -
OPERATION
.........................8J-23
ENGINE TIMING - VERIFICATION -
STANDARD PROCEDURE
...............9-165
ENGINES - INSTALLATION, 3.7, 4.7 AND
5.7L
...............................24-41
ENGINES - REMOVAL, 3.7, 4.7 AND 5.7L
. . 24-39
ENTRY MODULE - DESCRIPTION,
REMOTE KEYLESS
....................8N-7
ENTRY MODULE - DIAGNOSIS AND
TESTING, REMOTE KEYLESS
............8N-8
ENTRY MODULE - INSTALLATION,
REMOTE KEYLESS
....................8N-8
ENTRY MODULE - OPERATION, REMOTE
KEYLESS
............................8N-8
ENTRY MODULE - REMOVAL, REMOTE
KEYLESS
............................8N-8
ENTRY TRANSMITTER - DIAGNOSIS AND
TESTING, REMOTE KEYLESS
............8N-8
ENTRY TRANSMITTER -
SPECIFICATIONS, REMOTE KEYLESS
.....8N-10
EQUIPMENT - STANDARD PROCEDURE,
REFRIGERANT SYSTEM SERVICE
........24-34
12 INDEXDR
Description Group-Page Description Group-Page Description Group-Page
