2003 CHEVROLET C/K Owners Manual

6-51
Tandem Axle Models
ITEM
NO. ITEM REMARKS
1 Brake Camshafts One fitting each.
2
Propshaft U
-JointOne fitting each joint.
Lubricate with
GM Part No. 1051344,
Wheel Bearing Lubricant.
4 Brake Shoe
Roller PinsApply engine oil at pin
to shoe joint only.
5 Rear Spring Pin One fitting each side.
6 Rear Axles Fill to level of filler plug.

6-52
Battery
Your new vehicle comes with one or more maintenance
free ACDelco
batteries. When it's time for a new
battery, be sure it has the replacement number shown
on the original battery's label. We recommend an
ACDelco battery.
WARNING: Battery posts, terminals and related
accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, remove the black, negative (
-) cable from the
battery. This will help keep your battery from running
down. (If your vehicle has more than one battery, be
sure to remove the negative (
-) battery cable from
each battery.)
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
When you are ready to use the vehicle again, refer to the
engine starting procedure in the Index.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.

6-53
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See ªWiper Blade
Checkº in the Index for more information.
Replacement blades come in different types and are
removed in different ways.
Here's how to remove the Shephard's Hook type:
1. Pull the windshield wiper arm away from the
windshield.
2. Push the release lever and slide the wiper assembly
toward the driver's side of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.

6-54
Other Service Items
Fuel Filter (Gasoline Engines)
The steel fuel filter is located near the engine
compartment on the driver's side of the vehicle.
See your Maintenance Schedule for recommended
service intervals.If your vehicle is equipped with the optional Davco
spin
-on type filter, it is located on the driver's side
frame rail.
Fuel Filter (Diesel Engines)
If you have a diesel engine, your fuel filter is located in
the engine compartment on the driver's side of the
vehicle, or along the driver's side frame rail. See ªFuel
Filter Replacementº earlier in this section for further
information.
Also see your Maintenance Schedule for recommended
service intervals.

6-55 Primary Fuel Filter and Water Separator
(If Equipped)
If you have a diesel engine,
you may have this spin
-on
filter. It is located on the
driver's side frame rail.
It has a clear plastic drain bowl at the bottom. Check the
drain bowl occasionally for any water or particles.
To drain the bowl, do the following:
1. Shut off the engine.
2. Partially open the drain valve at the bottom of
the filter.
See ªEngine Oilº in the Index for proper disposal
procedures.
Secondary Fuel Filter and Water
Separator/Heater (If Equipped)
If you have a Caterpillar

diesel engine, you may also
have this spin
-on filter and
fuel separator/heater. It will
be mounted in the engine
compartment on the driver's
side of the vehicle.
It has a metal drain bowl at the bottom. Occasionally,
check the bowl for any water or particles.
To check or drain the bowl, do the following:

Shut off the engine.

Push up on the spring loaded drain valve until clear
fuel is flowing from the valve.
The particles or water will drain out first. See ªEngine
Oilº in the Index for proper disposal procedures.

6-56 Automatic Ether Injection System
(If Equipped)
If you have a Caterpillar
diesel engine, you may have
this feature. The ether
cylinder is located in the
engine compartment on the
driver's side of the vehicle.To change an empty ether cylinder, follow these steps.
1. Loosen the screw head on the cylinder
-to-bracket
clamp.
2. Spread the clamp apart.
3. Clean any dirt from the neck of the cylinder and the
top of the valve before you take out the cylinder.
4. Check the inside of the valve for any foreign matter.
Clean the valve as necessary.
5. Cover the valve to protect it from dirt and take out
the cylinder.
6. Install a new gasket whenever you take out the
cylinder. Use only one gasket and spread a light film
of clean oil on it before installation.
7. Put in the new cylinder. Turn it clockwise until it just
starts to contact the gasket.
8. Tighten the cylinder another half turn (180 degrees).
Don't over
-tighten.
9. Retighten the cylinder clamp.

6-57 Front Wheel Bearings with Oil-Filled Hubs
If your vehicle has oil-filled
hubs, occasionally check to
see if they have enough oil.
You can tell if there is oil
there by using the circular
gage on the sight glass.
If there isn't, clean the rubber fill plug in the center of
the glass, and then remove it. Be careful not to allow
any dirt or water to get into the oil. Add enough of the
recommended oil to bring it up to the level mark that
you'll see on the glass.Refer to your Maintenance Schedule for the proper
oil to use.
When you fill the hub, check the glass again after
driving a short distance. It takes a while for the oil to
flow through the system, and you may find that you
have to add a little more to fill it to the proper level. Be
sure not to overfill the hub.
Air Conditioning System
Every now and then, have your dealership check your
air conditioning system to be sure it has not lost any
cooling ability. If you think the system is not working
properly, have your GM dealer check it out as soon
as possible.

6-58
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service, see
your General Motors Warranty booklet for details.

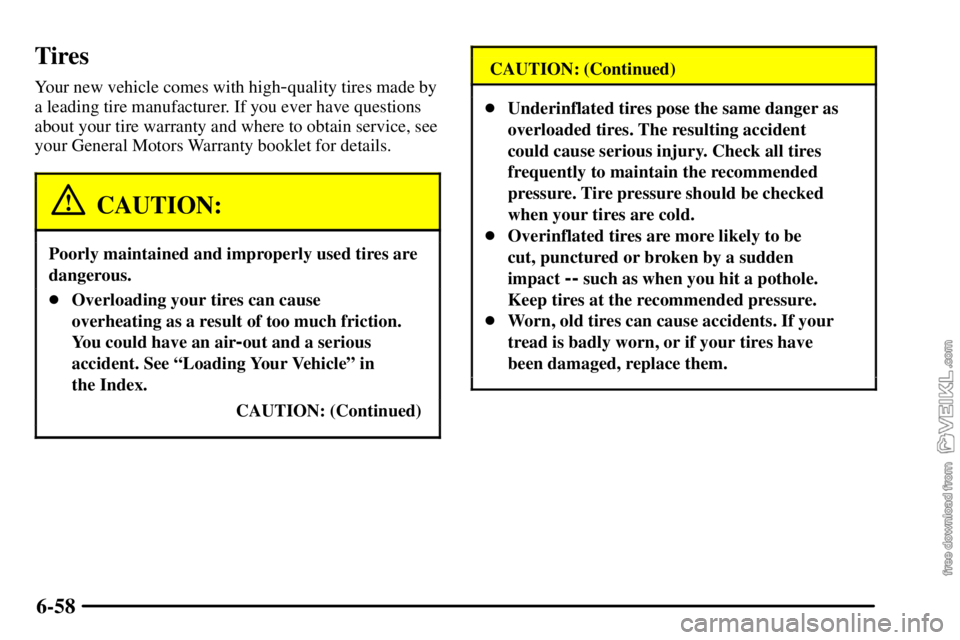

CAUTION:
Poorly maintained and improperly used tires are
dangerous.

Overloading your tires can cause
overheating as a result of too much friction.
You could have an air
-out and a serious
accident. See ªLoading Your Vehicleº in
the Index.
CAUTION: (Continued)
CAUTION: (Continued)

Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.

Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.

Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
