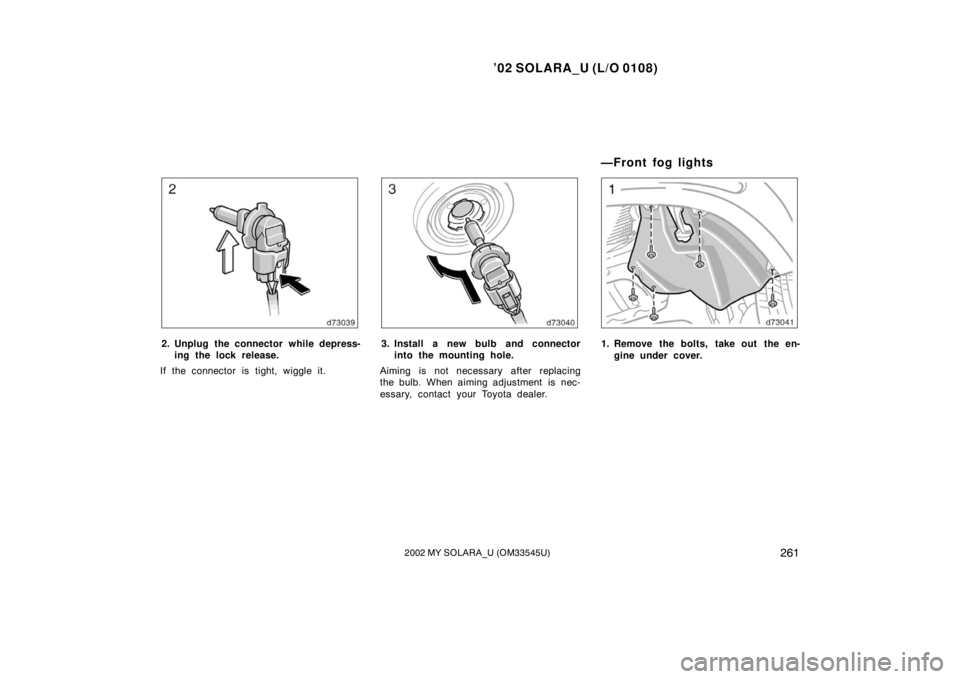

2. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Remove the bolts, take out the en- gine under cover.
—Front fog lights

’02 SOLARA_U (L/O 0108)
2622002 MY SOLARA_U (OM33545U)

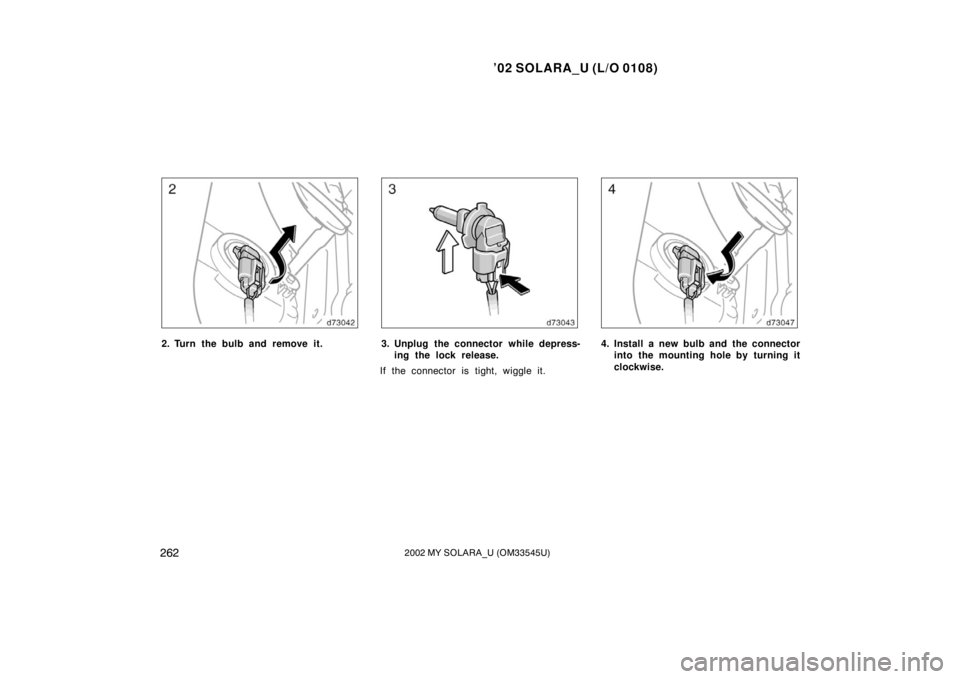

2. Turn the bulb and remove it.3. Unplug the connector while depress-
ing the lock release.
If the connector is tight, wiggle it.4. Install a new bulb and the connector into the mounting hole by turning it
clockwise.

’02 SOLARA_U (L/O 0108)
2632002 MY SOLARA_U (OM33545U)
Use a Phillipshead screwdriver.
Type A Type B
Use a phillipshead screw driver. Remove
and install the cover clips as shown in
the following illustrations.

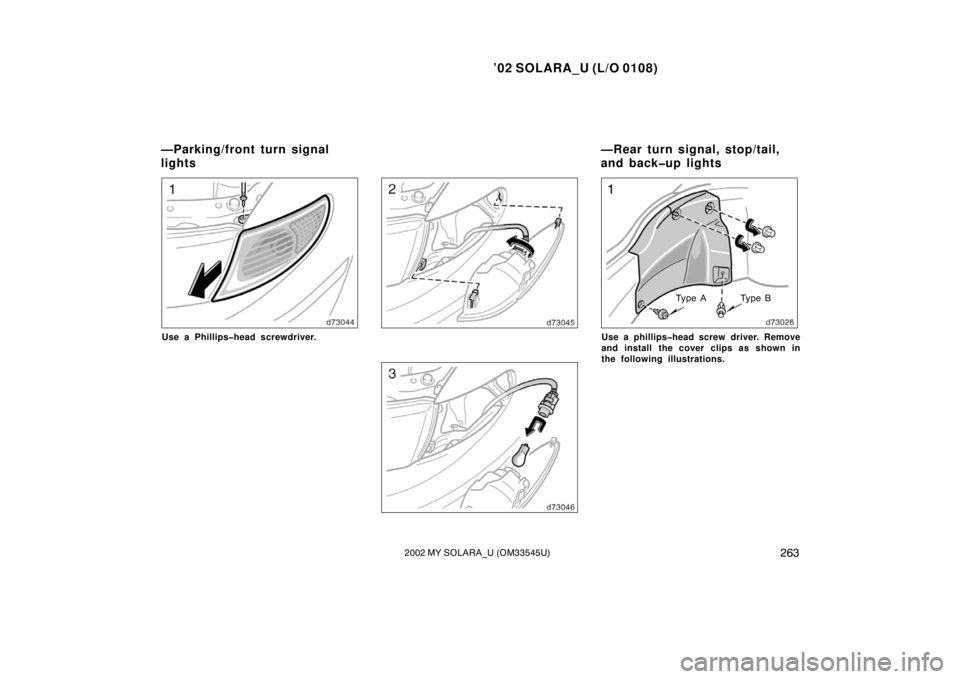

—Parking/front turn signal
lights —Rear turn signal, stop/tail,
and backup lights

’02 SOLARA_U (L/O 0108)
2642002 MY SOLARA_U (OM33545U)

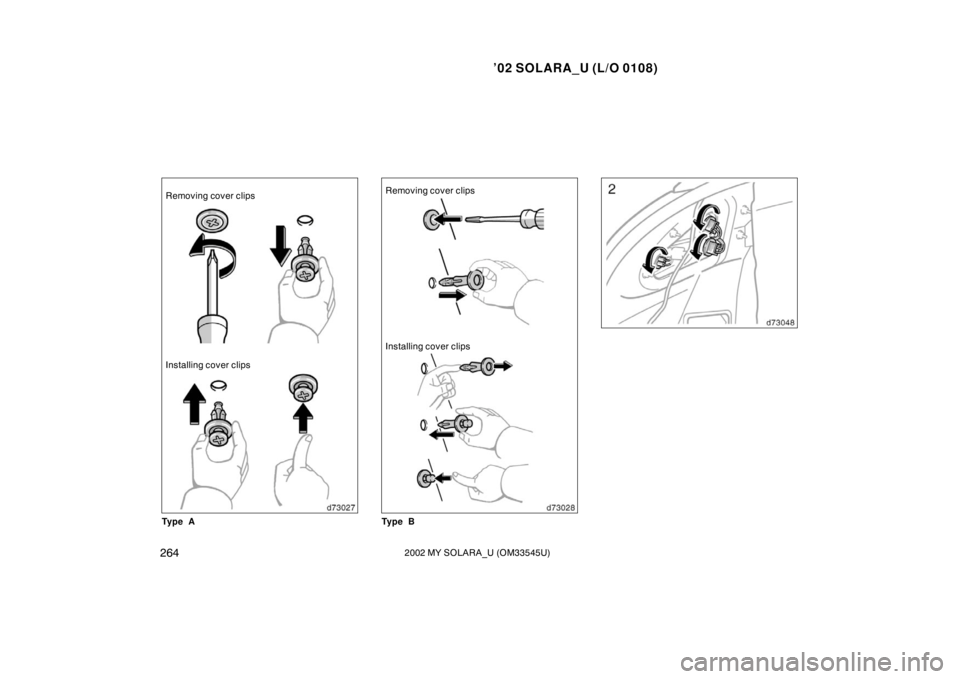

Removing cover clips
Installing cover clips
Ty p e ARemoving cover clips
Installing cover clips
Ty p e B

’02 SOLARA_U (L/O 0108)
2652002 MY SOLARA_U (OM33545U)
a: Rear turn signal light
b: Stop/tail light
c: Backup light

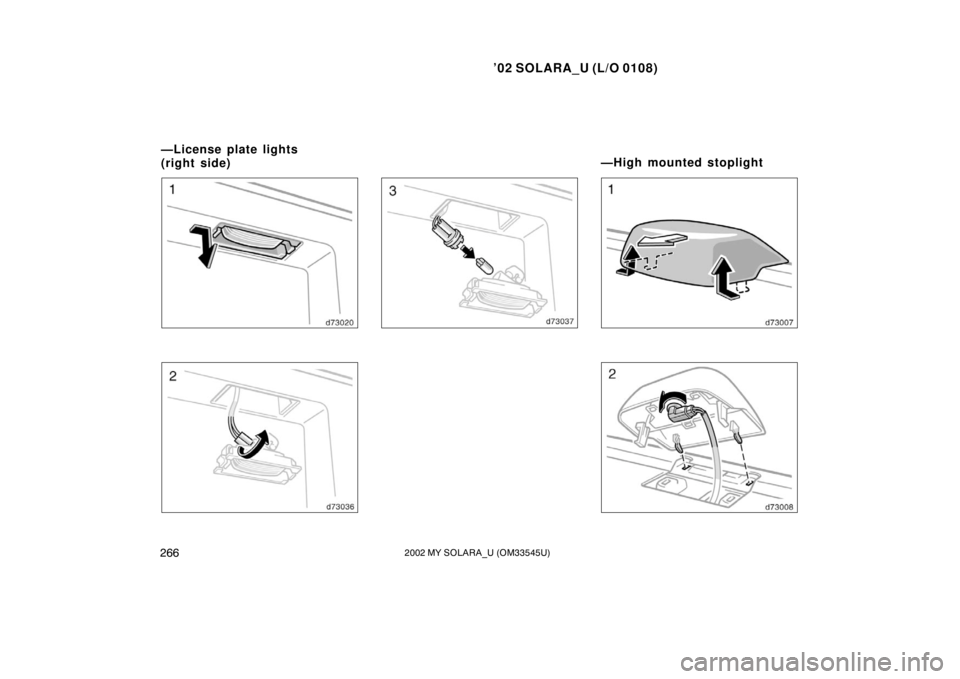

—License plate lights
( lef t sid e)

’02 SOLARA_U (L/O 0108)
2662002 MY SOLARA_U (OM33545U)
—License plate lights
(right side) —High mounted stoplight

’02 SOLARA_U (L/O 0108)
2672002 MY SOLARA_U (OM33545U)
