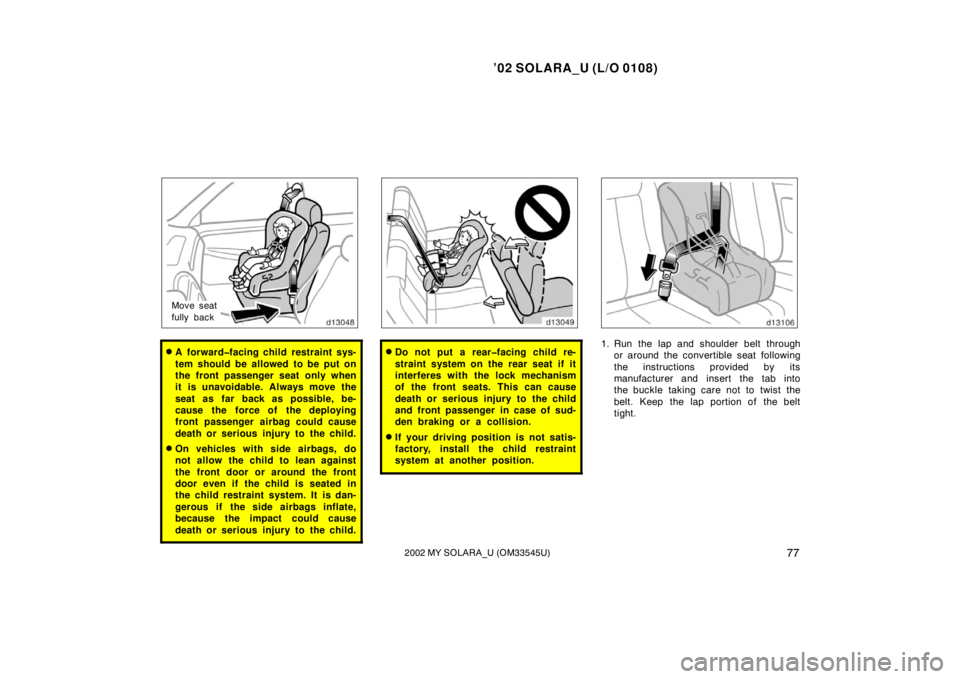

Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
Do not put a rearfacing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
death or serious injury to the child
and front passenger in case of sud-
den braking or a collision.
If your driving position is not satis-
factory, install the child restraint
system at another position.
1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

’02 SOLARA_U (L/O 0108)
782002 MY SOLARA_U (OM33545U)

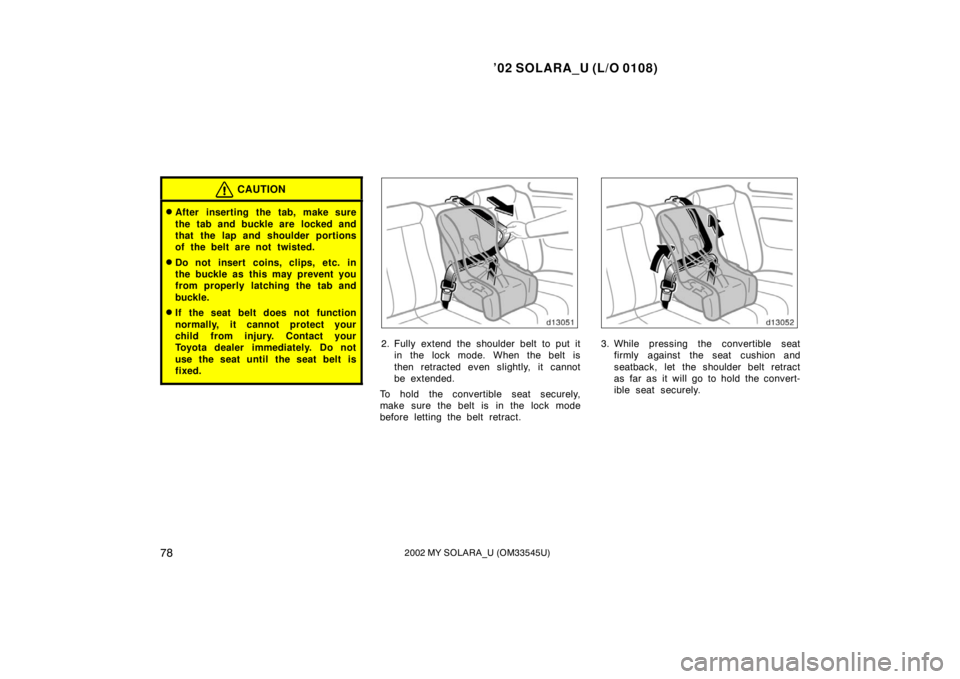

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

’02 SOLARA_U (L/O 0108)
792002 MY SOLARA_U (OM33545U)

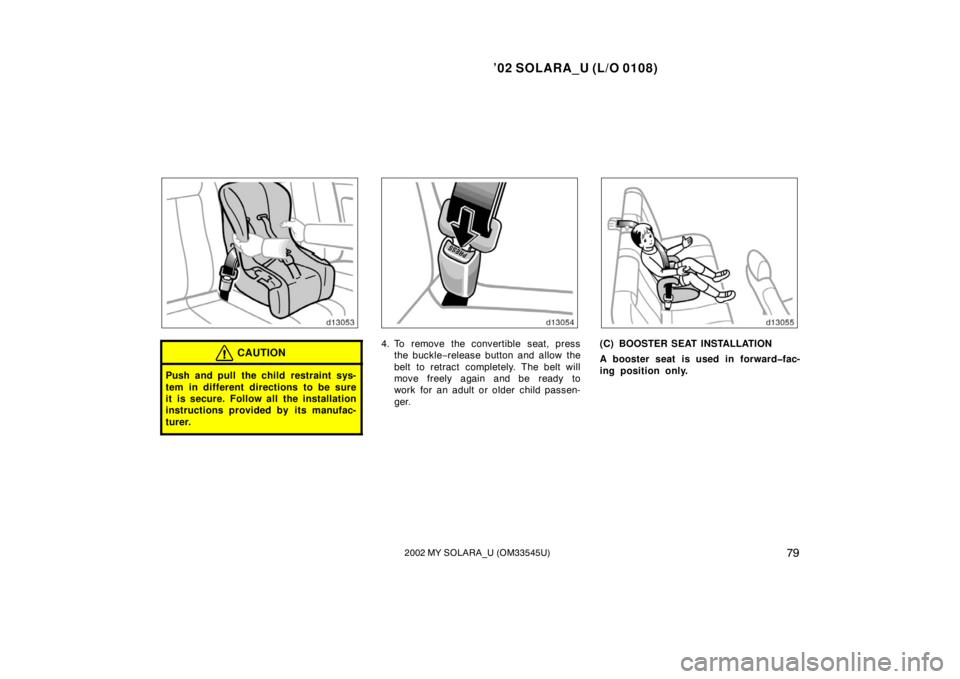

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle −release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.

’02 SOLARA_U (L/O 0108)
802002 MY SOLARA_U (OM33545U)

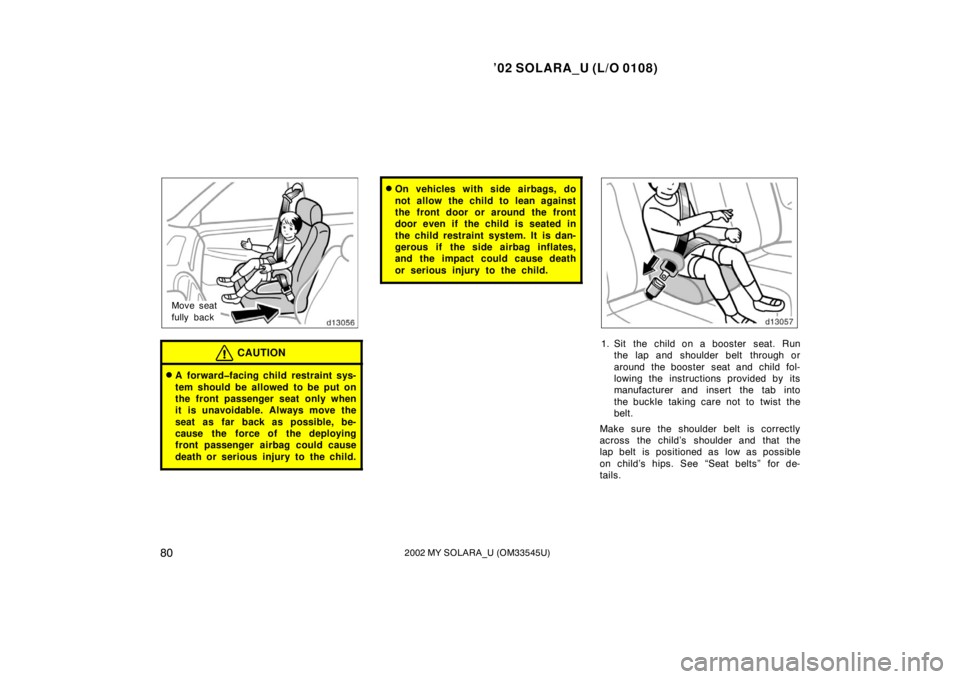

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.

’02 SOLARA_U (L/O 0108)
812002 MY SOLARA_U (OM33545U)

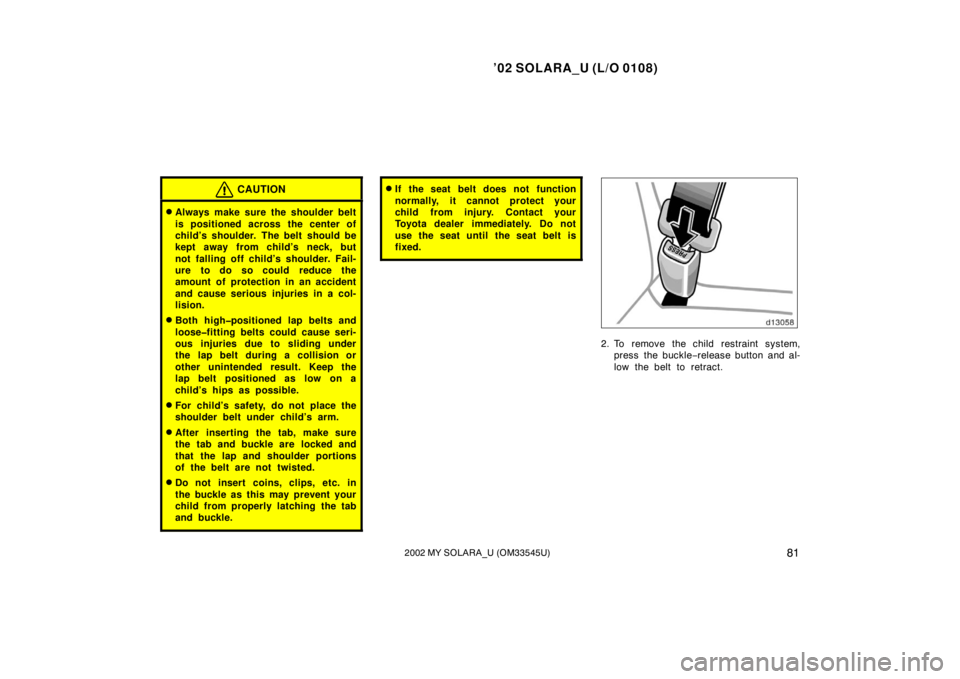

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system, press the buckle −release button and al-
low the belt to retract.

’02 SOLARA_U (L/O 0108)
822002 MY SOLARA_U (OM33545U)

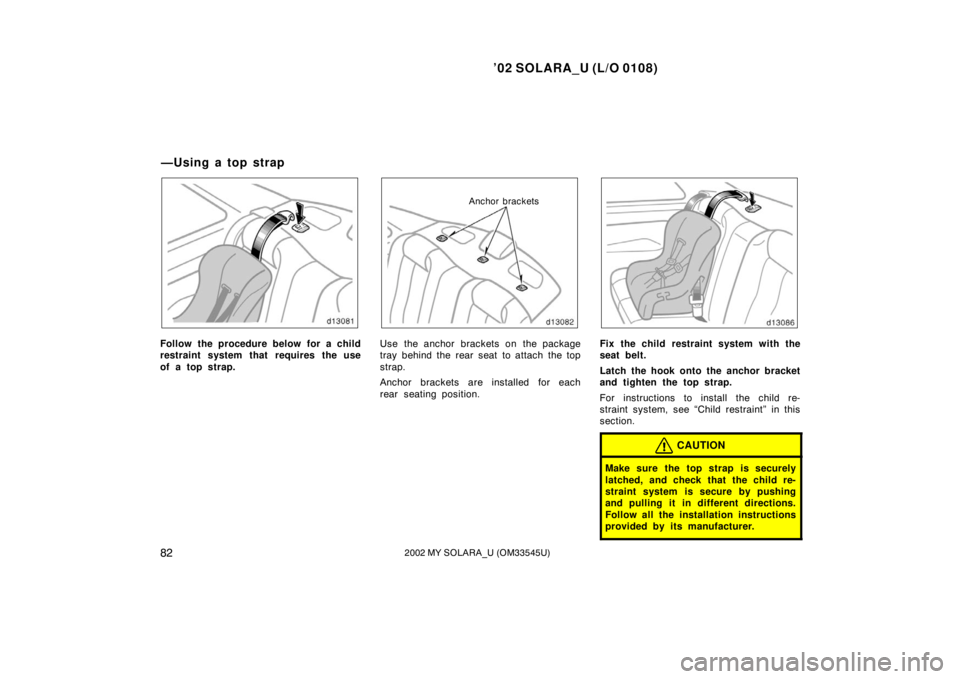

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Use the anchor brackets on the package
tray behind the rear seat to attach the top
strap.
Anchor brackets are installed for each
rear seating position.Fix the child restraint system with the
seat belt.
Latch the hook onto the anchor bracket
and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
— U sin g a to p st rap

’02 SOLARA_U (L/O 0108)
832002 MY SOLARA_U (OM33545U)
To change the steering wheel angle,
hold the steering wheel, pull up the
lock release lever, tilt the steering
wheel to the desired angle and release
the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface. (See “Rear
window and outside rear view mirror de-
foggers” in Section 1−4.)
Tilt steering wheel Outside rear view mirrors—

’02 SOLARA_U (L/O 0108)
842002 MY SOLARA_U (OM33545U)

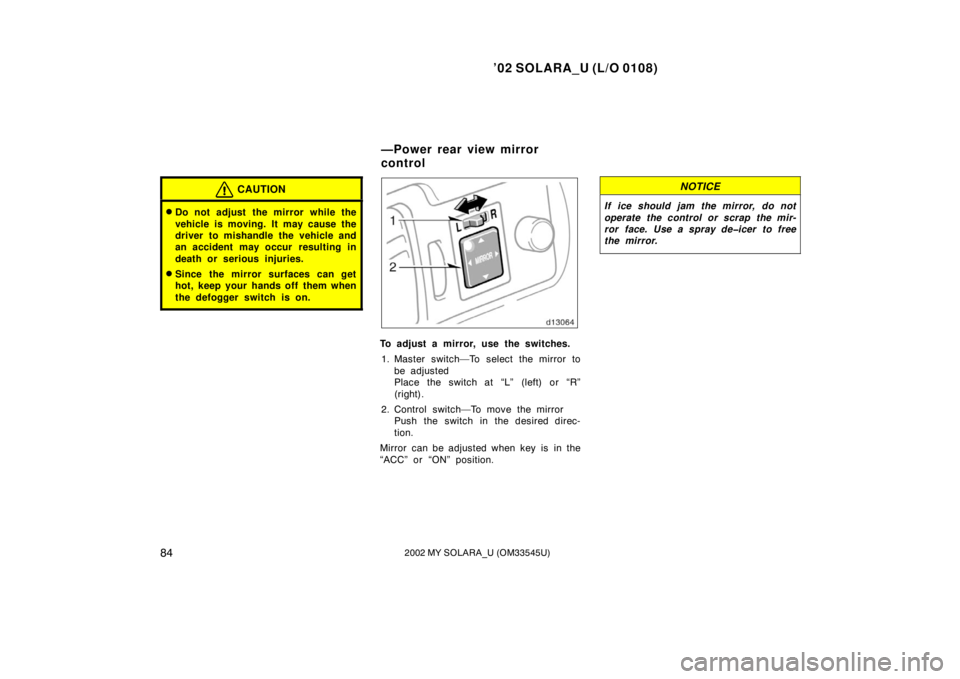

CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
Since the mirror surfaces can get
hot, keep your hands off them when
the defogger switch is on.
To adjust a mirror, use the switches.
1. Master switch—To select the mirror to be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrap the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control
