2002 TOYOTA SOLARA Owners Manual (in English)

’02 SOLARA_U (L/O 0108)
2132002 MY SOLARA_U (OM33545U)
Ty p e A
Ty p e B
Ty p e C
10. Reinstall the wheel ornament.
1. Put the wheel ornament into position.
Type A only—Align the cutout of the
wheel ornament with the valve stem as
shown. 2. Then tap it firmly with the side or heel of your hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
11. Check the air pressure of the re- placed tire.
Adjust the air pressure to the specification
designed in Section 8. If the pressure is
lower, drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
12. Restow all the tools, jack and flat tire securely.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified in Section 8 with a torque
wrench. Have a technician repair the flat
tire.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
—Reinstalling wheel ornament —After changing wheels

’02 SOLARA_U (L/O 0108)
2142002 MY SOLARA_U (OM33545U)
(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truckIf towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” in this section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly. (a) Towing with wheel lift type truck
From front—
Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the ignition
key in the “ACC” position and put the
transmission in neutral.
NOTICE
Do not tow with the key removed or
in the “LOCK” position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
If your vehicle needs to be
towed—

’02 SOLARA_U (L/O 0108)
2152002 MY SOLARA_U (OM33545U)
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck
(c) Towing with sling
type truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
Front
Rear (on some models)
—Emergency towing

’02 SOLARA_U (L/O 0108)
2162002 MY SOLARA_U (OM33545U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to one of the emergency towing
eyelets under the vehicle. Use extreme
caution when towing vehicles.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelets and towing cable or
chain. The eyelets and towing cable
or chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelets provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

’02 SOLARA_U (L/O 0108)
2172002 MY SOLARA_U (OM33545U)
If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is on.
2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert your finger into the hole topush down the shift lock override
button. You can shift out of “P”
position only while pushing the but-
ton.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.If the convertible top does not raise or
lower when the convertible top control
switch is operated— 1. Check the manual control switch in the trunk is not on the “MANUAL” side.
2. If the manual control switch is not on the “MANUAL” side, have your vehicle
checked at your Toyota dealer.
NOTICE
Do not lower the convertible top
manually. It may cause damage to the
system.
If you cannot shift automatic
transmission selector lever If the convertible top does not
raise or lower

’02 SOLARA_U (L/O 0108)
2182002 MY SOLARA_U (OM33545U)
If you have to raise it unavoidable, see
“RAISING THE CONVERTIBLE TOP
MANUALLY”. Then you should have it
checked as soon as possible at your
Toyota dealer.
RAISING THE CONVERTIBLE TOP
MANUALLY
1. Open the trunk and push the manual control switch on the “MANUAL”
side.
2. Lower the side windows, quarter windows and sun visors.
If the battery is discharged and the win-
dows cannot be lowered, open both doors.3. From the rear seat, place one hand on top of the rear seatback. With the
other hand, grasp the convertible top
edge at the center and slowly raise
the top half way.

’02 SOLARA_U (L/O 0108)
2192002 MY SOLARA_U (OM33545U)

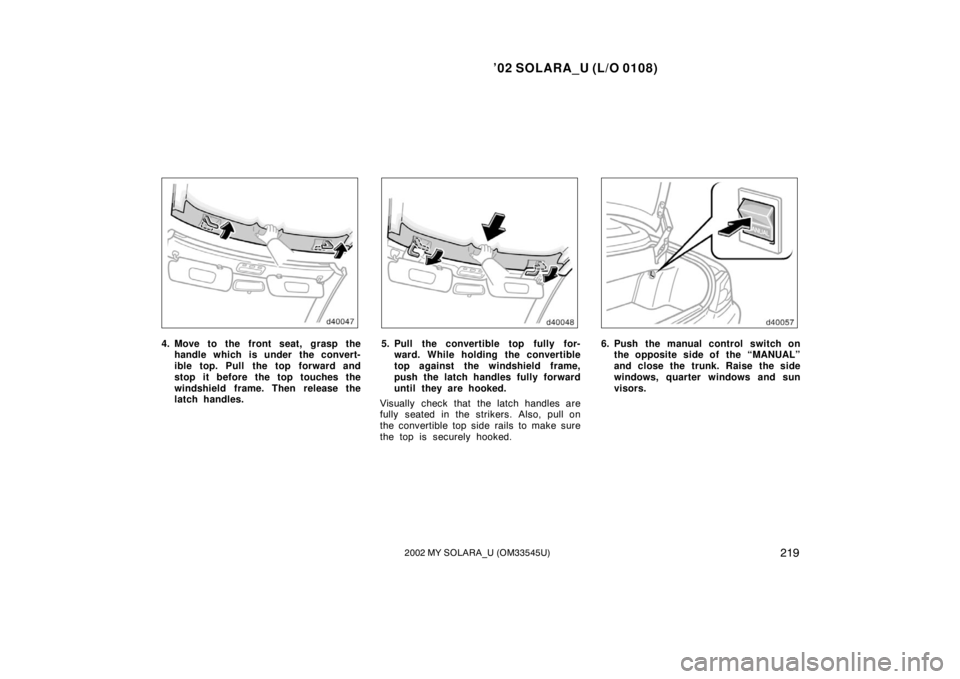

4. Move to the front seat, grasp the
handle which is under the convert-
ible top. Pull the top forward and
stop it before the top touches the
windshield frame. Then release the
latch handles.5. Pull the convertible top fully for-ward. While holding the convertible
top against the windshield frame,
push the latch handles fully forward
until they are hooked.
Visually check that the latch handles are
fully seated in the strikers. Also, pull on
the convertible top side rails to make sure
the top is securely hooked.6. Push the manual control switch on the opposite side of the “MANUAL”
and close the trunk. Raise the side
windows, quarter windows and sun
visors.

’02 SOLARA_U (L/O 0108)
2202002 MY SOLARA_U (OM33545U)
Please contact your nearest Toyota
dealer and ask for duplicating key. You
must inform of the key number and, in
case of making the immob iliser key,
one of the master keys must be pre-
sented.
Vehicles with engine immobiliser system—
Even if you lose only one key, contact
your Toyota dealer to make a new key.
However, if you loose all your master
keys, the dealer cannot duplicate key but
only replace the whole engine immobiliser
system.
See the suggestion given in “Keys” in
Section 1 −2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass. You can purchase a new wireless re-
mote control transmitter at your Toyota
dealer.
Have the registered identification numbers
of your transmitters deleted from your ve-
hicle by your Toyota dealer as soon as
possible to avoid the possibility of theft or
an accident. Then, have the identification
number of your new transmitter registered.
At the same time, you must bring all of
the remaining transmitters to have them
registered again as well.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your keys
If you lose your wireless
remote control transmitter
