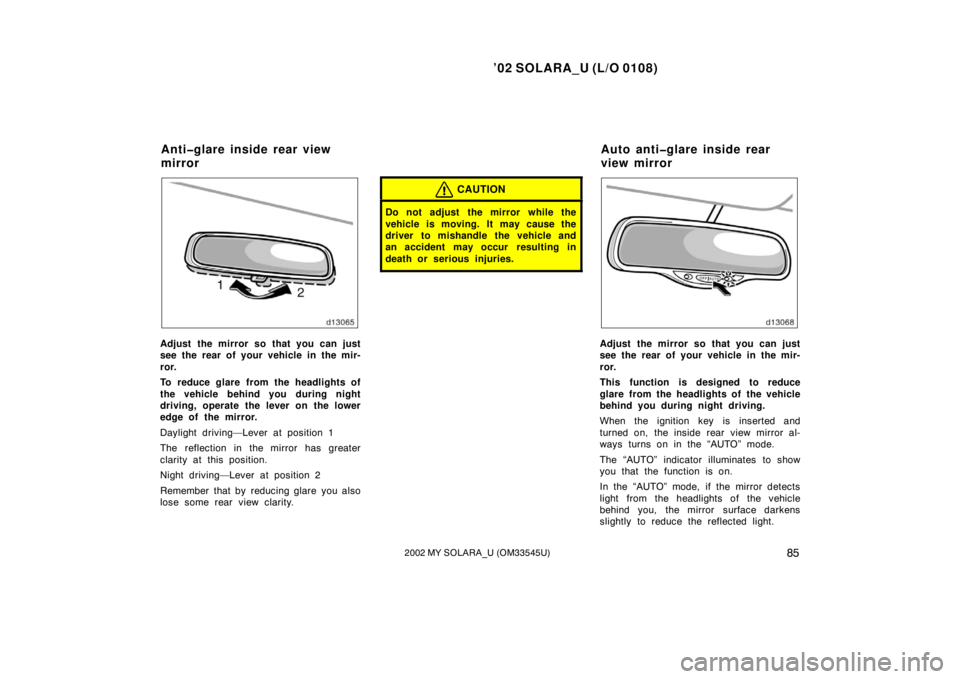

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This function is designed to reduce
glare from the headlights of the vehicle
behind you during night driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the “AUTO” mode.
The “AUTO” indicator illuminates to show
you that the function is on.
In the “AUTO” mode, if the mirror detects
light from the headlights of the vehicle
behind you, the mirror surface darkens
slightly to reduce the reflected light.
Antiglare inside rear view
mirror Auto antiglare inside rear
view mirror

’02 SOLARA_U (L/O 0108)
862002 MY SOLARA_U (OM33545U)
To turn off the automatic function, press
the switch on the “OFF” side.
To turn on the automatic function again,
press the switch on the “AUTO” side.
Adjust it before driving so that the rear
view is in the best condition.
When the outside air temperature is low,
it may take little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious personal injuries.Convertible without garage door opener
and coupe
Convertible with garage door opener

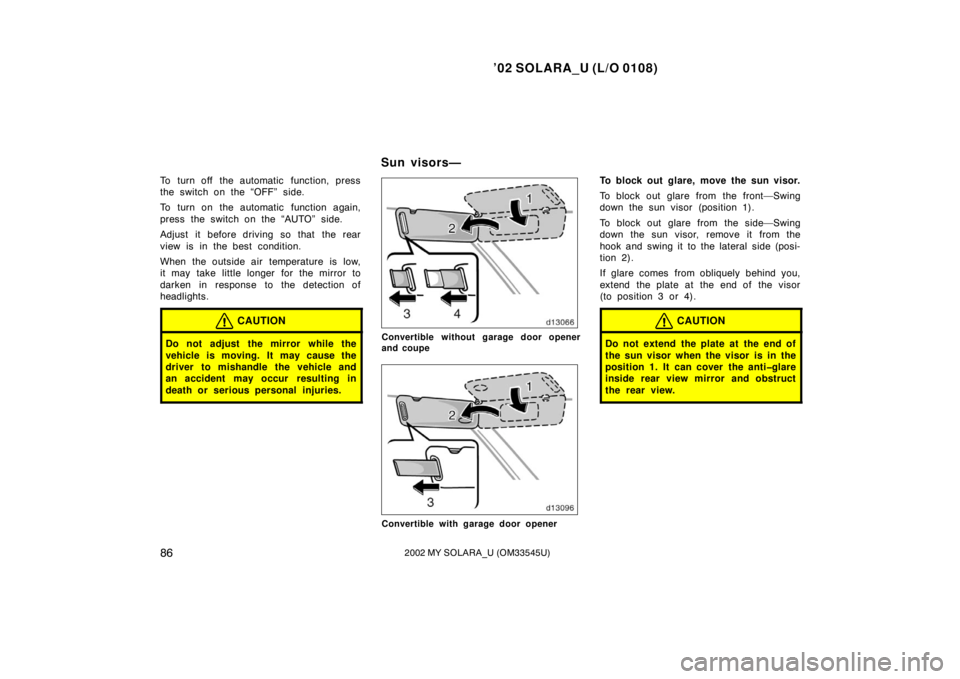

To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3 or 4).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the antiglare
inside rear view mirror and obstruct
the rear view.
Sun visors—

’02 SOLARA_U (L/O 0108)
872002 MY SOLARA_U (OM33545U)
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
—Vanity mirrors

’02 SOLARA_U (L/O 0108)
882002 MY SOLARA_U (OM33545U)

’02 SOLARA_U (L/O 0108)
892002 MY SOLARA_U (OM33545U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Ignition switch light 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Personal lights 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 97
. . . . . . . . . . . .
SECTION 1 4

’02 SOLARA_U (L/O 0108)
902002 MY SOLARA_U (OM33545U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Automatic light cut off system
The lights automatically turn off when the
driver ’s door is opened with the ignition
turned off.
To turn the lights on again, turn the key
to the “ON” position or actuate the head-
light switch. If you are going to park for
over one week, make sure the headlight
switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system
Daytime Running Light System (DRL) can
make it easier for others to see the front
of your vehicle during the day. The DRL
system can be helpful in many different
driving conditions, but they can be espe-
cially helpful in the short periods after
dawn and before sunset.
The DRL system will make your headlights
come on at a reduced brightness when:
The light switch is in “DRL” position.
The ignition is on with the engine run-
ning.
The headlight switch is off.
The parking brake is released.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving. To turn off the DRL system, twist the knob
to the position 3 (“DRL OFF”) or turn the
switch off.
Headlights and turn signals
( f o r th e U.S.A .)

’02 SOLARA_U (L/O 0108)
912002 MY SOLARA_U (OM33545U)

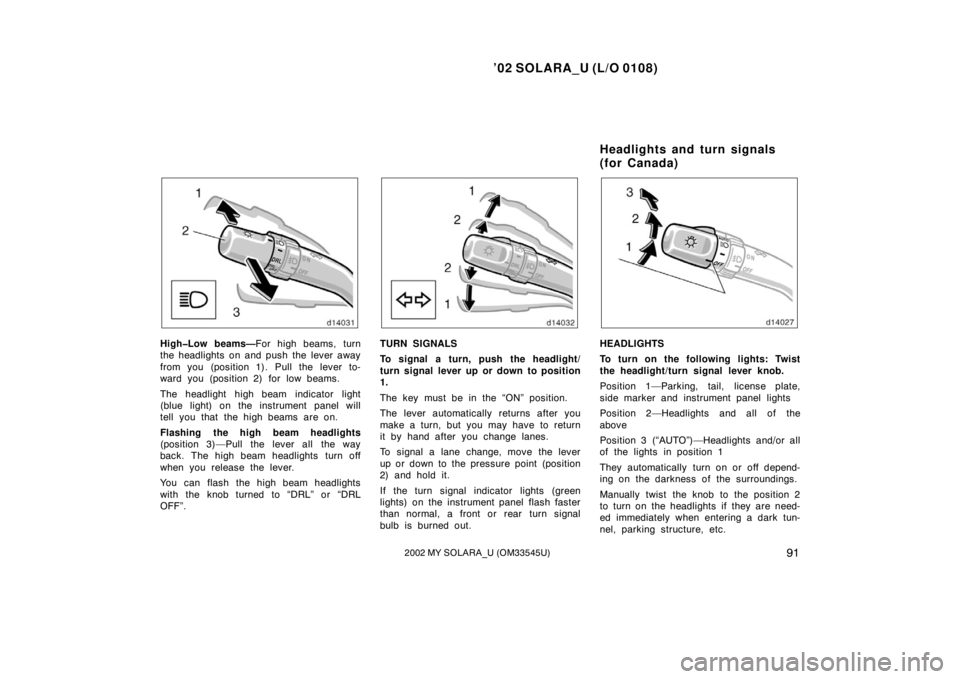

HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “DRL” or “DRL
OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
Headlights and turn signals
(for Canada)

’02 SOLARA_U (L/O 0108)
922002 MY SOLARA_U (OM33545U)
The automatic light control sensor is on
the top of the passenger ’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor. Automatic light cut off system
The lights automatically turn off when the
driver ’s door is opened with the ignition
key turned off.
To turn the lights on again, turn the key
to the “ON” position or actuate the head-
light switch. If you are going to park for
over one week, make sure the headlight
switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system
Daytime Running Light System (DRL) can
make it easier for others to see the front
of your vehicle during the day. The DRL
system can be helpful in many different
driving conditions, but they can be espe-
cially helpful in the short periods after
dawn and before sunset.
The DRL system will make your headlights
come on at a reduced brightness when:
The ignition is on with the engine run-
ning.
The headlight switch is off.
The parking brake is released.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
