2002 Oldsmobile Silhouette Owner's Manuals

5-18
Housing Bypass Tube
3. After the engine cools, open the coolant air
bleed valves.
There are two bleed valves. One is located on the
thermostat housing. The other is located on the
thermostat bypass tube.
4. Fill the radiator with the proper DEX-COOL

coolant mixture, up to the base of the filler neck.
See ªEngine Coolantº in the Index for more
information about the proper coolant mixture.
If you see a stream of coolant coming from an air
bleed valve, close the valve. Otherwise, close the
valves after the radiator is filled.
5. Rinse or wipe any spilled coolant from the engine
and the compartment.

5-19
6. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine cooling fans.
7. By this time, the coolant level inside the radiator
filler neck may be lower. If the level is lower, add
more of the proper DEX
-COOL
coolant mixture
through the filler neck until the level reaches the
base of the filler neck.
8. Then replace the pressure cap. At any time during
this procedure if coolant begins to flow out of the
filler neck, reinstall the pressure cap. Be sure the
arrows on the pressure cap line up like this.

5-20
9. Then fill the coolant recovery tank to the FULL
COLD mark.
10. Put the cap back on the coolant recovery tank.
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a
few tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off
the accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake
to a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you'd use in
a skid. In any rear blowout, remove your foot from
the accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.

5-21

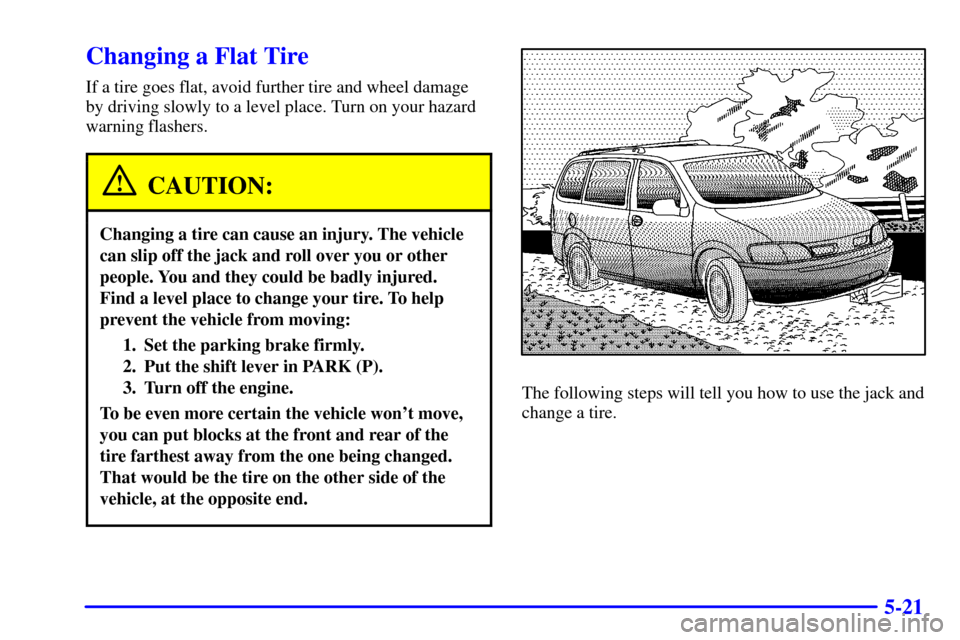

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.
The following steps will tell you how to use the jack and
change a tire.

5-22 Removing the Spare Tire and Tools
The equipment you'll need
is located in the storage
compartment at the rear of
the vehicle, on the
passenger's side.
To remove the tools, do the following:
1. Remove the side convenience net.
2. Open the jack storage compartment by lifting up the
tab and pulling the cover off.
A. Jack
B. Strap
C. Bracket
D. Wing NutE. Jacking Instructions
F. Bag and Tools
G. Tire Bag and Cable
(AWD only)
3. Remove the jack and jacking tools by loosening the
wing nut and bracket.
4. Separate the plastic pouch from the jack and remove
the jacking tools (folding wrench and extension)
from the pouch.

5-23
The tools you'll be using include the jack (A),
extension (B) and folding wrench (C).
The compact spare tire is located under the vehicle,
ahead of the rear bumper. See ªCompact Spare Tireº
later in this section for more information about the
compact spare. To remove the compact spare tire,
do the following:A. Hoist Shaft
B. Hoist Assembly
C. Retainer
D. Compact Spare TireE. Extension
(Chisel End)
F. Folding Wrench
1. Attach the folding wrench to the extension and insert
the chisel end on an angle through the hole in the
rear bumper and into the hoist shaft.
2. Turn the folding wrench counterclockwise to lower
the compact spare tire to the ground. Continue to
turn the wrench so the compact spare tire can be
pulled out from under the vehicle.

5-24
3. To remove the compact spare tire from the cable, tilt
the retainer at the end of the cable so it can be pulled
up through the wheel opening.4. If your vehicle is an all
-wheel-drive vehicle, after
removing the compact spare tire, turn the wrench
clockwise to raise the cable back up.
On an AWD vehicle, you can not store a full
-size
tire under the vehicle. It should be stowed inside
the vehicle by the cable provided. See ªStoring the
Flat Tire on an All
-Wheel-Drive Vehicleº later in
this section.
If you have a front
-wheel-drive vehicle, the hoist
is used to store a full
-size or a flat road tire under the
vehicle. See ªStoring the Spare Tire and Toolsº and
ªStoring the Flat Tire on a Front
-Wheel-Drive
Vehicleº later in this section.
If the compact spare tire will not lower, check under the
vehicle to see if the tire is hanging loose and the cable
end and spring under the wheel plate are missing. If so,
the secondary latch system is engaged. See ªSecondary
Latch Systemº later in this section.
To continue changing the flat tire see ªRemoving
the Flat Tire and Installing the Spare Tireº later in
this section.

5-25 Removing the Wheel Covers
If your vehicle has
aluminum wheels,
use the handle of
the folding wrench
to pry the large
center cap off.
Then, with the other end of the folding wrench, loosen
the nuts.
If your vehicle has the plastic ªbolt-onº wheel covers,
loosen them completely using the folding wrench, and
remove the wheel cover.
