2002 Oldsmobile Silhouette Owner's Manuals

1-11
3. To unlatch the front latches, squeeze the angled bar
toward the straight crossbar.
4. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.Replacing the Split Bench Sections
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.

1-12
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Make sure the seatback is in the upright position and the
safety belts are on the correct section of the seat.
Don't put the sections of the bench seat in so they face
rearward because they won't latch that way.
The split bench seats have seat position labels, located
on the back of each seat, showing where the seat must
go. Follow that diagram.
The seat must be placed in the proper location for the
legs to attach correctly.
1. Squeeze the angled bar toward the solid crossbar
while placing the front hooks of the bench seat onto
the front two floor pins.

1-13
2. Make sure the
bench seat is
angled so that the
front hooks clear
the floor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of floor pins.
If the front latches are not attaching correctly, check
that the seat is in the full rear position.
3. Firmly push the rear hooks onto the rear floor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat and raise the seatback until it
locks upright.
6. Push and pull on the seatback to check that it is locked.
Repeat these steps for the other section of the split
bench seat.

1-14 Captain's Chairs
The seatbacks on the captain's chairs can be folded
forward or reclined and the seats can be removed.
Folding or Reclining the Seatbacks
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
To recline the seatback, lift up on the recliner lever,
located on the outboard side of the seat. Use the recliner
lever to move the seatback to the desired position.
It is easier to raise or lower the seatback if you lean
forward, taking the weight off the seatback.
The seatbacks on the second row captain's chairs also
fold forward to put items behind the left and right seats.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
The armrests can be lowered or raised for entering or
exiting the vehicle.

1-15
Adjusting the Captain's Chairs (Second Row)
The second row captain's chairs can be adjusted forward
or rearward.
There are two adjustment levers on each seat. One is
located below the center, in front of the seat. The other
is located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make sure
it is locked into place.Removing the Captain's Chairs
1. Pull the nylon strap behind the chair to release the
rear hooks from the floor pins.

1-16
2. The seat can then be lifted off the front floor pins

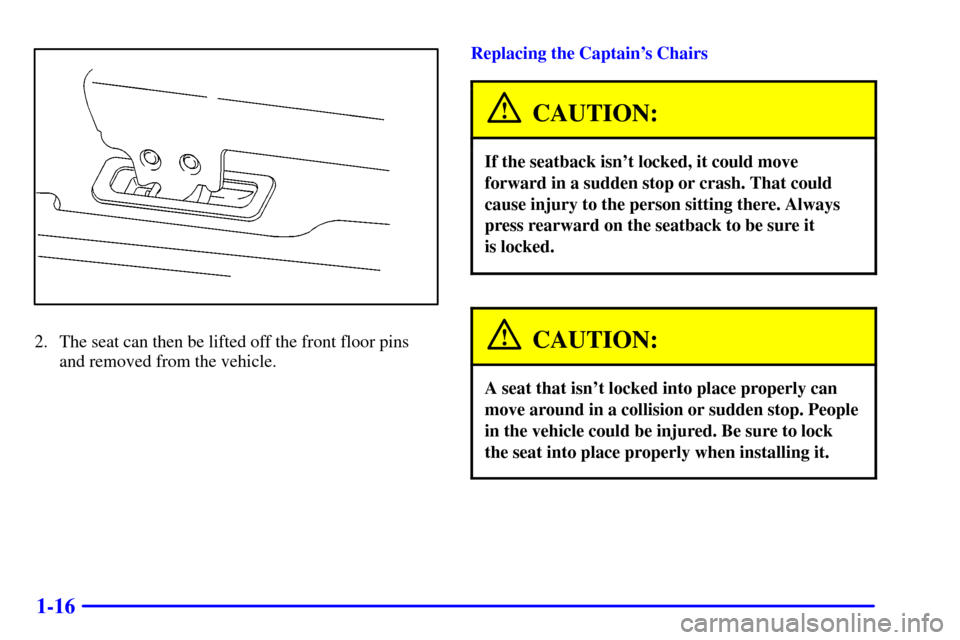

and removed from the vehicle.Replacing the Captain's Chairs
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.

1-17
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
Don't put the seats in so they face rearward because they
won't latch that way. For the second row, if you want
more storage room behind the seat, adjust the seat by
sliding it forward.
The captain's chairs have seat position labels, located on
the back of the seat, showing where the seat must go.
Follow that diagram. The seat must be placed in the
proper location for the legs to attach correctly.
Make sure the seatbacks are in the upright position, the
seat belts are on the correct side of the chairs and the
second row captain's chairs are in the full rear position
before beginning this procedure.
1. Hook the front latches over the front floor pins.

1-18
2. Push the rear of the seat down to lock the rear latches
onto the rear set of floor pins.
3. Push and pull on the seat to be sure it is
properly attached.
Stowable Seat (Option)
The optional stowable seat is a full bench seat and
comes with the convenience center. See ªConvenience
Centerº in the Index for more information. The stowable
seat can be removed and replaced, or with the seatback
folded, it can lie flush with the convenience center.Folding the Seatback
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
To fold down the seatback,
pull up on the lever located
on the back of the seat and
push the seatback down
until it is locked into place.
Push and pull on the seatback to make sure that it is
locked into place.
