2002 Oldsmobile Silhouette Owner's Manuals

2-71
Cargo Lamp
The cargo lamp is located in the rear of your vehicle,
above the liftgate opening, and does not have a switch.
The cargo lamp will come on each time you open a
door, unless you turn on the interior lamps override.
See ªInterior Lamps Override Switchº in the Index.
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior lamps on. If you leave any interior lamps on
while the ignition is in LOCK or OFF, they will
automatically turn off after 10 minutes. The lamps
won't come back on again until you:

Turn the ignition to RUN or ACCESSORY,

turn the interior lamps thumbwheel all the way to the
right, then slightly back to the left, or

open (or close and reopen) a door that is closed.
If your vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
Mirrors
Inside Day/Night Rearview Mirror
To reduce glare from lights behind you, pull the lever
toward you (to the night position). To return the mirror
to the day position, push the lever away from you.
Power Remote Control Rearview Mirrors
The control on the driver's
door operates both outside
rearview mirrors.

2-72
Turn the control counterclockwise to select the driver's
side rearview mirror, or clockwise to select the
passenger's side rearview mirror. Then use the control to
adjust each mirror so that you can see a little of the side
of your vehicle and the area beside and behind your
vehicle when you are sitting in a comfortable driving
position.
If you are not adjusting either mirror, leave the control
in the center off position. This prevents moving the
mirrors accidentally once you have them adjusted.
Both outside mirrors can be folded forward or rearward.
In the rearward position, they will fold almost flush with
the vehicle. This feature is particularly useful in
automatic car washes.
Your mirrors have a blue tint to reduce glare while
driving at night.Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
Heated Outside Mirrors
The left and right outside mirrors are heated when you
activate the rear window defogger. See ªRear Window
Defoggerº in the Index.

2-73
Storage Compartments
Your vehicle's large carrying capacity can store many
items. You can carry things as large as a 4
x 8
piece of
plywood. You can also use the floor pins that are used to
attach the seats, to secure larger loads.
Glove Box
Your vehicle has a glove box below the instrument
panel. To open the glove box, lift the latch release.
Use the key to lock or unlock the glove box.
The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need it
fully open. To close the glove box, the door must be
pushed up past the detent.
In the door of the glove box, you will find a tissue pack
holder and clip for a pen or pencil.
Compact Overhead Console (Canada Only)
The front overhead console includes two reading lamps,
a storage compartment and a switchbank.

2-74 Overhead Console (Option)
The optional front overhead console has reading lamps,
a switchbank, storage compartments, OnStar
System
buttons, an optional Driver Information Center (DIC)
and optional HomeLink

Transmitter buttons. For
information on the features listed see each of them in
the Index.
Storage Bin
At the base of the center instrument panel console, there
is a storage bin. To open the bin, lift the latch release
and the door will fold down.
Inside the bin, you will find a tray that slides out. Slide
the tray all the way toward the rear of the vehicle until
the tray locks onto the plastic tabs at the end of the
guide rails. The tray can hold CDs or cassettes in the
center area. You can also store cassettes in the left and
right side area. The tray can be removed for cleaning
or when you want to replace the selection of CDs or
cassettes. Slide the tray back into the storage bin before
closing the bin door. The tray can also be placed in the
glove box for locked storage if desired.

2-75
Removing and Replacing the Tray
To remove the tray, slide it almost all the way out. Don't
let the tray lock over the plastic tabs at the end of the
guide rails (A). Lift the tray out of the guide rails. The
rubber mat under the tray also lifts out for cleaning.
When the rubber mat is put back in, be sure the tabs at
the back of the mat are seated in the slots at the back of
the storage bin.The dividers in the tray can be removed by squeezing
the plastic tabs on the bottom of the dividers, while
pulling up. Put the dividers back in by sliding them
down until the tabs click into place.
To reinstall the tray, line up the guides on the bottom
of the tray with the guide rails in the storage bin door.
Slide the tray back in.
Front Seat Storage Bin
The storage bin is located under the manual front
passenger's seat. To open the bin, lift the handle and
slide the drawer out.
Cupholders
There are cupholders located below the instrument panel
switchbank. The cupholders have removeable liners for
larger size cups and for cleaning the cupholders.
To use the cupholders, simply pull down the tray. Keep
the tray up when not in use.

2-76 Rear Storage Compartments
and Cupholders
Your vehicle has a storage compartment and may have a
cupholder on the driver's side of the vehicle, next to the
third row seat(s).
Your vehicle also has cupholders on the bottom inboard
side of the second row driver's side captain's chairs. The
seatbacks have cupholders that can be used when the
seatbacks are folded down.
Convenience Net (Option)
The optional convenience net is designed to help
keep small loads, like grocery bags, from falling over
during sharp turns or quick stops and starts. Install the
convenience net at the rear of your vehicle, just inside
the liftgate.To use the convenience net, do the following:
1. Attach the upper loops to the posts on either side of
the liftgate opening (the label on the net should be in
the upper left corner).

2-77

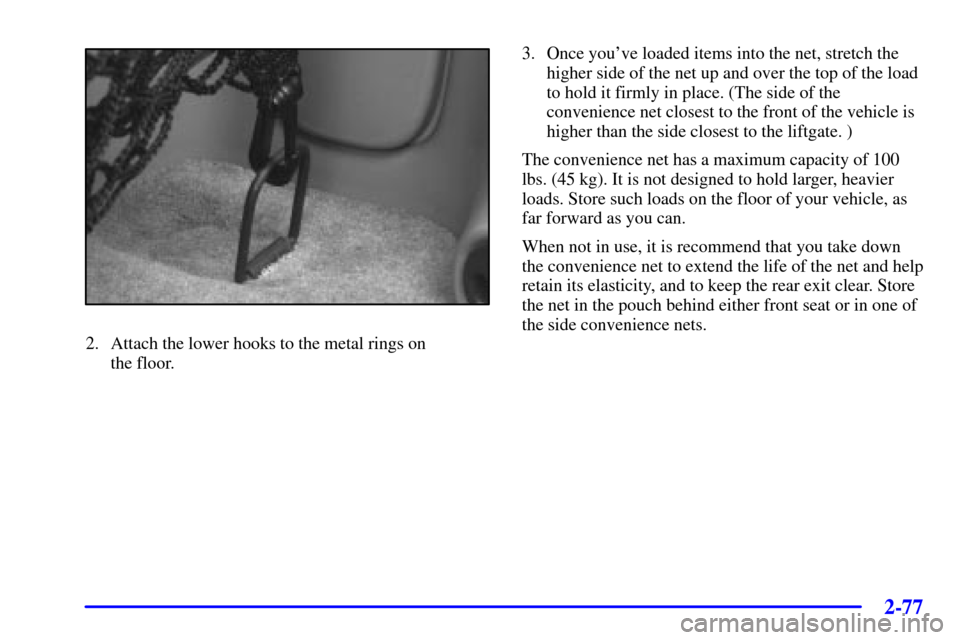

2. Attach the lower hooks to the metal rings on
the floor.3. Once you've loaded items into the net, stretch the
higher side of the net up and over the top of the load
to hold it firmly in place. (The side of the
convenience net closest to the front of the vehicle is
higher than the side closest to the liftgate. )
The convenience net has a maximum capacity of 100
lbs. (45 kg). It is not designed to hold larger, heavier
loads. Store such loads on the floor of your vehicle, as
far forward as you can.
When not in use, it is recommend that you take down
the convenience net to extend the life of the net and help
retain its elasticity, and to keep the rear exit clear. Store
the net in the pouch behind either front seat or in one of
the side convenience nets.

2-78 Side Convenience Nets
The side convenience nets are designed to hold
smaller items (about 8 lbs. (4 kg)) than the large
convenience net.
Attach the loops to the posts on the rear side panels, near
the jack storage area.
When not in use, it is recommend that you take down
the convenience nets to extend the life of the nets and to
help retain their elasticity.
Front Seat Storage Net
There is a storage net that stretches between the front
seats. Pull the hooks toward the passenger's seat and
insert them into the holes.
To store the net, lift the hooks up and out of the holes.
The net does not detach from the driver's seat.
When not in use, it is recommend that you unhook the
net to extend its life and retain its elasticity.
