6E±581
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Vehicle speed (vehicle speed sensor).

PCM and ignition system supply voltage.

The crankshaft position (CKP) sensor sends the PCM
a 58X signal related to the exact position of the
crankshaft.
TS22909Based on these sensor signals and engine load
information, the PCM sends 5V to each ignition coil.
060RY00116This module has the function to energize and de-energize
the primary ignition coil in response to signals from the
PCM. The Throttle PCM controls ignition timing and dwell
time.
Continuity and out-or-range value check:
This diagnosis detects open circuit or short-circuiting in
the Electronic Spark Timing (EST) line by monitoring EST
signals. A failure determination is made when the signal
voltage remains higher or lower than the threshold for
corresponding fault code beyond a predetermined time
period.
Diagnosis enabling conditions are as follows:

RPM is higher than the specified threshold.
EST line is enabled.
060RY00029
Ignition Control PCM Output
The PCM provides a zero volt (actually about 100 mV to
200 mV) or a 5-volt output signal to the ignition control (IC)
module. Each spark plug has its own primary and
secondary ignition coil assembly (ºcoil-at-plugº) located
at the spark plug itself. When the ignition coil receives the
5-volt signal from the PCM, it provides a ground path for
the B+ supply to the primary side of the coil-at -plug
module. When the PCM shuts off the 5-volt signal to the
ION sensing module, the ground path for the primary coil
is broken. The magnetic field collapses and induces a
high voltage secondary impulse which fires the spark plug
and ignites the air/fuel mixture.
The circuit between the PCM and the ignition coil is
monitored for open circuits, shorts to voltage, and shorts
to ground. If the PCM detects one of these events, it will
set one of the following DTCs:

P0351: Ignition coil Fault on Cylinder #1

P0352: Ignition coil Fault on Cylinder #2

P0353: Ignition coil Fault on Cylinder #3

P0354: Ignition coil Fault on Cylinder #4

P0355: Ignition coil Fault on Cylinder #5

P0356: Ignition coil Fault on Cylinder #6
Powertrain Control Module (PCM)
The PCM is responsible for maintaining proper spark and
fuel injection timing for all driving conditions. To provide
optimum driveability and emissions, the PCM monitors
the input signals from the following components in order
to calculate spark timing:

Engine coolant temperature (ECT) sensor.

Intake air temperature (IAT) sensor.

Mass air flow (MAF) sensor.

PRNDL input from transmission range switch.

Throttle position (TP) sensor.

Vehicle speed sensor (VSS) .

6E±588
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
The system checks for conditions that cause the EVAP
system to purge continuously by commanding the EVAP
vent solenoid ªONº and the EVAP purge solenoid ªOFFº
(EVAP vent solenoid ªCLOSED,º EVAP purge PWM
ª0%º). If fuel tank vacuum level increases during the test,
a continuous purge flow condition is indicated, which will
set a DTC P1441. This can be cause by the following
conditions:

EVAP purge solenoid leaking

EVAP purge and engine vacuum lines switched at the
EVAP purge solenoid

EVAP purge solenoid driver circuit grounded
Fuel vapor recovery system
060R100095Separator attaches after hose evaporative fuel. It
protects EVAP Canister from liquid fuel. It guarantees
EVAP Canister performance. When vibration bounces
fuel level, liquid fuel will accrete to EVAP Canister. It
separates liquid fuel.
General Description (Exhaust Gas
Recirculation (EGR) System)
EGR Purpose
The exhaust gas recirculation (EGR) system is use to
reduce emission levels of oxides of nitrogen (NOx). NOx
emission levels are caused by a high combustion
temperature. The EGR system lowers the NOx emission
levels by decreasing the combustion temperature.
057RW002
Linear EGR Valve
The main element of the system is the linear EGR valve.
The EGR valve feeds small amounts of exhaust gas back
into the combustion chamber. The fuel/air mixture will be
diluted and combustion temperatures reduced.
Linear EGR Control
The PCM monitors the EGR actual positron and adjusts
the pintle position accordingly. The uses information from
the following sensors to control the pintle position:

Engine coolant temperature (ECT) sensor.

Throttle position (TP) sensor.

Mass air flow (MAF) sensor.
Linear EGR Valve Operation and Results
of Incorrect Operation
The linear EGR valve is designed to accurately supply
EGR to the engine independent of intake manifold
vacuum. The valve controls EGR flow from the exhaust
to the intake manifold through an orifice with a PCM
controlled pintle. During operation, the PCM controls
pintle position by monitoring the pintle position feedback
signal. The feedback signal can be monitored with a Tech
2 as ªActual EGR Pos.º ªActual EGR Pos.º should always
be near the commanded EGR position (ºDesired EGR
Pos.º). If a problem with the EGR system will not allow the
PCM to control the pintle position properly, DTC P1406
will set. The PCM also tests for EGR flow. If incorrect flow
is detected, DTC P0401 will set. If DTCs P0401 and/or
P1406 are set, refer to the DTC charts.
The linear EGR valve is usually activated under the
following conditions:

Warm engine operation.

Above-idle speed.
Too much EGR flow at idle, cruise or cold operation may
cause any of the following conditions to occur:

Engine stalls after a cold start.

Engine stalls at idle after deceleration.

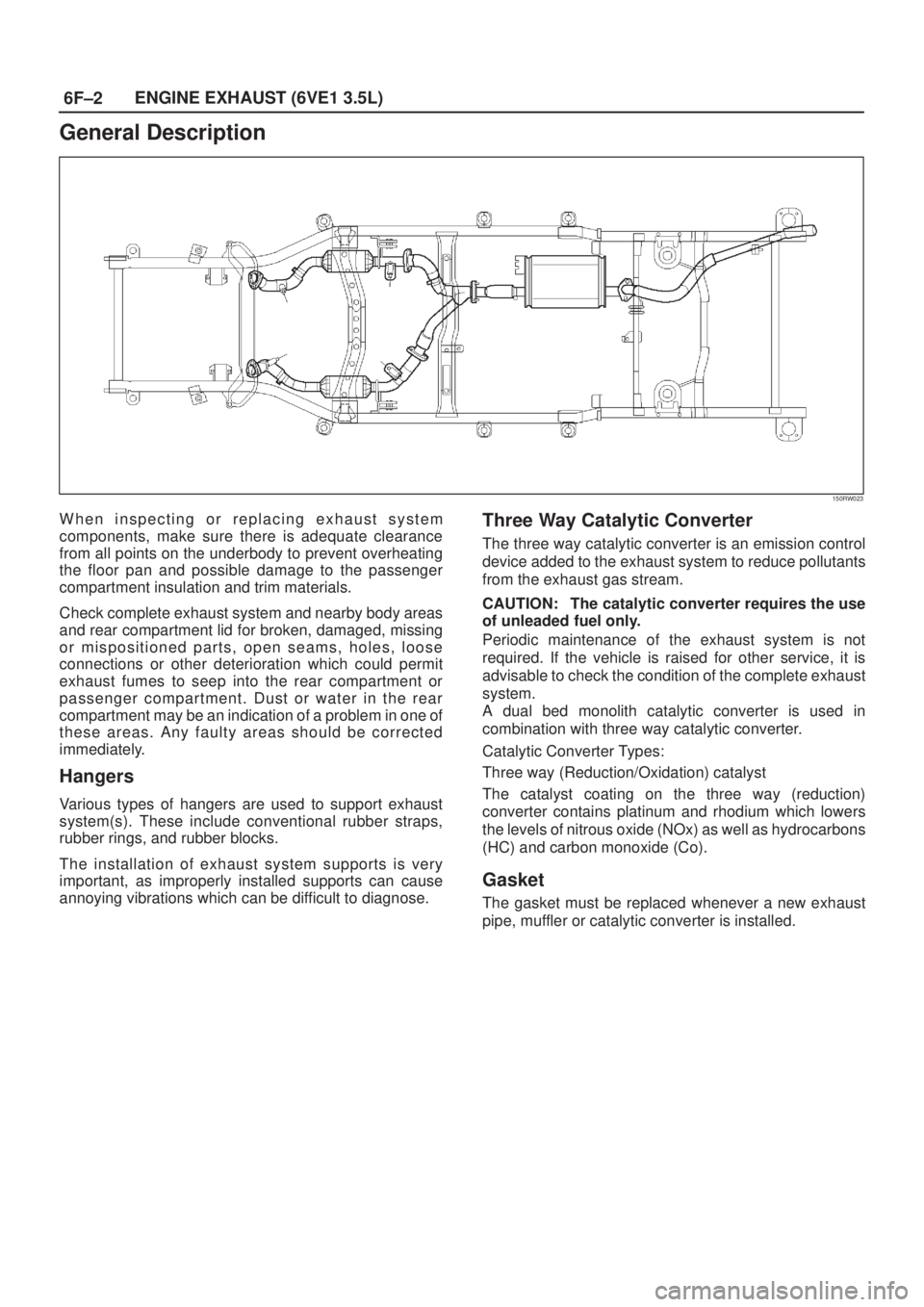

6F±2ENGINE EXHAUST (6VE1 3.5L)
General Description
150RW023
When inspecting or replacing exhaust system
components, make sure there is adequate clearance
from all points on the underbody to prevent overheating
the floor pan and possible damage to the passenger
compartment insulation and trim materials.
Check complete exhaust system and nearby body areas
and rear compartment lid for broken, damaged, missing
or mispositioned parts, open seams, holes, loose
connections or other deterioration which could permit
exhaust fumes to seep into the rear compartment or
passenger compartment. Dust or water in the rear
compartment may be an indication of a problem in one of
these areas. Any faulty areas should be corrected
immediately.
Hangers
Various types of hangers are used to support exhaust
system(s). These include conventional rubber straps,
rubber rings, and rubber blocks.
The installation of exhaust system supports is very
important, as improperly installed supports can cause
annoying vibrations which can be difficult to diagnose.
Three Way Catalytic Converter
The three way catalytic converter is an emission control
device added to the exhaust system to reduce pollutants
from the exhaust gas stream.
CAUTION: The catalytic converter requires the use
of unleaded fuel only.
Periodic maintenance of the exhaust system is not
required. If the vehicle is raised for other service, it is
advisable to check the condition of the complete exhaust
system.
A dual bed monolith catalytic converter is used in
combination with three way catalytic converter.
Catalytic Converter Types:
Three way (Reduction/Oxidation) catalyst
The catalyst coating on the three way (reduction)
converter contains platinum and rhodium which lowers
the levels of nitrous oxide (NOx) as well as hydrocarbons
(HC) and carbon monoxide (Co).
Gasket
The gasket must be replaced whenever a new exhaust
pipe, muffler or catalytic converter is installed.

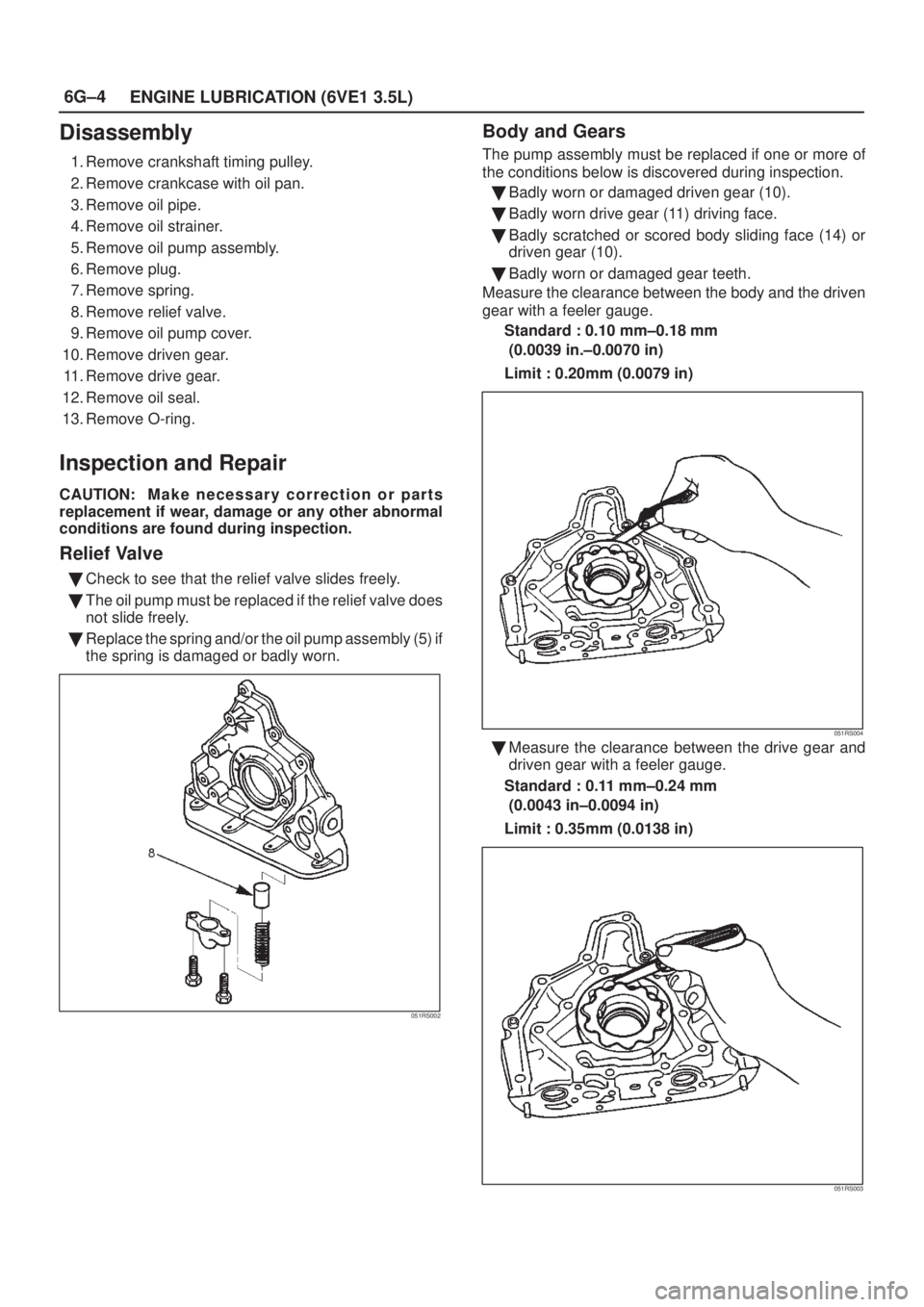

6G±4
ENGINE LUBRICATION (6VE1 3.5L)
Disassembly
1. Remove crankshaft timing pulley.
2. Remove crankcase with oil pan.
3. Remove oil pipe.
4. Remove oil strainer.
5. Remove oil pump assembly.
6. Remove plug.
7. Remove spring.
8. Remove relief valve.
9. Remove oil pump cover.
10. Remove driven gear.
11. Remove drive gear.
12. Remove oil seal.
13. Remove O-ring.
Inspection and Repair
CAUTION: M a k e necessary correction or parts
replacement if wear, damage or any other abnormal
conditions are found during inspection.
Relief Valve

Check to see that the relief valve slides freely.

The oil pump must be replaced if the relief valve does
not slide freely.

Replace the spring and/or the oil pump assembly (5) if
the spring is damaged or badly worn.
051RS002
Body and Gears
The pump assembly must be replaced if one or more of
the conditions below is discovered during inspection.

Badly worn or damaged driven gear (10).

Badly worn drive gear (11) driving face.

Badly scratched or scored body sliding face (14) or
driven gear (10).

Badly worn or damaged gear teeth.
Measure the clearance between the body and the driven
gear with a feeler gauge.
Standard : 0.10 mm±0.18 mm
(0.0039 in.±0.0070 in)
Limit : 0.20mm (0.0079 in)
051RS004

Measure the clearance between the drive gear and
driven gear with a feeler gauge.
Standard : 0.11 mm±0.24 mm
(0.0043 in±0.0094 in)
Limit : 0.35mm (0.0138 in)
051RS003

6G±5
ENGINE LUBRICATION (6VE1 3.5L)

Measure the side clearance with a precision straight
edge and a feeler gauge.
Clearance
Standard : 0.03 mm±0.09 mm
(0.0011 in±0.0035 in)
Limit : 0.15mm (0.0059 in)
051RS005
Oil Strainer
Check the oil strainer for cracking and scoring. If cracking
and scoring are found, the oil strainer must be replaced.
051RS006
Reassembly
1. Install drive gear (11).
2. Install driven gear (10).
3. Install oil pump cover (9) and first, loosely tighten all of
the attaching screws. Next, tighten the attaching
screws to the specified torque.
Torque : 10 N´m (87 lb in)
After installation, check that the gear rotates
smoothly.4. Install relief valve (8) and apply engine oil to the relief
valve and spring (7).
5. Install spring (7).
6. Install the plug (6).
Torque : 8 N´m (69 lb in)
051RS007
7. Install oil pump assembly (5).

Carefully remove any oil from the cylinder body and
the pump. Apply sealant (TB±1207B or equivalent)
to the pump fitting face as shown in illustration. Take
care that sealant is not applied to oil port surfaces.
The oil pump assembly must be installed within 5
minutes after sealant application to prevent
premature hardening of sealant.
CAUTION: Do not apply an excessive amount of
sealant to the contact surface. Applying too much
sealant will overflow the contact surfaces. This
could cause serious damage to the engine.

Attach oil pump assembly to cylinder body.

Tighten the oil pump fixing bolts.
Torque : 25 N´m (18 lb´ft)
051RW002

6G±12
ENGINE LUBRICATION (6VE1 3.5L)
Oil Filter
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove oil filter using J-36390 filter wrench.
Installation
1. Apply a light coat of engine oil to the oil filter gasket.
2. Hand tighten the filter until the gasket contacts the
sealing face.
3. Using J±36390 filter wrench, tighten the filter an
additional 7/8 turn or by torque 22 N´m (16 lb ft).
050RW001
Legend
(1) Oil Pump
(2) Oil Filter
(3) Oil Gallery
(4) From Filter
(5) To Filter
4. Fill the oil to the proper lever by following the oil level
check procedures.
5. Reconnect battery ground cable.
6. Run the engine and inspect for leaks.

7A±5 AUTOMATIC TRANSMISSION (4L30±E)

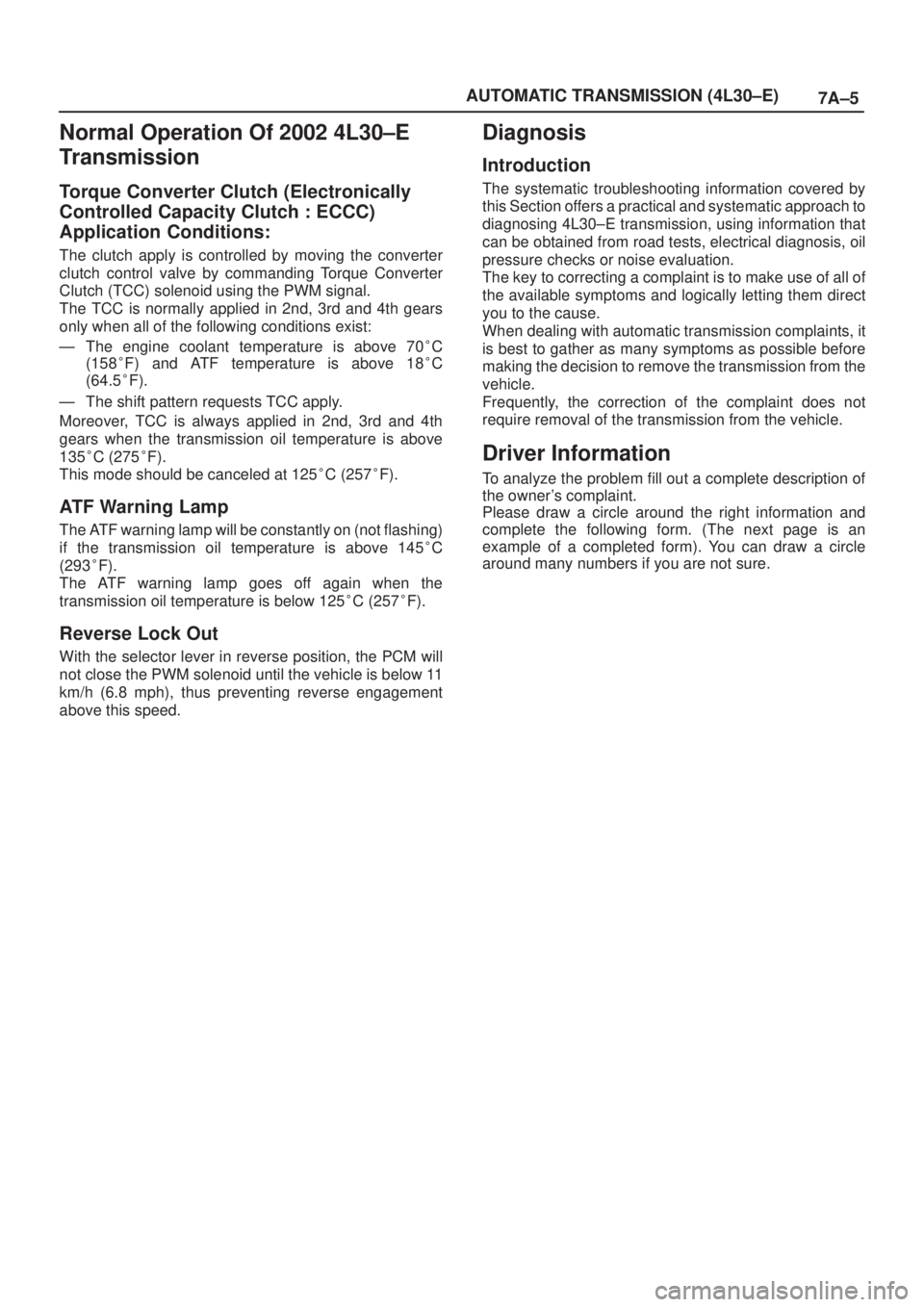

Normal Operation Of 2002 4L30±E
Transmission
Torque Converter Clutch (Electronically
Controlled Capacity Clutch : ECCC)
Application Conditions:
The clutch apply is controlled by moving the converter
clutch control valve by commanding Torque Converter
Clutch (TCC) solenoid using the PWM signal.
The TCC is normally applied in 2nd, 3rd and 4th gears
only when all of the following conditions exist:
Ð The engine coolant temperature is above 70
C
(158
F) and ATF temperature is above 18
C
(64.5
F).
Ð The shift pattern requests TCC apply.
Moreover, TCC is always applied in 2nd, 3rd and 4th
gears when the transmission oil temperature is above
135
C (275
F).
This mode should be canceled at 125
C (257
F).
ATF Warning Lamp
The ATF warning lamp will be constantly on (not flashing)
if the transmission oil temperature is above 145
C
(293
F).
The ATF warning lamp goes off again when the
transmission oil temperature is below 125
C (257
F).
Reverse Lock Out
With the selector lever in reverse position, the PCM will
not close the PWM solenoid until the vehicle is below 11
km/h (6.8 mph), thus preventing reverse engagement
above this speed.
Diagnosis
Introduction
The systematic troubleshooting information covered by
this Section offers a practical and systematic approach to
diagnosing 4L30±E transmission, using information that
can be obtained from road tests, electrical diagnosis, oil
pressure checks or noise evaluation.
The key to correcting a complaint is to make use of all of
the available symptoms and logically letting them direct
you to the cause.
When dealing with automatic transmission complaints, it
is best to gather as many symptoms as possible before
making the decision to remove the transmission from the
vehicle.
Frequently, the correction of the complaint does not
require removal of the transmission from the vehicle.
Driver Information
To analyze the problem fill out a complete description of
the owner's complaint.
Please draw a circle around the right information and
complete the following form. (The next page is an
example of a completed form). You can draw a circle
around many numbers if you are not sure.

7A±10
AUTOMATIC TRANSMISSION (4L30±E)
Checking Transmission Fluid Level
and Condition
Checking fluid level and condition (color and odor) at
regular intervals will provide early diagnosis information
about the transmission. This information may be used to
correct a condition that, if not detected early, could result
in major transmission repairs.
IMPORTANT:When new, automatic transmission fluid
is red in color. As the vehicle is driven, the transmission
fluid will begin to look darker in color. The color may
eventually appear light brown.
A dark brown color with burnt odor may indicate
excessive fluid deterioration and signal a need for fluid
change.
Fluid Level
When adding or changing fluid, use only DEXRON )±III.
Refer to
Maintenance and Lubrication in General
Information section for maintenance information and
servicing interval.
CAUTION: DO NOT OVERFILL.
Overfilling will cause foaming, loss of fluid, abnor-
mal shifting and possible damage to the transmis-
sion.
1. Park the vehicle on level ground and apply the parking
brake firmly.
2. Check fluid level with engine running at idle.
NOTE: Be sure that transmission fluid temperature is
below 30
C (86
F).
3. Move the selector lever through all gear ranges.
4. Move the selector lever to ªParkº.
5. Let engine idle for 3 minutes and open the overfill
screw (1).
6. Add released transmission fluid until it flows out over
the overfill screw opening.
7. Let engine idle until a fluid temperature between 32
C
(90
F) and 57
C (135
F) is reached, then close the
overfill screw (1).
Torque: 38 Nwm (28 lb ft)
NOTE: To prevent fluid leaks, the overfill screw and oil
drain screws gasket must be replaced each time these
screws are removed.NOTE: Check transmission fluid temperature with scan
tool.
Minimum fluid level " 57
C (135
F)
Maximum fluid level " 32
C (90
F)
242R200001
CAUTION: Do not open overfill screw with engine
stopped.
CAUTION: DO NOT CHECK FLUID LEVEL UNDER
THESE CONDITIONS:

Immediately after driving at sustained highway
speeds.

In heavy city traffic during hot weather.

If vehicle is towing a trailer.
If the vehicle has been operated under these conditions,
shut the engine off and allow the vehicle to ªcoolº for thirty
(30) minutes. After the cool down period, restart the
vehicle and continue from step 2 above.
