METER AND GAUGE8E±5
Connector A
TerminalFunction
1Ð
2Intelligent suspension indicator light
3TOD indicator light ªRearº
4Ð
5TOD indicator light ªAUTOº
6Ð
7TOD indicator light ªFrontº
8A/T shift indicator light ª3º
9A/T shift indicator light ªDº
10A/T shift indicator light ª2º
11SRS ± air bag warning light
12Ground
13Battery
14Stater switch
15A/T oil temperature warning light
16Seat belt indicator light
17Charge warning light
18Ð
19Ð
20Ð
21A/T shift indicator light ªLº
22ABS warning light
23Ð
24Ð
25Reduced power warning light
26Oil pressure warning light
27Check trans warning light
28MIL(check engine) warning light
29Check TOD
30Engine coolant temperature gauge
Connector B
TerminalFunction
1A/T shift indicator light ªRº
2A/T shift indicator light
3A/T shift indicator light ªNº
4A/T shift indicator light ªPº
5Illumination light
6Engine revolution pulse
7Speed sensor pulse
8Turn signal indicator light (LH)
9Brake warning light
10High beam indicator light (+)
11High beam indicator light (±)
12Turn signal indicator light (RH)
13Turn signal indicator light
14Ð
15Illumination light
16Ground
Connector C
TerminalFunction
1Starter switch
2Ð
3Fuel gauge
4Low fuel warning light
5Cruise set indicator light
6Ð
7Ð
8Ð
9Ð
10Sport mode indicator light
11Ð
12Winter drive indicator light
13Power drive indicator light
14Ð

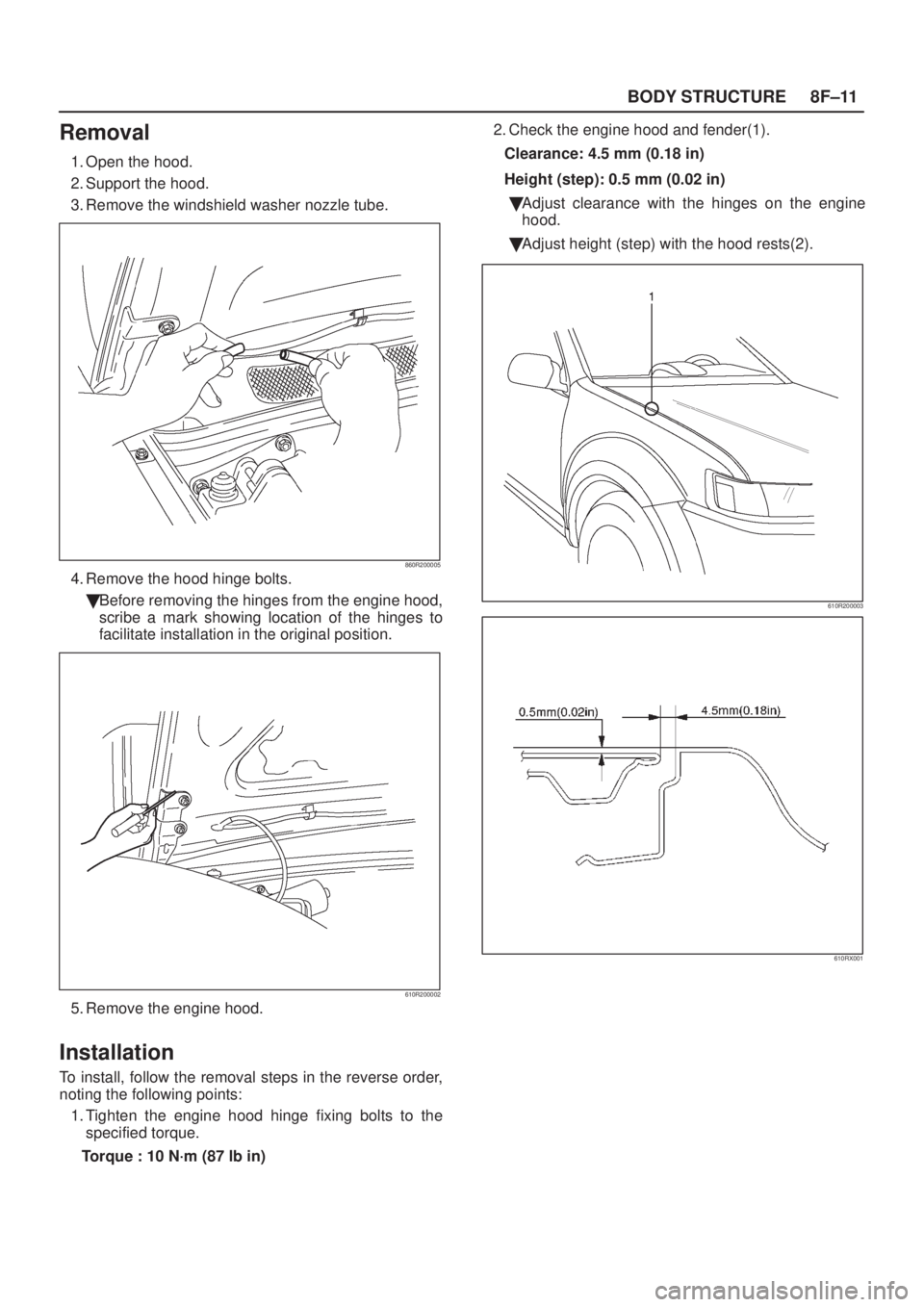

8F±11 BODY STRUCTURE
Removal
1. Open the hood.
2. Support the hood.
3. Remove the windshield washer nozzle tube.
860R200005
4. Remove the hood hinge bolts.

Before removing the hinges from the engine hood,
scribe a mark showing location of the hinges to
facilitate installation in the original position.
610R200002
5. Remove the engine hood.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the engine hood hinge fixing bolts to the
specified torque.
Torque : 10 N´m (87 lb in)2. Check the engine hood and fender(1).
Clearance: 4.5 mm (0.18 in)
Height (step): 0.5 mm (0.02 in)

Adjust clearance with the hinges on the engine
hood.

Adjust height (step) with the hood rests(2).
610R200003
610RX001

8F±16BODY STRUCTURE
Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.

Refer to
Front Bumper in this section.
3. Remove the front turn signal light assembly.

Remove the fixing screw and disconnect the
connector.
610R200008
4. Remove the rocker cover assembly.

Refer to
Rocker Cover Assembly in Exterior/Interior
Trim section.
5. Remove the inner liner.
647RY00003
6. Remove the antenna assembly.

Refer to
Rod Type Antenna in Entertainment
section.
7. Remove the front fender panel (1).

Remove the eight fixing bolts.
8. Remove the engine compartment upper extension
(2).
614R200002
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the front fender panel fixing bolts to the
specified torque.
Torque : 7 N´m (61 lb in)
2. Check the fender and front door (1).
Clearance: 5.0 mm (0.196 in)
Height (step): Flush
610R200009

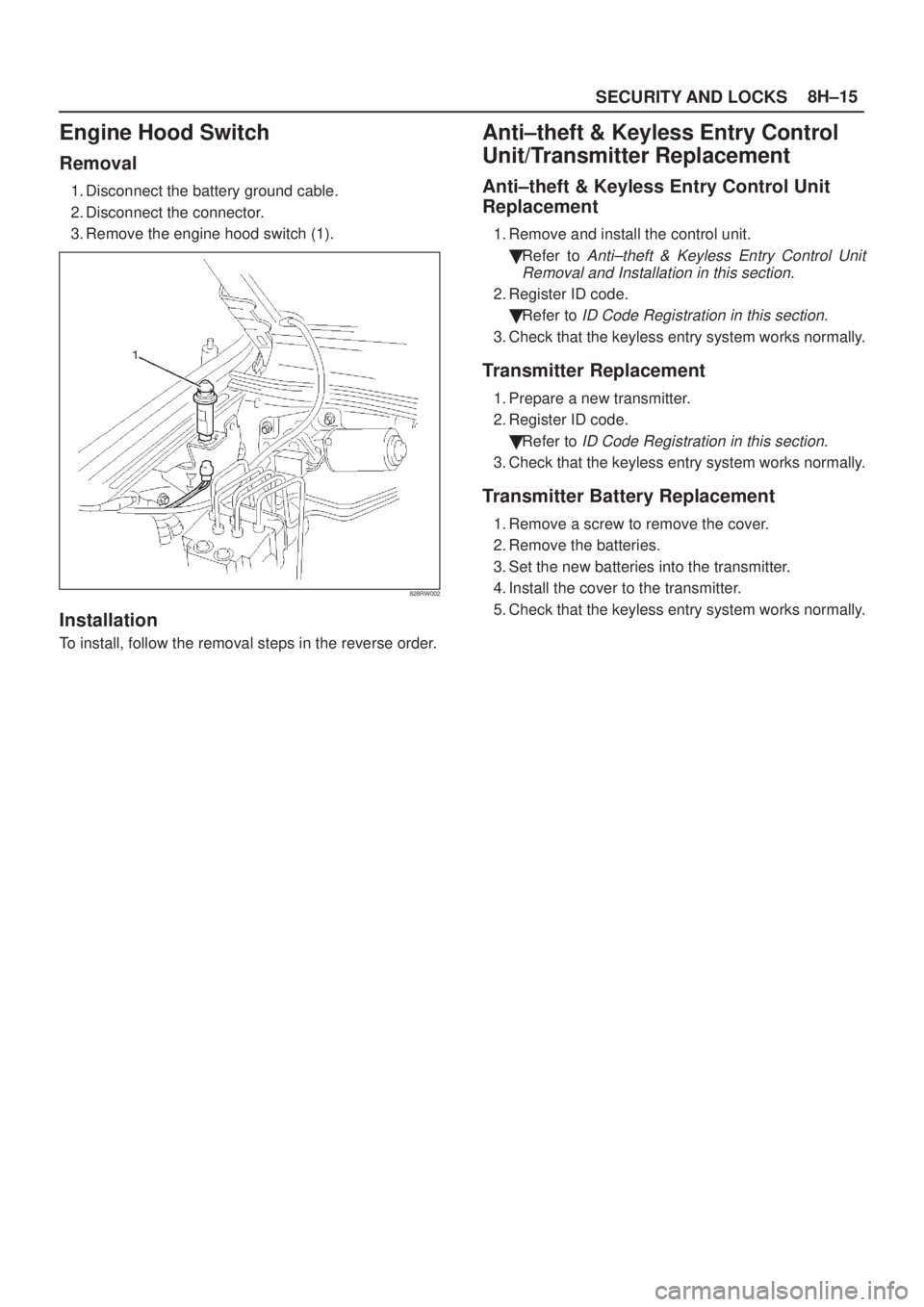

SECURITY AND LOCKS8H±15
Engine Hood Switch
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove the engine hood switch (1).
828RW002
Installation
To install, follow the removal steps in the reverse order.
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement
Anti±theft & Keyless Entry Control Unit
Replacement
1. Remove and install the control unit.

Refer to
Anti±theft & Keyless Entry Control Unit
Removal and Installation in this section.
2. Register ID code.

Refer to
ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Replacement
1. Prepare a new transmitter.
2. Register ID code.

Refer to
ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Battery Replacement
1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.

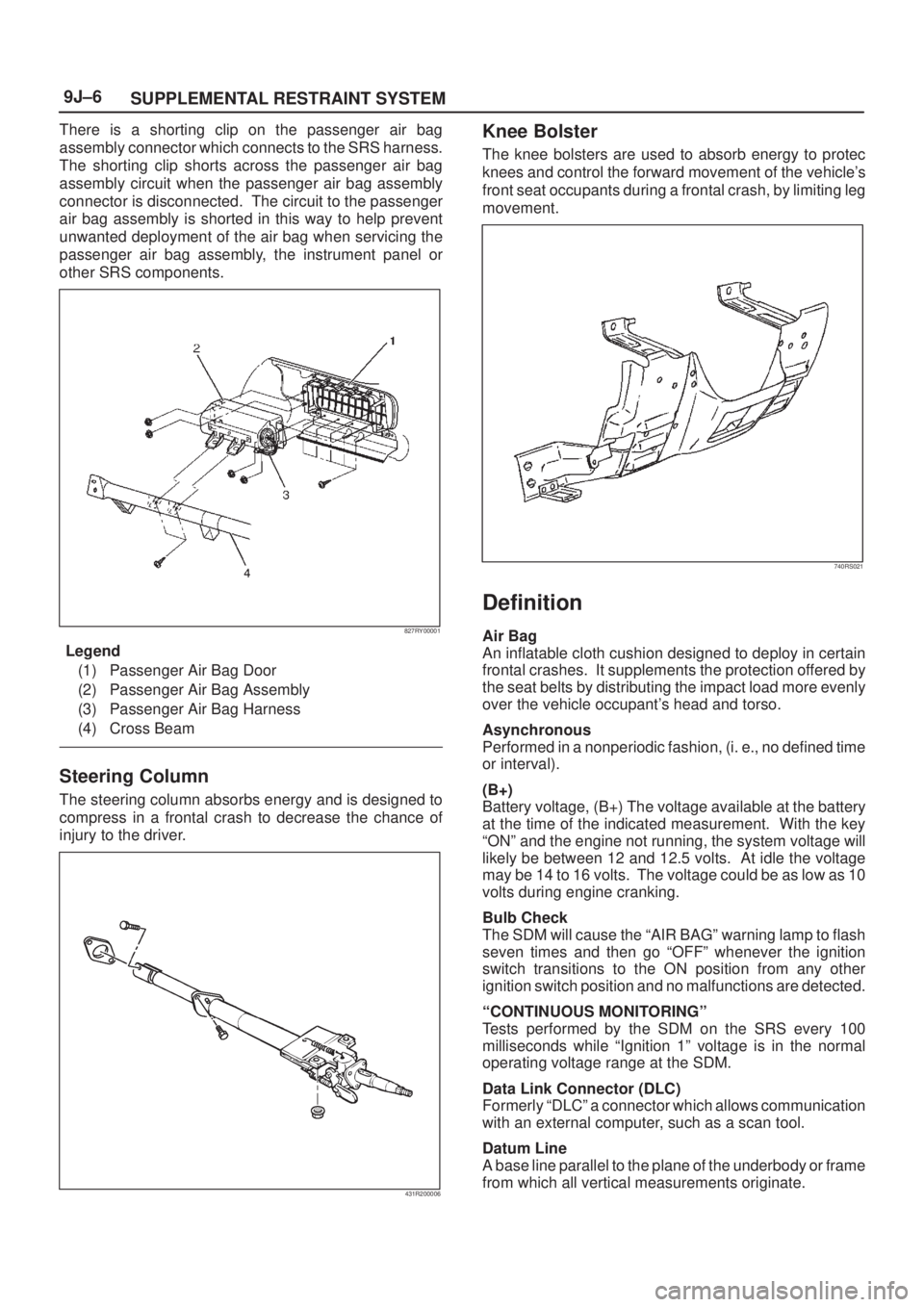

SUPPLEMENTAL RESTRAINT SYSTEM 9J±6
There is a shorting clip on the passenger air bag
assembly connector which connects to the SRS harness.
The shorting clip shorts across the passenger air bag
assembly circuit when the passenger air bag assembly
connector is disconnected. The circuit to the passenger
air bag assembly is shorted in this way to help prevent
unwanted deployment of the air bag when servicing the
passenger air bag assembly, the instrument panel or
other SRS components.
827RY00001
Legend
(1) Passenger Air Bag Door
(2) Passenger Air Bag Assembly
(3) Passenger Air Bag Harness
(4) Cross Beam
Steering Column
The steering column absorbs energy and is designed to
compress in a frontal crash to decrease the chance of
injury to the driver.
431R200006
Knee Bolster
The knee bolsters are used to absorb energy to protec
knees and control the forward movement of the vehicle's
front seat occupants during a frontal crash, by limiting leg
movement.
740RS021
Definition
Air Bag
An inflatable cloth cushion designed to deploy in certain
frontal crashes. It supplements the protection offered by
the seat belts by distributing the impact load more evenly
over the vehicle occupant's head and torso.
Asynchronous
Performed in a nonperiodic fashion, (i. e., no defined time
or interval).
(B+)
Battery voltage, (B+) The voltage available at the battery
at the time of the indicated measurement. With the key
ªONº and the engine not running, the system voltage will
likely be between 12 and 12.5 volts. At idle the voltage
may be 14 to 16 volts. The voltage could be as low as 10
volts during engine cranking.
Bulb Check
The SDM will cause the ªAIR BAGº warning lamp to flash
seven times and then go ªOFFº whenever the ignition
switch transitions to the ON position from any other
ignition switch position and no malfunctions are detected.
ªCONTINUOUS MONITORINGº
Tests performed by the SDM on the SRS every 100
milliseconds while ªIgnition 1º voltage is in the normal
operating voltage range at the SDM.
Data Link Connector (DLC)
Formerly ªDLCº a connector which allows communication
with an external computer, such as a scan tool.
Datum Line
A base line parallel to the plane of the underbody or frame
from which all vertical measurements originate.
