6E±417
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
If connections and wiring are OK and DTC P1154
continues to set, replace the Bank 2 HO2S 1.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
Test Description
Number(s) below refer to the step number(s) on the
Diagnostic Chart.3. A condition that affects other heated oxygen sensors
indicates probable contamination. To avoid
damaging replacement sensors, correct the
condition which caused the contamination before
replacing the affected sensors.
5. This step checks for conditions which may cause the
heated oxygen sensor to appear faulty. Correct any
of the described conditions if present.
8. To avoid damaging replacement sensors, correct the
condition which caused the contamination before
replacing the affected sensors.
DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2IMPORTANT:If any other DTCs are set (except P1133
and/or P1134), refer to those DTCs before proceeding
with this diagnostic chart.
1. Idle the engine at operating temperature.
2. Operate the vehicle within parameters specified
under ªConditions for Setting the DTCº criteria
included in Diagnostic Support.
3. Using a Tech 2, monitor ªDTCº info for DTC P1154
until the DTC P1154 test runs.
Note the test result.
Does Tech 2 indicate DTC failed this ignition?
ÐGo to Step 3
Refer to
Diagnostic
Aids
3Did the Tech 2 also indicate P1133, and/or P1134 test
failed?
ÐGo to Step 17Go to Step 4
4Check for leaks at the exhaust pipe joints.
Are the joints leaking?
ÐGo to Step 5Go to Step 6
5Tighten the U-bolt nuts at the leaking joints.
Is your action complete?
ÐGo to Step 2Ð
6Check for gaskets that are damaged or improperly
installed.
Are there damaged or misaligned gaskets?
ÐGo to Step 7Go to Step 8
71. Replace the damaged gaskets.
2. Align the connections.
3. Tighten the connections.
Is your action complete?
ÐGo to Step 2Ð
8Check for loose exhaust flange connections.
Are the flange connections loose?
ÐGo to Step 9Go to Step 10
9Tighten the stud nuts or bolts to specifications.
Is your action complete?
ÐGo to Step 2Ð
10Check for burned or corroded exhaust pipes.
Are the exhaust pipes burned or corroded?
ÐGo to Step 11Go to Step 12
11Replace the exhaust pipes, as required.
Is your action complete?
ÐGo to Step 2Ð

6E±418
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1


StepNo Ye s Value(s) Action
12Check for leaks at the exhaust manifold.
Are there leaks at the exhaust manifold?
ÐGo to Step 13Go to Step 14
13Tighten the bolts to specifications or replace the
manifold if necessary.
Is your action complete?
ÐGo to Step 2Ð
14Visually/physically inspect the following items:

Ensure that the Bank 2 HO2S 1 is securely
installed.

Check for corrosion on terminals.

Check terminal tension (at Bank 2 HO2S 1 and at
the PCM).

Check for damaged wiring.
Was a problem found in any of the above areas?
ÐGo to Step 18Go to Step 15
151. Disconnect Bank 2 HO2S 1.
2. Ignition ªONº.
3. Using a DVM at the PCM side of the HO2S 1
connector, measure the voltage between the high
signal circuit and ground.
Also measure the voltage between the low signal
circuit and ground.
Are both voltages in the specified range?
3-4 VGo to Step 16Go to Step 19
161. With Bank 2 HO2S 1 disconnected, jumper the high
and low (PCM side) signal circuits to ground.
2. Ignition ªONº.
3. Using a Tech 2, monitor the Bank 2 HO2S 1 voltage.
Does the Tech 2 indicate less than 10 mV and
immediately return to about 450 mV when the jumper is
removed?
ÐGo to Step 21Go to Step 22
17Replace affected heated oxygen sensors.
NOTE: Before replacing sensors, the cause of the
contamination must be determined and corrected.

Fuel contamination.

Use of improper RTV sealant.

Engine oil/coolant consumption.
Is the action complete?
ÐVerify repairÐ
18Repair condition as necessary.
Is the action complete?
ÐVerify repairÐ
19Check for faulty PCM connections or terminal damage.
Is the action complete?
ÐVerify repairGo to Step 20
20Repair open, short or grounded signal circuit.
Is the action complete?
ÐVerify repairÐ

6E±419
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1154 ± HO2S Transition Time Ratio Bank 2 Sensor 1


StepNo Ye s Value(s) Action
21Replace Bank 2 HO2S 1.
Is the action complete?
ÐVerify repairÐ
22Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

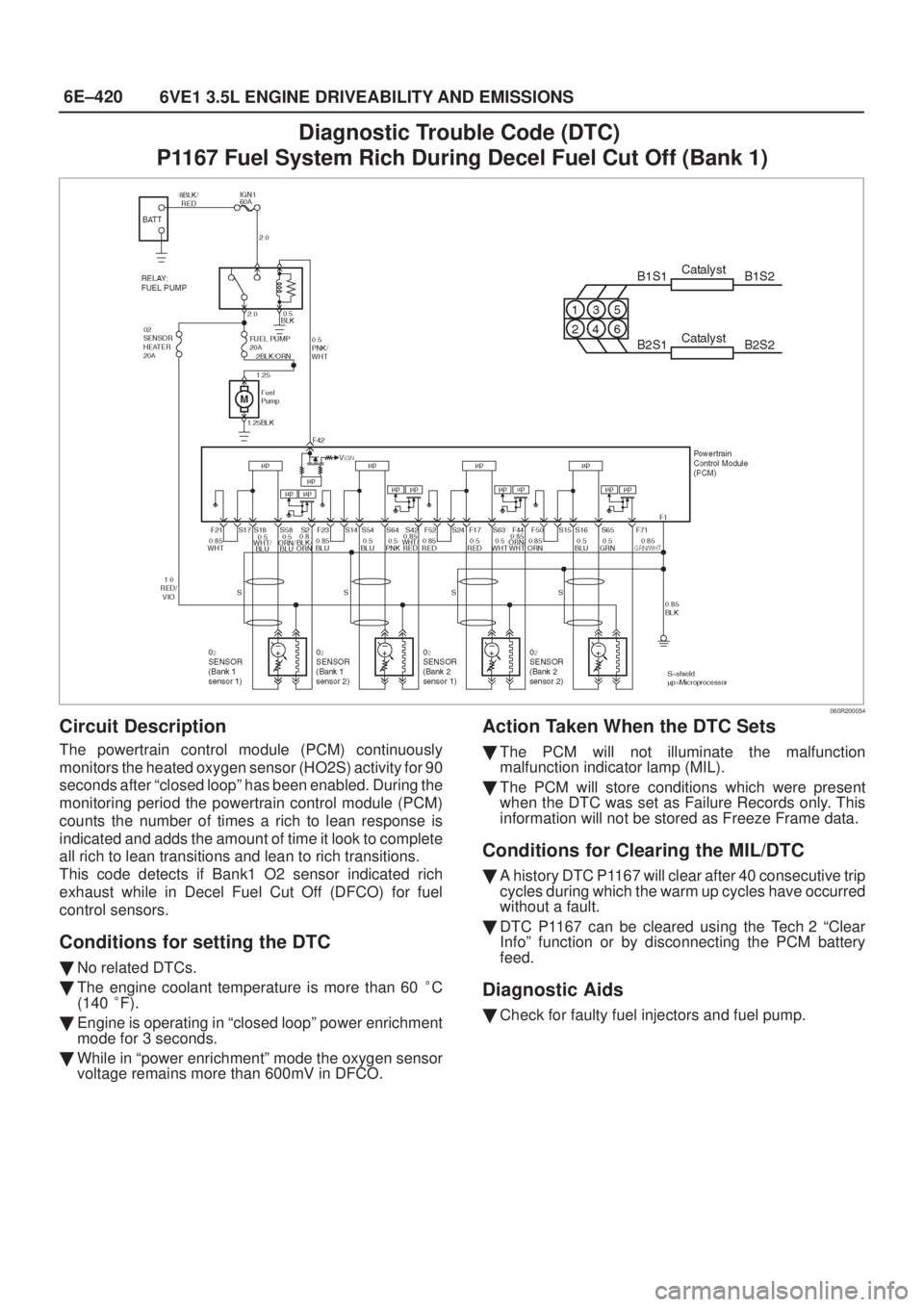

6E±420
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1167 Fuel System Rich During Decel Fuel Cut Off (Bank 1)
060R200054
Circuit Description
The powertrain control module (PCM) continuously
monitors the heated oxygen sensor (HO2S) activity for 90
seconds after ªclosed loopº has been enabled. During the
monitoring period the powertrain control module (PCM)
counts the number of times a rich to lean response is
indicated and adds the amount of time it look to complete
all rich to lean transitions and lean to rich transitions.
This code detects if Bank1 O2 sensor indicated rich
exhaust while in Decel Fuel Cut Off (DFCO) for fuel
control sensors.
Conditions for setting the DTC

No related DTCs.

The engine coolant temperature is more than 60
C
(140
F).

Engine is operating in ªclosed loopº power enrichment
mode for 3 seconds.

While in ªpower enrichmentº mode the oxygen sensor
voltage remains more than 600mV in DFCO.
Action Taken When the DTC Sets

The PCM will not illuminate the malfunction
malfunction indicator lamp (MIL).

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

A history DTC P1167 will clear after 40 consecutive trip
cycles during which the warm up cycles have occurred
without a fault.

DTC P1167 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids

Check for faulty fuel injectors and fuel pump.

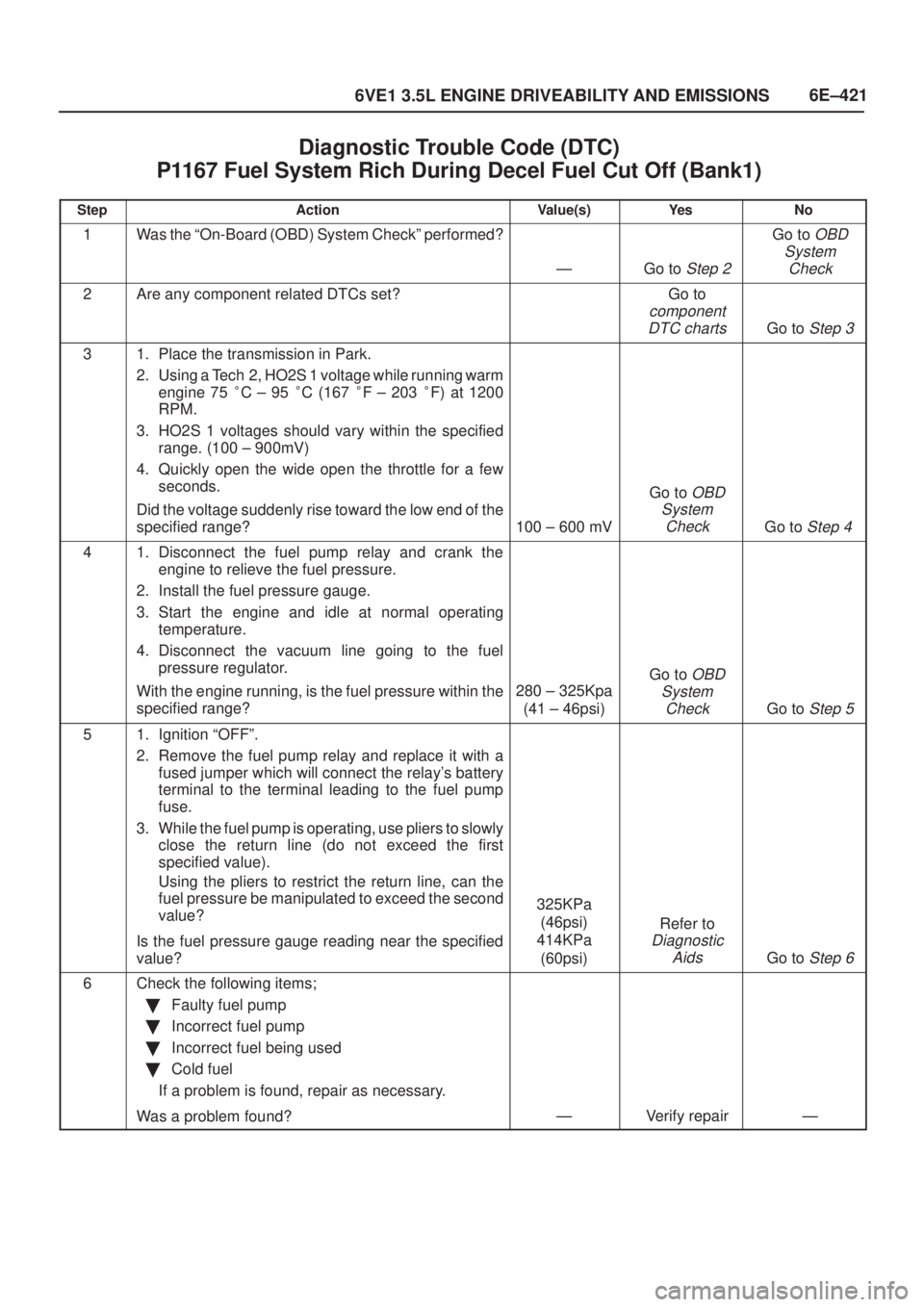

6E±421
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1167 Fuel System Rich During Decel Fuel Cut Off (Bank1)

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any component related DTCs set?Go to
component
DTC charts
Go to Step 3
31. Place the transmission in Park.
2. Using a Tech 2, HO2S 1 voltage while running warm
engine 75
C ± 95
C (167
F ± 203
F) at 1200
RPM.
3. HO2S 1 voltages should vary within the specified
range. (100 ± 900mV)
4. Quickly open the wide open the throttle for a few
seconds.
Did the voltage suddenly rise toward the low end of the
specified range?
100 ± 600 mV
Go to OBD
System
Check
Go to Step 4
41. Disconnect the fuel pump relay and crank the
engine to relieve the fuel pressure.
2. Install the fuel pressure gauge.
3. Start the engine and idle at normal operating
temperature.
4. Disconnect the vacuum line going to the fuel
pressure regulator.
With the engine running, is the fuel pressure within the
specified range?
280 ± 325Kpa
(41 ± 46psi)
Go to OBD
System
Check
Go to Step 5
51. Ignition ªOFFº.
2. Remove the fuel pump relay and replace it with a
fused jumper which will connect the relay's battery
terminal to the terminal leading to the fuel pump
fuse.
3. While the fuel pump is operating, use pliers to slowly
close the return line (do not exceed the first
specified value).
Using the pliers to restrict the return line, can the
fuel pressure be manipulated to exceed the second
value?
Is the fuel pressure gauge reading near the specified
value?
325KPa
(46psi)
414KPa
(60psi)
Refer to
Diagnostic
Aids
Go to Step 6
6Check the following items;

Faulty fuel pump

Incorrect fuel pump

Incorrect fuel being used

Cold fuel
If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairÐ

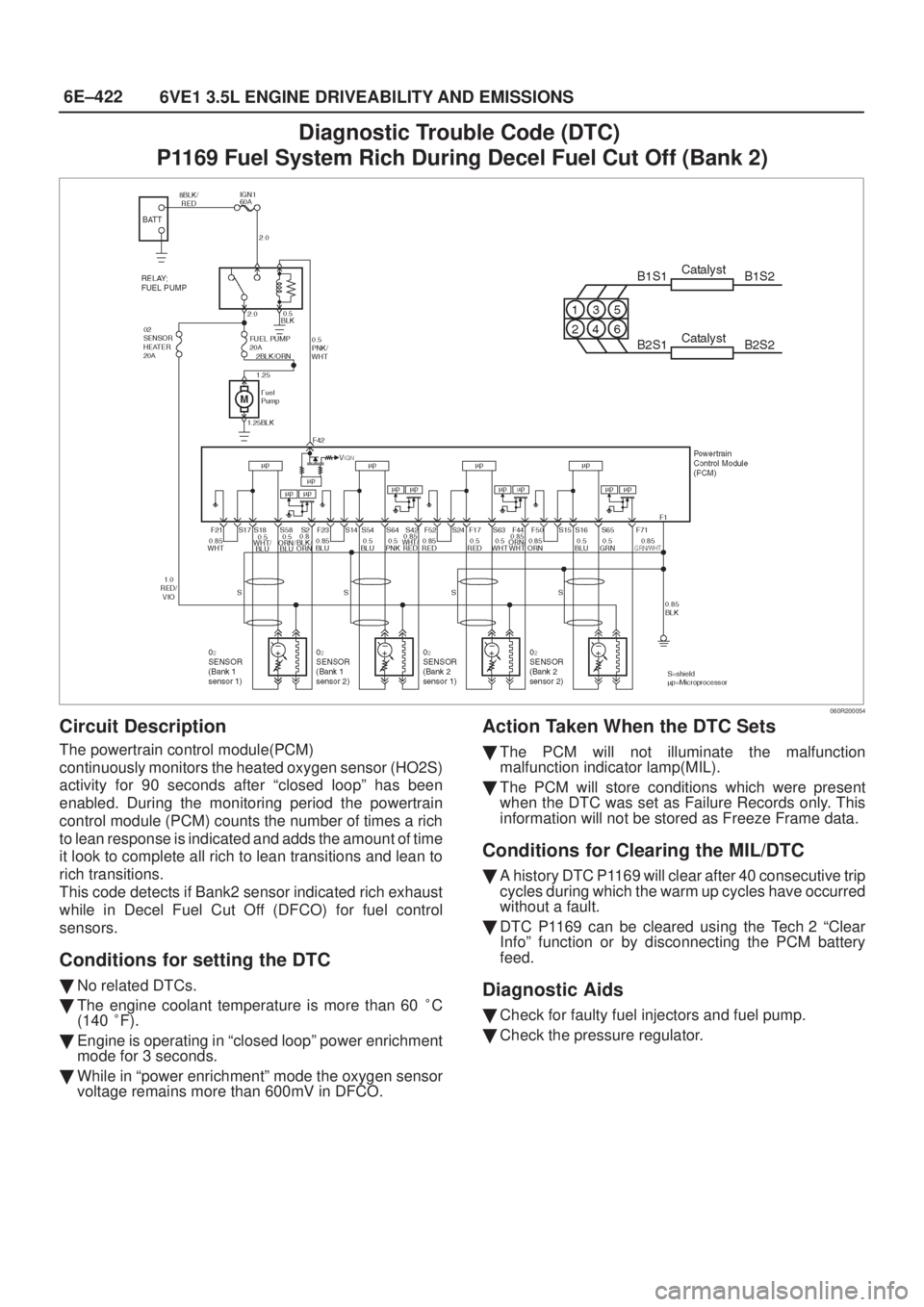

6E±422
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1169 Fuel System Rich During Decel Fuel Cut Off (Bank 2)
060R200054
Circuit Description
The powertrain control module(PCM)
continuously monitors the heated oxygen sensor (HO2S)
activity for 90 seconds after ªclosed loopº has been
enabled. During the monitoring period the powertrain
control module (PCM) counts the number of times a rich
to lean response is indicated and adds the amount of time
it look to complete all rich to lean transitions and lean to
rich transitions.
This code detects if Bank2 sensor indicated rich exhaust
while in Decel Fuel Cut Off (DFCO) for fuel control
sensors.
Conditions for setting the DTC

No related DTCs.

The engine coolant temperature is more than 60
C
(140
F).

Engine is operating in ªclosed loopº power enrichment
mode for 3 seconds.

While in ªpower enrichmentº mode the oxygen sensor
voltage remains more than 600mV in DFCO.
Action Taken When the DTC Sets

The PCM will not illuminate the malfunction
malfunction indicator lamp(MIL).

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

A history DTC P1169 will clear after 40 consecutive trip
cycles during which the warm up cycles have occurred
without a fault.

DTC P1169 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids

Check for faulty fuel injectors and fuel pump.

Check the pressure regulator.

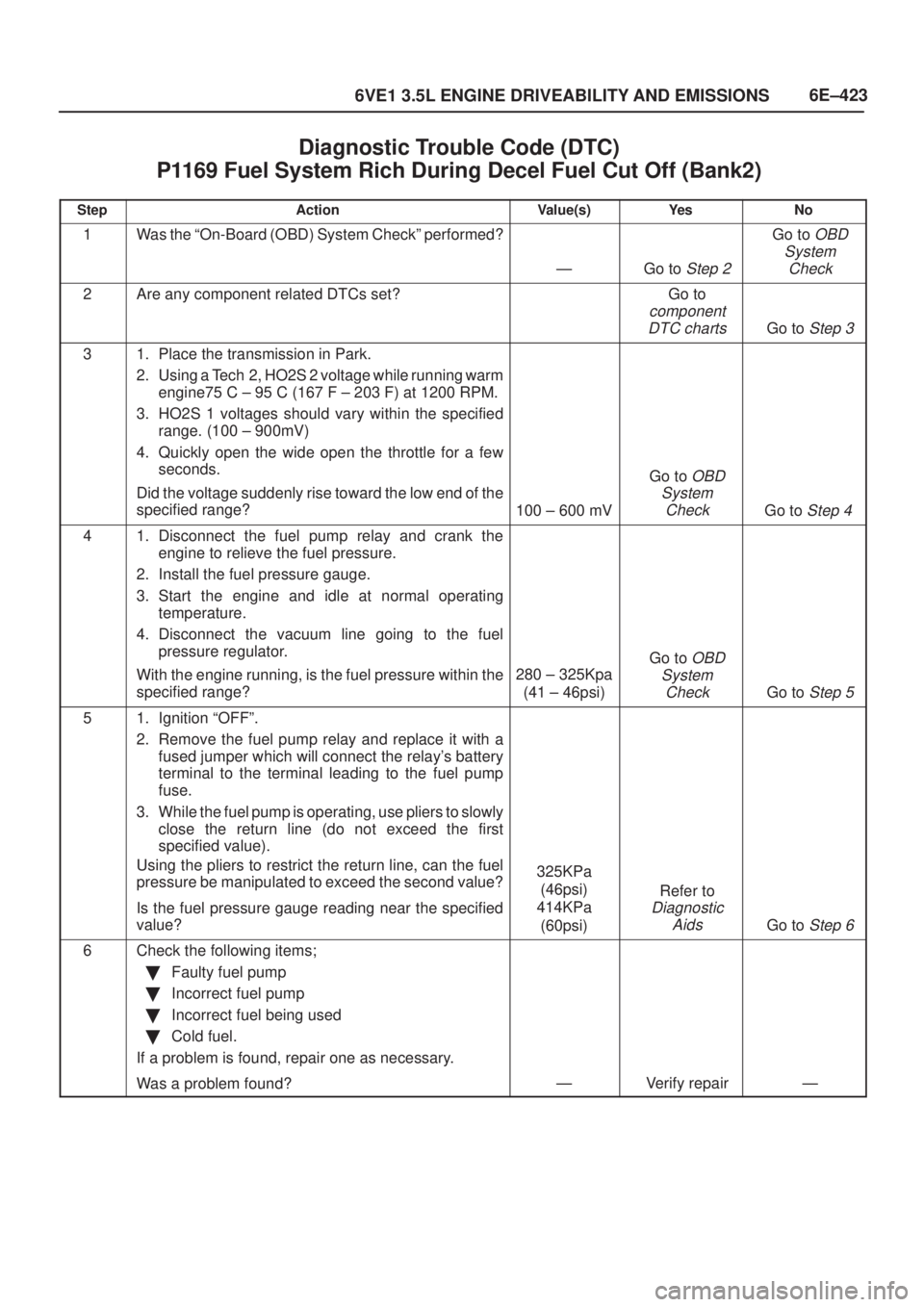

6E±423
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1169 Fuel System Rich During Decel Fuel Cut Off (Bank2)

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any component related DTCs set?Go to
component
DTC charts
Go to Step 3
31. Place the transmission in Park.
2. Using a Tech 2, HO2S 2 voltage while running warm
engine75 C ± 95 C (167 F ± 203 F) at 1200 RPM.
3. HO2S 1 voltages should vary within the specified
range. (100 ± 900mV)
4. Quickly open the wide open the throttle for a few
seconds.
Did the voltage suddenly rise toward the low end of the
specified range?
100 ± 600 mV
Go to OBD
System
Check
Go to Step 4
41. Disconnect the fuel pump relay and crank the
engine to relieve the fuel pressure.
2. Install the fuel pressure gauge.
3. Start the engine and idle at normal operating
temperature.
4. Disconnect the vacuum line going to the fuel
pressure regulator.
With the engine running, is the fuel pressure within the
specified range?
280 ± 325Kpa
(41 ± 46psi)
Go to OBD
System
Check
Go to Step 5
51. Ignition ªOFFº.
2. Remove the fuel pump relay and replace it with a
fused jumper which will connect the relay's battery
terminal to the terminal leading to the fuel pump
fuse.
3. While the fuel pump is operating, use pliers to slowly
close the return line (do not exceed the first
specified value).
Using the pliers to restrict the return line, can the fuel
pressure be manipulated to exceed the second value?
Is the fuel pressure gauge reading near the specified
value?
325KPa
(46psi)
414KPa
(60psi)
Refer to
Diagnostic
Aids
Go to Step 6
6Check the following items;

Faulty fuel pump

Incorrect fuel pump

Incorrect fuel being used

Cold fuel.
If a problem is found, repair one as necessary.
Was a problem found?
ÐVerify repairÐ

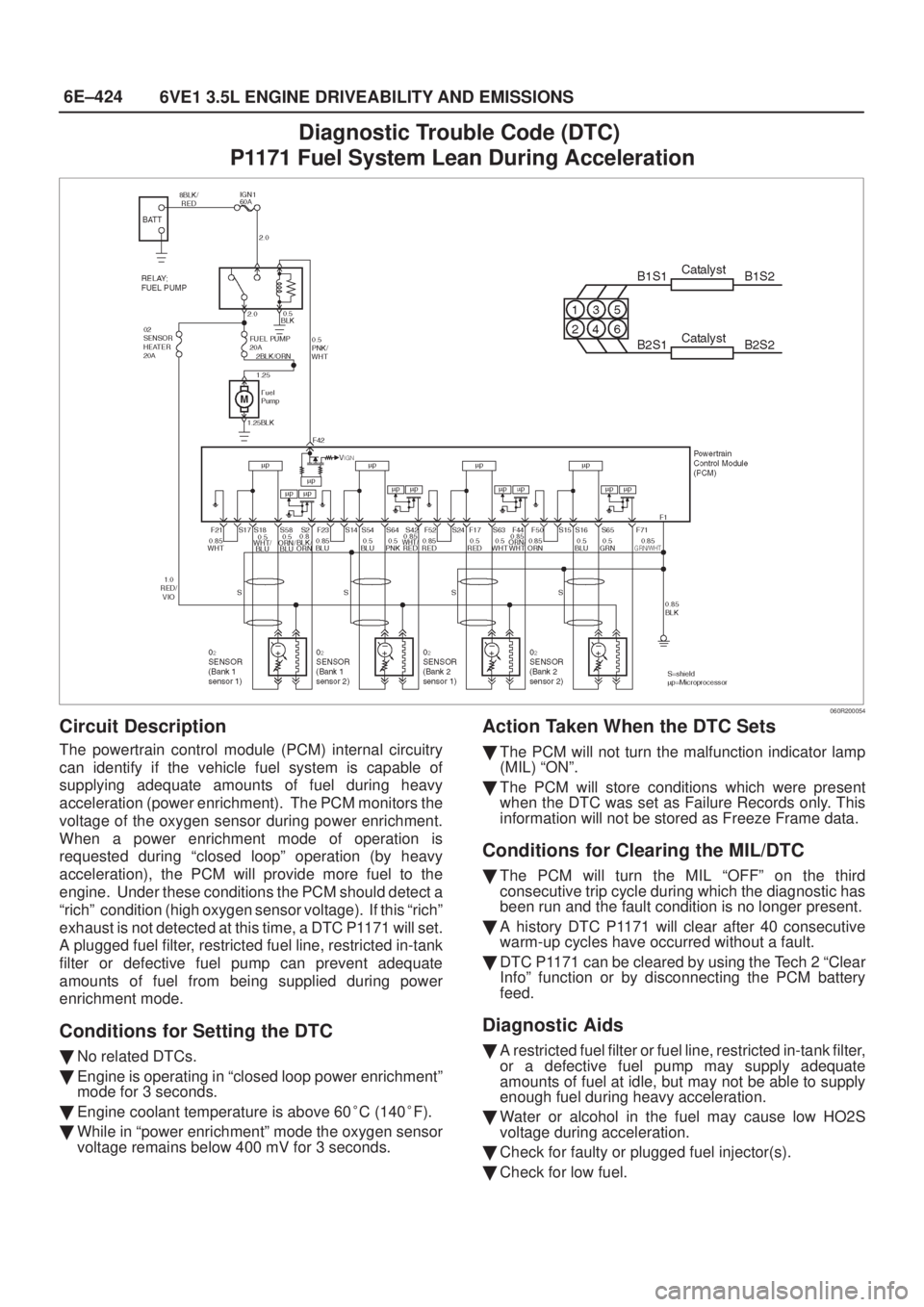

6E±424
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1171 Fuel System Lean During Acceleration
060R200054
Circuit Description
The powertrain control module (PCM) internal circuitry
can identify if the vehicle fuel system is capable of
supplying adequate amounts of fuel during heavy
acceleration (power enrichment). The PCM monitors the
voltage of the oxygen sensor during power enrichment.
When a power enrichment mode of operation is
requested during ªclosed loopº operation (by heavy
acceleration), the PCM will provide more fuel to the
engine. Under these conditions the PCM should detect a
ªrichº condition (high oxygen sensor voltage). If this ªrichº
exhaust is not detected at this time, a DTC P1171 will set.
A plugged fuel filter, restricted fuel line, restricted in-tank
filter or defective fuel pump can prevent adequate
amounts of fuel from being supplied during power
enrichment mode.
Conditions for Setting the DTC

No related DTCs.

Engine is operating in ªclosed loop power enrichmentº
mode for 3 seconds.

Engine coolant temperature is above 60
C (140
F).

While in ªpower enrichmentº mode the oxygen sensor
voltage remains below 400 mV for 3 seconds.
Action Taken When the DTC Sets

The PCM will not turn the malfunction indicator lamp
(MIL) ªONº.

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P1171 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P1171 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids

A restricted fuel filter or fuel line, restricted in-tank filter,
or a defective fuel pump may supply adequate
amounts of fuel at idle, but may not be able to supply
enough fuel during heavy acceleration.

Water or alcohol in the fuel may cause low HO2S
voltage during acceleration.

Check for faulty or plugged fuel injector(s).

Check for low fuel.
