2002 ISUZU AXIOM ESP

RESTRAINT CONTROL SYSTEM 9J1±28

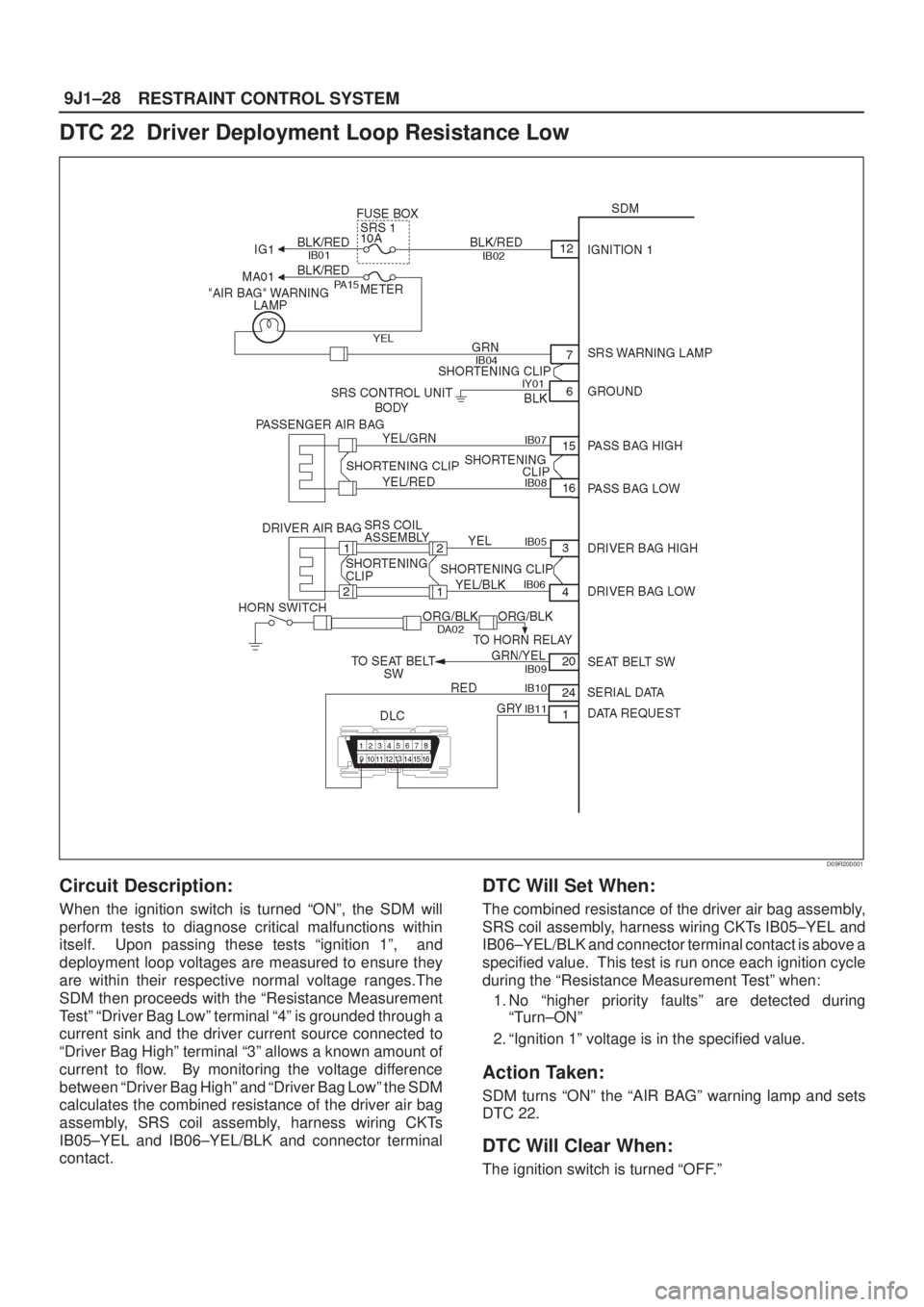

DTC 22 Driver Deployment Loop Resistance Low
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.The
SDM then proceeds with the ªResistance Measurement
Testº ªDriver Bag Lowº terminal ª4º is grounded through a
current sink and the driver current source connected to
ªDriver Bag Highº terminal ª3º allows a known amount of
current to flow. By monitoring the voltage difference
between ªDriver Bag Highº and ªDriver Bag Lowº the SDM
calculates the combined resistance of the driver air bag
assembly, SRS coil assembly, harness wiring CKTs
IB05±YEL and IB06±YEL/BLK and connector terminal
contact.
DTC Will Set When:
The combined resistance of the driver air bag assembly,
SRS coil assembly, harness wiring CKTs IB05±YEL and
IB06±YEL/BLK and connector terminal contact is above a
specified value. This test is run once each ignition cycle
during the ªResistance Measurement Testº when:
1. No ªhigher priority faultsº are detected during
ªTurn±ONº
2. ªIgnition 1º voltage is in the specified value.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets
DTC 22.
DTC Will Clear When:
The ignition switch is turned ªOFF.º

9J1±31
RESTRAINT CONTROL SYSTEM

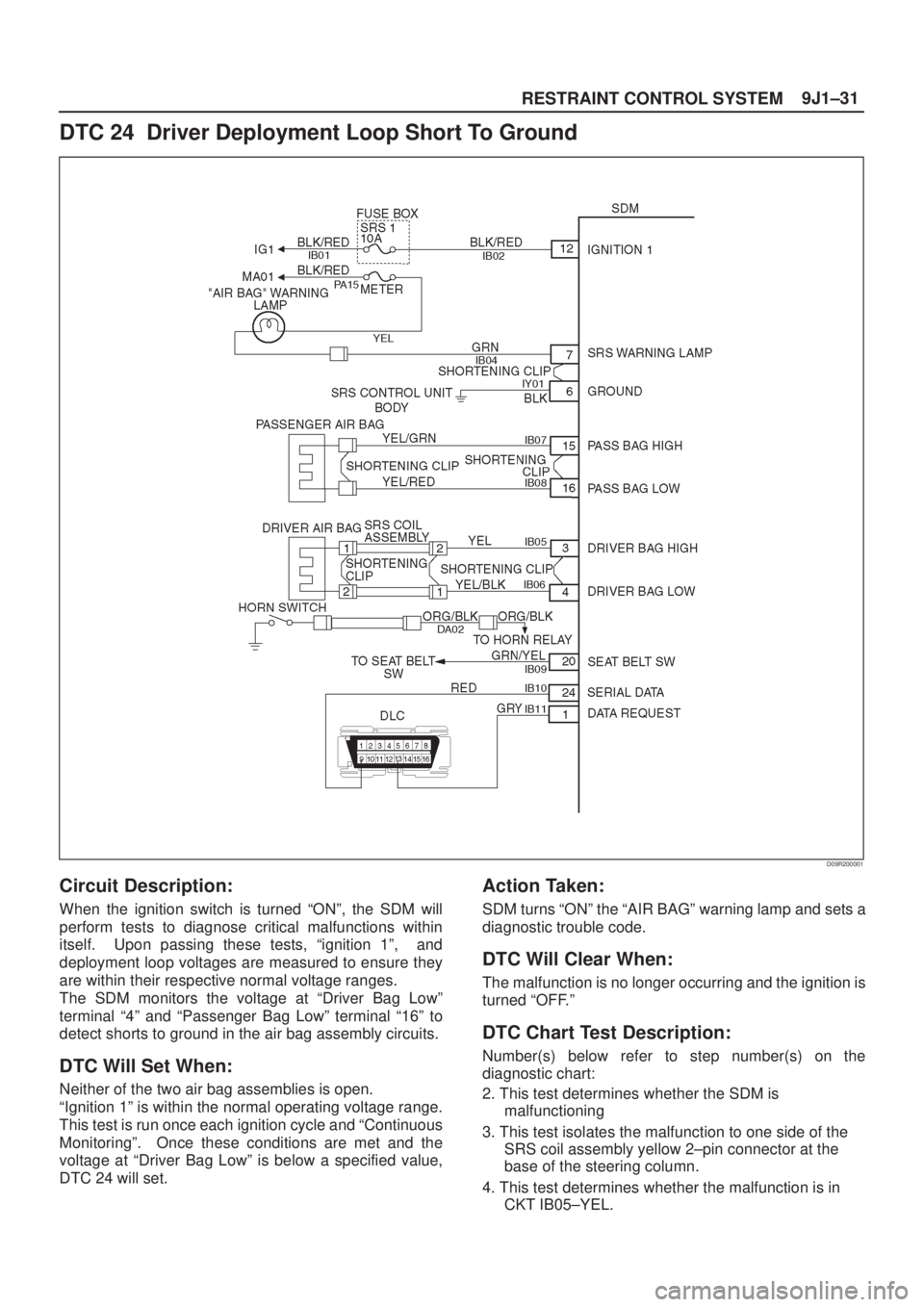

DTC 24 Driver Deployment Loop Short To Ground
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltage at ªDriver Bag Lowº
terminal ª4º and ªPassenger Bag Lowº terminal ª16º to
detect shorts to ground in the air bag assembly circuits.
DTC Will Set When:
Neither of the two air bag assemblies is open.
ªIgnition 1º is within the normal operating voltage range.
This test is run once each ignition cycle and ªContinuous
Monitoringº. Once these conditions are met and the
voltage at ªDriver Bag Lowº is below a specified value,
DTC 24 will set.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The malfunction is no longer occurring and the ignition is
turned ªOFF.º
DTC Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the SDM is
malfunctioning
3. This test isolates the malfunction to one side of the
SRS coil assembly yellow 2±pin connector at the
base of the steering column.
4. This test determines whether the malfunction is in
CKT IB05±YEL.

9J1±33
RESTRAINT CONTROL SYSTEM

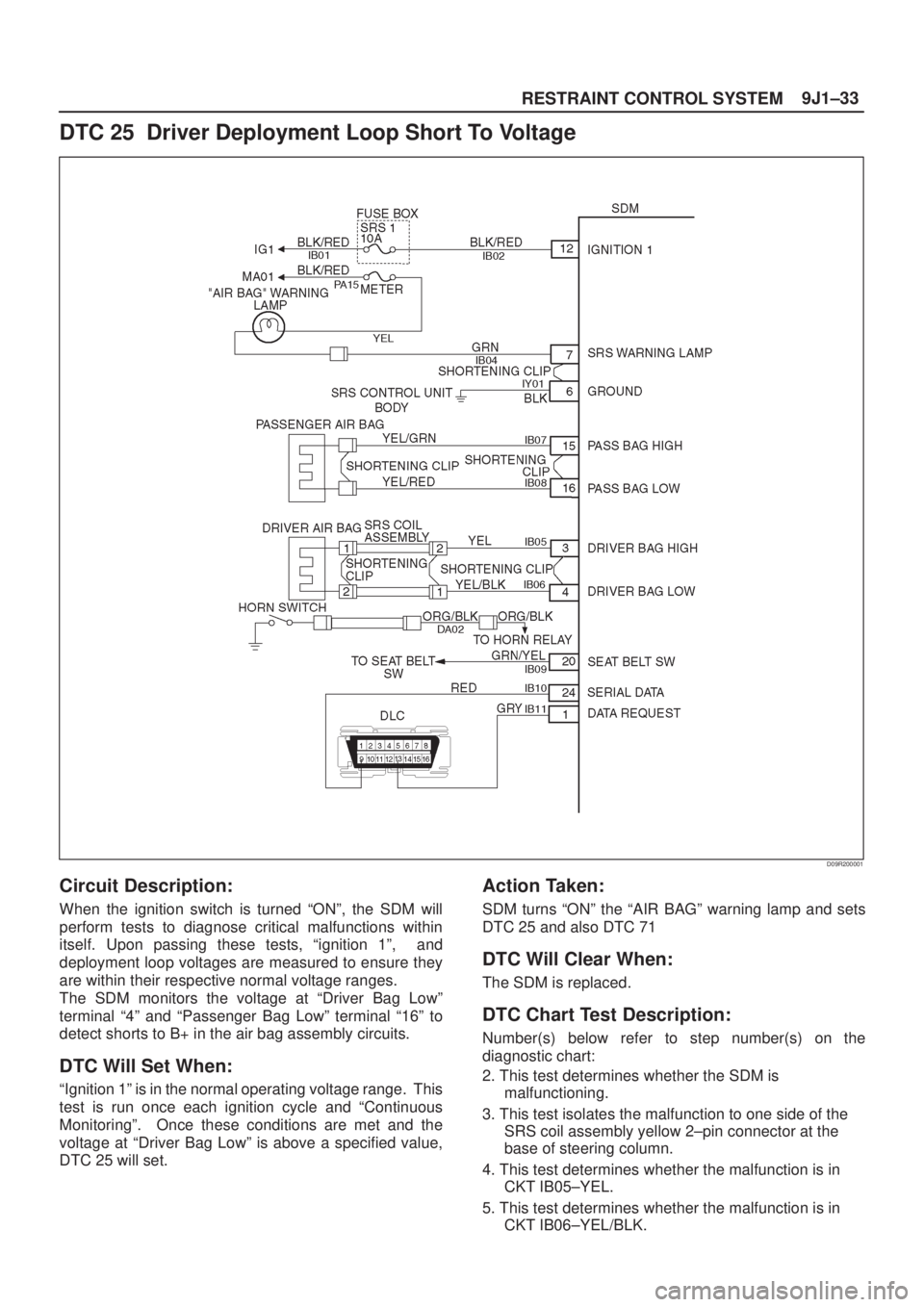

DTC 25 Driver Deployment Loop Short To Voltage
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltage at ªDriver Bag Lowº
terminal ª4º and ªPassenger Bag Lowº terminal ª16º to
detect shorts to B+ in the air bag assembly circuits.
DTC Will Set When:
ªIgnition 1º is in the normal operating voltage range. This
test is run once each ignition cycle and ªContinuous
Monitoringº. Once these conditions are met and the
voltage at ªDriver Bag Lowº is above a specified value,
DTC 25 will set.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets
DTC 25 and also DTC 71
DTC Will Clear When:
The SDM is replaced.
DTC Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the SDM is
malfunctioning.
3. This test isolates the malfunction to one side of the
SRS coil assembly yellow 2±pin connector at the
base of steering column.
4. This test determines whether the malfunction is in
CKT IB05±YEL.
5. This test determines whether the malfunction is in
CKT IB06±YEL/BLK.

RESTRAINT CONTROL SYSTEM 9J1±36

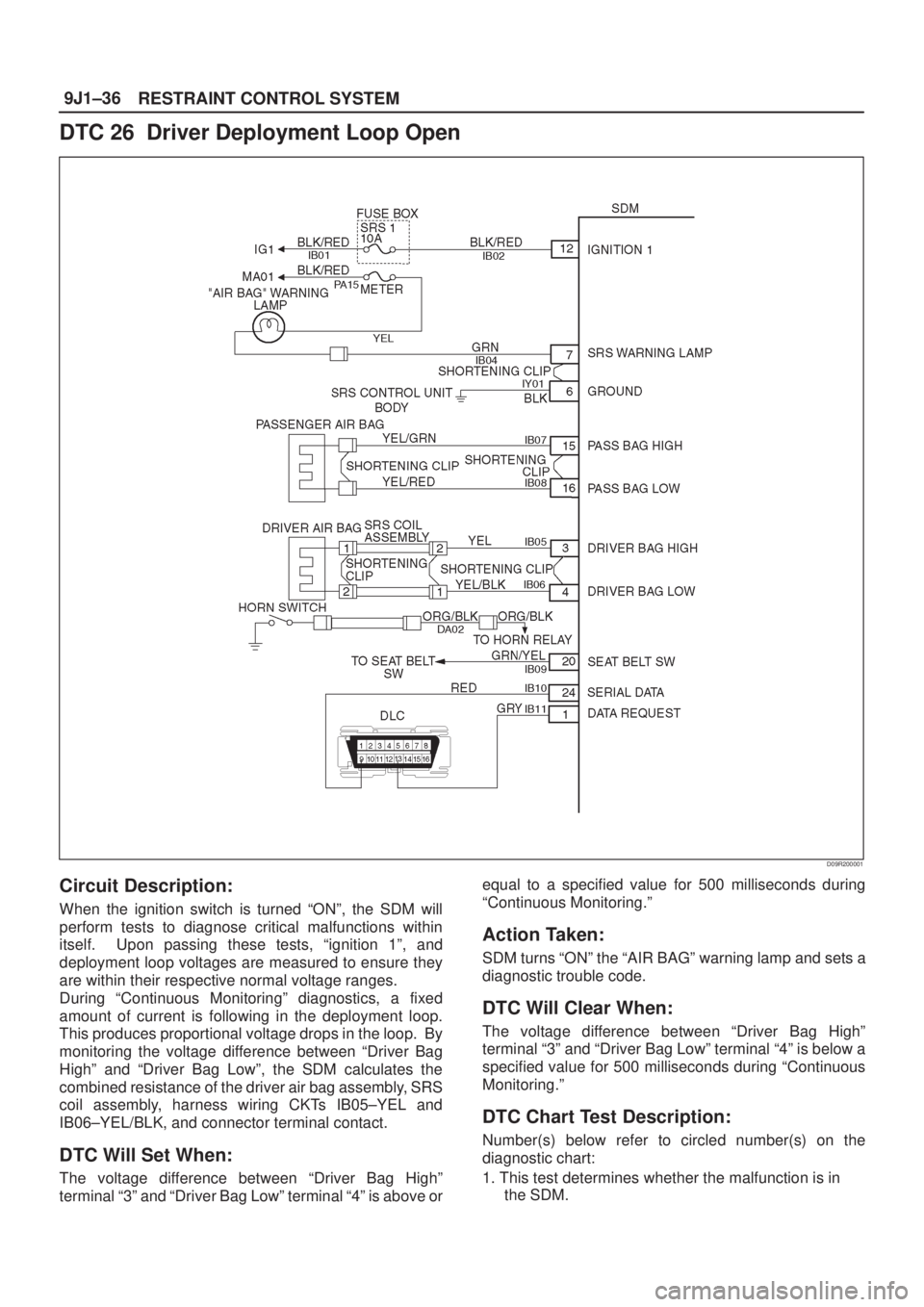

DTC 26 Driver Deployment Loop Open
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
During ªContinuous Monitoringº diagnostics, a fixed
amount of current is following in the deployment loop.
This produces proportional voltage drops in the loop. By
monitoring the voltage difference between ªDriver Bag
Highº and ªDriver Bag Lowº, the SDM calculates the
combined resistance of the driver air bag assembly, SRS
coil assembly, harness wiring CKTs IB05±YEL and
IB06±YEL/BLK, and connector terminal contact.
DTC Will Set When:
The voltage difference between ªDriver Bag Highº
terminal ª3º and ªDriver Bag Lowº terminal ª4º is above orequal to a specified value for 500 milliseconds during
ªContinuous Monitoring.º
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The voltage difference between ªDriver Bag Highº
terminal ª3º and ªDriver Bag Lowº terminal ª4º is below a
specified value for 500 milliseconds during ªContinuous
Monitoring.º
DTC Chart Test Description:
Number(s) below refer to circled number(s) on the
diagnostic chart:
1. This test determines whether the malfunction is in
the SDM.

9J1±43
RESTRAINT CONTROL SYSTEM

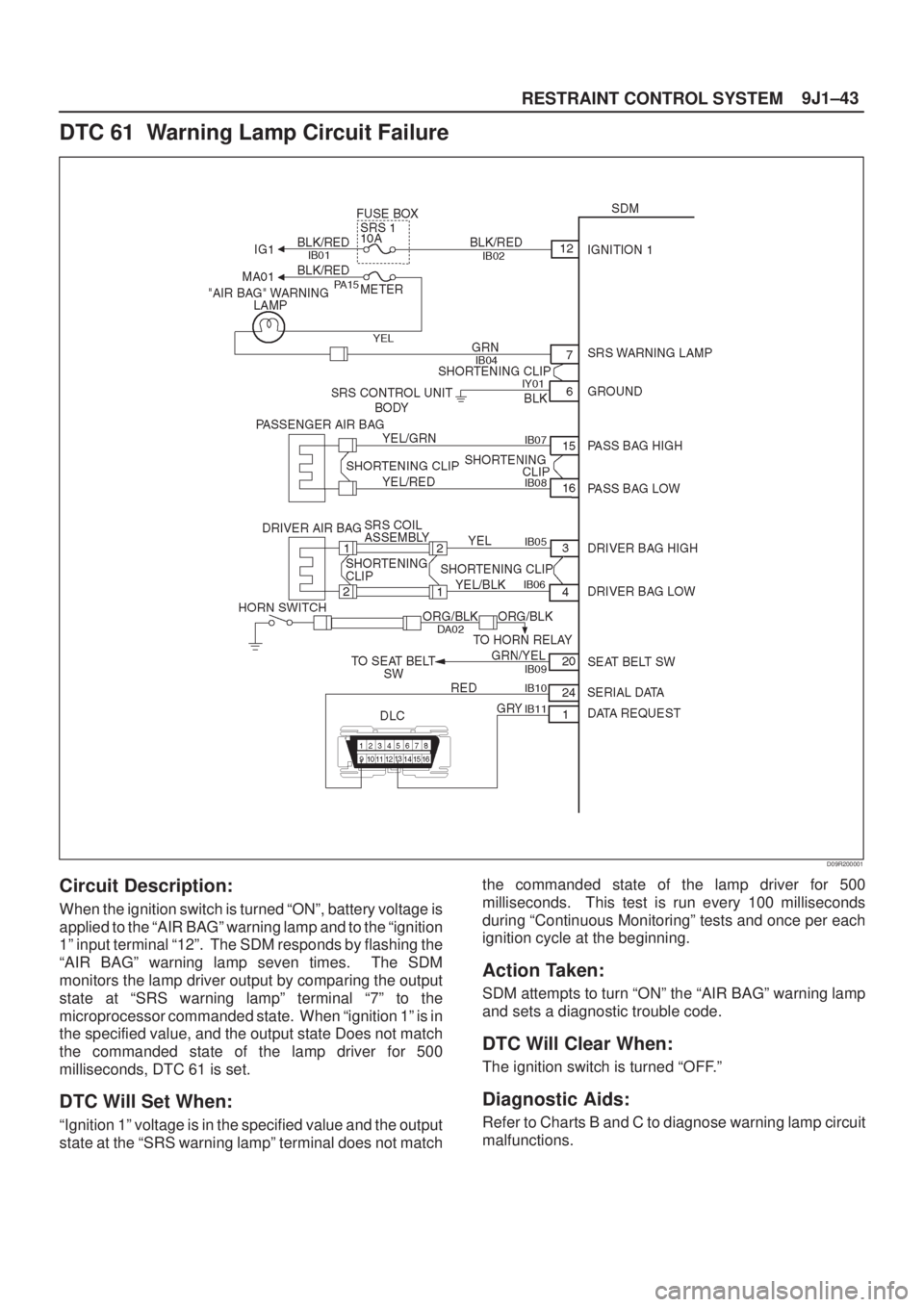

DTC 61 Warning Lamp Circuit Failure
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, battery voltage is
applied to the ªAIR BAGº warning lamp and to the ªignition
1º input terminal ª12º. The SDM responds by flashing the
ªAIR BAGº warning lamp seven times. The SDM
monitors the lamp driver output by comparing the output
state at ªSRS warning lampº terminal ª7º to the
microprocessor commanded state. When ªignition 1º is in
the specified value, and the output state Does not match
the commanded state of the lamp driver for 500
milliseconds, DTC 61 is set.
DTC Will Set When:
ªIgnition 1º voltage is in the specified value and the output
state at the ªSRS warning lampº terminal does not matchthe commanded state of the lamp driver for 500
milliseconds. This test is run every 100 milliseconds
during ªContinuous Monitoringº tests and once per each
ignition cycle at the beginning.
Action Taken:
SDM attempts to turn ªONº the ªAIR BAGº warning lamp
and sets a diagnostic trouble code.
DTC Will Clear When:
The ignition switch is turned ªOFF.º
Diagnostic Aids:
Refer to Charts B and C to diagnose warning lamp circuit
malfunctions.
