Page 2058 of 2100
RESTRAINT CONTROL SYSTEM 9J1±8
Chart B ªAIR BAGº Warning Lamp Comes ªONº Steady
D09R200001
Circuit Description:
When the ignition switch is first turned ªONº, ªignition 1º
voltage is applied from the ªMA01º meter fuse to ªAIR
BAGº, warning lamp which is connected to ªSRS warning
lampº, terminal ª7º. The ªSRS±1º fuses apply system
voltage to the ªignition 1º inputs, terminals ª12º. The SDM
responds by flashing the ªAIR BAGº warning lamp 7
times. If ªignition 1º voltage is less than 9 volts, the ªAIR
BAGº warning lamp will come ªONº solid with no DTCs
set.
Chart Test Description:
Number (s) below refer to step number (s) on the
diagnostic chart.
2. This test checks for an open in the ªignition 1º circuit
to the SDM.
3. This test checks for the voltage of ªignition 1.º
4. This test determines whether the malfunction is a
short to ground in CKT IB04 ± GRN.
Page 2060 of 2100

RESTRAINT CONTROL SYSTEM 9J1±10
Chart C ªAIR BAGº Warning Lamp Does Not Comes ªONº Steady
D09R200001
Circuit Description:
When the ignition switch is first turned ªONº, ªignition 1º
voltage is applied from the ªMA01º meter fuse to the ªAIR
BAGº warning lamp which is connected to ªSRS warning
lampº, terminal ª7º. The ªSRS±1º fuse apply system
voltage to the ªignition 1º inputs, terminals ª12º. The SDM
responds by flashing the ªAIR BAGº warning lamp seven
times. If ªignition 1º voltage is more than 16 volts, the
ªAIR BAGº warning lamp will be still ªOFFº solid with no
DTCs set.
Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:1. This test decides whether power is available to SDM
warning lamp power feed circuit.
2. This test determines whether the voltage is present
in the warning lamp circuit.
3. This test determines if the malfunction is in the
instrument cluster.
4. This test checks for open in the warning lamp
circuitry.
5. This test isolates the IB04±GRN circuit and checks
for a short in the IB04±GRN circuit to B+.
8. This test checks for a short from the SDM warning
lamp power feed circuit to ground.
9. This test determines whether the short to ground is
due to a short in the wiring.
Page 2063 of 2100

9J1±13
RESTRAINT CONTROL SYSTEM

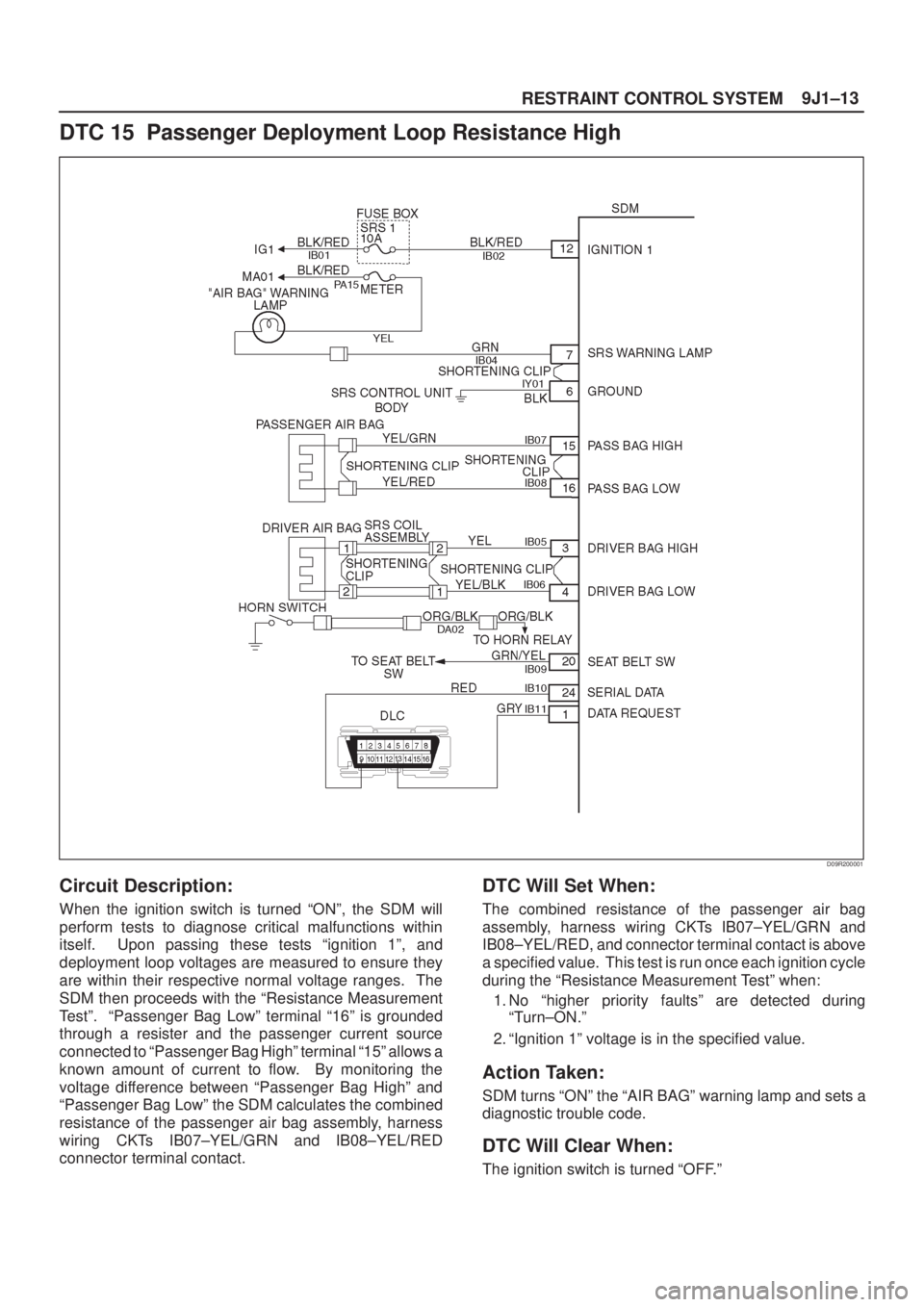

DTC 15 Passenger Deployment Loop Resistance High
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges. The
SDM then proceeds with the ªResistance Measurement
Testº. ªPassenger Bag Lowº terminal ª16º is grounded
through a resister and the passenger current source
connected to ªPassenger Bag Highº terminal ª15º allows a
known amount of current to flow. By monitoring the
voltage difference between ªPassenger Bag Highº and
ªPassenger Bag Lowº the SDM calculates the combined
resistance of the passenger air bag assembly, harness
wiring CKTs IB07±YEL/GRN and IB08±YEL/RED
connector terminal contact.
DTC Will Set When:
The combined resistance of the passenger air bag
assembly, harness wiring CKTs IB07±YEL/GRN and
IB08±YEL/RED, and connector terminal contact is above
a specified value. This test is run once each ignition cycle
during the ªResistance Measurement Testº when:
1. No ªhigher priority faultsº are detected during
ªTurn±ON.º
2. ªIgnition 1º voltage is in the specified value.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The ignition switch is turned ªOFF.º
Page 2066 of 2100

RESTRAINT CONTROL SYSTEM 9J1±16
DTC 16 Passenger Deployment Loop Resistance Low
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges. The
SDM then proceeds with the ªResistance Measurement
Testº. ªPassenger Bag Lowº terminal ª16º is grounded
through a resistor and the passenger current source
connected to ªPassenger Bag Highº terminal ª15º allows a
known amount of current to flow. By monitoring the
voltage difference between ªPassenger Bag Highº and
ªPassenger Bag Lowº, the SDM calculates the combined
resistance of the passenger air bag assembly, harness
wiring CKTs IB07±YEL/GRN and IB08±YEL/RED
connector terminal contact.
DTC Will Set When:
The combined resistance of the passenger air bag
assembly, harness wiring CKTs IB07±YEL/GRN and
IB08±YEL/RED, and connector terminal contact is above
a specified value. This test is run once each ignition cycle
during the ªResistance Measurement Testº when:
1. No ªhigher priority faultsº are detected during
ªTurn±ONº,
2. ªIgnition 1º voltage is in the specified value.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The ignition switch is turned ªOFF.º
Page 2069 of 2100

9J1±19
RESTRAINT CONTROL SYSTEM

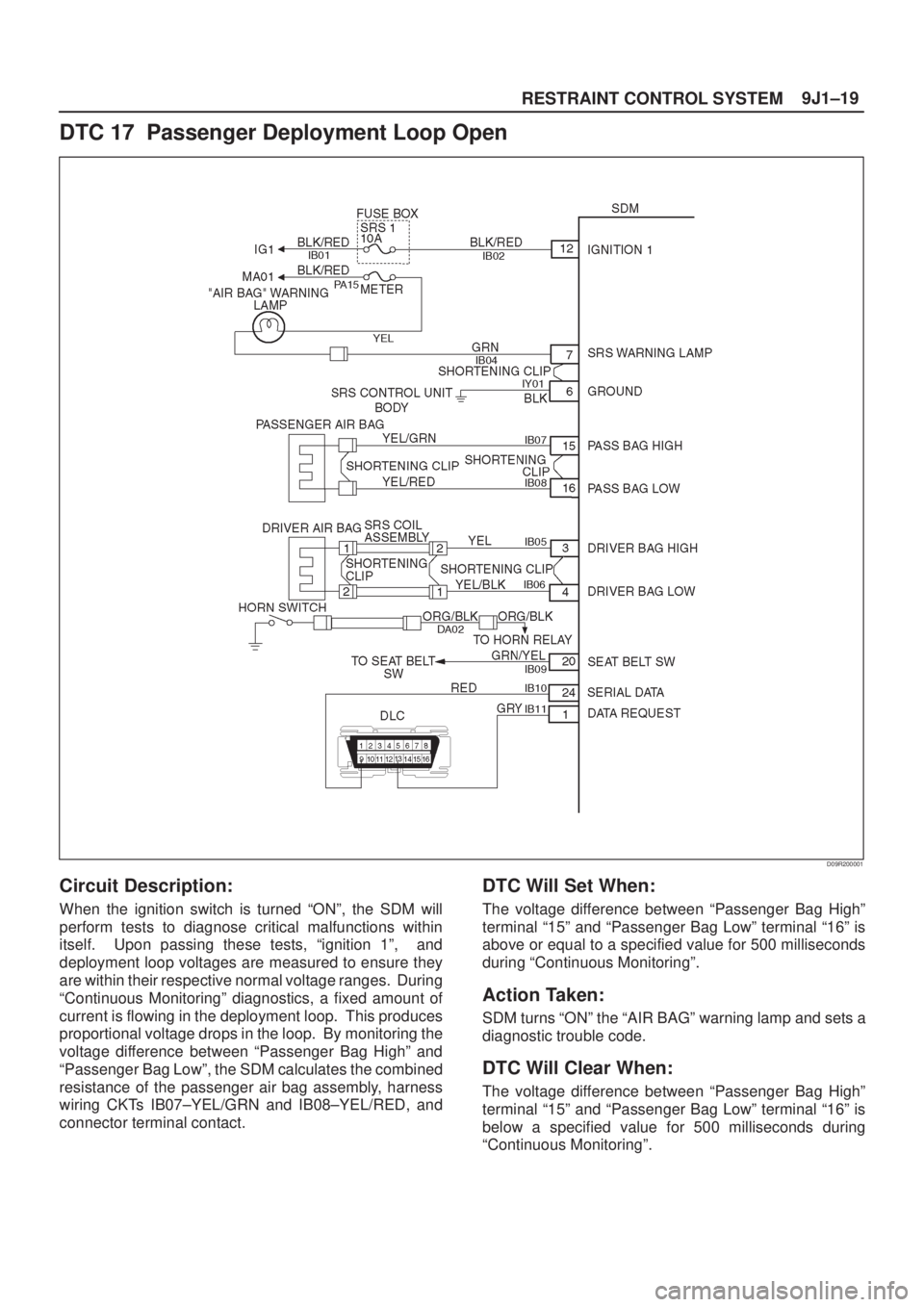

DTC 17 Passenger Deployment Loop Open
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges. During
ªContinuous Monitoringº diagnostics, a fixed amount of
current is flowing in the deployment loop. This produces
proportional voltage drops in the loop. By monitoring the
voltage difference between ªPassenger Bag Highº and
ªPassenger Bag Lowº, the SDM calculates the combined
resistance of the passenger air bag assembly, harness
wiring CKTs IB07±YEL/GRN and IB08±YEL/RED, and
connector terminal contact.
DTC Will Set When:
The voltage difference between ªPassenger Bag Highº
terminal ª15º and ªPassenger Bag Lowº terminal ª16º is
above or equal to a specified value for 500 milliseconds
during ªContinuous Monitoringº.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The voltage difference between ªPassenger Bag Highº
terminal ª15º and ªPassenger Bag Lowº terminal ª16º is
below a specified value for 500 milliseconds during
ªContinuous Monitoringº.
Page 2071 of 2100

9J1±21
RESTRAINT CONTROL SYSTEM

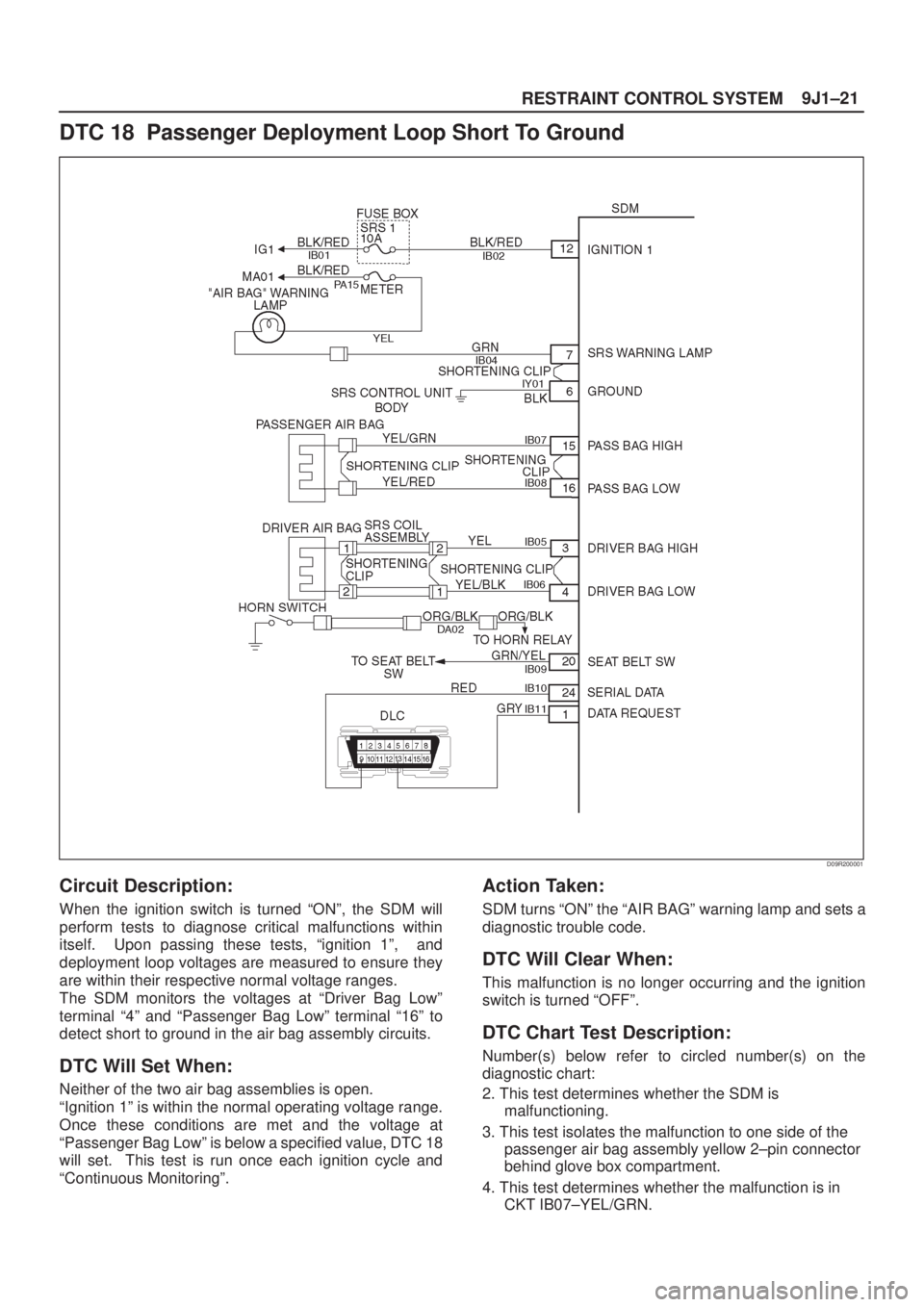

DTC 18 Passenger Deployment Loop Short To Ground
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltages at ªDriver Bag Lowº
terminal ª4º and ªPassenger Bag Lowº terminal ª16º to
detect short to ground in the air bag assembly circuits.
DTC Will Set When:
Neither of the two air bag assemblies is open.
ªIgnition 1º is within the normal operating voltage range.
Once these conditions are met and the voltage at
ªPassenger Bag Lowº is below a specified value, DTC 18
will set. This test is run once each ignition cycle and
ªContinuous Monitoringº.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
This malfunction is no longer occurring and the ignition
switch is turned ªOFFº.
DTC Chart Test Description:
Number(s) below refer to circled number(s) on the
diagnostic chart:
2. This test determines whether the SDM is
malfunctioning.
3. This test isolates the malfunction to one side of the
passenger air bag assembly yellow 2±pin connector
behind glove box compartment.
4. This test determines whether the malfunction is in
CKT IB07±YEL/GRN.
Page 2073 of 2100

9J1±23
RESTRAINT CONTROL SYSTEM

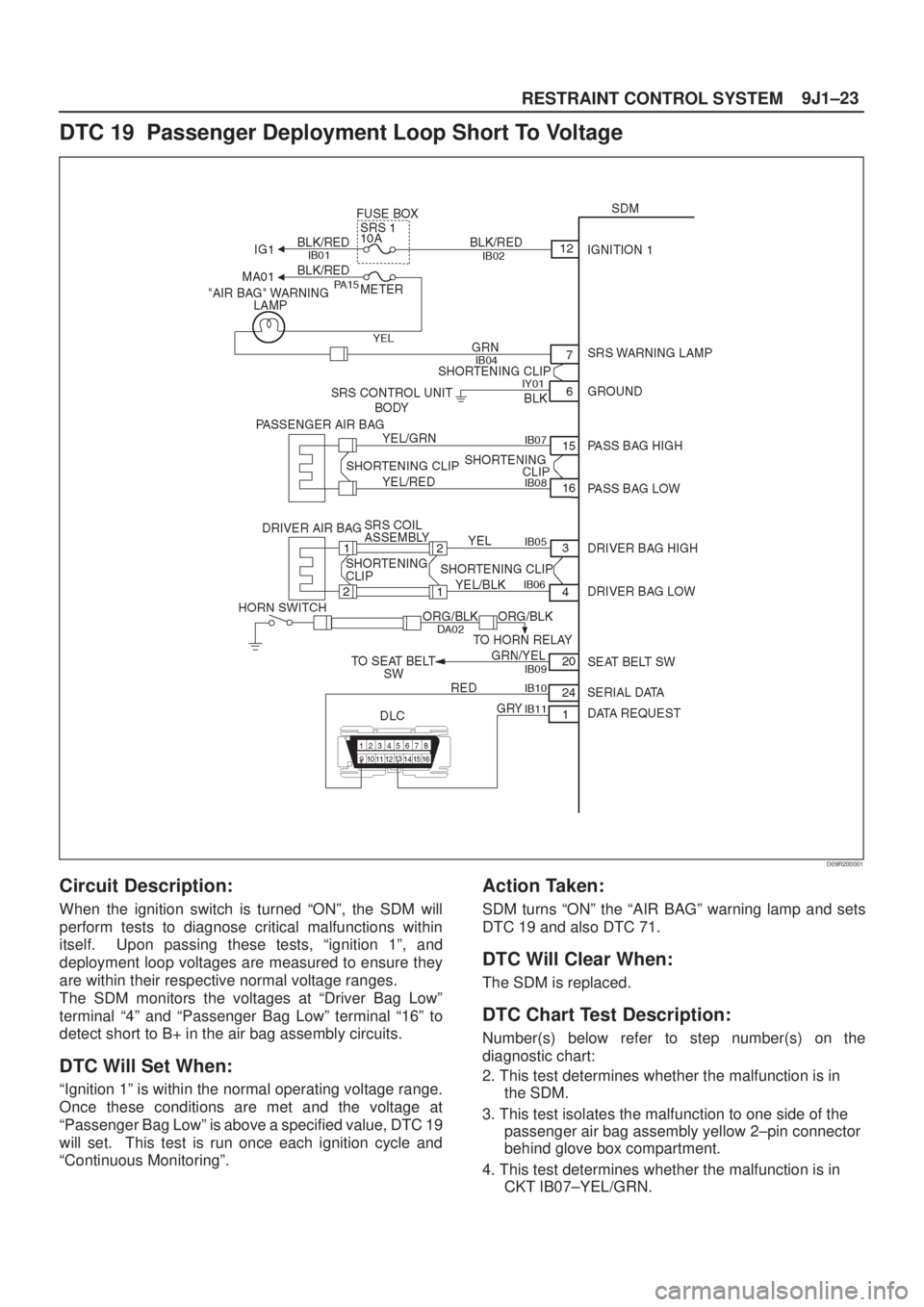

DTC 19 Passenger Deployment Loop Short To Voltage
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM monitors the voltages at ªDriver Bag Lowº
terminal ª4º and ªPassenger Bag Lowº terminal ª16º to
detect short to B+ in the air bag assembly circuits.
DTC Will Set When:
ªIgnition 1º is within the normal operating voltage range.
Once these conditions are met and the voltage at
ªPassenger Bag Lowº is above a specified value, DTC 19
will set. This test is run once each ignition cycle and
ªContinuous Monitoringº.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets
DTC 19 and also DTC 71.
DTC Will Clear When:
The SDM is replaced.
DTC Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the malfunction is in
the SDM.
3. This test isolates the malfunction to one side of the
passenger air bag assembly yellow 2±pin connector
behind glove box compartment.
4. This test determines whether the malfunction is in
CKT IB07±YEL/GRN.
Page 2075 of 2100

9J1±25
RESTRAINT CONTROL SYSTEM

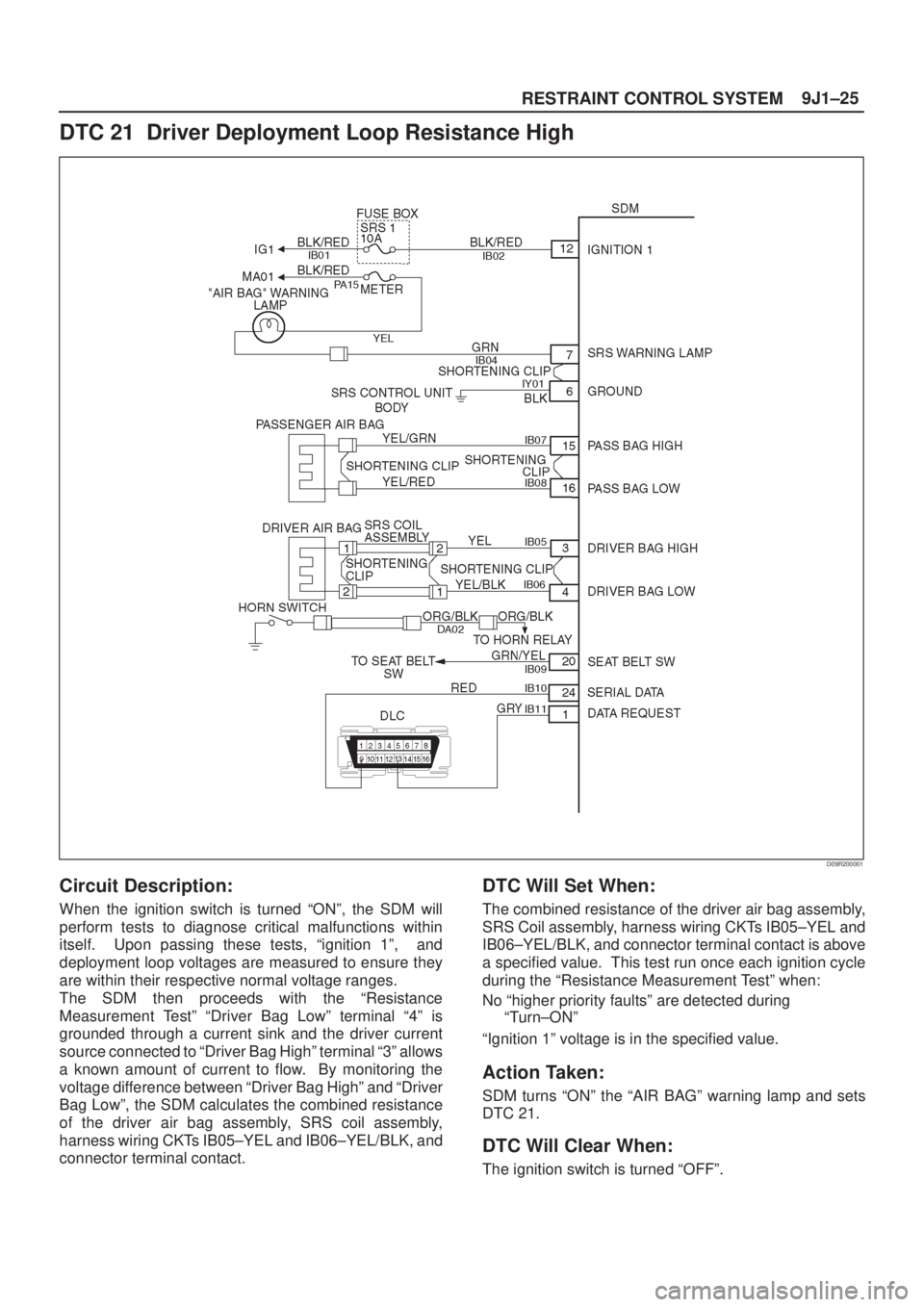

DTC 21 Driver Deployment Loop Resistance High
D09R200001
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªignition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
The SDM then proceeds with the ªResistance
Measurement Testº ªDriver Bag Lowº terminal ª4º is
grounded through a current sink and the driver current
source connected to ªDriver Bag Highº terminal ª3º allows
a known amount of current to flow. By monitoring the
voltage difference between ªDriver Bag Highº and ªDriver
Bag Lowº, the SDM calculates the combined resistance
of the driver air bag assembly, SRS coil assembly,
harness wiring CKTs IB05±YEL and IB06±YEL/BLK, and
connector terminal contact.
DTC Will Set When:
The combined resistance of the driver air bag assembly,
SRS Coil assembly, harness wiring CKTs IB05±YEL and
IB06±YEL/BLK, and connector terminal contact is above
a specified value. This test run once each ignition cycle
during the ªResistance Measurement Testº when:
No ªhigher priority faultsº are detected during
ªTurn±ONº
ªIgnition 1º voltage is in the specified value.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets
DTC 21.
DTC Will Clear When:
The ignition switch is turned ªOFFº.
