6E±495
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

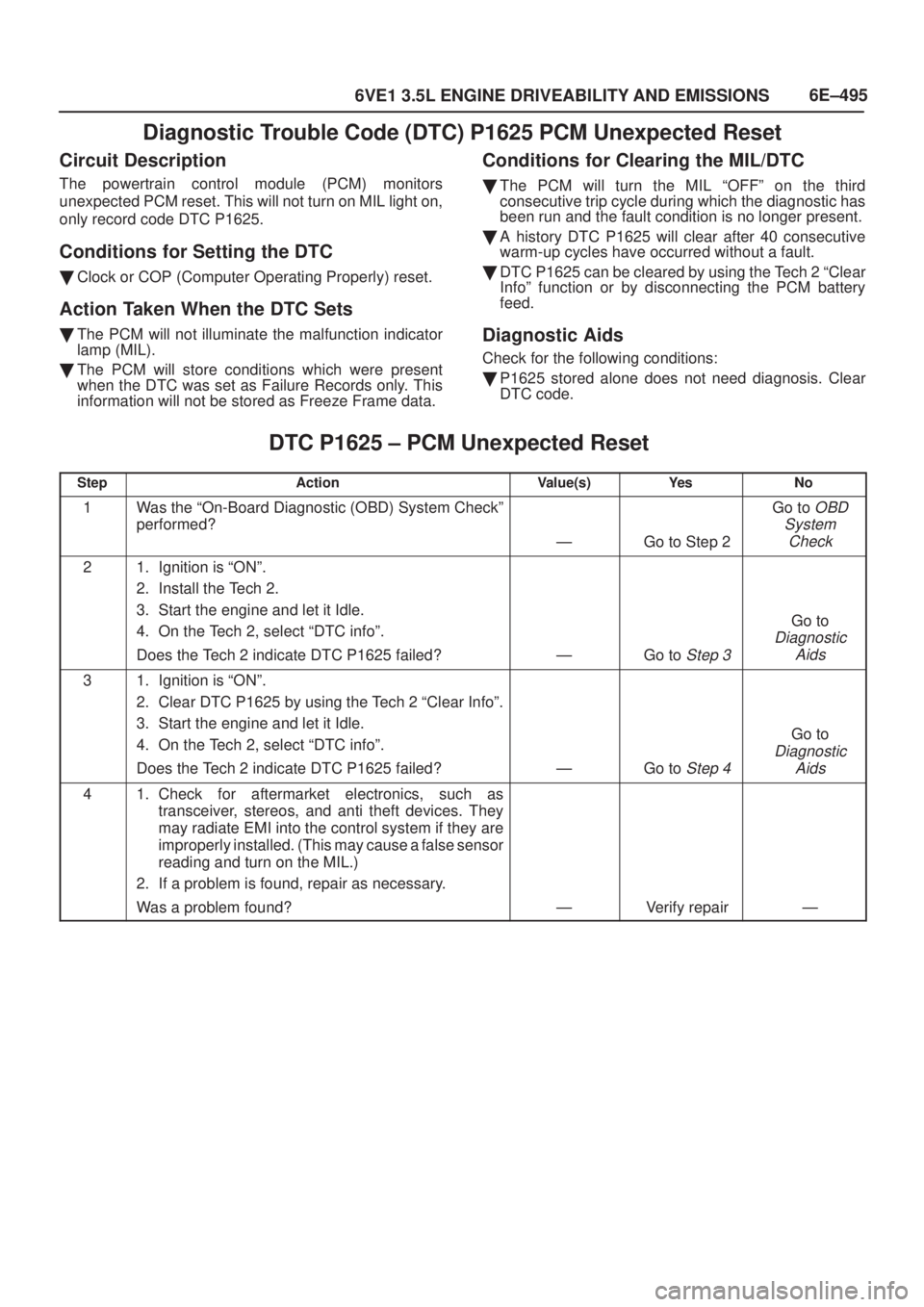

Diagnostic Trouble Code (DTC) P1625 PCM Unexpected Reset
Circuit Description
The powertrain control module (PCM) monitors
unexpected PCM reset. This will not turn on MIL light on,
only record code DTC P1625.
Conditions for Setting the DTC

Clock or COP (Computer Operating Properly) reset.
Action Taken When the DTC Sets

The PCM will not illuminate the malfunction indicator
lamp (MIL).

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P1625 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P1625 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
Check for the following conditions:

P1625 stored alone does not need diagnosis. Clear
DTC code.
DTC P1625 ± PCM Unexpected Reset

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition is ªONº.
2. Install the Tech 2.
3. Start the engine and let it Idle.
4. On the Tech 2, select ªDTC infoº.
Does the Tech 2 indicate DTC P1625 failed?
ÐGo to Step 3
Go to
Diagnostic
Aids
31. Ignition is ªONº.
2. Clear DTC P1625 by using the Tech 2 ªClear Infoº.
3. Start the engine and let it Idle.
4. On the Tech 2, select ªDTC infoº.
Does the Tech 2 indicate DTC P1625 failed?
ÐGo to Step 4
Go to
Diagnostic
Aids
41. Check for aftermarket electronics, such as
transceiver, stereos, and anti theft devices. They
may radiate EMI into the control system if they are
improperly installed. (This may cause a false sensor
reading and turn on the MIL.)
2. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairÐ

6E±506
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Symptom Diagnosis
Preliminary Checks
Before using this section, perform the ªOn-Board
Diagnostic (OBD) System Checkº and verify all of the
following items:

The powertrain control module (PCM), and
malfunction indicator lamp (MIL) (Check Engine
lamp) and Reduced Power Lamp (RPL) are operating
correctly.

There are no DTC(s) stored.

Tech 2 data is within normal operating range. Refer to
Typical Scan Data Values.

Verify the customer complaint and locate the correct
symptom in the table of contents. Perform the
procedure included in the symptom chart.
Visual/Physical Check
Several of the symptom procedures call for a careful
visual/physical check. This can lead to correcting a
problem without further checks and can save valuable
time.
This check should include the following items:

PCM grounds for cleanliness, tightness and proper
location.

Vacuum hoses for splits, kinks, and proper
connections, as shown on the ªVehicle Emission
Control Informationº label. Check thoroughly for any
type of leak or restriction.

Air intake ducts for collapsed or damaged areas.

Air leaks at throttle body mounting area, mass air flow
(MAF) sensor and intake manifold sealing surfaces.

Ignition components for cracking, hardness, and
carbon tracking.

Wiring for proper connections, pinches and cuts.
Intermittents
IMPORTANT:An intermittent problem may or may not
turn on the malfunction indicator lamp (MIL) or store a
DTC. DO NOT use the Diagnostic Trouble Code (DTC)
charts for intermittent problems. The fault must be
present to locate the problem.
Most intermittent problems are caused by faulty electrical
connections or wiring. Perform a careful visual/physical
check for the following conditions:

Poor mating of the connector halves or a terminal not
fully seated in the connector (backed out).

Improperly formed or damaged terminal.

All connector terminals in the problem circuit should
be carefully checked for proper contact tension.

Poor terminal-to-wire connection. This requires
removing the terminal from the connector body to
check.
Road test the vehicle with a J 39200 Digital Multimeter
connected to a suspected circuit. An abnormal voltage
when the malfunction occurs is a good indication that
there is a fault in the circuit being monitored.
Use a Tech 2 to help detect intermittent conditions. The
scan tool has several features that can be used to locatean intermittent condition. Use the following feature to find
intermittent faults:

Using a Tech 2's ªFreeze Frameº buffer or ªFailure
Recordsº buffer can aid in locating an intermittent
condition. Review and record the information in the
freeze frame or failure record associated with the
intermittent DTC being diagnosed. The vehicle can
be driven within the conditions that were present
when the DTC originally set.
To check for loss of diagnostic code memory, disconnect
the MAP sensor and idle the engine until the MIL (Check
Engine lamp) comes on. DTC P0107 should be stored
and kept in memory when the ignition is turned ªOFFº. If
not, the PCM is faulty. When this test is completed, make
sure that you clear the DTC P0107 from memory.
An intermittent MIL (Check Engine lamp) with no stored
DTC may be caused by the following:

Ignition coil shorted to ground and arcing.

MIL (Check Engine lamp) wire to PCM shorted to
ground.

Poor PCM grounds. Refer to the PCM wiring
diagrams.
Check for improper installation of electrical options such
as lights, cellular phones, etc. Check all wires from the
PCM to the ignition coils for poor connections.
Check for an open diode across the A/C compressor
clutch and check for other open diodes (refer to wiring
diagrams in
Electrical Diagnosis).
If problem has not been found, refer to
PCM Connector
Symptom
tables.

Check the ªCalibration IDº of the PCM, and compare it
with the latest Isuzu service bulletins and/or Isuzu
EEPROM reprogramming equipment to determine if
an update to the PCM's reprogrammable memory
has been released. To check the ªCalibration IDº,
connect the Tech 2, then look for ªPowertrainº, then
select ªCalibration IDº. This identifies the contents of
the reprogrammable software and calibration
contained in the PCM. If the ªCalibration IDº is not the
most current available, it is advisable to reprogram
the PCM's EEPROM memory, which may either help
identify a hard-to-find problem or may fix the problem.

Calibration ID (example)
Part number 9377709
Broadcast Code CYYD
Identifier 801

6E±545
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Malfunction Indicator Lamp
(MIL)
Removal and Installation Procedure
Refer to Warning light bulb, indicator light valve,
illumination light bulb, A/T indicator light bulb in Meter and
Gauge.
Reduced Power Lamp
The reduced power lamp (RPL) turns on when the ignition
key is moved to the ON position. It should turn off in
approximately 3 seconds or immediately after the engine
starts.
If the RPL turns on during vehicle operation, a vehicle
system failure resulting in reduced engine output is
indicated.
If both the reduced RPL and the check engine light turn
on, a serious problem affecting vehicle performance is
indicated.
Refer to the
OBD system check NO and RPL ªONº steady
in this manual.
Powertrain Control Module
(PCM)
Service Precaution
NOTE: To p r e ve n t p ossible electrostatic discharge
damage to the PCM, do not touch the connector pins or
soldered components on the circuit board.
Electrostatic Discharge (ESD)
Damage
Electronic components used in the control systems are
often designed to carry very low voltage. Electronic
components are susceptible to damage caused by
electrostatic discharge. Less than 100 volts of static
electricity can cause damage to some electronic
components. By comparison, it takes as much as 4,000
volts for a person to even feel the zap of a static
discharge.
There are several ways for a person to become statically
charged. The most common methods of charging are by
friction and by induction. An example of charging by
friction is a person sliding across a car seat.
Charging by induction occurs when a person with well
insulated shoes stands near a highly charged object and
momentarily touches ground. Charges of the same
polarity are drained off leaving the person highly charged
with the opposite polarity. Static charges can cause
damage, therefore, it is important to use care when
handling and testing electronic components.
NOTE: To prevent possible Electrostatic Discharge
damage, follow these guidelines:

Do not touch the control module connector pins or
soldered components on the control module circuit
board.
Do not open the replacement part package until the
part is ready to be installed.

Before removing the part from the package, ground
the package to a known good ground on the vehicle.

If the part has been handled while sliding across the
seat, or while sitting down from a standing position, or
while walking a distance, touch a known good ground
before installing the part.
NOTE: To prevent internal PCM damage, the ignition
must be in the ªOFFº position in order to disconnect or
reconnect power to the PCM (for example: battery cable,
PCM pigtail, PCM fuse, jumper cables, etc.).
IMPORTANT:When replacing the production PCM
with a service PCM, it is important to transfer the
broadcast code and production PCM number to the
service PCM label. This will allow positive identification of
PCM parts throughout the service life of the vehicle. Do
not record this information on the metal PCM cover.
IMPORTANT:The ignition should always be in the
ªOFFº position in order to install or remove the PCM
connectors.
Service of the PCM should normally consist of either re-
placement of the PCM or EEPROM programming. If the
diagnostic procedures call for the PCM to be replaced,
the PCM should be checked first to ensure it is the correct
part. If it is, remove the faulty PCM and install the new
service PCM.
The service PCM EEPROM will not be programmed.
DTC P0601 indicates the check sum error.
Removal Procedure
1. Disconnect the negative battery cable.
2. Block the wheels.
3. Remove the two screws from the PCM electrical
connectors.
4. Disconnect the PCM electrical connectors.
060RY00065

6E±548
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Vehicle Speed Sensor (VSS)
Removal Procedure
CAUTION: The VSS is located on the right side of
the transfer case just ahead of the rear propeller
shaft and very close to the exhaust pipes for 4WD
and on the extension cover for 2WD. Be sure that the
exhaust pipes are cool enough to touch before trying
to remove the VSS. If the pipes are hot, you could be
burned.
1. Disconnect the negative battery cable.
2. Disconnect the VSS electrical connector.
TS23748
3. Remove the bolt and the clamp securing the VSS in
place.
IMPORTANT:Have a container ready to catch any fluid
that leaks out when the VSS is removed from the transfer
case for 4WD and on the extension cover for 2WD.
TS23780
4. Remove the VSS from the transfer case by wiggling it
slightly and pulling it straight out.
Inspection Procedure
1. Inspect the electrical connector for signs of corrosion
or warping. Replace the VSS if the electrical
connector is corroded or warped.
2. Inspect the VSS driven gear for chips, breaks, or worn
condition. Replace the VSS if the driven gear is
chipped, broken or worn.
3. Inspect the O-ring for wear, nicks, tears, or
looseness. Replace the O-ring if necessary.
Installation Procedure
1. Install the VSS in the transfer case with the notch for
the connector facing the rear.
2. Secure the VSS in place with the clamp and the bolt.
Tighten

Tighten the bolt to 16 N´m (12 lb ft.).
TS23780
3. Connect the VSS electrical connector.
TS23748
4. Check the transfer case oil level. Add fluid if
necessary.
5. Connect the negative battery cable.

6E±575
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Powertrain Control Module (PCM)
The powertrain control module (PCM) is located in the
passenger compartment below the center console. The
PCM controls the following:

Fuel metering system.

Transmission shifting (automatic transmission only).

Ignition timing.

On-board diagnostics for powertrain functions.
The PCM constantly observes the information from
various sensors. The PCM controls the systems that
affect vehicle performance. The PCM performs the
diagnostic function of the system. It can recognize
operational problems, alert the driver through the MIL
(Check Engine lamp), and store diagnostic trouble codes
(DTCs). DTCs identify the problem areas to aid the
technician in making repairs.
PCM Function
The PCM supplies either 5 or 12 volts to power various
sensors or switches. The power is supplied through
resistances in the PCM which are so high in value that a
test light will not light when connected to the circuit. In
some cases, even an ordinary shop voltmeter will not give
an accurate reading because its resistance is too low.
Therefore, a digital voltmeter with at least 10 megohms
input impedance is required to ensure accurate voltage
readings. Tool J 39200 meets this requirement. The PCM
controls output circuits such as the injectors, fan relays,
etc., by controlling the ground or the power feed circuit
through transistors or through either of the following two
devices:

Output Driver Module (ODM)

Quad Driver Module (QDM)
060RY00068
PCM Components
The PCM is designed to maintain exhaust emission levels
to government mandated standards while providing
excellent driveability and fuel efficiency. The PCM
monitors numerous engine and vehicle functions via
electronic sensors such as the throttle position (TP)sensor, heated oxygen sensor (HO2S), and vehicle
speed sensor (VSS). The PCM also controls certain
engine operations through the following:

Fuel injector control

Ignition control module

ION sensing module

Automatic transmission shift functions

Cruise control

Evaporative emission (EVAP) purge

A/C clutch control
PCM Voltage Description
The PCM supplies a buffered voltage to various switches
and sensors. It can do this because resistance in the
PCM is so high in value that a test light may not illuminate
when connected to the circuit. An ordinary shop
voltmeter may not give an accurate reading because the
voltmeter input impedance is too low. Use a 10-megohm
input impedance digital voltmeter (such as J 39200) to
assure accurate voltage readings.
The input/output devices in the PCM include
analog-to-digital converters, signal buffers, counters,
and special drivers. The PCM controls most components
with electronic switches which complete a ground circuit
when turned ªON.º These switches are arranged in
groups of 4 and 7, called either a surface-mounted quad
driver module (QDM), which can independently control up
to 4 output terminals, or QDMs which can independently
control up to 7 outputs. Not all outputs are always used.
PCM Input/Outputs
Inputs ± Operating Conditions Read

Air Conditioning ªONº or ªOFFº

Engine Coolant Temperature

Crankshaft Position

Exhaust Oxygen Content

Electronic Ignition

Manifold Absolute Pressure

Battery Voltage

Throttle Position

Vehicle Speed

Fuel Pump Voltage

Power Steering Pressure

Intake Air Temperature

Mass Air Flow

Engine Knock

Acceleration Position
Outputs ± Systems Controlled

EVAP Canister Purge

Exhaust Gas Recirculation (EGR)

Ignition Control

Fuel Control

ION Sensing Module

Electric Fuel Pump

Air Conditioning

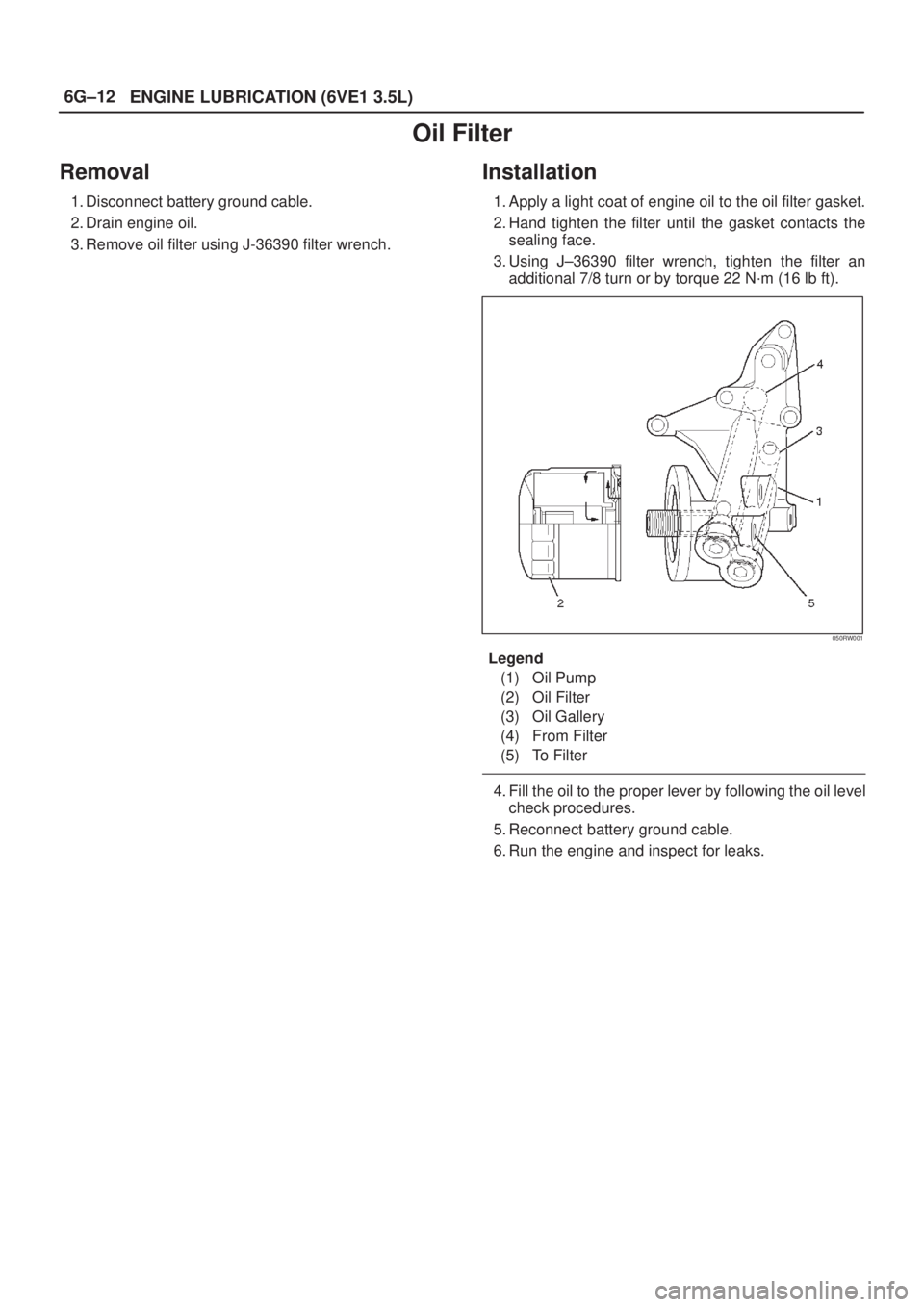

6G±12
ENGINE LUBRICATION (6VE1 3.5L)
Oil Filter
Removal
1. Disconnect battery ground cable.
2. Drain engine oil.
3. Remove oil filter using J-36390 filter wrench.
Installation
1. Apply a light coat of engine oil to the oil filter gasket.
2. Hand tighten the filter until the gasket contacts the
sealing face.
3. Using J±36390 filter wrench, tighten the filter an
additional 7/8 turn or by torque 22 N´m (16 lb ft).
050RW001
Legend
(1) Oil Pump
(2) Oil Filter
(3) Oil Gallery
(4) From Filter
(5) To Filter
4. Fill the oil to the proper lever by following the oil level
check procedures.
5. Reconnect battery ground cable.
6. Run the engine and inspect for leaks.

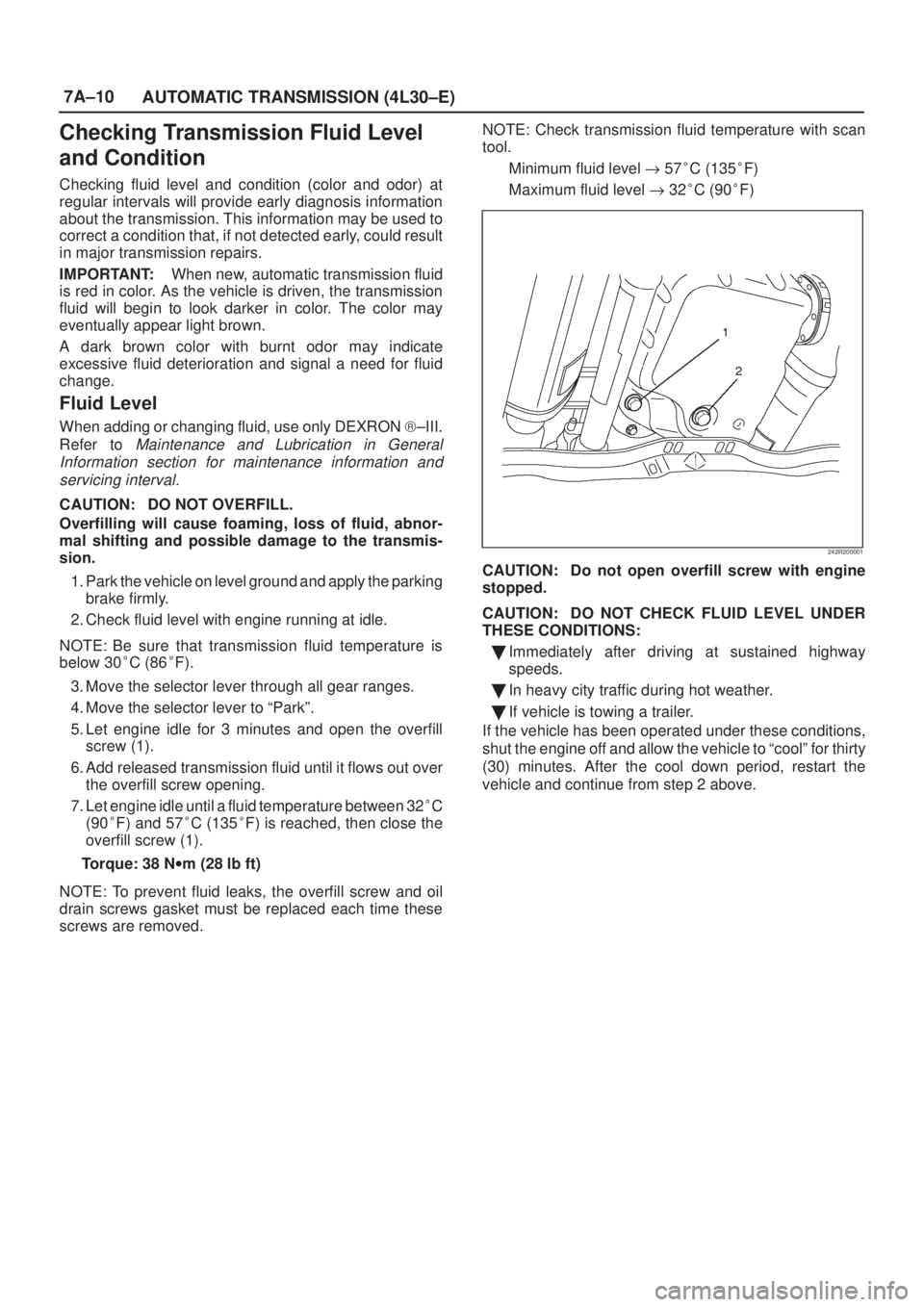

7A±10
AUTOMATIC TRANSMISSION (4L30±E)
Checking Transmission Fluid Level
and Condition
Checking fluid level and condition (color and odor) at
regular intervals will provide early diagnosis information
about the transmission. This information may be used to
correct a condition that, if not detected early, could result
in major transmission repairs.
IMPORTANT:When new, automatic transmission fluid
is red in color. As the vehicle is driven, the transmission
fluid will begin to look darker in color. The color may
eventually appear light brown.
A dark brown color with burnt odor may indicate
excessive fluid deterioration and signal a need for fluid
change.
Fluid Level
When adding or changing fluid, use only DEXRON )±III.
Refer to
Maintenance and Lubrication in General
Information section for maintenance information and
servicing interval.
CAUTION: DO NOT OVERFILL.
Overfilling will cause foaming, loss of fluid, abnor-
mal shifting and possible damage to the transmis-
sion.
1. Park the vehicle on level ground and apply the parking
brake firmly.
2. Check fluid level with engine running at idle.
NOTE: Be sure that transmission fluid temperature is
below 30
C (86
F).
3. Move the selector lever through all gear ranges.
4. Move the selector lever to ªParkº.
5. Let engine idle for 3 minutes and open the overfill
screw (1).
6. Add released transmission fluid until it flows out over
the overfill screw opening.
7. Let engine idle until a fluid temperature between 32
C
(90
F) and 57
C (135
F) is reached, then close the
overfill screw (1).
Torque: 38 Nwm (28 lb ft)
NOTE: To prevent fluid leaks, the overfill screw and oil
drain screws gasket must be replaced each time these
screws are removed.NOTE: Check transmission fluid temperature with scan
tool.
Minimum fluid level " 57
C (135
F)
Maximum fluid level " 32
C (90
F)
242R200001
CAUTION: Do not open overfill screw with engine
stopped.
CAUTION: DO NOT CHECK FLUID LEVEL UNDER
THESE CONDITIONS:

Immediately after driving at sustained highway
speeds.

In heavy city traffic during hot weather.

If vehicle is towing a trailer.
If the vehicle has been operated under these conditions,
shut the engine off and allow the vehicle to ªcoolº for thirty
(30) minutes. After the cool down period, restart the
vehicle and continue from step 2 above.

7A±11 AUTOMATIC TRANSMISSION (4L30±E)
Fluid Condition
FLUID CONDITION
NORMAL*CONTAMINATED
COLORRED OR LIGHT
BROWNBROWNNON±TRANSPARENT
/ PINKBROWN
DRAIN
REQUIRED?NOYESYESYES
CONTAMINA±
TIONNONEVery small amount of
foreign material in
bottom of panContamination by cool-
ant or other sourceLarge pieces of metal
or other foreign
material in bottom of
pan
CORRECT
LEVEL AND
CONDITION
1. LOW LEVEL:
A. Add fluid to
obtain proper
level & check for
external leaks.
B. Correct cause of
leak.
2. HIGH LEVEL:
± Remove excess
fluid± Remove both pans
± Change filter
± Flush cooler
± Add new fluid
± Check level± Repair/replace
radiator cooler
± Transmission
overhaul required
± Check for:

Damaged plates
and seals

Contaminated
solenoids
± Flush cooler
± Add new fluid
± Check level± Transmission
overhaul required
± Flush cooler and
cooler lines
± Add new fluid
± Check level
*Fluid should be changed according to maintenance
schedule.
Test Driving
Some 4L30±E automatic transmission complaints will
require a test drive as a part of the diagnostic procedure.
Some codes will not set unless the vehicle is moving. The
purpose of the test drive is to duplicate the customer's
complaint condition and set a current Powertrain Control
Module (PCM) trouble code. Perform this procedure
before each 4L30±E automatic transmission repair, and
again after repairs are made.
IMPORTANT:

Duplicate the condition under which the customer's
complaint was observed.

Depending on the complaint, the line pressure gauge
and the scan tool may be required during the test
drive.

During the test drive, it is important to record all
necessary data from the areas being monitored, for
use in diagnosis. Also listen for and note any unusual
noises.
The following procedure should be used to test drive
4L30±E automatic transmission complaint vehicles:
1. Turn the ignition ON without starting the engine.
Check that the ªCHECK TRANSº lamp comes on for
approximately 2 seconds and then goes out and
remains out.

If the lamp is flashing, GO TO Check Trans
Indicator in Transmission Control System
(4L30±E) section.
If no serial data is present, GO TO OBD System
Check. Refer to
Driveability and Emissions in
Engine section.

If the lamp stays ON or stays OFF, GO TO ªCheck
Transº Check in Transmission Control System
(4L30±E) section.
2. Drive the vehicle. During the test drive, be sure that
the transmission achieves normal operating
temperature (approx. 20 minutes).
Allow the transmission to go through all of its gear
ranges, checking shift timing and firmness. Duplicate
the owner's complaint condition as closely as
possible during the test drive.
3. If, during the test drive, the ªCHECK TRANSº lamp
comes on, use the scan tool to check for trouble
codes.
4. If, during the test drive, a problem is felt, but the
ªCHECK TRANSº lamp does not come on and no
trouble codes are present, drive the vehicle with the
PCM disconnected (manually shifting the vehicle).

In Manual L, the vehicle operates in first gear.

In Manual 2, the vehicle operates in third gear.

In Manual 3 or ªDº, the vehicle operates in fourth
gear.
If the problem still exists with the PCM disconnected,
refer to
Mechanical/Hydraulic Diagnosis in this
section.
5. If no problem has been found at this point, check all
underhood connections that supply power to the PCM
and ignition fuses. Physically and visually inspect all
the PCM harness connectors for loose or corroded
terminals. Inspect the PCM ground points.
