6E±243
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0202 ± Injector 2 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 2 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 2 (green with orange
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/orange wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±245
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0203 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 3 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.
If the test light blinks while cranking, the PCM and
the wiring to the injectors are OK. The Fuel Injector
Coil Test Procedure will check if the injectors are
faulty.
R321056
7. Because the test light was ªONº steady, voltage to
the injector is OK, but the driver circuit is grounded
at all times. This step determines if the circuit is
shorted to ground or the PCM is faulty.
9. The reading should be about 12-14
.
10.Locating the open in the harness or in the injector
will require removal of the manifold to provide
access.
DTC P0203 ± Injector 3 Control Circuit

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Will the engine start?
ÐGo to Step 3
Go to Engine
Cranks But
Will Not Run
chart
31. Install the Tech 2. Clear the DTC.
2. Idle the engine for one minute.
Does DTC P0203 reset?
ÐGo to Step 5Go to Step 4
41. Review the Freeze Frame data with the ignition
ªONº and the engine ªOFFº and note the
parameters.
2. Operate the vehicle within the Freeze Frame
conditions as noted.
Does P0203 reset?
ÐGo to Step 5
Go to
Diagnostic
Aids
51. Engine ªOFFº.
2. Disconnect the injector test connector .
3. Install an injector test light J-39021-65 on injector
connector.
4. Crank the engine and note the light.
Does the cylinder 3 test light blink?
Ð
Go to Fuel
Injector Coil
Test
Procedure
Go to Step 6

6E±246
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0203 ± Injector 3 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 3 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 3 (green).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

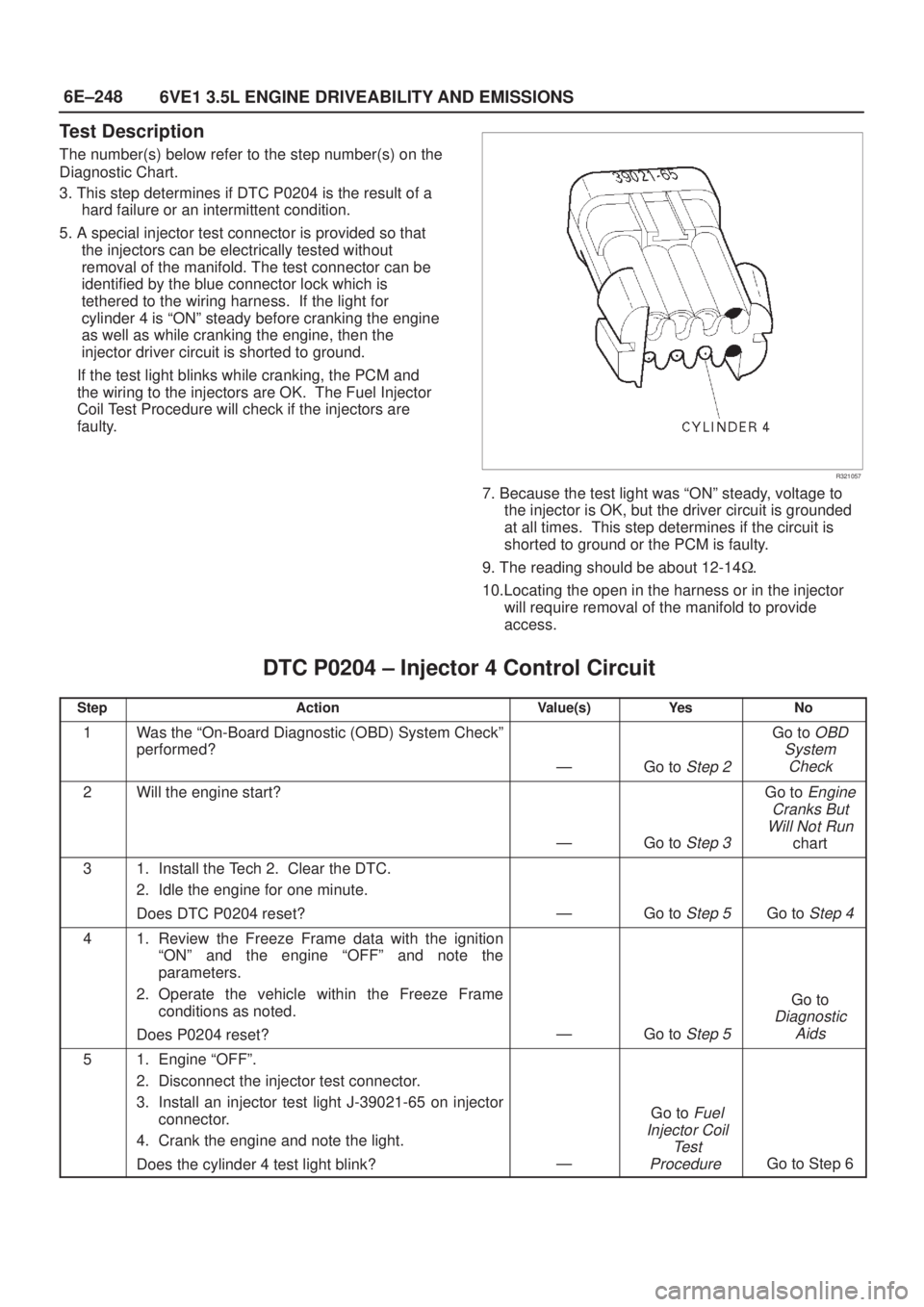

6E±248
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0204 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 4 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.
If the test light blinks while cranking, the PCM and
the wiring to the injectors are OK. The Fuel Injector
Coil Test Procedure will check if the injectors are
faulty.
R321057
7. Because the test light was ªONº steady, voltage to
the injector is OK, but the driver circuit is grounded
at all times. This step determines if the circuit is
shorted to ground or the PCM is faulty.
9. The reading should be about 12-14
.
10.Locating the open in the harness or in the injector
will require removal of the manifold to provide
access.
DTC P0204 ± Injector 4 Control Circuit

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Will the engine start?
ÐGo to Step 3
Go to Engine
Cranks But
Will Not Run
chart
31. Install the Tech 2. Clear the DTC.
2. Idle the engine for one minute.
Does DTC P0204 reset?
ÐGo to Step 5Go to Step 4
41. Review the Freeze Frame data with the ignition
ªONº and the engine ªOFFº and note the
parameters.
2. Operate the vehicle within the Freeze Frame
conditions as noted.
Does P0204 reset?
ÐGo to Step 5
Go to
Diagnostic
Aids
51. Engine ªOFFº.
2. Disconnect the injector test connector.
3. Install an injector test light J-39021-65 on injector
connector.
4. Crank the engine and note the light.
Does the cylinder 4 test light blink?
Ð
Go to Fuel
Injector Coil
Test
Procedure
Go to Step 6

6E±249
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0204 ± Injector 4 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 4 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 4 (green/red).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/red wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

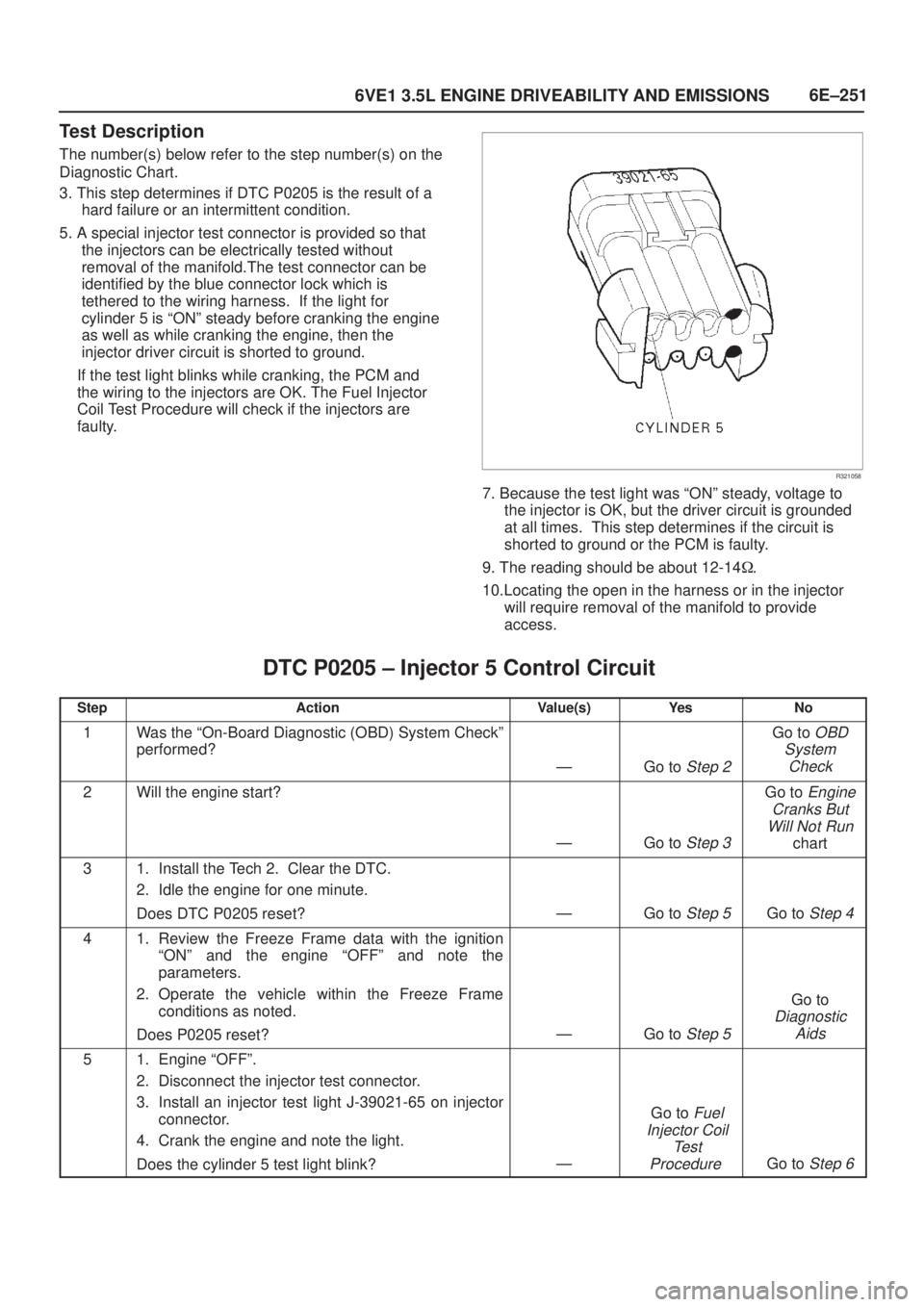

6E±251
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0205 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold.The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 5 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.
If the test light blinks while cranking, the PCM and
the wiring to the injectors are OK. The Fuel Injector
Coil Test Procedure will check if the injectors are
faulty.
R321058
7. Because the test light was ªONº steady, voltage to
the injector is OK, but the driver circuit is grounded
at all times. This step determines if the circuit is
shorted to ground or the PCM is faulty.
9. The reading should be about 12-14
.
10.Locating the open in the harness or in the injector
will require removal of the manifold to provide
access.
DTC P0205 ± Injector 5 Control Circuit

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Will the engine start?
ÐGo to Step 3
Go to Engine
Cranks But
Will Not Run
chart
31. Install the Tech 2. Clear the DTC.
2. Idle the engine for one minute.
Does DTC P0205 reset?
ÐGo to Step 5Go to Step 4
41. Review the Freeze Frame data with the ignition
ªONº and the engine ªOFFº and note the
parameters.
2. Operate the vehicle within the Freeze Frame
conditions as noted.
Does P0205 reset?
ÐGo to Step 5
Go to
Diagnostic
Aids
51. Engine ªOFFº.
2. Disconnect the injector test connector.
3. Install an injector test light J-39021-65 on injector
connector.
4. Crank the engine and note the light.
Does the cylinder 5 test light blink?
Ð
Go to Fuel
Injector Coil
Test
Procedure
Go to Step 6

6E±252
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0205 ± Injector 5 Control Circuit


StepNo Ye s Value(s) Action
6 Note whether the injector test light for cylinder 5 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 5 (green with black
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/black wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±254
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0206 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold.The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 6 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.
If the test light blinks while cranking, the PCM and
the wiring to the injectors are OK. The Fuel Injector
Coil Test Procedure will check if the injectors are
faulty.
R321059
7. Because the test light was ªONº steady, voltage to
the injector is OK, but the driver circuit is grounded
at all times. This step determines if the circuit is
shorted to ground or the PCM is faulty.
9. The reading should be about 12-14
.
10.Locating the open in the harness or in the injector
will require removal of the manifold to provide
access.
DTC P0206 ± Injector 6 Control Circuit

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Will the engine start?
ÐGo to Step 3
Go to Engine
Cranks But
Will Not Run
chart
31. Install the Tech 2. Clear the DTC.
2. Idle the engine for one minute.
Does DTC P0206 reset?
ÐGo to Step 5Go to Step 4
41. Review the Freeze Frame data with the ignition
ªONº and the engine ªOFFº and note the
parameters.
2. Operate the vehicle within the Freeze Frame
conditions as noted.
Does P0206 reset?
ÐGo to Step 5
Go to
Diagnostic
Aids
51. Engine ªOFFº.
2. Disconnect the injector test connector.
3. Install an injector test light J-39021-65 on injector
connector.
4. Crank the engine and note the light.
Does the cylinder 6 test light blink?
Ð
Go to Fuel
Injector Coil
Test
Procedure
Go to Step 6
