6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

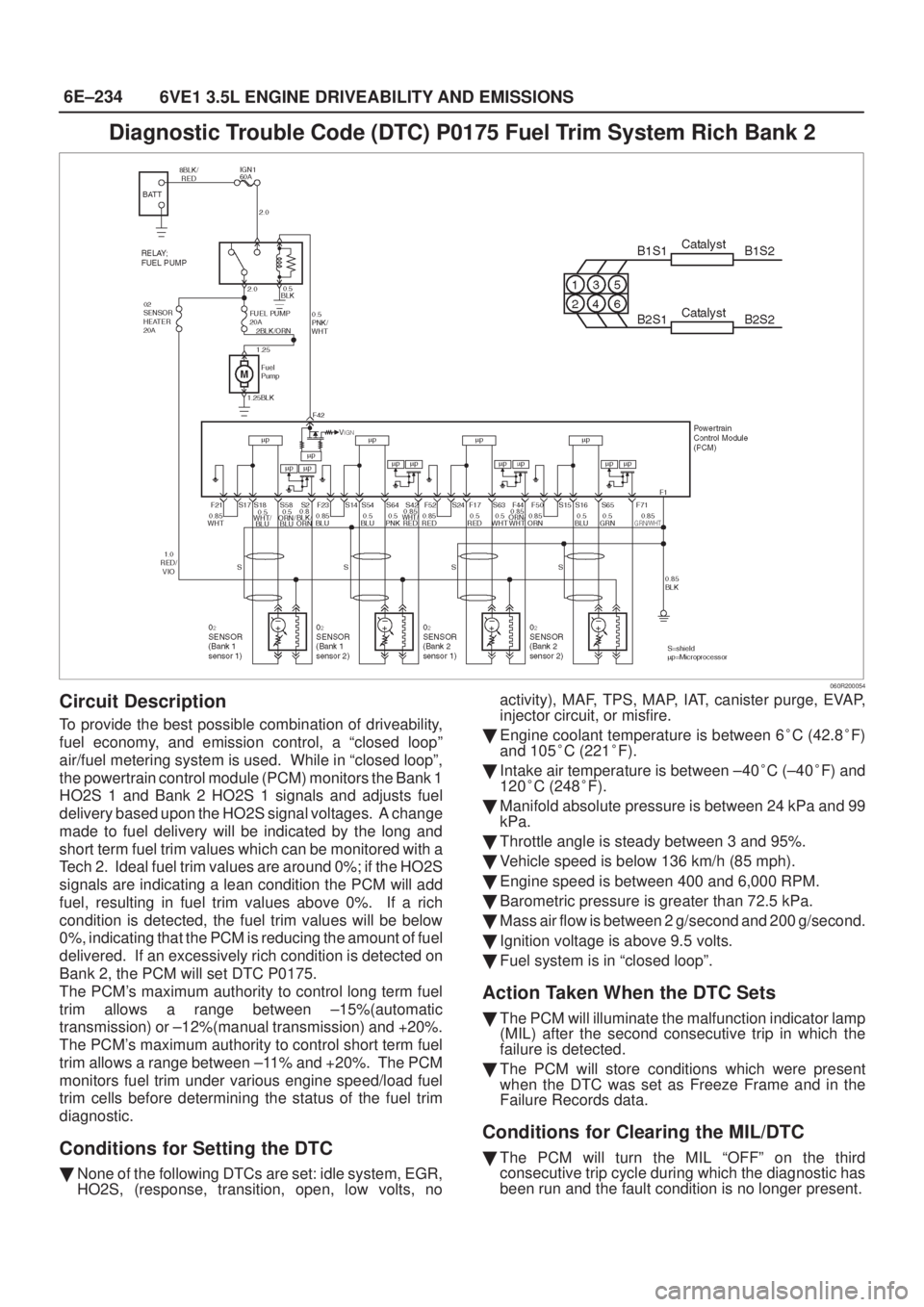

Diagnostic Trouble Code (DTC) P0175 Fuel Trim System Rich Bank 2
060R200054
Circuit Description
To provide the best possible combination of driveability,
fuel economy, and emission control, a ªclosed loopº
air/fuel metering system is used. While in ªclosed loopº,
the powertrain control module (PCM) monitors the Bank 1
HO2S 1 and Bank 2 HO2S 1 signals and adjusts fuel
delivery based upon the HO2S signal voltages. A change
made to fuel delivery will be indicated by the long and
short term fuel trim values which can be monitored with a
Tech 2. Ideal fuel trim values are around 0%; if the HO2S
signals are indicating a lean condition the PCM will add
fuel, resulting in fuel trim values above 0%. If a rich
condition is detected, the fuel trim values will be below
0%, indicating that the PCM is reducing the amount of fuel
delivered. If an excessively rich condition is detected on
Bank 2, the PCM will set DTC P0175.
The PCM's maximum authority to control long term fuel
trim allows a range between ±15%(automatic
transmission) or ±12%(manual transmission) and +20%.
The PCM's maximum authority to control short term fuel
trim allows a range between ±11% and +20%. The PCM
monitors fuel trim under various engine speed/load fuel
trim cells before determining the status of the fuel trim
diagnostic.
Conditions for Setting the DTC

None of the following DTCs are set: idle system, EGR,
HO2S, (response, transition, open, low volts, noactivity), MAF, TPS, MAP, IAT, canister purge, EVAP,
injector circuit, or misfire.

Engine coolant temperature is between 6
C (42.8
F)
and 105
C (221
F).

Intake air temperature is between ±40
C (±40
F) and
120
C (248
F).

Manifold absolute pressure is between 24 kPa and 99
kPa.

Throttle angle is steady between 3 and 95%.

Vehicle speed is below 136 km/h (85 mph).

Engine speed is between 400 and 6,000 RPM.

Barometric pressure is greater than 72.5 kPa.

Mass air flow is between 2 g/second and 200 g/second.

Ignition voltage is above 9.5 volts.

Fuel system is in ªclosed loopº.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) after the second consecutive trip in which the
failure is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

6E±299
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0401 EGR Flow Insufficient
060R200050
Circuit Description
The powertrain control module (PCM) tests the exhaust
gas recirculation (EGR) system during deceleration by
momentarily commanding the EGR valve to open while
monitoring the manifold absolute pressure (MAP) sensor
signal. When the EGR valve is opened, the PCM
monitors the change in MAP input signal. The PCM
compares the MAP change to a RPM vs. BARO table.
When the PCM interprets the change in MAP to be out of
limits, the PCM will set DTC P0401. The number of test
samples required to accomplish this may vary according
to the severity of the detected flow error.
Normally, the PCM will only allow one EGR flow test
sample to be taken during an ignition cycle. To aid in
verifying a repair, the PCM allows twelve test samples
during the first ignition cycle following a Tech 2 ªClear Infoº
or a battery disconnect. Between nine and twelve
samples should be sufficient for the PCM to determine
adequate EGR flow and pass the EGR test.
Conditions for Setting the DTC

No TP sensor, vehicle speed sensor (VSS), MAP
sensor, IAT sensor, IAC, EGR Pintle Position sensor,
ECT sensor, misfire, or automatic transmission DTCs
set.

Engine coolant temperature is greater than 60
C
(140
F).

Ignition voltage between 11.5 and 16 volts.

Vehicle speed is greater than 24 km/h (15 mph).
A/C clutch status is unchanged.

TCC status is unchanged.
Start Test

TP angle is less than 0.8%.

EGR duty cycle is less than 1%.

MAP is steady, changing less than 2 kPa.

Engine speed is between 1100 RPM and 2000 RPM
(M/T).

MAP between 10 kPa and 40 kPa.

Engine speed is between 900 RPM and 1500 rpm
(A/T).
The test will be aborted if the vehicle speed changes
by more than 16 km/h (10 mph), engine speed
changes by more than 100 RPM or the EGR is
opened less than 95% of commanded position.

The PCM will only run the EGR test during a closed
throttle condition.

The PCM will only run the EGR test at vehicle speeds
above 24 km/h (15 mph).

Several deceleration cycles will be necessary to run a
sufficient number of EGR flow tests.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected fault.

6E±312
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

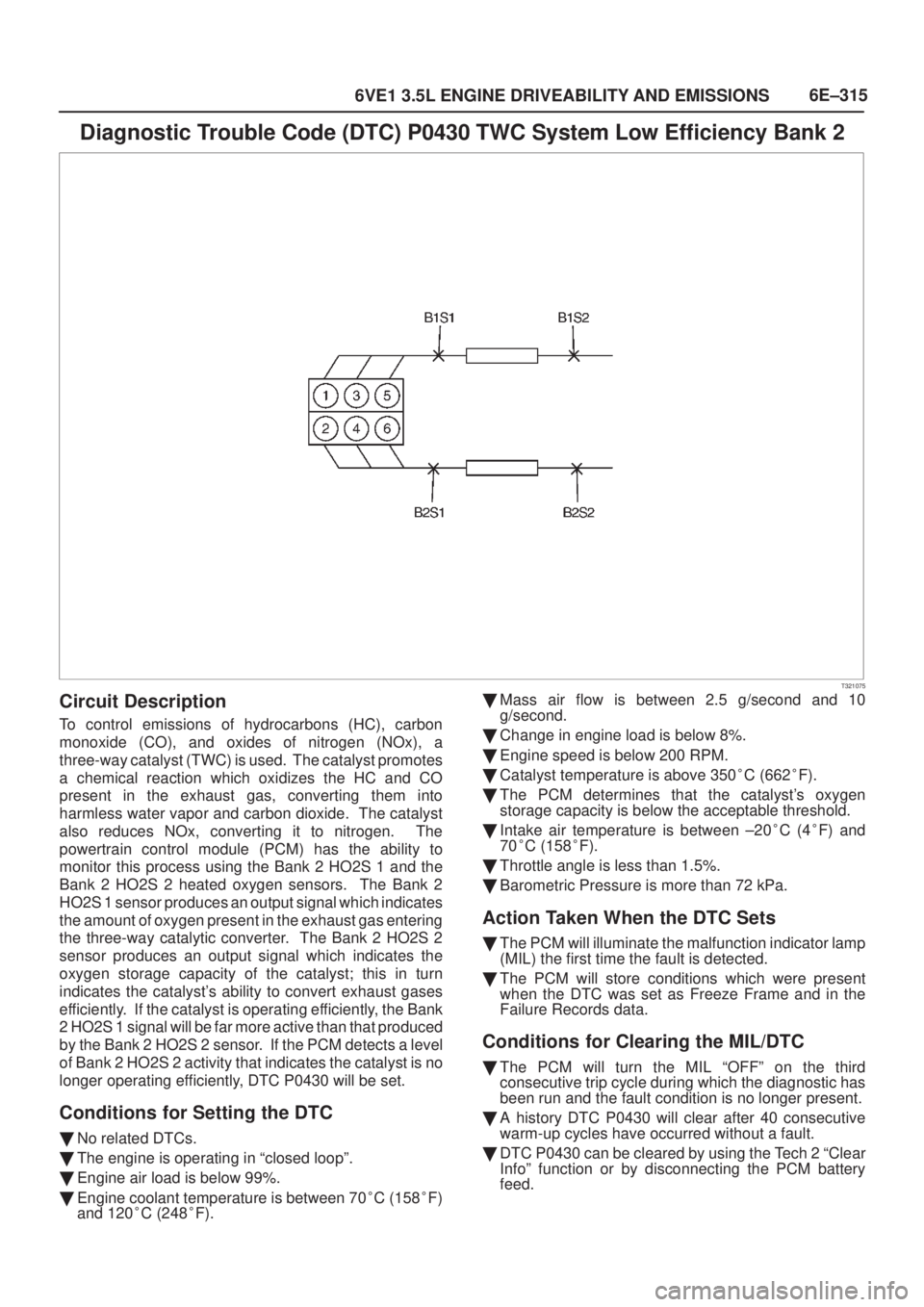

Diagnostic Trouble Code (DTC) P0420 TWC System Low Efficiency Bank 1
T321075
Circuit Description
To control emissions of hydrocarbons (HC), carbon
monoxide (CO), and oxides of nitrogen (NOx), a
three-way catalyst (TWC) is used. The catalyst promotes
a chemical reaction which oxidizes the HC and CO
present in the exhaust gas, converting them into
harmless water vapor and carbon dioxide. The catalyst
also reduces NOx, converting it to nitrogen. The
powertrain control module (PCM) has the ability to
monitor this process using the Bank 1 HO2S 1 and the
Bank 1 HO2S 2 heated oxygen sensors. The Bank 1
HO2S 1 sensor produces an output signal which indicates
the amount of oxygen present in the exhaust gas entering
the three-way catalytic converter. The Bank 1 HO2S 2
sensor produces an output signal which indicates the
oxygen storage capacity of the catalyst; this in turn
indicates the catalyst's ability to convert exhaust gases
efficiently. If the catalyst is operating efficiently, the Bank
1 HO2S 1 signal will be far more active than that produced
by the Bank 1 HO2S 2 sensor. If the PCM detects a level
of Bank 1 HO2S 2 activity that indicates the catalyst is no
longer operating efficiently, DTC P0420 will be set.
Conditions for Setting the DTC

No related DTCs.

The engine is operating in ªclosed loopº,

Engine air load is below 99%.

Engine coolant temperature is between 70
C (158
F)
and 120
C (248
F).

Mass air flow is between 2.5 g/second and 10
g/second.

Engine speed is below 200 RPM.

Catalyst temperature is above 350
C (662
F).

The PCM determines that the catalyst's oxygen
storage capacity is below the acceptable threshold.

Intake Air Temperature is between ±10
C (14
F) and
70
C (158
F).

Throttle angle is less than 1.5%.
Barometric Pressure is more than 72 kPa.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0420 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0420 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
Check for the following conditions:

Poor connection at PCM ± Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
display on the Tech 2 while moving connectors and
wiring harnesses related to the sensor. A change in the
display will indicate the location of the fault.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
The ªTWC Monitor Test Counterº displayed on the Tech 2
may be used to monitor the progress of the TWC
diagnostic. To complete the TWC diagnostic with a good
catalyst, the counter must be allowed to increment to 49
samples and roll over to 0 at least twice. A failed catalyst

6E±314
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0420 ± TWC System Low Efficiency Bank 1

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any other DTCs set (such as P0140)?
Ð
Diagnose
other DTC(s)
first
Go to Step 3
31. Visually and physically inspect the three-way
catalytic converter for damage. Check for the
following:

dents

severe discoloration caused by excessive
temperatures

holes

internal rattle caused by damaged catalyst
2. Also, ensure that the three-way catalytic converter
is a proper original equipment manufacturer part.
Did your inspection reveal a problem?
ÐGo to Step 6Go to Step 4
41. Visually and physically inspect the exhaust system
between the three-way catalytic converter and the
rear converter flange for leaks, damage, and loose
or missing hardware.
2. If a problem is found, repair as necessary.
Did your inspection reveal a problem?
Ð
Go to Step 7
to verify
repair
Go to Step 5
51. Visually and physically inspect the Bank 1 HO2S 2.
2. Ensure that the Bank 1 HO2S 2 is secure and that
the pigtail and wiring harness is not contacting the
exhaust pipe or is not otherwise damaged.
3. If a problem is found, repair as necessary.
Did your inspection reveal a problem?
Ð
Go to Step 7
to verify
repair
Go to Step 6
6Replace the three-way catalytic converter.
NOTE: Check for conditions which may cause catalyst
damage (refer to
Diagnostic Aids).
Is the action complete?
Ð
Go to Step 7
to verify
repair
Ð
71. Review and record the Tech 2 Failure Records data.
2. Clear DTC P0420.
3. Start the engine and allow it to warm up until the
engine coolant temperature monitored on the Tech
2 is above the specified value.
4. Run the engine to maintain the specified mass air
flow range for at least 2 minutes.
5. Operate the vehicle to maintain DTC P0420 test
conditions (refer to
DTC Test Description in
Diagnostic Support for detailed instructions).
6. Using a Tech 2, monitor ªDTCº info for DTC P0420
until the DTC P0420 test runs.
7. Note the test result.
Does the Tech 2 indicate DTC P0420 passed this
ignition?
Engine
coolant temp:
greater than
60
C
(140
F).
Mass air flow:
between 8
g/second and
50 g/second
Complete
repair. If a
driveability
symptom still
exists, refer
to
Symptoms.
Go to the
Diagnostic
Aids

6E±315
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0430 TWC System Low Efficiency Bank 2
T321075
Circuit Description
To control emissions of hydrocarbons (HC), carbon
monoxide (CO), and oxides of nitrogen (NOx), a
three-way catalyst (TWC) is used. The catalyst promotes
a chemical reaction which oxidizes the HC and CO
present in the exhaust gas, converting them into
harmless water vapor and carbon dioxide. The catalyst
also reduces NOx, converting it to nitrogen. The
powertrain control module (PCM) has the ability to
monitor this process using the Bank 2 HO2S 1 and the
Bank 2 HO2S 2 heated oxygen sensors. The Bank 2
HO2S 1 sensor produces an output signal which indicates
the amount of oxygen present in the exhaust gas entering
the three-way catalytic converter. The Bank 2 HO2S 2
sensor produces an output signal which indicates the
oxygen storage capacity of the catalyst; this in turn
indicates the catalyst's ability to convert exhaust gases
efficiently. If the catalyst is operating efficiently, the Bank
2 HO2S 1 signal will be far more active than that produced
by the Bank 2 HO2S 2 sensor. If the PCM detects a level
of Bank 2 HO2S 2 activity that indicates the catalyst is no
longer operating efficiently, DTC P0430 will be set.
Conditions for Setting the DTC

No related DTCs.

The engine is operating in ªclosed loopº.

Engine air load is below 99%.

Engine coolant temperature is between 70
C (158
F)
and 120
C (248
F).
Mass air flow is between 2.5 g/second and 10
g/second.

Change in engine load is below 8%.

Engine speed is below 200 RPM.

Catalyst temperature is above 350
C (662
F).

The PCM determines that the catalyst's oxygen
storage capacity is below the acceptable threshold.

Intake air temperature is between ±20
C (4
F) and
70
C (158
F).

Throttle angle is less than 1.5%.

Barometric Pressure is more than 72 kPa.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0430 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0430 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.

6E±317
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0430 ± TWC System Low Efficiency Bank 2

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any other DTCs set (such as P0160)?
Ð
Diagnose
other DTC(s)
first
Go to Step 3
31. Visually and physically inspect the three-way
catalytic converter for damage. Check for the
following:

dents

severe discoloration caused by excessive
temperatures

holes

internal rattle caused by damaged catalyst
2. Also, ensure that the three-way catalytic converter
is a proper original equipment manufacturer part.
Did your inspection reveal a problem?
ÐGo to Step 6Go to Step 4
41. Visually and physically inspect the exhaust system
between the three-way catalytic converter and the
rear converter flange for leaks, damage, and loose
or missing hardware.
2. If a problem is found, repair as necessary.
Did your inspection reveal a problem?
Ð
Go to Step 7
to verify
repair
Go to Step 5
51. Visually and physically inspect the Bank 2 HO2S 2.
2. Ensure that the Bank 2 HO2S 2 is secure and that
the pigtail and wiring harness is not contacting the
exhaust pipe or is not otherwise damaged.
3. If a problem is found, repair as necessary.
Did your inspection reveal a problem?
Ð
Go to Step 7
to verify
repair
Go to Step 6
6Replace the three-way catalytic converter.
NOTE: Check for conditions which may cause catalyst
damage (refer to
Diagnostic Aids).
Is the action complete?
Ð
Go to Step 7
to verify
repair
Ð
71. Review and record the Tech 2 Failure Records data.
2. Clear DTC P0430.
3. Start the engine and allow it to warm up until the
engine coolant temperature monitored on the Tech
2 is above the specified value.
4. Run the engine to maintain the specified mass air
flow range for at least 6 minutes.
5. Operate the vehicle to maintain DTC P0430 test
conditions (refer to
DTC Test Description in
Diagnostic Support for detailed instructions).
6. Using a Tech 2, monitor ªDTCº info for DTC P0430
until the DTC P0430 test runs.
7. Note the test result.
Does the Tech 2 indicate DTC P0430 passed this
ignition?
Engine
coolant temp:
greater than
70
C
(158
F).
Mass air flow:
between 2.5
g/second and
10 g/second
Complete
repair. If a
driveability
symptom still
exists, refer
to
Symptoms.
Go to the
Diagnostic
Aids

6E±318
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

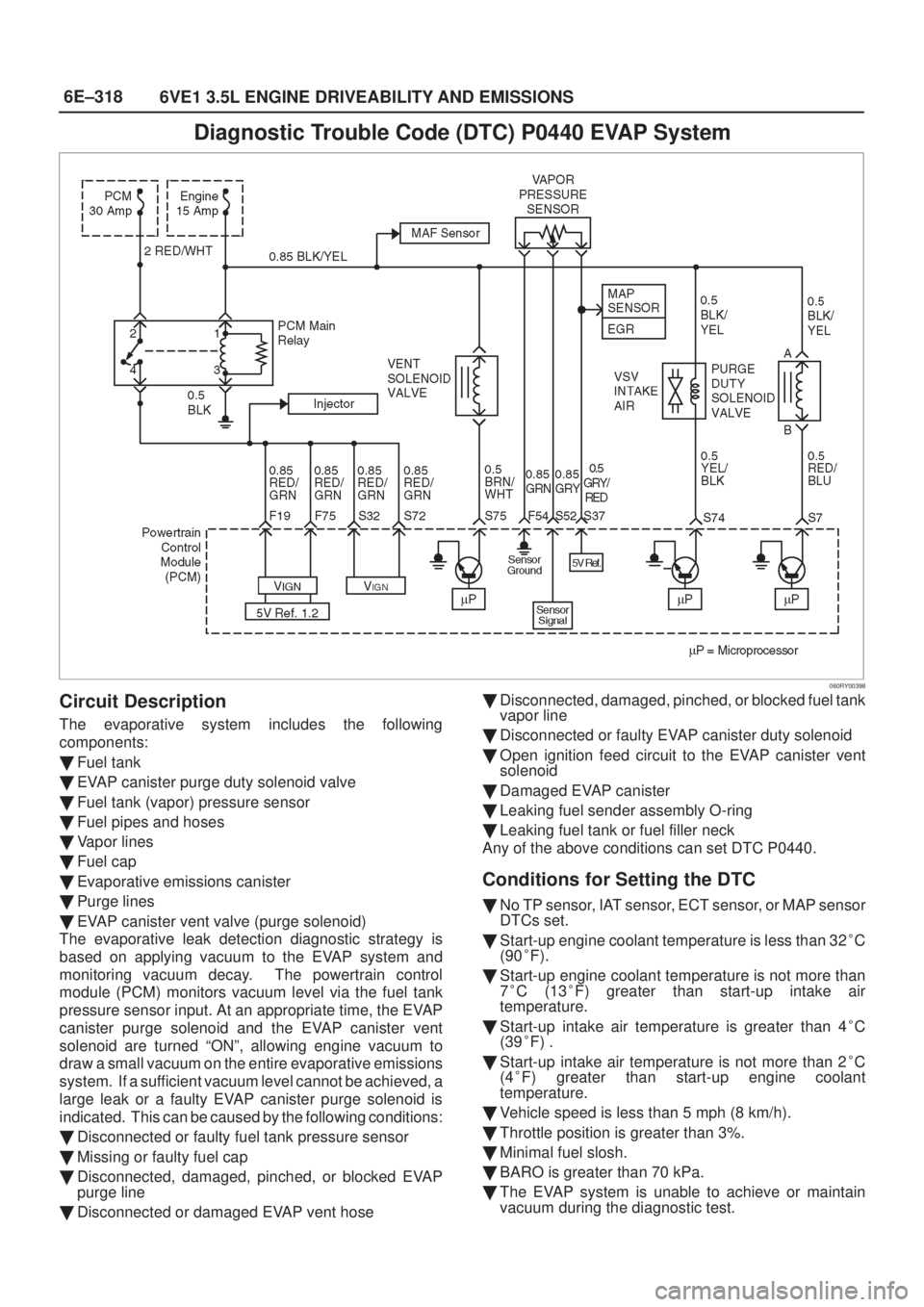

Diagnostic Trouble Code (DTC) P0440 EVAP System
060RY00398
Circuit Description
The evaporative system includes the following
components:

Fuel tank

EVAP canister purge duty solenoid valve

Fuel tank (vapor) pressure sensor

Fuel pipes and hoses

Vapor lines

Fuel cap

Evaporative emissions canister

Purge lines

EVAP canister vent valve (purge solenoid)
The evaporative leak detection diagnostic strategy is
based on applying vacuum to the EVAP system and
monitoring vacuum decay. The powertrain control
module (PCM) monitors vacuum level via the fuel tank
pressure sensor input. At an appropriate time, the EVAP
canister purge solenoid and the EVAP canister vent
solenoid are turned ªONº, allowing engine vacuum to
draw a small vacuum on the entire evaporative emissions
system. If a sufficient vacuum level cannot be achieved, a
large leak or a faulty EVAP canister purge solenoid is
indicated. This can be caused by the following conditions:

Disconnected or faulty fuel tank pressure sensor

Missing or faulty fuel cap

Disconnected, damaged, pinched, or blocked EVAP
purge line

Disconnected or damaged EVAP vent hose
Disconnected, damaged, pinched, or blocked fuel tank
vapor line

Disconnected or faulty EVAP canister duty solenoid

Open ignition feed circuit to the EVAP canister vent
solenoid

Damaged EVAP canister

Leaking fuel sender assembly O-ring

Leaking fuel tank or fuel filler neck
Any of the above conditions can set DTC P0440.
Conditions for Setting the DTC

No TP sensor, IAT sensor, ECT sensor, or MAP sensor
DTCs set.

Start-up engine coolant temperature is less than 32
C
(90
F).

Start-up engine coolant temperature is not more than
7
C (13
F) greater than start-up intake air
temperature.

Start-up intake air temperature is greater than 4
C
(39
F) .

Start-up intake air temperature is not more than 2
C
(4
F) greater than start-up engine coolant
temperature.

Vehicle speed is less than 5 mph (8 km/h).

Throttle position is greater than 3%.

Minimal fuel slosh.

BARO is greater than 70 kPa.

The EVAP system is unable to achieve or maintain
vacuum during the diagnostic test.

6E±328
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P0446 EVAP Canister Vent Control Malfunction
060RY00398
Circuit Description
The evaporative system includes the following
components:

Fuel tank

EVAP canister vent solenoid

Fuel tank (vapor) pressure sensor

Fuel pipes and hoses

Vapor lines

Fuel cap

Evaporative emissions canister

Purge lines

EVAP canister purge solenoid
An incorrect fuel tank pressure sensor signal is detected
by monitoring fuel tank pressure when the key is first
turned ªONº during a cold start. If the fuel tank pressure
signal is out of range, DTC P0446 will set. A restricted or
blocked EVAP vent path is detected by monitoring fuel
tank pressure during normal operation (EVAP canister
vent solenoid open, EVAP canister purge solenoid
normal). With the EVAP canister vent solenoid open,
vacuum level in the system should be very low unless the
vent path is blocked. A blockage can be caused by the
following condition:

Faulty EVAP canister vent solenoid (stuck closed).

Plugged, kinked or pinched vent hose.

Shorted EVAP canister vent solenoid driver circuit.

Plugged evaporative canister.If any of these conditions are present, DTC P0446 will set.Conditions for Setting the DTC

No TP sensor, ECT sensor, Tank pressure sensor, IAT
sensor, or MAP sensor DTCs set.

Start-up engine coolant temperature and start-up
intake air temperature are more than 4
C (39
F) but
less than 34
C(93
F).

Start-up engine coolant temperature is not more than
7
C (13
F) greater than start-up intake air
temperature.

Fuel tank level is between 15% and 85%.

BARO is greater than 70 kPa.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected the fault.

The PCM will store conditions which were present
when the DTC set as Freeze Frame and Failure
Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0446 will clear after 40 consecutive
warm-up cycles have occurred without a fault.
