Page 65 of 88

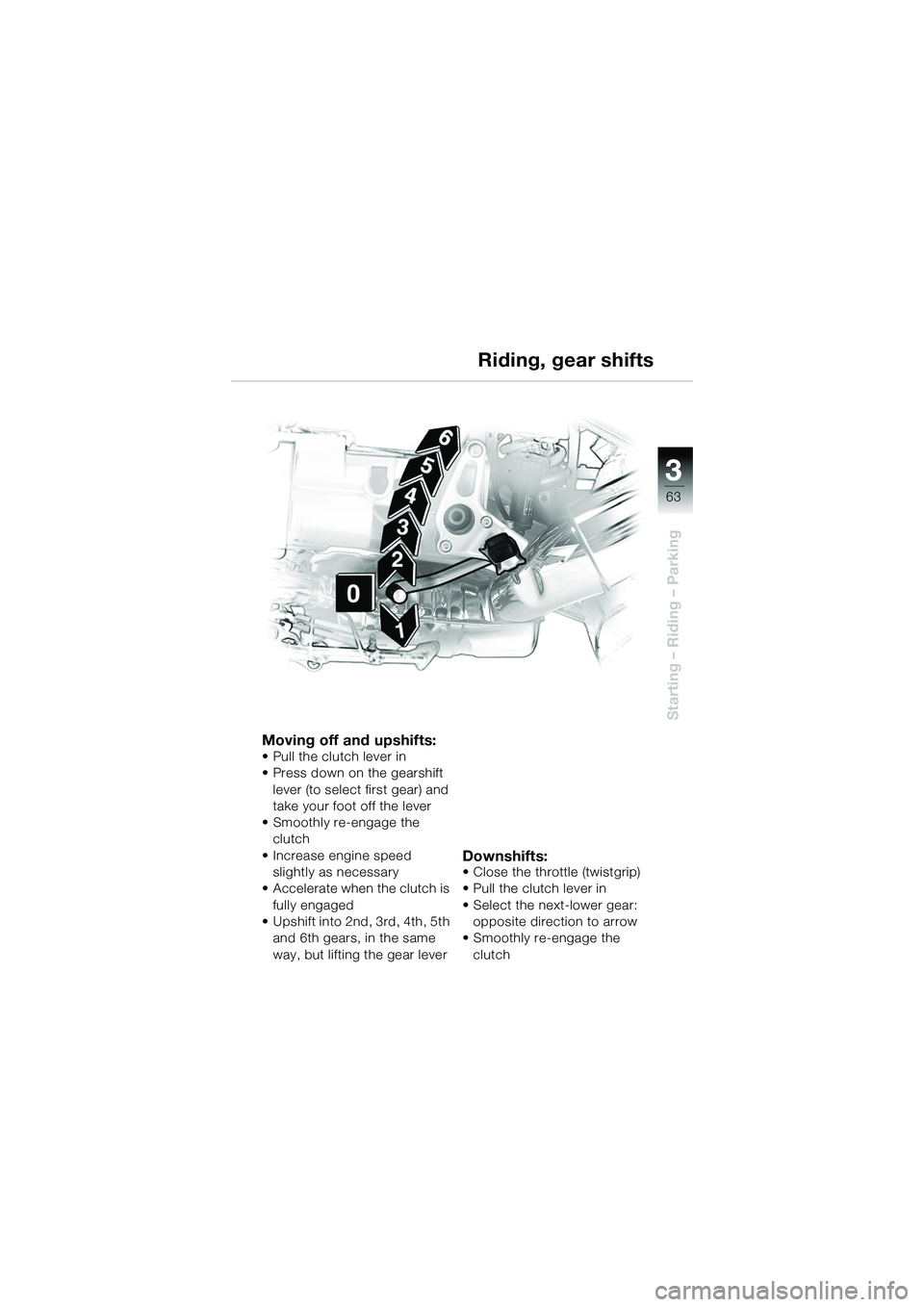

3
63
3
Starting – Riding – Parking
Moving off and upshifts:
• Pull the clutch lever in
• Press down on the gearshift lever (to select first gear) and
take your foot off the lever
• Smoothly re-engage the clutch
• Increase engine speed slightly as necessary
• Accelerate when the clutch is
fully engaged
• Upshift into 2nd, 3rd, 4th, 5th and 6th gears, in the same
way, but lifting the gear lever
Downshifts:• Close the throttle (twistgrip)
• Pull the clutch lever in
• Select the next-lower gear: opposite direction to arrow
• Smoothly re-engage the
clutch
Riding, gear shifts
10r28FUNbkg1.book Seite 63 Dienstag, 24. Januar 2006 9:31 09
Page 66 of 88

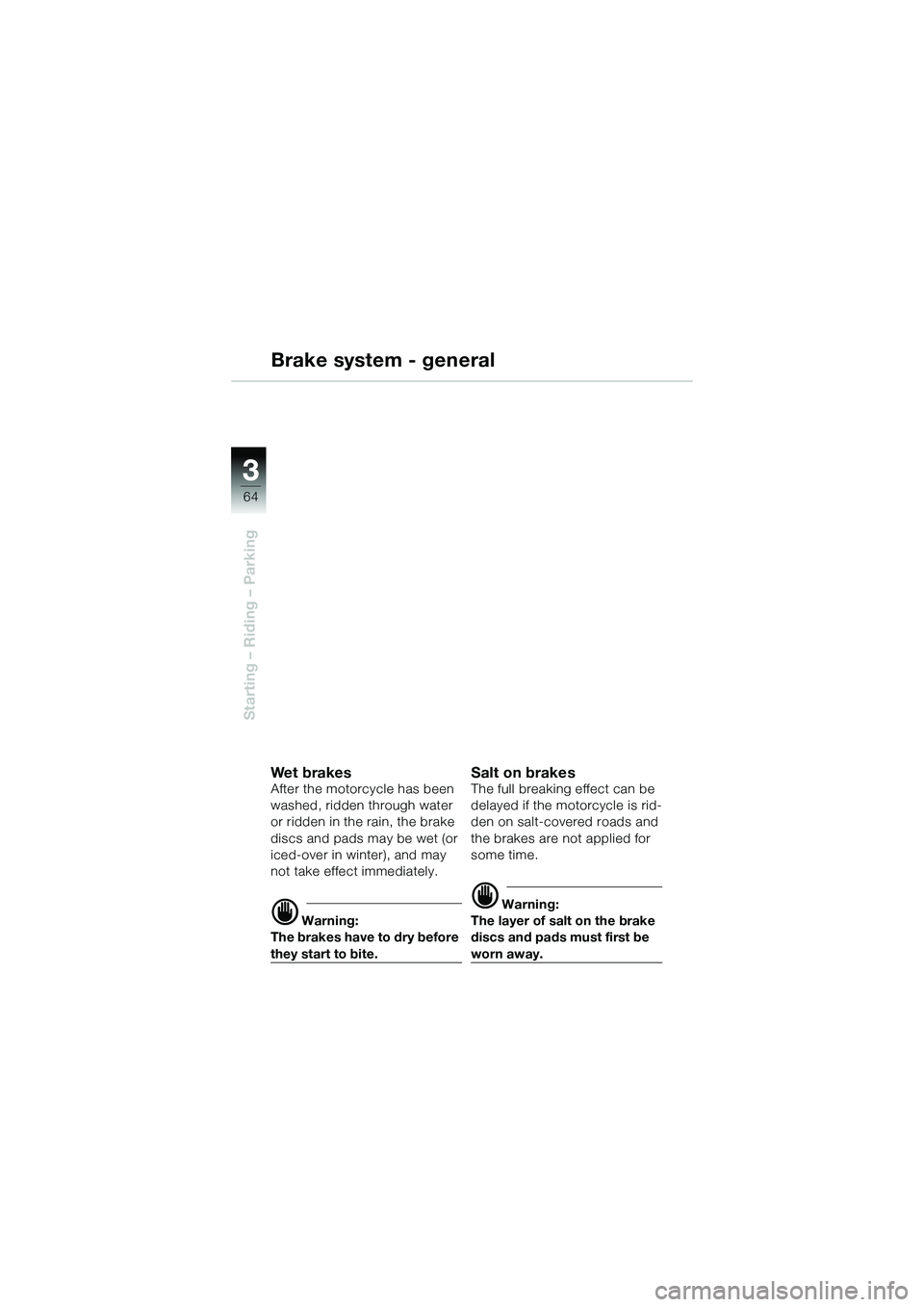

33
64
Starting – Riding – Parking
Brake system - general
We t b ra ke sAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet (or
iced-over in winter), and may
not take effect immediately.
d Warning:
The brakes have to dry before
they start to bite.
Salt on brakesThe full breaking effect can be
delayed if the motorcycle is rid-
den on salt-covered roads and
the brakes are not applied for
some time.
d Warning:
The layer of salt on the brake
discs and pads must first be
worn away.
10r28FUNbkg1.book Seite 64 Dienstag, 24. Januar 2006 9:31 09
Page 67 of 88

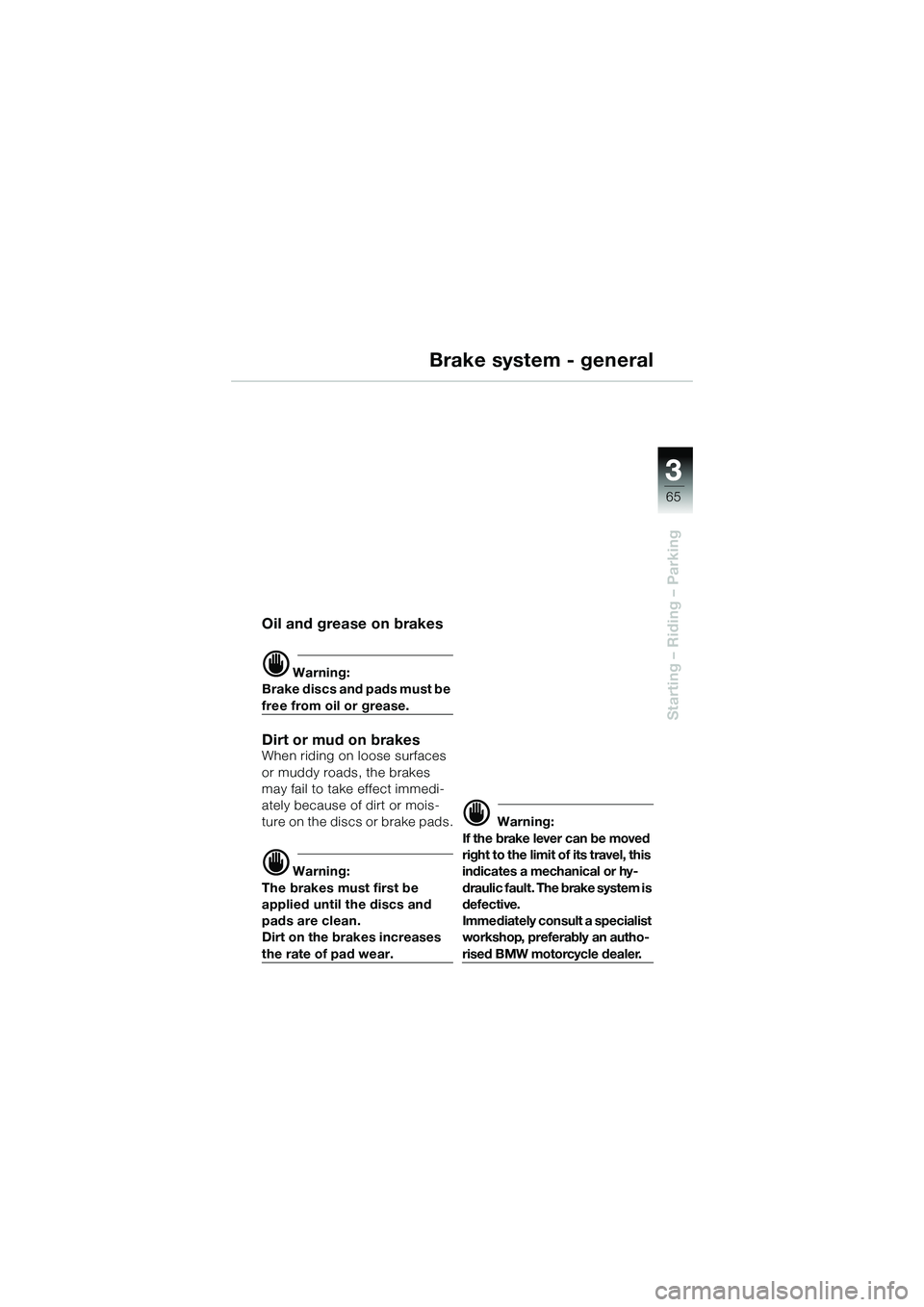

3
65
3
Starting – Riding – Parking
Brake system - general
Oil and grease on brakes
d Warning:
Brake discs and pads must be
free from oil or grease.
Dirt or mud on brakesWhen riding on loose surfaces
or muddy roads, the brakes
may fail to take effect immedi-
ately because of dirt or mois-
ture on the discs or brake pads.
d Warning:
The brakes must first be
applied until the discs and
pads are clean.
Dirt on the brakes increases
the rate of pad wear.
d Warning:
If the brake lever can be moved
right to the limit of its travel, this
indicates a mechanical or hy-
draulic fault. The brake system is
defective.
Immediately consult a specialist
workshop, preferably an autho-
rised BMW motorcycle dealer.
10r28FUNbkg1.book Seite 65 Dienstag, 24. Januar 2006 9:31 09
Page 68 of 88

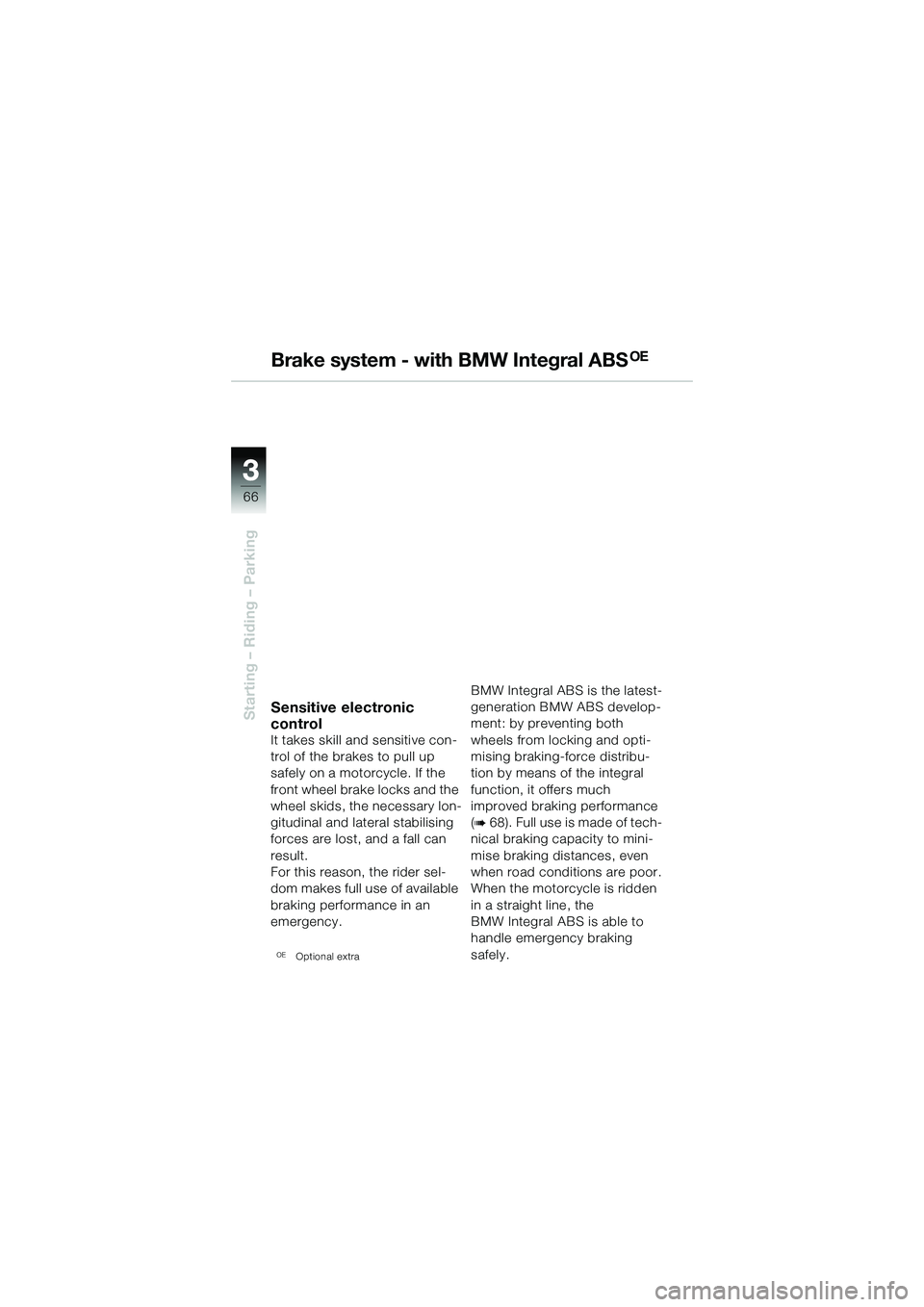

33
66
Starting – Riding – Parking
Brake system - with BMW Integral ABSOE
Sensitive electronic
control
It takes skill and sensitive con-
trol of the brakes to pull up
safely on a motorcycle. If the
front wheel brake locks and the
wheel skids, the necessary lon-
gitudinal and lateral stabilising
forces are lost, and a fall can
result.
For this reason, the rider sel-
dom makes full use of available
braking performance in an
emergency.
OE Optional extra
BMW Integral ABS is the latest-
generation BMW ABS develop-
ment: by preventing both
wheels from locking and opti-
mising braking-force distribu-
tion by means of the integral
function, it offers much
improved braking performance
(
b 68). Full use is made of tech-
nical braking capacity to mini-
mise braking distances, even
when road conditions are poor.
When the motorcycle is ridden
in a straight line, the
BMW Integral ABS is able to
handle emergency braking
safely.
10r28FUNbkg1.book Seite 66 Dienstag, 24. Januar 2006 9:31 09
Page 69 of 88

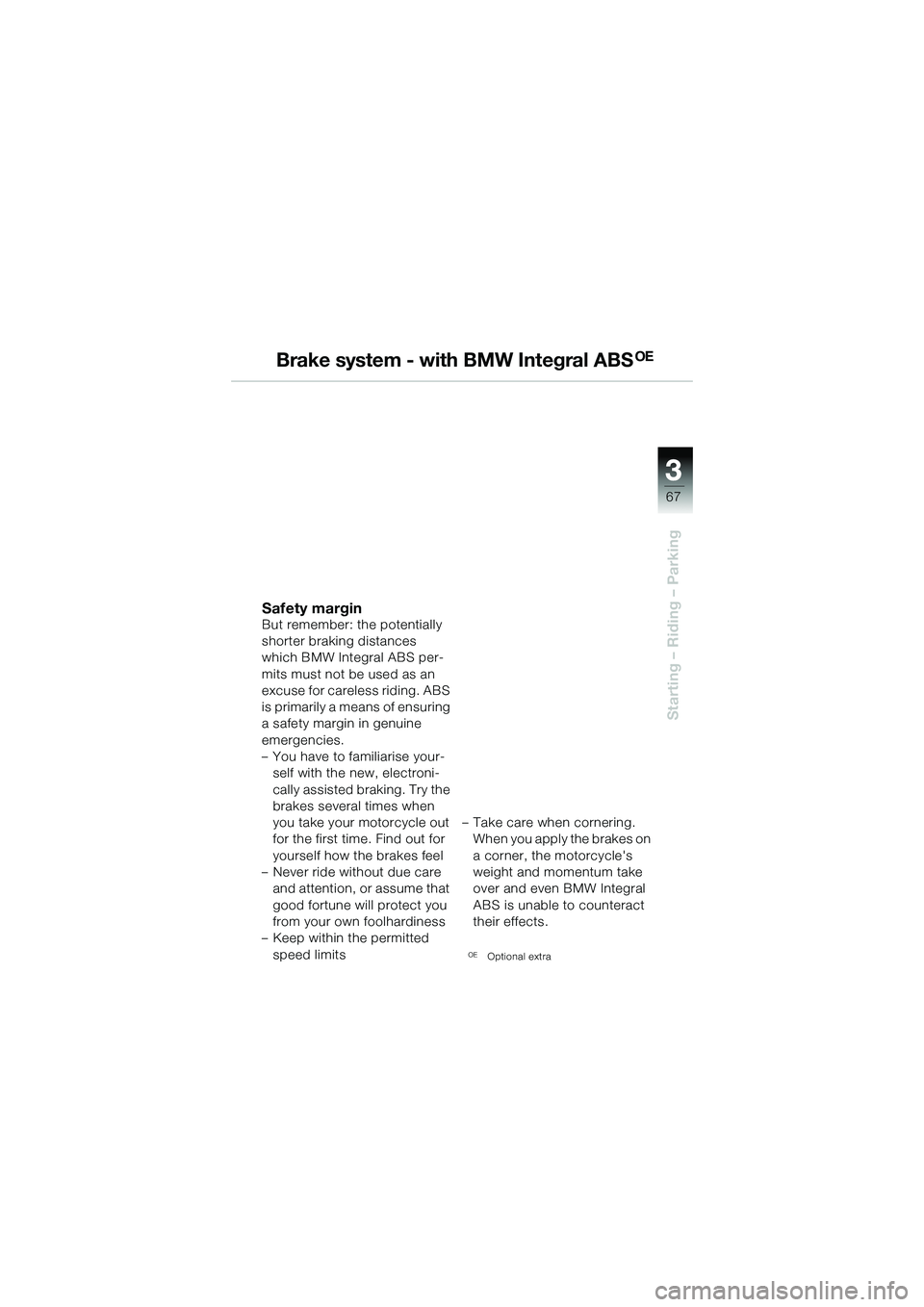

3
67
3
Starting – Riding – Parking
Brake system - with BMW Integral ABSOE
Safety marginBut remember: the potentially
shorter braking distances
which BMW Integral ABS per-
mits must not be used as an
excuse for careless riding. ABS
is primarily a means of ensuring
a safety margin in genuine
emergencies.
– You have to familiarise your-self with the new, electroni-
cally assisted braking. Try the
brakes several times when
you take your motorcycle out
for the first time. Find out for
yourself how the brakes feel
– Never ride without due care and attention, or assume that
good fortune will protect you
from your own foolhardiness
– Keep within the permitted
speed limits – Take care when cornering.
When you apply the brakes on
a corner, the motorcycle's
weight and momentum take
over and even BMW Integral
ABS is unable to counteract
their effects.
OE Optional extra
10r28FUNbkg1.book Seite 67 Dienstag, 24. Januar 2006 9:31 09
Page 70 of 88

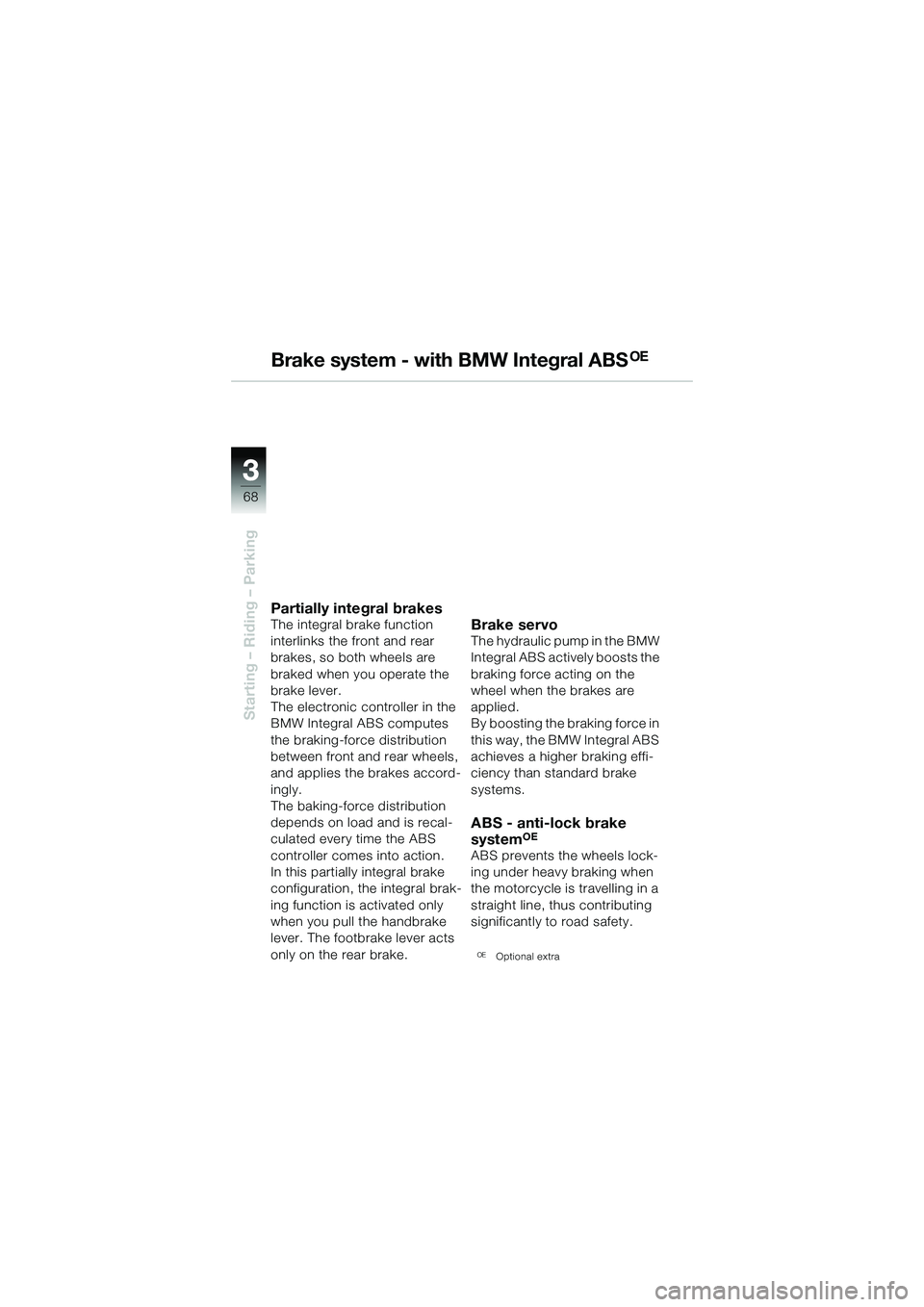

33
68
Starting – Riding – Parking
Brake system - with BMW Integral ABSOE
Partially integral brakesThe integral brake function
interlinks the front and rear
brakes, so both wheels are
braked when you operate the
brake lever.
The electronic controller in the
BMW Integral ABS computes
the braking-force distribution
between front and rear wheels,
and applies the brakes accord-
ingly.
The baking-force distribution
depends on load and is recal-
culated every time the ABS
controller comes into action.
In this partially integral brake
configuration, the integral brak-
ing function is activated only
when you pull the handbrake
lever. The footbrake lever acts
only on the rear brake.Brake servoThe hydraulic pump in the BMW
Integral ABS actively boosts the
braking force acting on the
wheel when the brakes are
applied.
By boosting the braking force in
this way, the BMW Integral ABS
achieves a higher braking effi-
ciency than standard brake
systems.
ABS - anti-lock brake
systemOE
ABS prevents the wheels lock-
ing under heavy braking when
the motorcycle is travelling in a
straight line, thus contributing
significantly to road safety.
OE Optional extra
10r28FUNbkg1.book Seite 68 Dienstag, 24. Januar 2006 9:31 09
Page 71 of 88

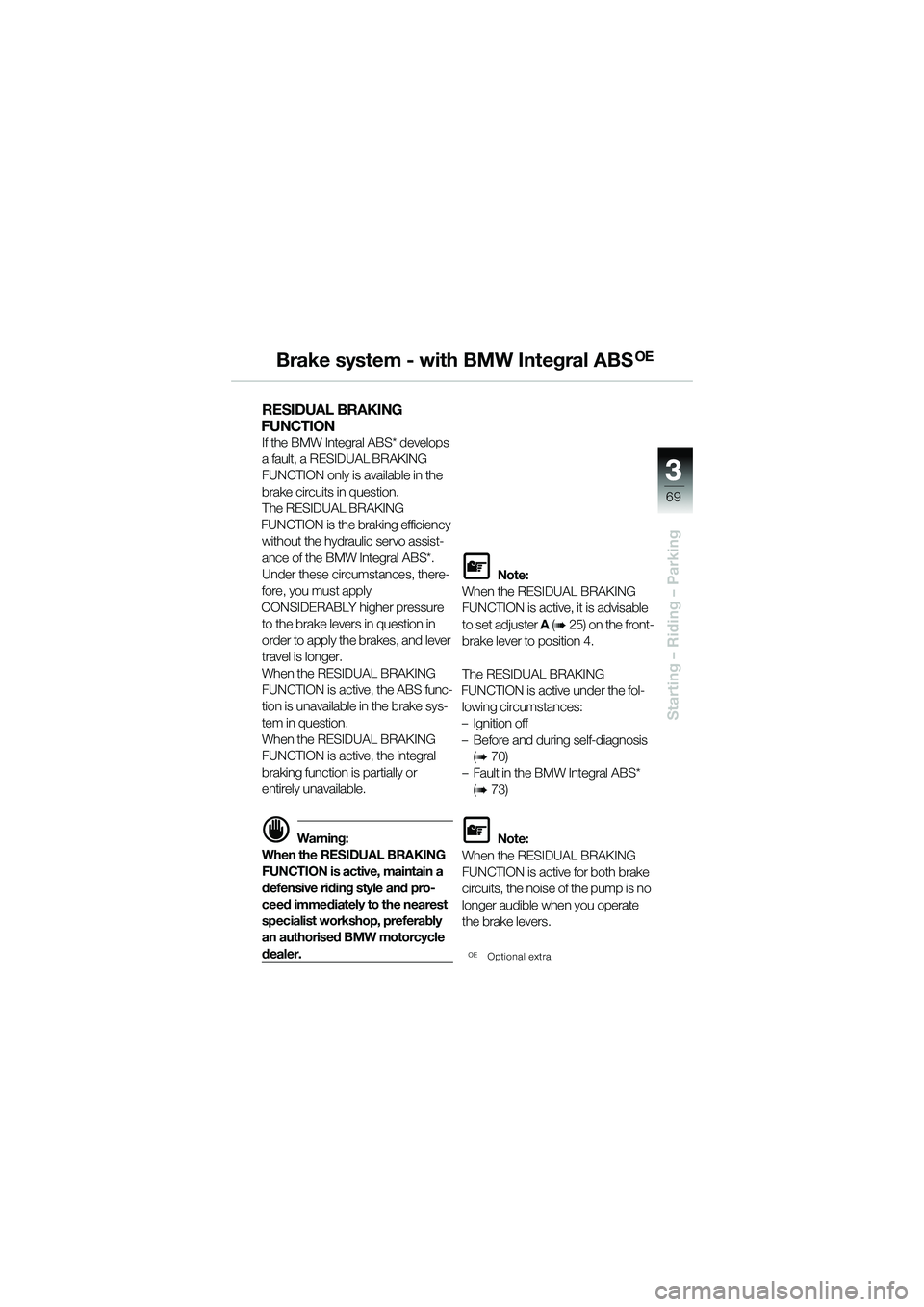

3
69
3
Starting – Riding – Parking
Brake system - with BMW Integral ABSOE
RESIDUAL BRAKING
FUNCTION
If the BMW Integral ABS* develops
a fault, a RESIDUAL BRAKING
FUNCTION only is available in the
brake circuits in question.
The RESIDUAL BRAKING
FUNCTION is the braking efficiency without the hydraulic servo assist-
ance of the BMW Integral ABS*.
Under these circumstances, there-
fore, you must apply
CONSIDERABLY higher pressure to the brake levers in question in
order to apply the brakes, and lever
travel is longer.
When the RESIDUAL BRAKING
FUNCTION is active, the ABS func-
tion is unavailable in the brake sys-
tem in question.
When the RESIDUAL BRAKING
FUNCTION is active, the integral
braking function is partially or
entirely unavailable.
d Warning:
When the RESIDUAL BRAKING
FUNCTION is active, maintain a
defensive riding style and pro-
ceed immediately to the nearest
specialist workshop, preferably
an authorised BMW motorcycle
dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION is active , it is advisable
to set adjuster A (
b 25) on the front-
brake lever to position 4.
The RESIDUAL BRAKING
FUNCTION is active under the fol- lowing circumstances:
– Ignition off
– Before and during self-diagnosis
(
b 70)
– Fault in the BMW Integral ABS* (
b 73)
L Note:
When the RESIDUAL BRAKING
FUNCTION is active for both brake
circuits, the noise of the pump is no
longer audible when you operate
the brake levers.
OE Optional extra
10r28FUNbkg1.book Seite 69 Dienstag, 24. Januar 2006 9:31 09
Page 72 of 88
33
70
Starting – Riding – Parking
Self-diagnosis with
pull-away test
The BMW Integral ABS per-
forms self-diagnosis and a pull-
away test to ensure its operabil-
ity.
Self-diagnosis is performed
automatically when you switch
on the ignition.
d Warning:
Self-diagnosis is not per-
formed unless both brake le-
vers are in their fully released
positions.
Only the RESIDUAL BRAKING
FUNCTION is available until
self-diagnosis is completed
(b 69). • Release the brake levers, if
necessary
• Switch on the ignition
Initially:
– ABS warning light 2:
flashes at 4 Hz (
b 56)
– General warning light 1:
ON
bSelf-diagnosis is in
progress
Then:
– ABS warning light 2:
flashes at 1 Hz
– General warning light 1:
OFF
bSelf-diagnosis successfully
completed
OE Optional extra
21
Brake system - with BMW Integral ABS
OE
10r28FUNbkg1.book Seite 70 Dienstag, 24. Januar 2006 9:31 09
