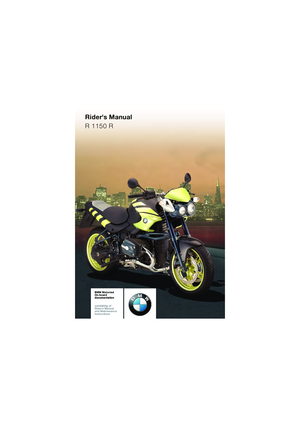

Rider's Manual
R 1150 R
10r28FUNbkg1.book Seite 85 Dienstag, 24. Januar 2006 9:31 09

d Warning:
This symbol stands for
precau-tions and measures
which are essential in order to
protect the rider or other
persons from possibly severe
or fatal injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle.
Disregarding them may render
the warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
Important notes
10r28FUNbkg1.book Seite 87 Dienstag, 24. Januar 2006 9:31 09

1
Introduction
i
Welcome to BMWWe congratulate you on your
choice of a motorcycle from
BMW and welcome to the com-
munity of BMW riders.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider's Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle's technical
features.In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.
If you have any questions con-
cerning your motorcycle, your
BMW motorcycle dealer will
gladly provide advice and
assistance.
We hope you enjoy reading this
Rider's Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes
BMW Motorrad
Welcome to BMW
10r28FUNbkg1.book Seite 1 Dienstag, 24. Januar 2006 9:31 09

i
2
Introduction
General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning lights ..... 7
Ignition switch and steering
lock .................................... 8-9
Left handlebar fitting ........... 10
Right handlebar fitting ......... 11
Hazard warning flashers ...... 12
Seat/helmet holder .............. 13
Seats ............................. 14-15
System case .................. 16-18Safety check
Checklist ............................. 19
Engine oil ....................... 20-21
Fuel ................................ 22-23
Handlebar levers ............ 24-25
Brake system -
general........................... 26-27
Brake system - without
BMW Integral ABS ......... 28-30
Brake system - with
BMW Integral ABS ......... 31-34
Clutch ................................. 35
Lights ............................. 36-39
Shock-absorber
adjustment .......................... 40
Suspension
spring preload ..................... 41
Wheels ........................... 42-43
Accessories and loads ... 44-45
Contents
10r28FUNbkg1.book Seite 2 Dienstag, 24. Januar 2006 9:31 09

3
i
Introduction
Starting – Riding – Parking
Your first journey ........... 46-47
Important notes ............. 48-49
Side stand ..................... 50-51
Centre stand ................. 52-53
Running in ..................... 54-55
Before you start ............. 56-57
Starting ......................... 58-59
Telltale and warning
lights ............................. 60-61
Riding, gear shifts.......... 62-63
Brake system
- general ........................ 64-65
Brake system - with
BMW Integral ABS......... 66-72
BMW Integral ABS
- Fault table ......................... 73Arrive safely
Reliability ........................74-75
Service worldwide ............... 76
Environmental protection .... 77
BMW rider's equipment ....... 78
BMW motorcycle
equipment ........................... 79
Training means extra
safety .................................. 80
Concluding thoughts ........... 81
Contents
10r28FUNbkg1.book Seite 3 Dienstag, 24. Januar 2006 9:31 09

1
General information and controls
4
1Main (high) beam headlight
(
b 36-39)
2 Driving light (
b 36-39)
3 Front suspension strut,
shock absorber adjustment
(
b 40)
4 Reservoir for clutch fluid
(
b 35)
5 Engine oil filler (
b 21)
6 Rear spring strut,
spring preload (
b 41)
OEOptional equipment
7Rear spring strut,
shock absorber adjustment
(
b 40)
8 Power socket, 12 V
Provision for connecting
additional equipment –
max. load 5 A
9 Primary spark plug, left
10 Secondary spark plug, left
11 Main stand
OE (b 52, 53)
12 Oil level sight glass, engine
(
b 21)
( ) Figure in brackets
bpage number with explanation
General view, left side
1243657
8910
1112
10r28FUNbkg1.book Seite 4 Dienstag, 24. Januar 2006 9:31 09

1
General information and controls
5
1314181615
17
1920
24232221
13Luggage carrierOE
14Case carrierOE
15Storage compartment for
toolkit
16 Fuse box (
b Maintenance
Instructions, Chapter 2)
17 Air filter (
b Maintenance
Instructions, Chapter 2)
18 Fuel filler cap (
b 22)
19 Brake fluid reservoir for front
brake (
b 29, 33)
OEOptional equipment
20Type plate/vehicle identifi-
cation number
21 Primary spark plug, right
22 Secondary spark plug, right
23 Brake fluid reservoir for rear
brake (
b 30, 34)
24 Helmet/seat lock (
b 13)
( ) Figure in brackets
bpage number with explanation
General view, right side
10r28FUNbkg1.book Seite 5 Dienstag, 24. Januar 2006 9:31 09

1
General information and controls
6
1Telltale and warning lights
(
b 7)
2 Speedometer
3 Odometer
4 Trip meter
5 Trip meter reset knob
6 Rev. counter (
b 62) 7
Warning light, fuel level/with
approx. 5 litres (1. 1 Imp. gal)
in reserve yellow
m
(
b 23, 60)
8 Warning light, engine oil
pressure red
p (b 60)
9 Ignition switch and steering
lock (
b 8)
( ) Figures in brackets bpage number
for description
321
7
45
8
6
9
Cockpit
