Safety check
1

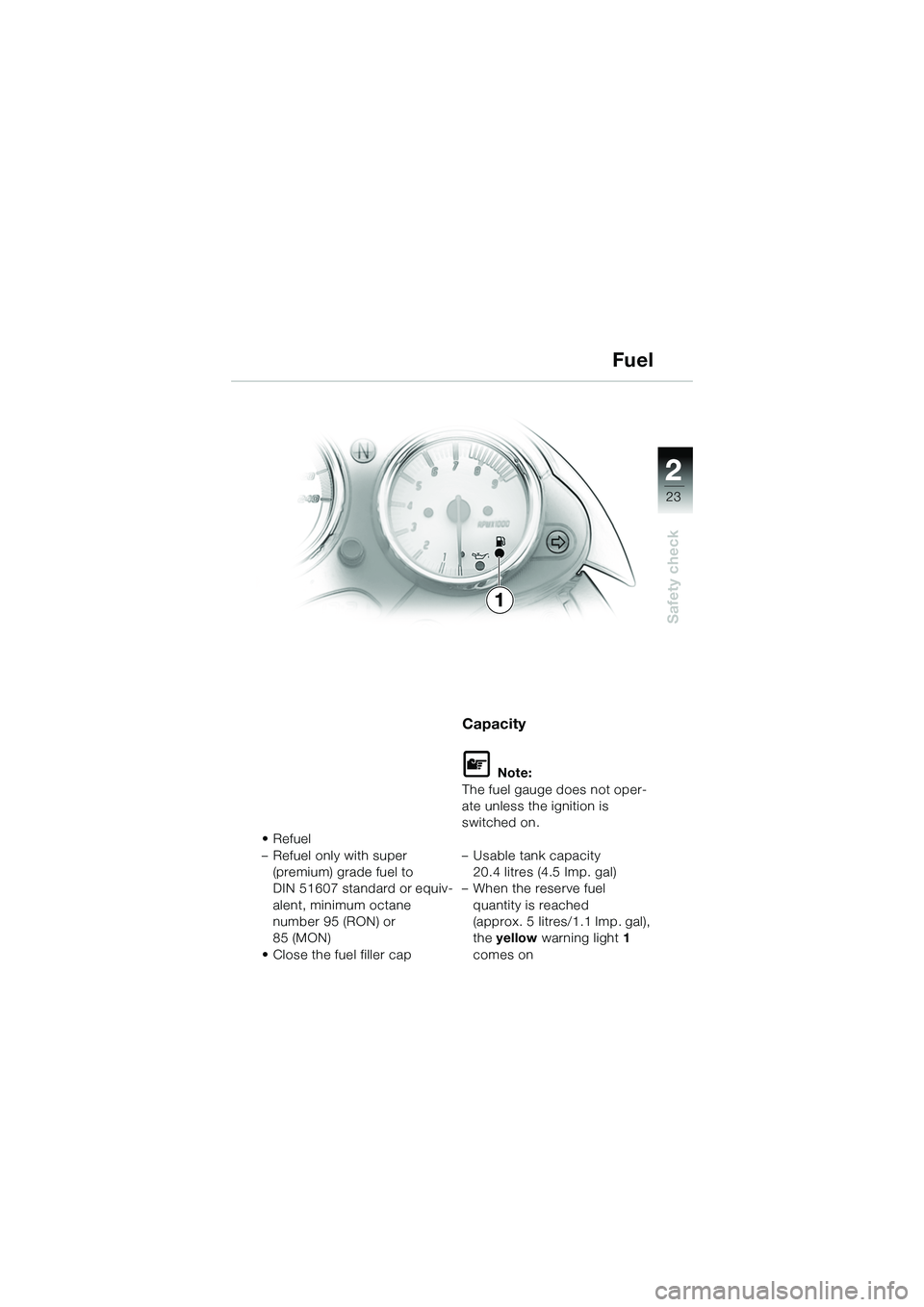

•Refuel
– Refuel only with super (premium) grade fuel to
DIN 51607 standard or equiv-
alent, minimum octane
number 95 (RON) or
85 (MON)
• Close the fuel filler cap
Capacity
L Note:
The fuel gauge does not oper-
ate unless the ignition is
switched on.
– Usable tank capacity 20.4 litres (4.5 Imp. gal)
– When the reserve fuel quantity is reached
(approx. 5 litres/1.1 Imp. gal),
the yellow warning light 1
comes on
Fuel
10r28FUNbkg1.book Seite 23 Dienstag, 24. Januar 2006 9:31 09

22
24
Safety check
31
A

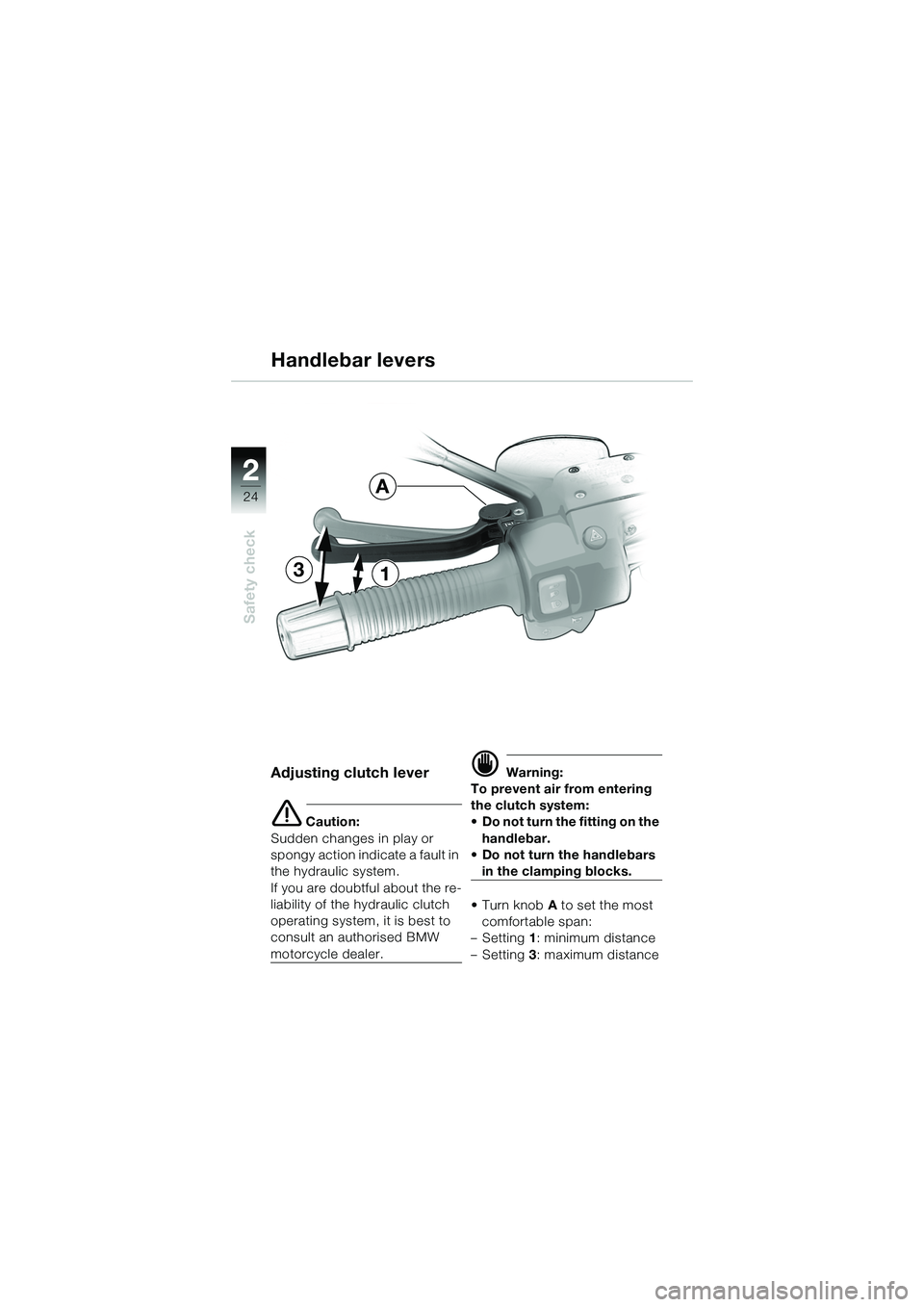

Adjusting clutch lever
e Caution:
Sudden changes in play or
spongy action indi cate a fault in
the hydraulic system.
If you are doubtful about the re-
liability of the hydraulic clutch
operating system, it is best to
consult an authorised BMW
motorcycle dealer.
d Warning:
To prevent air from entering
the clutch system:
• Do not turn the fitting on the handlebar.
• Do not turn the handlebars
in the clamping blocks.
• Turn knob A to set the most
comfortable span:
–Setting 1: minimum distance
–Setting 3: maximum distance
Handlebar levers
10r28FUNbkg1.book Seite 24 Dienstag, 24. Januar 2006 9:31 09

2
25
2
Safety check
41
A

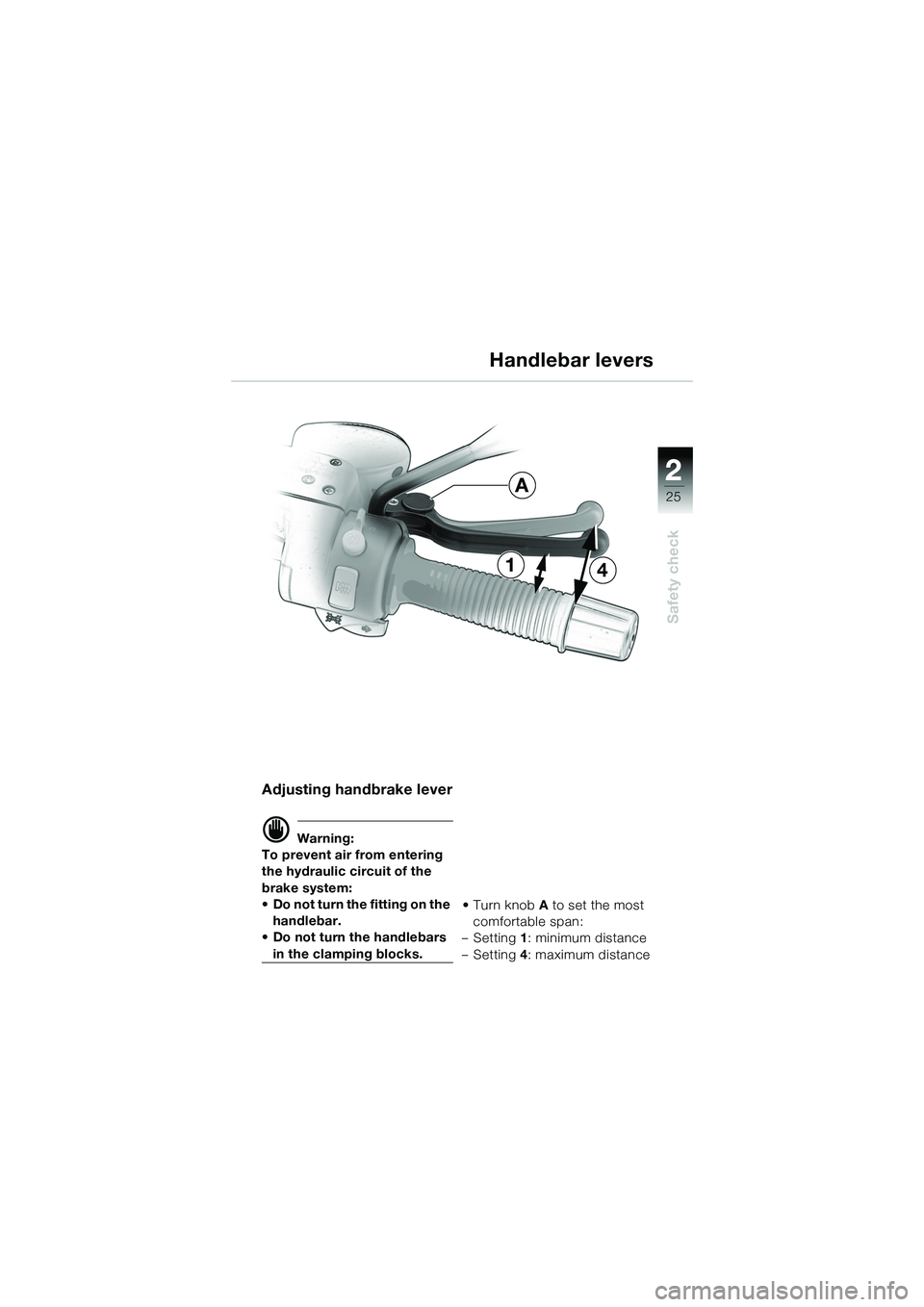

Adjusting handbrake lever
d Warning:
To prevent air from entering
the hydraulic circuit of the
brake system:
• Do not turn the fitting on the handlebar.
• Do not turn the handlebars
in the clamping blocks. • Turn knob
A to set the most
comfortable span:
– Setting 1: minimum distance
– Setting 4: maximum distance
Handlebar levers
10r28FUNbkg1.book Seite 25 Dienstag, 24. Januar 2006 9:31 09

22
26
Safety check
Brake system - general
Work on the brake system
d Warning:
To ensure reliability have all
work on the brake systems
carried out by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Checking the brake
system
d Warning:
Sudden changes in play or
spongy action of the brake le-
ver indicate a fault in the
brake system.
Before riding off, therefore,
always check the resistance
of the front and rear brake le-
vers and test operation of the
brakes.
Do not ride the motorcycle if
you have any doubts about
the safety of the brake sys-
tem.
Immediately seek the advice
of a specialist workshop,
preferably an authorised
BMW motorcycle dealer.
10r28FUNbkg1.book Seite 26 Dienstag, 24. Januar 2006 9:31 09

2
27
2
Safety check
Brake system - general
Checking brake pads
d Warning:
Have the brake pads replaced
before they wear to the mini-
mum permissible thickness:
have the work performed
by a specialist workshop,
preferably an authorised
BMW motorcycle dealer. Brake pad wear depends on
your personal style of riding.
To ensure reliable operation of
the brakes: do not allow lining
thickness to fall below minimum
value (Maintenance Instruc-
tionsb Chapter 2).
10r28FUNbkg1.book Seite 27 Dienstag, 24. Januar 2006 9:31 09

22
28
Safety check
Brake system - without BMW Integral ABS

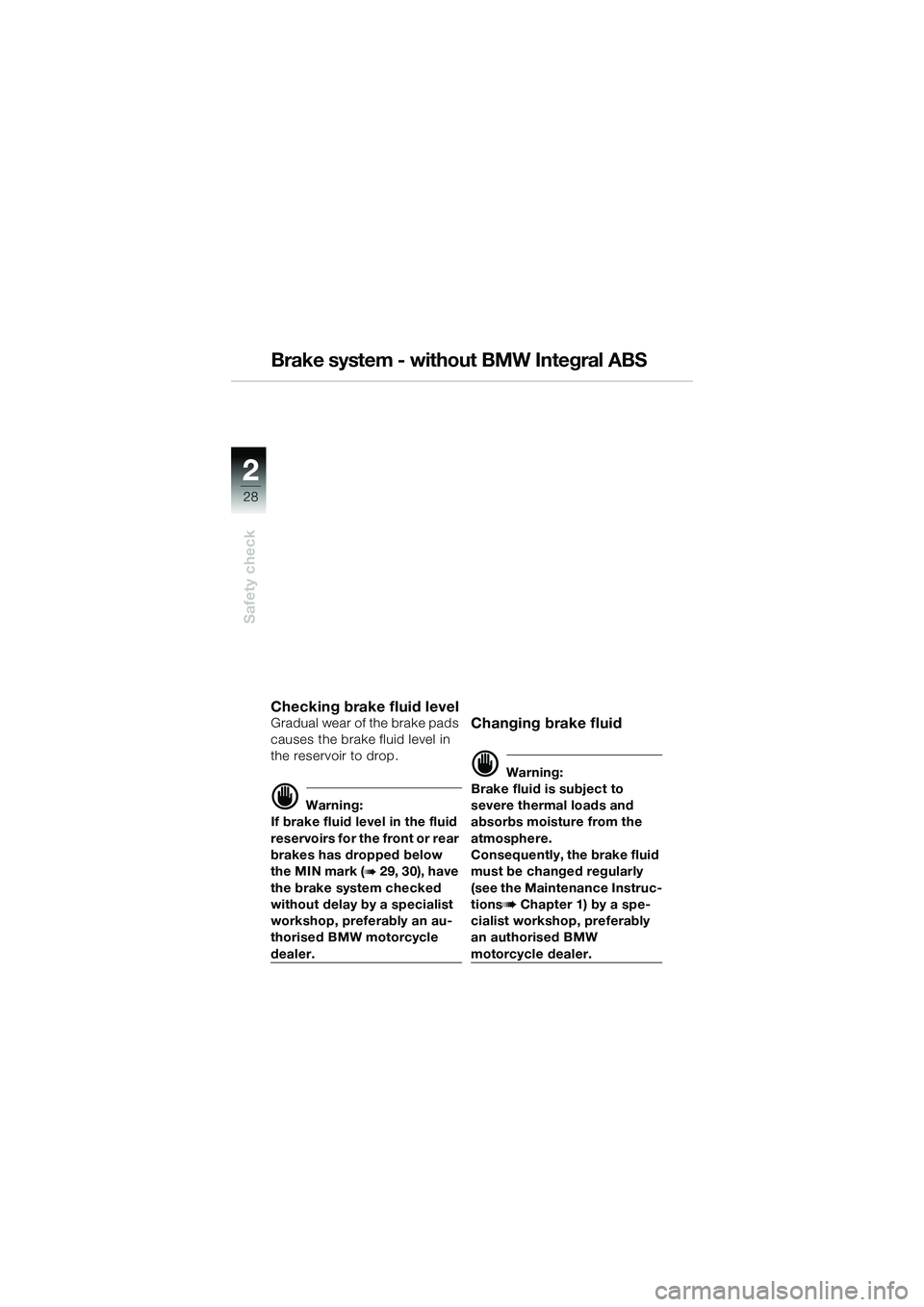

Checking brake fluid levelGradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
d Warning:
If brake fluid level in the fluid
reservoirs for the front or rear
brakes has dropped below
the MIN mark (
b 29, 30), have
the brake system checked
without delay by a specialist
workshop, preferably an au-
thorised BMW motorcycle
dealer.
Changing brake fluid
d Warning:
Brake fluid is subject to
severe thermal loads and
absorbs moisture from the
atmosphere.
Consequently, the brake fluid
must be changed regularly
(see the Maintenance Instruc-
tions
b Chapter 1) by a spe-
cialist workshop, preferably
an authorised BMW
motorcycle dealer.
10r28FUNbkg1.book Seite 28 Dienstag, 24. Januar 2006 9:31 09

2
29
2
Safety check
MIN

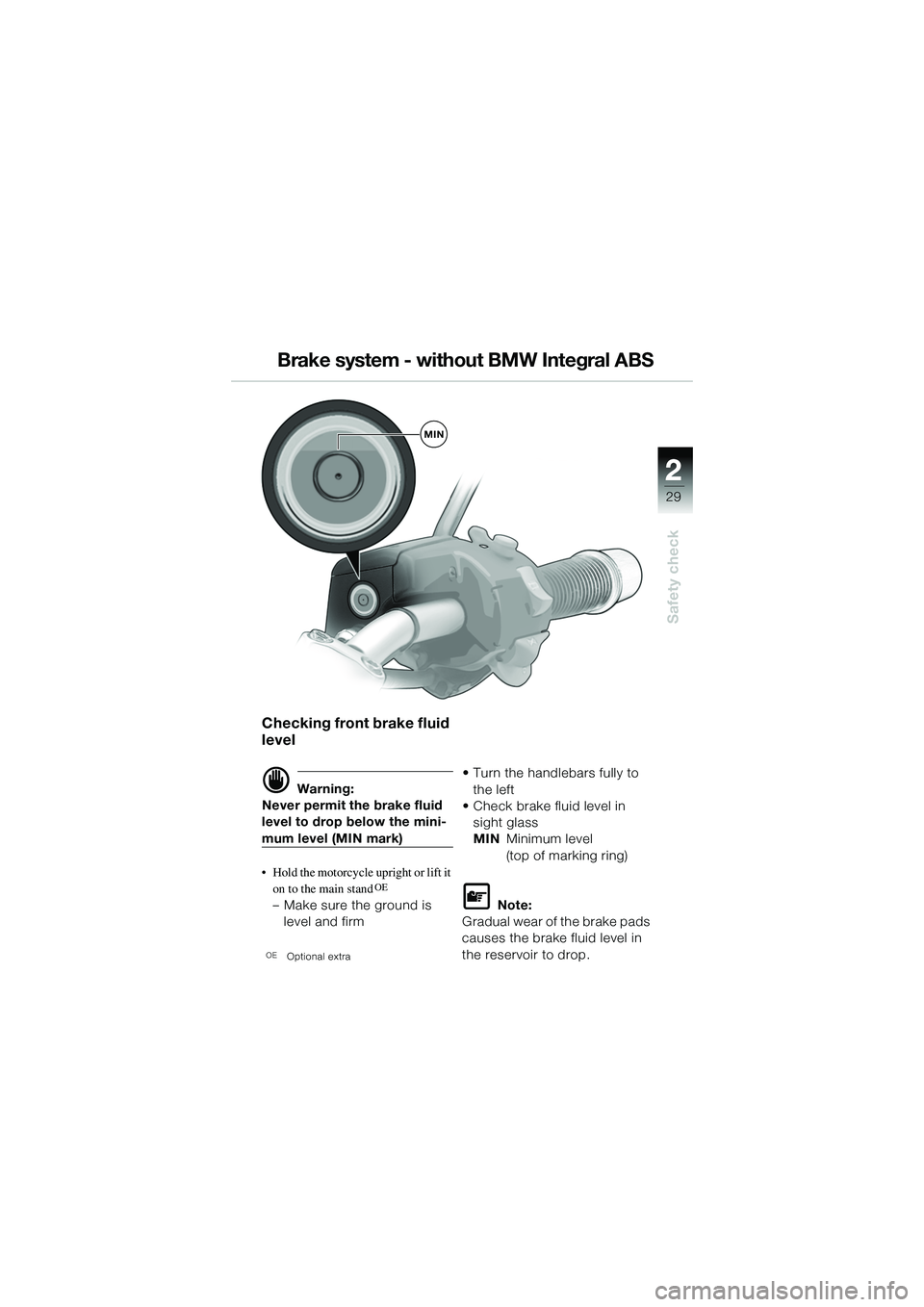

Checking front brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the mini-
mum level (MIN mark)
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is level and firm
OE Optional extra
• Turn the handlebars fully to the left
• Check brake fluid level in sight glass
MIN Minimum level
(top of marking ring)
L Note:
Gradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
Brake system - without BMW Integral ABS
10r28FUNbkg1.book Seite 29 Dienstag, 24. Januar 2006 9:31 09

22
30
Safety check
MAX
MIN
Brake system - without BMW Integral ABS

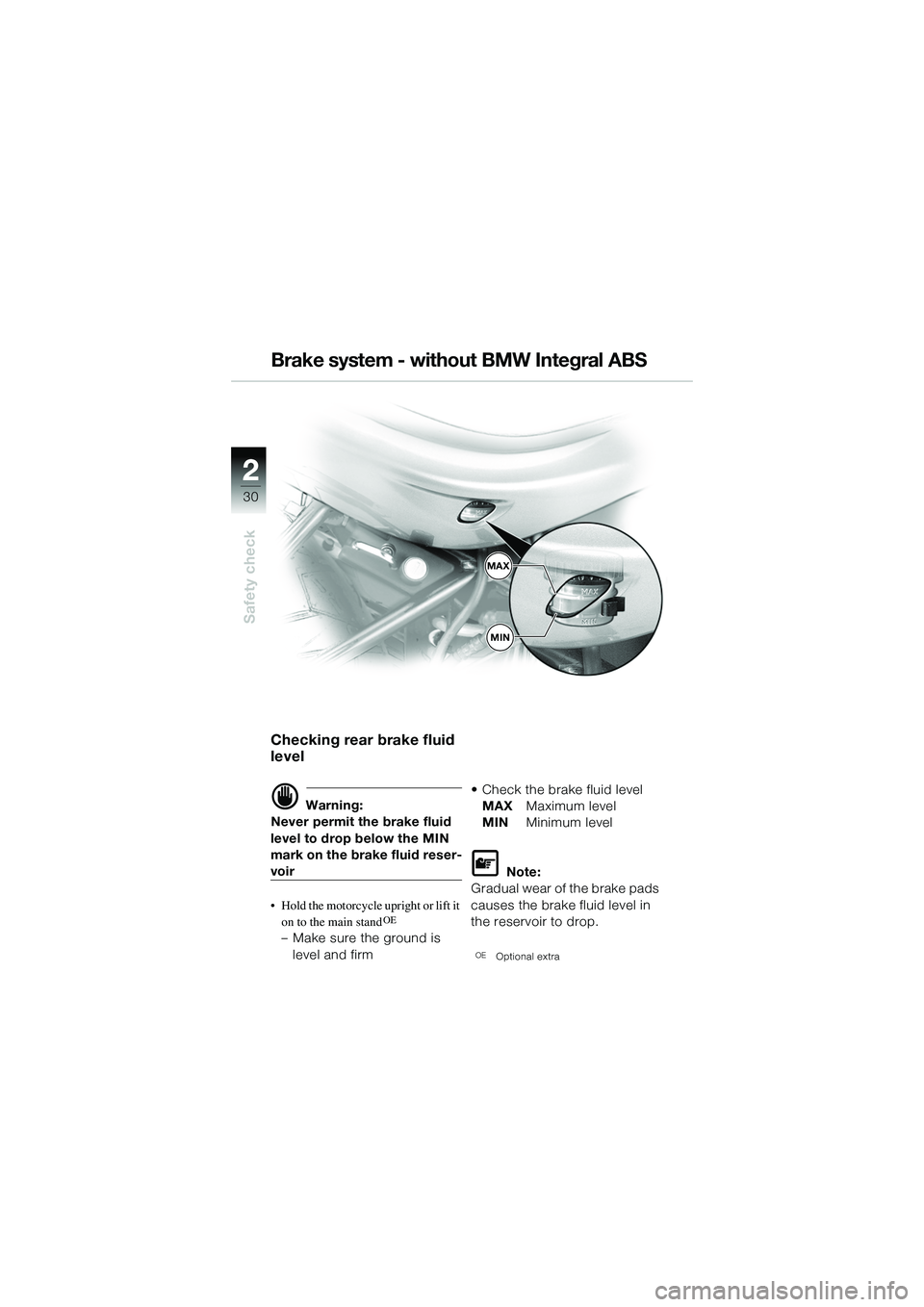

Checking rear brake fluid
level
d Warning:
Never permit the brake fluid
level to drop below the MIN
mark on the brake fluid reser-
voir
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is
level and firm • Check the brake fluid level
MAX Maximum level
MIN Minimum level
L Note:
Gradual wear of the brake pads
causes the brake fluid level in
the reservoir to drop.
OE Optional extra
