Superimposed display In certain cases, when a function
(radio, telephone, trip computer, ... )changes status while another func-tion is displayed, a window opens toinform you of the change, thendisappears.MULTIFUNCTION DISPLAYS Presentation Monochrome display Colour display These two multifunction displays are an integral part of theaudio/tele-
phone/GPS. Therefore, they are
controlled by its control keypad andby its steering wheel stalk. They enable you to obtain the follo-wing information: -
displaying of the audio sources (radio, CD or CD changer),
- displaying of the telematic systems(telephone, services, ... ),
- displaying of the satellite naviga-tion system (see correspondingsection),
- displaying of the trip computer (seecorresponding section),
- the warning messages (e.g.
"Warning, maximum speed excee-ded") or information messages(e.g. "SIM card absent") displayed
temporarily.
YOUR BOXER IN DETAIL
36

16-09-2002
-Following selection of a function from the menu, the sub-menu
appears on the right-hand side of
the display .
- The values corresponding to eachof the functions of the sub-menuappear opposite on the left-hand
side of the display . Main screen Press the
"MAIN/DARK" button to dis-
play the main screen, display the infor- mation relating to the active source
(radio, CD, CD changer, telephone ornavigation) and gain access to the fol-lowing functions: - Item memorisation,- Setup. The "Item. Memo" function permits
management of the recorded voice messages. Y ou can listen to them again or delete
them.The messages are played in sequen- ce, from the oldest to the most
recent. Deleting deletes all of the messages. The "Setup" function permits modifi-
cation of the general system para- meters (see ¤ "Parameter configura-tion").
YOUR BOXER IN DETAIL 37
Pull-down menu This is the menu associated with the application in use at the base of the
display. When the menu consists of several pages, access to the next page is byselection the "Other menus" func-
tion.

16-09-2002

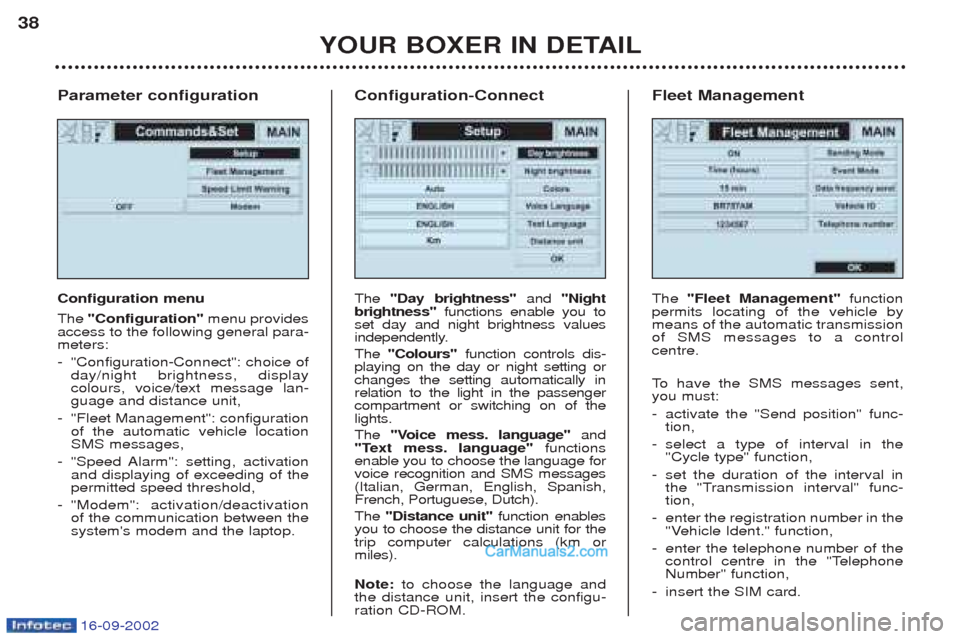

Parameter configuration Configuration menu The"Configuration" menu provides
access to the following general para- meters: - "Configuration-Connect": choice of day/night brightness, displaycolours, voice/text message lan-guage and distance unit,
- "Fleet Management": configurationof the automatic vehicle locationSMS messages,
- "Speed Alarm": setting, activationand displaying of exceeding of thepermitted speed threshold,
- "Modem": activation/deactivationof the communication between thesystem's modem and the laptop.
YOUR BOXER IN DETAIL
38
Configuration-Connect The "Day brightness" and "Night
brightness" functions enable you to
set day and night brightness values
independently. The "Colours" function controls dis-
playing on the day or night setting or changes the setting automatically inrelation to the light in the passengercompartment or switching on of thelights. The "Voice mess. language" and
"Text mess. language" functions
enable you to choose the language for voice recognition and SMS messages(Italian, German, English, Spanish,French, Portuguese, Dutch). The "Distance unit" function enables
you to choose the distance unit for the trip computer calculations (km ormiles). Note: to choose the language and
the distance unit, insert the configu- ration CD-ROM. Fleet Management The
"Fleet Management" function
permits locating of the vehicle by means of the automatic transmissionof SMS messages to a controlcentre.
To have the SMS messages sent,
you must: - activate the "Send position" func- tion,
- select a type of interval in the"Cycle type" function,
- set the duration of the interval in
the "Transmission interval" func-tion,
- enter the registration number in the
"Vehicle Ident." function,
- enter the telephone number of the
control centre in the "TelephoneNumber" function,
- insert the SIM card.

16-09-2002
YOUR BOXER IN DETAIL39
Speed alarm The "Speed Alarm" function
enables you to monitor the speed of the vehicle.
To enable the system to detect an
excessive speed and warn you of this, you must: - activate the "Alarm" function,
- set the permitted speed threshold in the "Speed" function,
- activate the "Buzzer" function. Modem The
"Modem" function permits an
exchange of data between the sys- tem and a laptop.
To permit an exchange of data, you
must: - connect the computer to the sys- tem using its cable located in thecentre of the instrument panelunder the storage compartment,
- configure the serial port of thecomputer to 9600 bits/s; 8 databits; no parity; 1 stop bit; fux
Xon/Xoff check,
- install the modem on the computer,
- activate the "Modem" function,
- insert the SIM card.
For safety reasons, confi- guration of the multifunc-tion displays by the drivermust be carried out when
stationary.

Control keypad
"SEL" knob: Rotation :Selection of functions from a menu or a screen. Selection of audio settings - Modification of the value of a setting.
Increase or decrease of the map zoom factor.Adjustment of the display brightness for the video camera.
Press : Displaying of the "MAIN" or "NAV" context menu depending on the active source.Confirmation of the functons selected or of the values changed.
"ESC" button: Cancellation of the current operation.Exit from the page selected and return to the previous page.
Deletion of a character.Pressing for more than 2 seconds: deletion of an entire line.
"MAIN/DARK" button: Displaying of the main menu. Switching on of
the display. Pressing for more than 2 seconds: switches
the display to standby.
"AUDIO/OFF" button: Displaying of the audiosources menu.
Switching on of the radio, CD and CD changersources.
Pressing for more than 2 seconds: switches off the radio, CD and CD changer sources. "TEL/OFF" button:
Displaying of the telephonesource menu.
Switching on of the telephone source. Pressing for more than 2 seconds: switches
the telephone source off.
"NAV/MUTE" button: Displaying of the navigationsource menu.
Pressing for more than 2 seconds: cuts off/restores the voice information.
"TRIP" button Displaying of the trip computersource menu.
YOUR BOXER IN DETAIL
40
16-09-2002

16-09-2002
RADIO CASSETTE
YOUR BOXER IN DETAIL
42
Stalk movement Function
1 - Press Increase volume.
2 - Press Decrease volume.
3 - Press Sound cut-off (MUTE); restoring of the sound or by pressing button 1 or 2.
4 - Press Change of source (radio/cassette).
5 - Press Automatic search of lower frequencies (radio) - Rewind (cassette).
6 - Press Automatic search of higher frequencies (radio) - Fast forward (cassette).
Button Function
A VOL - Decrease volume.
BO NCut-off / Restoration of the sound (MUTE). Press for more than 2 seconds: audio equipment on/off.
C VOL + Increase volume.

16-09-2002
YOUR BOXER IN DETAIL43
Button Function
D AF - TA RDS function on/off.
Press for more than 2 seconds: TA traffic information priority on/off.
E PTY PTY function on/off.
Press for more than 2 seconds: EON system on/off
F j
kReversal of direction of play of the cassette (autoreverse).
G ▲
Ejection of the cassette.
H SRC Selection of source: radio or cassette.
SC Press for more than 2 seconds: Scan of the stations (radio) or of the tracks (cassette).
IB NSelection of wavebands FM1, FM2, FMt, MW, LW.
AS Press for more than 2 seconds: automatic storing of stations (autostore).
J ▲ Automatic search of higher frequencies (radio) - Increase of audio settings. Selection of nexttrack (cassette) - Selection of functions from the menu.
K kk Manual search of higher frequencies - Selection of PTY (radio).Fast forward (cassette) - Setting of functions from the menu.
L ▼ Automatic search of lower frequencies (radio) - Decrease of audio settings.Selection of previous track (cassette) - Selection of functions from the menu.
M jj Manual search of lower frequencies - Selection of PTY (radio).Rewind (cassette) - Setting of functions from the menu.
N MENU-PS Access to the menu.Press for more than 2 seconds: scan of stored stations (radio).
OI IPause / Resume cassette play.
P "Dolby B" sound on/off.
Q AUD Selection of audio settings (bass, treble, fader, balance).Press for more than 2 seconds: activation / deactivation of the loudness.
1 to 6 1 2 3 4 5 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.

16-09-2002
YOUR BOXER IN DETAIL
46
GENERAL FUNCTIONS On/off With the ignition key in the STOP or ignition position, press button Bfor more than 2 seconds to switch
the set on or off. The set can operate for 20 minutes without the vehicle ignition being switched on.
Anti-theft system The audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part.
CUTTING OFF / RESTORING THE SOUND Pressing button Bactivates or deactivates the "MUTE" function. Pressing button Aor Calso restores the sound.
ADJUSTING THE VOLUME Press button Aseveral times in succession to decrease the volume, or button C to increase it.
Continuous pressure on buttons Aand Callows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Qseveral times in succession to access the bass (BASS), treble (TREBLE) , front/rear sound
distribution (FADER)and right/left sound distribution (BALANCE)settings.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button Q
after configuration of the last audio setting.
Press button Q for more than two seconds to activate or deactivate the loudness (LOUD).
Note : bass and treble settings are specific to each source. It is possible to set them differently for radio, cassette or CD.
