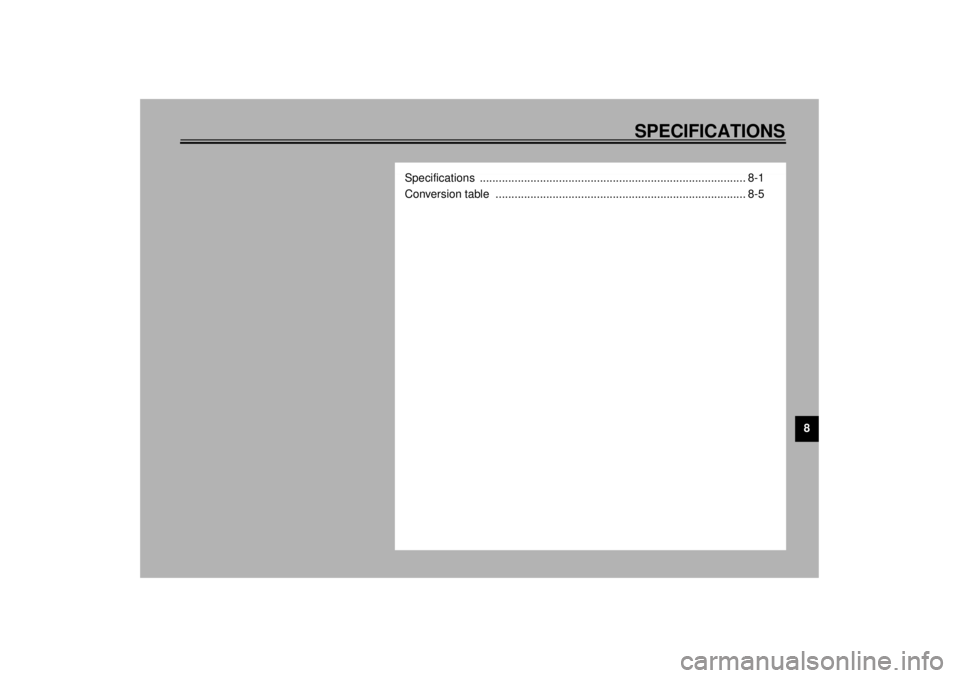

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
E_4tx.book Page 1 Wednesday, October 4, 2000 4:28 PM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
CS-01EModel TDM850
Dimensions
Overall length 2,165 mm (for GB, NL, B, F, E, P,
I, GR, D, DK)
2,200 mm (for N, S, SF)
Overall width 790 mm
Overall height 1,285 mm
Seat height 805 mm
Wheelbase 1,475 mm
Ground clearance 165 mm
Minimum turning radius 2,900 mm
Basic weight (with oil and full
fuel tank)
232 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
2-cylinder
Displacement 849 cm
3
Bore ´ stroke 89.5 ´ 67.5 mm
Compression ratio 10.5:1
Starting system Electric starter
Lubrication system Dry sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter element
replacement 3.5 L
With oil filter element
replacement 3.6 L
Total amount (dry engine) 4.2 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
E_4tx.book Page 1 Wednesday, October 4, 2000 4:28 PM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
1.7 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 20 L
Fuel reserve amount 3.1 L
Carburetor
Manufacturer MIKUNI
Model ´ quantity BDSR38 ´ 2
Spark plug
Manufacturer/model NGK / DPR8EA-9 or
DENSO / X24EPR-U9
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.718
Secondary reduction system Chain drive
Secondary reduction ratio 2.688
Number of drive chain
sprocket teeth (front/rear) 16/43
Transmission type Constant-mesh 5-speedOperation Left foot
Gear ratio
1st 2.643
2nd 1.947
3rd 1.500
4th 1.174
5th 0.964
Chassis
Frame type Diamond
Caster angle 24.5°
Trail 103 mm
Tires
Front
Type Tubeless tire
Size 110/80 ZR18 (58W)
Manufacturer/model Bridgestone / BT54F
Pirelli / MTR03
Michelin / MACADAM90X
Rear
Type Tubeless tire
Size 150/70 ZR17 (69W)
Manufacturer/model Bridgestone / BT54R
Pirelli / MTR04
Michelin / MACADAM90X
E_4tx.book Page 2 Wednesday, October 4, 2000 4:28 PM

SPECIFICATIONS
8-3
8
Maximum load* 203 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 225 kPa (2.25 kg/cm
2, 2.25 bar)
Rear 275 kPa (2.75 kg/cm2, 2.75 bar)
90 kg–maximum*
Front 225 kPa (2.25 kg/cm2, 2.25 bar)
Rear 275 kPa (2.75 kg/cm2, 2.75 bar)
High-speed riding
Front 225 kPa (2.25 kg/cm2, 2.25 bar)
Rear 275 kPa (2.75 kg/cm2, 2.75 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 18 ´ MT 3.00
Rear
Type Cast wheel
Size 17 ´ MT 4.00Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (monocross)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 149 mm
Rear 144 mm
E_4tx.book Page 3 Wednesday, October 4, 2000 4:28 PM

SPECIFICATIONS
8-4
8
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 24 A @ 5,000 r/min
Battery
Model GT12B-4
Voltage, capacity 12 V, 10 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 55 W ´ 2
Auxiliary light 12 V, 5 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 2
Turn signal light 12 V, 21 W ´ 4
Meter lighting 12 V, 2 W ´ 3
Neutral indicator light 14 V, 1.4 W ´ 1
High beam indicator light 14 V, 1.4 W ´ 1
Turn signal indicator light 14 V, 1.4 W ´ 2
Coolant temperature
warning light 14 V, 1.4 W ´ 1
Fuel level warning light 12 V, 2 W ´ 1Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 10 A
Hazard fuse 10 A
Odometer fuse 5 A
Radiator fan fuse 7.5 A
E_4tx.book Page 4 Wednesday, October 4, 2000 4:28 PM

SPECIFICATIONS
8-5
8
EAU01064
Conversion table CS-02EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
ExampleMETRIC MULTIPLIER IMPERIAL
** mm´ 0.03937 = ** in
2 mm´ 0.03937 = 0.08 in
Conversion tableMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/h 0.6214 mi/h
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm3)
cc (cm3)
L (liter)
L (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_4tx.book Page 5 Wednesday, October 4, 2000 4:28 PM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
E_4tx.book Page 1 Wednesday, October 4, 2000 4:28 PM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. @
1. Key identification number
1. Vehicle identification number
E_4tx.book Page 1 Wednesday, October 4, 2000 4:28 PM
