2001 VOLVO V70 Owners Manual

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_10a.htm[4/4/2013 10:39:12 PM]
A - Setting station
Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are
displayed.
B - Station seek up/down
Press the left side (lower frequency) or right side (higher frequency) of the button to start the seek function. The radio
seeks the next audible station and tunes it in. Repeat the procedure to continue the seek function.
Station seek up/down
If you have a key pad in the steering wheel press the right or left arrow to switch between preset stations.
Scan function
Press the SCAN button (HU-613) or the SOURCE button (HU-803) to start the station scan function. When a station
is found, scanning stops for several seconds, after which scanning will continue.
Press the SCAN or SOURCE button when a station has been found if you would like to listen to that station and to
discontinue the scan function.
pg. 149 Audio systems HU-413/HU-613/HU-803 - radio
A - Automatic station preset
This function seeks and stores up to 10 strong AM or FM stations in a separate memory. This function is especially
useful in areas where you are not familiar with the radio stations.
1. Press in the "AUTO" button. A number of strong signal stations (max. 10) from the currently selected waveband are
now stored automatically in the memory. An "A" and "AUTO" is displayed. If there is no station with sufficient signal
strength "NO STATION" is displayed.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_10a.htm[4/4/2013 10:39:12 PM]
2. Turn "1-20/DISC" button if you wish to change to another of the auto-stored stations.
Another auto-stored station is selected with each turn.
Programming stations
1. Tune in the desired frequency.
2. Press the "1-20/DISC" button. Select a number by turning forwards or backwards. Press again to store the selected
frequency and station.
Preset
To choose a pre-set station, turn "1-20/DISC" button to the stored number. The currently selected station is displayed.
Radio Data System (RDS, also referred to as RBDS) -HU- 803 only
This feature, which may not work in your area, functions only with FM broadcasts. The HU -803 radio in your car is
equipped with an advanced system allowing information from broadcasters to be transmitted visually, as text, together
with the audio signal. This informa-tion is then decoded by the radio and made available for several new and unique
features.
The RDS or Radio Data System operates in the FM band only, and the information transmitted is supplied
exclusively by participating broadcasters. Volvo has no control over the accuracy of the data or information. Please
refer to the following pages regarding specific descriptions and operation of these functions.
Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will find the
radio in your car is equipped to take advantage of this system.
pg. 150 Audio systems HU-803 - radio
Traffic information (TP) -HU- 803 only
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_10a.htm[4/4/2013 10:39:12 PM]
This feature may not be apply in your area and only functions with FM broadcasts. (See previous page)
Push the "TP" button for traffic information from RDS stations. "TP" is displayed when the function is connected.
When the unit is in Cassette or CD mode, the FM radio function will seek in the background for a station with a strong
signal broadcasting traffic information. If a cassette or CD are playing when the radio receives a traffic bulletin, that
function is interrupted and the bulletin is broadcast with the volume pre-selected for traffic information.
When the bulletin is finished the unit immedi-ately returns to the previously set volume and continues playing the
cassette or CD.
Traffic information can only be heard when is displayed.
If only TP is displayed, this indicates that no traffic information is being received at the time.
If you do not wish to listen to an ongoing traffic bulletin, press the "TP" button. The TP function will remain active
and the radio will continue to monitor traffic information.
To turn the TP function off, press the TP button. TP is no longer shown in the display.
News on/off - HU-803 only
This feature may not apply in your area and only functions with FM broadcasts. (See previous page)
Press the "NEWS" button to activate the news function. The text NEWS is displayed. Press the "NEWS" button again
if you want to switch off the function.
As soon as a news broadcast begins, the news program will interrupt the Cassette, CD or CD changer.
If you do not wish to listen to the news program, press the "NEWS" button again. The news function will remain active
and the radio will continue to monitor news programs.

Contents | Top of Page
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_11.htm[4/4/2013 10:39:17 PM]
2 0 0 1
VOLVO V70
HomeLink® Universal Transceiver (option)
pg. 161 HomeLink® Universal Transceiver (option)
HomeLink® Universal Transceiver
HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled-
devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink®'s sun visor-mounted transceiver,
powered by your car's electrical system, may then be used in place of your hand -held remote controls.
NOTE: For your security, the HomeLink® Universal Transceiver is designed to not function if you lock your car
from the outside. Programming the transceiver
1. The ignition switch must be turned to the "accessory" position (II) before programming the HomeLink® Universal
Transceiver.
2. Begin by erasing all 3 factory default channels. Hold down the two outside buttons (buttons 1 and 3 in the
illustration) on the HomeLink® Universal Transceiver for about 20 seconds, until HomeLink®'s indicator light begins
to flash. Then release the buttons.
3. Hold your hand -held transmitter (garage door opener, for example) 2 to 5 in. (5 to 12 cm) away from the
HomeLink® surface, keeping the indicator light in view. For placement questions, contact HomeLink® toll-free 1-
800-355-3515 (Internet: www.HomeLink®.jci.com).
4. Using two hands, push and hold both your hand -held transmitter's button and the transceiver button you wish to
program. The indicator light will flash first slowly, then rapidly. Rapid flashing tells you the HomeLink® button has
been successfully programmed. Release both buttons.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_11.htm[4/4/2013 10:39:17 PM]

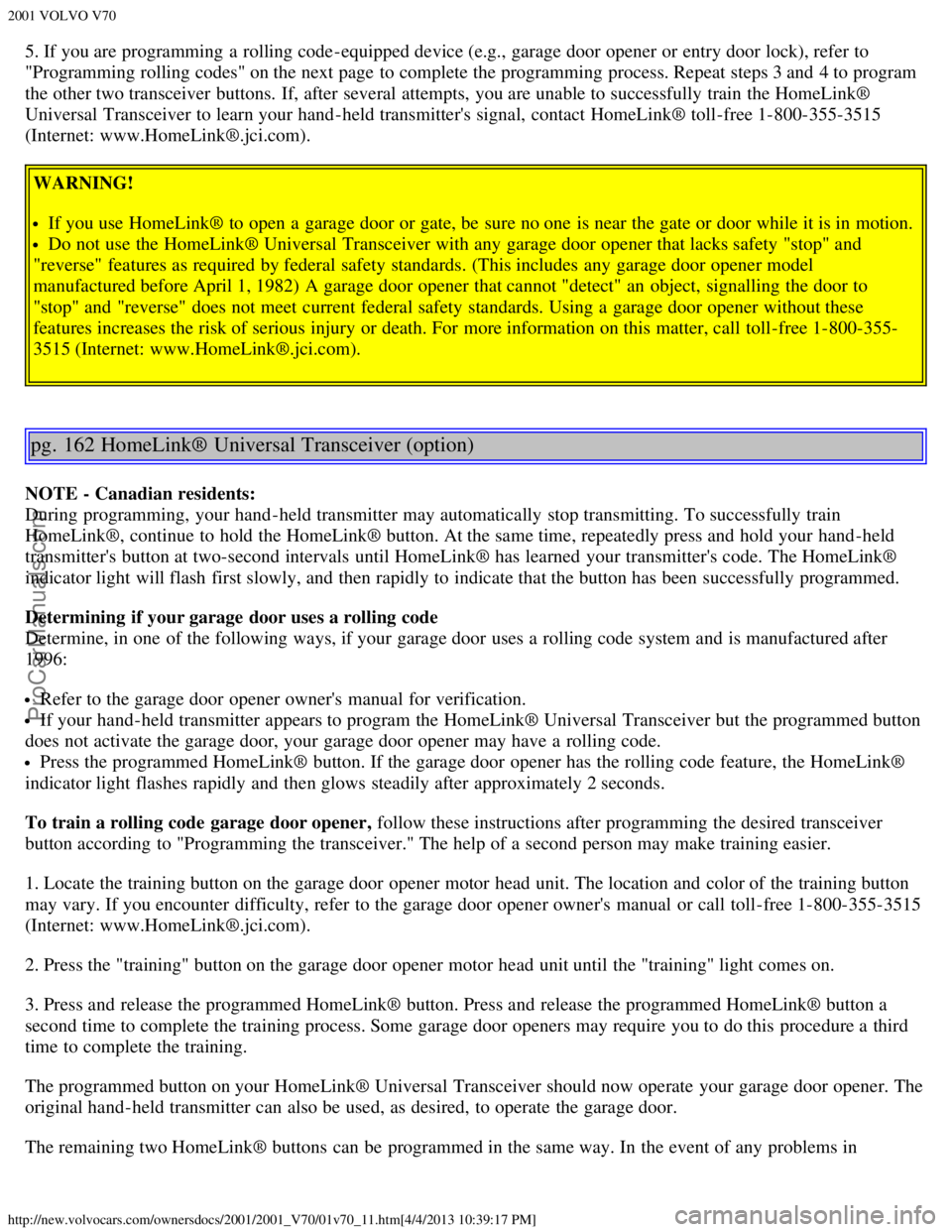

5. If you are programming a rolling code-equipped device (e.g., garage door opener or entry door lock), refer to
"Programming rolling codes" on the next page to complete the programming process. Repeat steps 3 and 4 to program
the other two transceiver buttons. If, after several attempts, you are unable to successfully train the HomeLink®
Universal Transceiver to learn your hand -held transmitter's signal, contact HomeLink® toll-free 1-800-355-3515
(Internet: www.HomeLink®.jci.com).
WARNING!
If you use HomeLink® to open a garage door or gate, be sure no one is near the gate or door while it is in motion.
Do not use the HomeLink® Universal Transceiver with any garage door opener that lacks safety "stop" and
"reverse" features as required by federal safety standards. (This includes any garage door opener model
manufactured before April 1, 1982) A garage door opener that cannot "detect" an object, signalling the door to
"stop" and "reverse" does not meet current federal safety standards. Using a garage door opener without these
features increases the risk of serious injury or death. For more information on this matter, call toll-free 1-800-355-
3515 (Internet: www.HomeLink®.jci.com).
pg. 162 HomeLink® Universal Transceiver (option)
NOTE - Canadian residents:
During programming, your hand -held transmitter may automatically stop transmitting. To successfully train
HomeLink®, continue to hold the HomeLink® button. At the same time, repeatedly press and hold your hand -held
transmitter's button at two-second intervals until HomeLink® has learned your transmitter's code. The HomeLink®
indicator light will flash first slowly, and then rapidly to indicate that the button has been successfully programmed.
Determining if your garage door uses a rolling code
Determine, in one of the following ways, if your garage door uses a rolling code system and is manufactured after
1996:
Refer to the garage door opener owner's manual for verification.
If your hand -held transmitter appears to program the HomeLink® Universal Transceiver but the programmed button
does not activate the garage door, your garage door opener may have a rolling code.
Press the programmed HomeLink® button. If the garage door opener has the rolling code feature, the HomeLink®
indicator light flashes rapidly and then glows steadily after approximately 2 seconds.
To train a rolling code garage door opener, follow these instructions after programming the desired transceiver
button according to "Programming the transceiver." The help of a second person may make training easier.
1. Locate the training button on the garage door opener motor head unit. The location and color of the training button
may vary. If you encounter difficulty, refer to the garage door opener owner's manual or call toll-free 1-800-355-3515
(Internet: www.HomeLink®.jci.com).
2. Press the "training" button on the garage door opener motor head unit until the "training" light comes on.
3. Press and release the programmed HomeLink® button. Press and release the programmed HomeLink® button a
second time to complete the training process. Some garage door openers may require you to do this procedure a third
time to complete the training.
The programmed button on your HomeLink® Universal Transceiver should now operate your garage door opener. The
original hand -held transmitter can also be used, as desired, to operate the garage door.
The remaining two HomeLink® buttons can be programmed in the same way. In the event of any problems in
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_11.htm[4/4/2013 10:39:17 PM]
programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet:
www.HomeLink®.jci.com).
Operating the HomeLink® Universal Transceiver
Once programmed, the HomeLink® Universal Transceiver can be used in place of your hand -held transmitters.
To operate, the key must be turned to the "accessory" position (II) or the engine must be running. Press the
programmed HomeLink® button to activate the garage door, driveway gate, security lighting, home security system,
etc.
Your original hand -held transmitters may, of course, be used at any time.
Erasing programmed buttons
Individual buttons cannot be erased. To erase all three programmed buttons:
1. Turn the ignition key to the "accessory" position (II).
2. Hold down the two outside buttons on the HomeLink® Universal Transceiver for about 20 seconds, until
HomeLink®'s indicator light begins to flash.
3. Release both buttons.
The HomeLink® buttons can be reprogrammed using the procedures described on the previous page.
(HomeLink® information continues on the next page)
pg. 163 HomeLink® Universal Transceiver (option)
Reprogramming a single HomeLink® button
1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.
2. When the indicator light begins to flash slowly (after approximately 20 seconds), position your hand -held
transmitter 2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.
3. Press and hold the hand -held transmitter button. The HomeLink® indicator light will flash first slowly, then rapidly.
When the indicator light flashes rapidly, release both buttons.
The previously programmed device has now been erased and the new device can be activated by pressing the
HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink®
buttons.
NOTE:
Retain the original transmitter(s) for future programming procedures (e.g., if you purchase a new car).
For your own security, erase all programmed buttons on the HomeLink® Universal Transceiver when you sell your
car.
Metallic sun protection films should not be used on any windows in a car equipped with HomeLink® Universal
Transceiver. This could interfere with the transceiver's function.

Contents | Top of Page
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_12.htm[4/4/2013 10:39:23 PM]
2 0 0 1
VOLVO V70
INDEX
pg. 178 - 181 Index
A
ABS 19
ABS - warning light27
Accessory lights29
Adjusting the steering wheel33
Advanced User Mode (AUM) - radio152
Air conditioning44 - 47
Air pump system125
Air vents42
Airbag (SIPS)8
Airbag (SRS)4
Alarm74, 75
Alarm - "panic" function74
All Wheel Drive (AWD) - towing91
All Wheel Drive - special tire information101
ALR/ELR14
Anti-lock Brake System (ABS)19
Anti-lock Brake System - warning light27
Antifreeze96, 125
Approach lighting70
Armrest (center) - 3-section rear seat59
Ashtray37, 53
Audio systems143
cassette deck156
CD player154
HU -413 - overview144
HU -613 - overview145
HU -803 - overview146
specifications159
AUM (Advanced User Mode) - radio152
Automatic car washing120
Automatic locking73
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_12.htm[4/4/2013 10:39:23 PM]

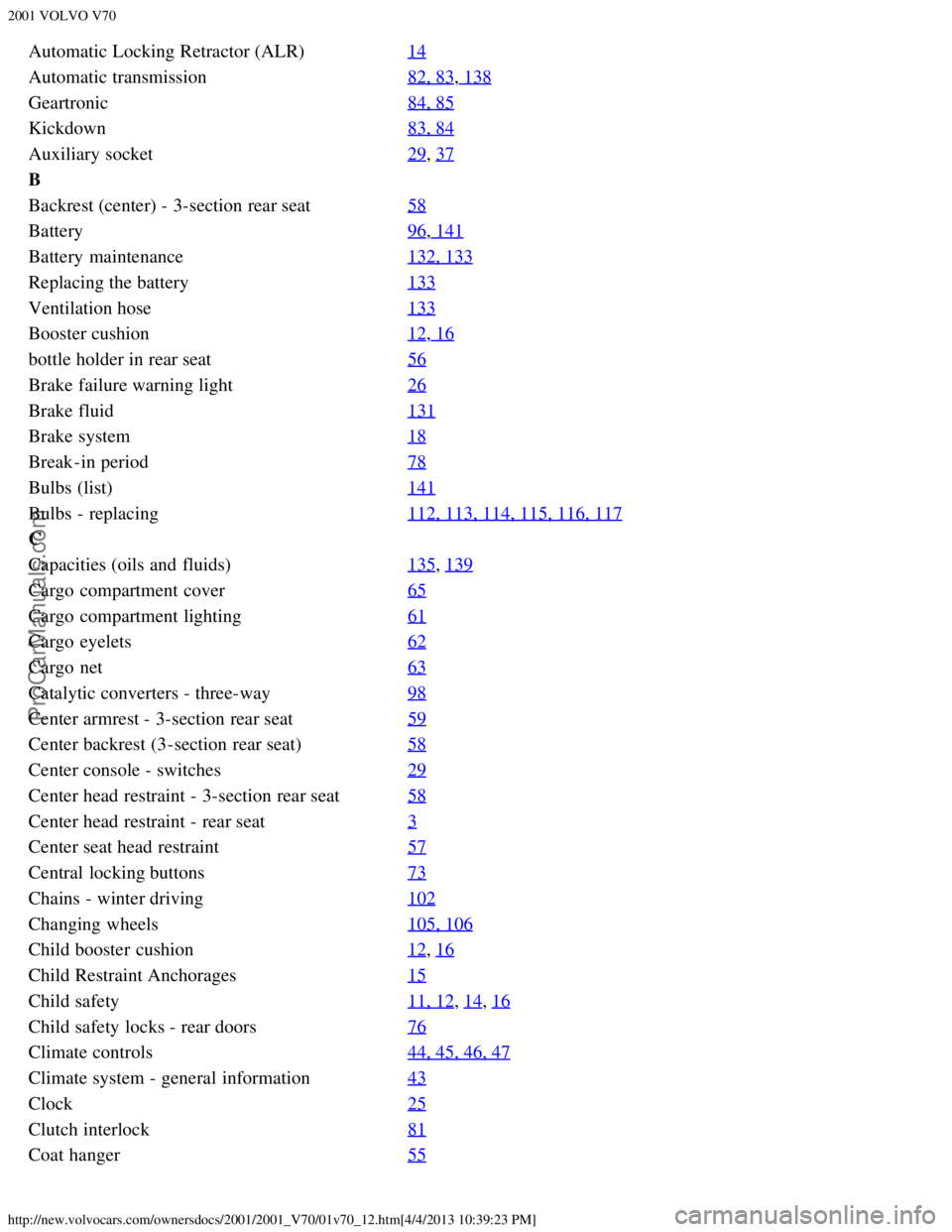

Automatic Locking Retractor (ALR)14
Automatic transmission82, 83, 138
Geartronic84, 85
Kickdown83, 84
Auxiliary socket29, 37
B
Backrest (center) - 3-section rear seat58
Battery96, 141
Battery maintenance132, 133
Replacing the battery133
Ventilation hose133
Booster cushion12, 16
bottle holder in rear seat56
Brake failure warning light26
Brake fluid131
Brake system18
Break-in period78
Bulbs (list)141
Bulbs - replacing112, 113, 114, 115, 116, 117
C
Capacities (oils and fluids)135
, 139
Cargo compartment cover65
Cargo compartment lighting61
Cargo eyelets62
Cargo net63
Catalytic converters - three-way98
Center armrest - 3-section rear seat59
Center backrest (3-section rear seat)58
Center console - switches29
Center head restraint - 3-section rear seat58
Center head restraint - rear seat3
Center seat head restraint57
Central locking buttons73
Chains - winter driving102
Changing wheels105, 106
Child booster cushion12, 16
Child Restraint Anchorages15
Child safety11, 12, 14, 16
Child safety locks - rear doors76
Climate controls44, 45, 46, 47
Climate system - general information43
Clock25
Clutch interlock81
Coat hanger55
ProCarManuals.com
