2001 VOLVO V70 Owners Manual

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_13.htm[4/4/2013 10:39:29 PM]
The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See
page 127.
2 Power steering - When cold, the level must not be above the COLD mark and when hot it must not be above the
HOT mark. Top up if the level drops to the ADD mark with ATF fluid. See page 131.
3 Coolant level should be between the expansion tank marks. Mixture: 50% anti-freeze and 50% water. See page 125.
4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx.
1.6 US qts (1.5 liters). See page 130.
5 Brake fluid - check, without removing the cap, that the level is above the MIN mark. Use brake fluid DOT 4+. See
page 131.
* Engine oil should be checked each time the car is refuelled.
Octane rating, see page 78.
Tire pressure, see label located on the rear edge of the right front door.
ProCarManuals.com

2001 VOLVO V70
http://new.volvocars.com/ownersdocs/2001/2001_V70/01v70_13.htm[4/4/2013 10:39:29 PM]

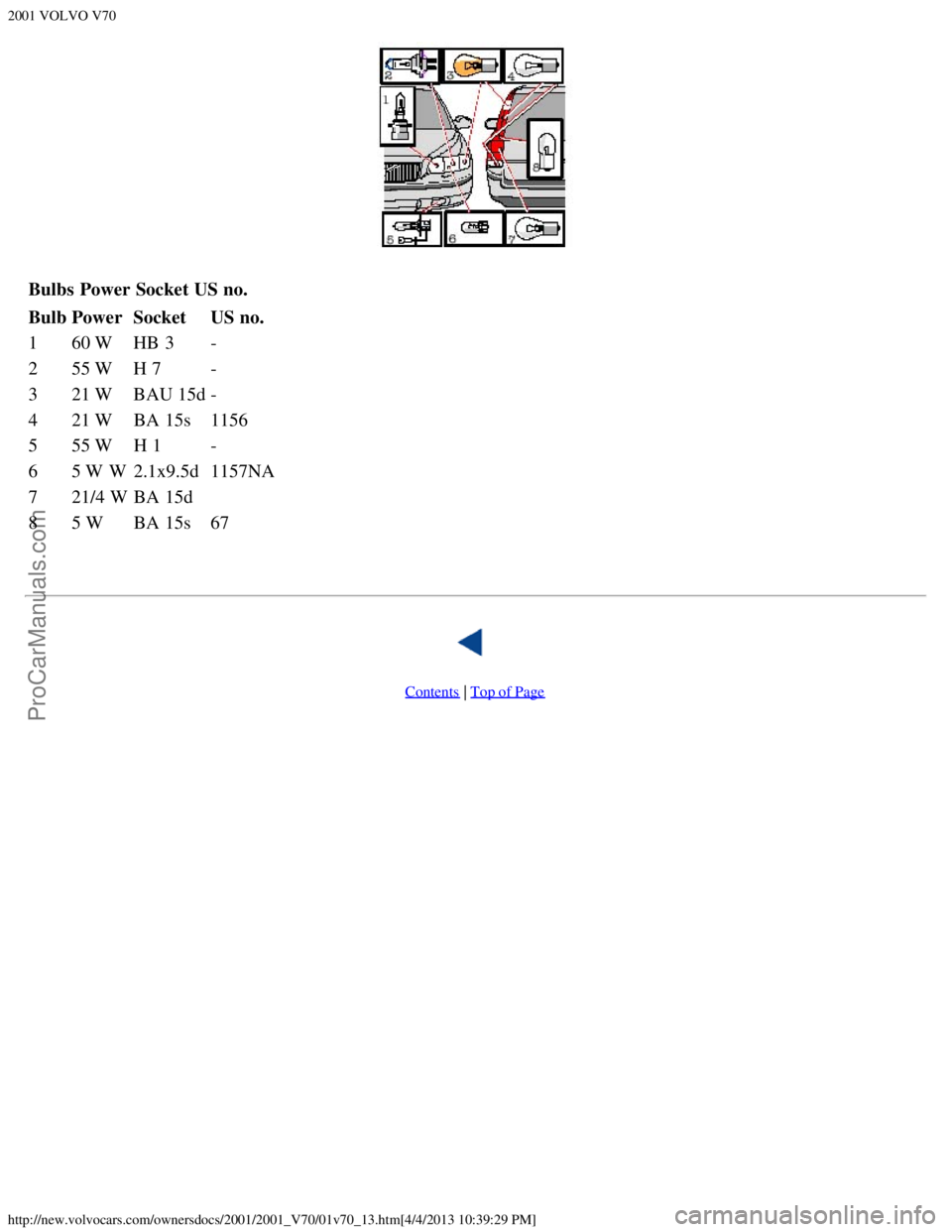

BulbsPower Socket US no.
Bulb Power Socket US no.
1 60 W HB 3 -
2 55 W H 7 -
3 21 W BAU 15d -
4 21 W BA 15s 1156
5 55 W H 1 -
6 5 W W 2.1x9.5d 1157NA
7 21/4 W BA 15d
8 5 W BA 15s 67
