DI±254
± DIAGNOSTICSENGINE
448 Author: Date:
2005 SEQUOIA (RM1146U)
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the hand-held tester. Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was
running or stopped, if the engine was warmed up or not, if the air±fuel ratio was lean or rich, as well as other
data from the time when a malfunction occurred.
1 Are there any other codes (besides DTC P0420 or P0430) being output?
PREPARATION:
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand±held tester main switch ON.
(c) When using hand±held tester, enter the following menu: DIAGNOSIS / ENHANCED OBD II / DTC
INFO / CURRENT CODES.
CHECK:
Read the DTC using the hand±held tester.
RESULT:
Display (DTC Output)Proceed to
ºP0420 and/or P0430ºA
ºP0420 or P0430º and other DTCsB
HINT:
If any other codes besides ºP0420 and/or P0430º are output, perform the troubleshooting for those DTCs
first.
B Go to relevant DTC chart (See page DI±58).
A
2 Check A/F sensor (bank 1, 2 sensor 1).
(a) Connect the hand±held tester to the DLC3.
(b) Start the engine and turn the tester ON.
(c) Warm up the engine with the engine speed at 2,500 rpm for approximately 90 seconds.
(d) On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST /
A/F CONTROL.
(e) Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT
button to change the fuel injection volume).
(f) Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 and O2S B1S2) displayed on the
tester.
HINT:
The A/F CONTROL operation lowers the fuel injection volume by 12.5 % or increases the injection
volume by 25 %.
Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

DI±254
± DIAGNOSTICSENGINE
448 Author: Date:
2005 SEQUOIA (RM1146U)
INSPECTION PROCEDURE
HINT:
Read freeze frame data using the hand-held tester. Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was
running or stopped, if the engine was warmed up or not, if the air±fuel ratio was lean or rich, as well as other
data from the time when a malfunction occurred.
1 Are there any other codes (besides DTC P0420 or P0430) being output?
PREPARATION:
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch ON and push the hand±held tester main switch ON.
(c) When using hand±held tester, enter the following menu: DIAGNOSIS / ENHANCED OBD II / DTC
INFO / CURRENT CODES.
CHECK:
Read the DTC using the hand±held tester.
RESULT:
Display (DTC Output)Proceed to
ºP0420 and/or P0430ºA
ºP0420 or P0430º and other DTCsB
HINT:
If any other codes besides ºP0420 and/or P0430º are output, perform the troubleshooting for those DTCs
first.
B Go to relevant DTC chart (See page DI±58).
A
2 Check A/F sensor (bank 1, 2 sensor 1).
(a) Connect the hand±held tester to the DLC3.
(b) Start the engine and turn the tester ON.
(c) Warm up the engine with the engine speed at 2,500 rpm for approximately 90 seconds.
(d) On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST /
A/F CONTROL.
(e) Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT
button to change the fuel injection volume).
(f) Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 and O2S B1S2) displayed on the
tester.
HINT:
The A/F CONTROL operation lowers the fuel injection volume by 12.5 % or increases the injection
volume by 25 %.
Each sensor reacts in accordance with increases and decreases in the fuel injection volume.

I11929
CRUISE Main
Indicator Light
BE4034
Indicator Light
1.5 secs.0.5 secs.
ON
OFF DI±1544
± DIAGNOSTICSCRUISE CONTROL SYSTEM
1738 Author: Date:
2005 SEQUOIA (RM1146U)
3. CHECK THE INDICATOR
(a) Turn the ignition switch to the ON position.
(b) Check that the CRUISE main indicator light comes on
when the cruise control main switch ON±OFF button is
pushed on, and that the indicator light goes off when the
ON±OFF button is pushed off.
HINT:
If there is a problem with the indicator, inspect the cruise main
indicator light circuit (see page DI±1557).
HINT:
If a malfunction occurs in the vehicle speed sensors, stop lamp
switch assy, or other related parts during cruise control driving,
the ECM will actuate AUTO CANCEL of the cruise control. The
CRUISE main indicator light will then start to blink, informing the
driver of the malfunction. At the same time, data concerning the
malfunction is stored as a diagnostic trouble code (DTC).

DI±1988
± DIAGNOSTICSAUDIO SYSTEM
2182 Author: Date:
2005 SEQUOIA (RM1146U)E0
*1
Registration Completion
Instruction ErrorºRegistration Completion Instructionº command
from master cannot be received.Since this DTC is provided for engi-
neering, it may be detected when no
actual failure exists.
±
E3
*1Registration Request Transmis-
sion

Registration Request command is output from
slave component.

Registration Request command is output from
sub±master component.Since this DTC is provided for engi-
neering, it may be detected when no
actual failure exists.
±
DF
*4Master Error
Due to defective condition of component with a
display, master function is switched to audio
equipment.
Error occurs in communication between sub±
master (audio) and master component.1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
E4
*1Multiple Frame AbortMultiple frame transmission is aborted.
Since this DTC is provided for engi-
neering purpose, it may be detected
when no actual failure exists.
±
D8
*2No Response To Connection
CheckComponent shown by sub±code is or had been
disconnected from system after engine start.
1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
D9
*1Last Mode Error
Component operated (sound and/or image was
provided) before engine stop is or was discon-
nected with ignition switch in ACC or ON.
1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
DANo Response to ON/OFF
Instruction
No response is identified when changing mode
(audio and visual mode change).
Detected when sound and picture does not
change by button operation
1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
DB
*1Mode Status ErrorDual alarm is detected.
1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
DC
*4Transmission Error
Transmission to component shown by sub±code
has been failed.
(This code does not necessarily mean actual fail-
ure.)If same sub±code is recorded in
other component(s), check harness
for power supply and communica-
tion system of all components
shown by code.
±
DE
*3Slave Reset (Momentary Inter-
ruption)After engine start, slave component has been dis-
connected.
1. Power source circuit (Radio re-
ceiver assy).
2. AVC±LAN (Radio receiver assy
± Rear seat audio controller).
3. Replace Rear seat audio control-
ler.DI±1990
DI±2061
±
HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage
for starting the engine.

DIDB3±01
± DIAGNOSTICSREAR SEAT ENTERTAINMANT SYSTEM
DI±2103
2297 Author: Date:
2005 SEQUOIA (RM1146U)
DIAGNOSTIC TROUBLE CODE CHART
TermsMeaning
Physical addressThree±digit code (shown in hexadecimal) which is given to each component com-
prising the AVC±LAN.
Corresponding to the function, individual symbols are specified.
Logical addressTwo±digit code (shown in hexadecimal) which is given to each function comprising
the inner system of the AVC±LAN.
HINT:
DTC of the device which is directly connected via AVC±LAN, is displayed on the ºaudio system or navigation
systemº and the ºtelevision display assyº respectively.
Titles for each unit are stated in the following order: parts name (physical address) [Name indicated by DTC]
1. MULTI±DISPLAY CONTROLLER SUB±ASSY (Physical address: 16C, 16D) [RSE±ECU]
HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage
for starting the engine.

*2: This code is stored 180 seconds after the power supply connector is disconnected after engine
start.

*3: This code may be stored when the engine key is turned back to the ON position and then turned
again to the START position after engine start.

*4: This code may be stored when the engine key is turned back to the ON position and then turned
again to the START position in 1 minute after engine start.
(a) Logical address: 01 (Communication control)
DTCNameDiagnosisVerificationSee page
D8
*2No Response To Connection
CheckComponent shown by sub±code is or had been
disconnected from system after engine start.
1. Power source circuit (Television
display assy).
2. Power source circuit (Disc play-
er controller).
3. AVC±LAN circuit.
4. Replace television display assy.
5. Replace disc player controller.DI±2107
DI±2112
DI±2139
±
±
D9
*1Last Mode Error
Component operated (sound and/or image was
provided) before engine stop is or was discon-
nected with ignition switch in the ACC or ON posi-
tion.
1. Power source circuit (Television
display assy).
2. Power source circuit (Disc play-
er controller).
3. AVC±LAN circuit
4. Replace television display assy.
5. Replace disc player controller.DI±2107
DI±2112
DI±2139
±
±
DANo Response to ON/OFF
Instruction
No response is identified when changing mode
(audio and visual mode change).
Detected when sound and picture do not change
by button operation.
1. Power source circuit (Television
display assy).
2. Power source circuit (Disc play-
er controller).
3. AVC±LAN circuit
4. Replace television display assy.
5. Replace disc player controller.DI±2107
DI±2112
DI±2139
±
±
DB
*1Mode Status ErrorDual alarm is detected.
1. Power source circuit (Television
display assy).
2. Power source circuit (Disc play-
er controller).
3. AVC±LAN circuit
4. Replace television display assy.
5. Replace disc player controller.DI±2107
DI±2112
DI±2139
±
±

05_SEQUOIA_U (L/O 0408)
72
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

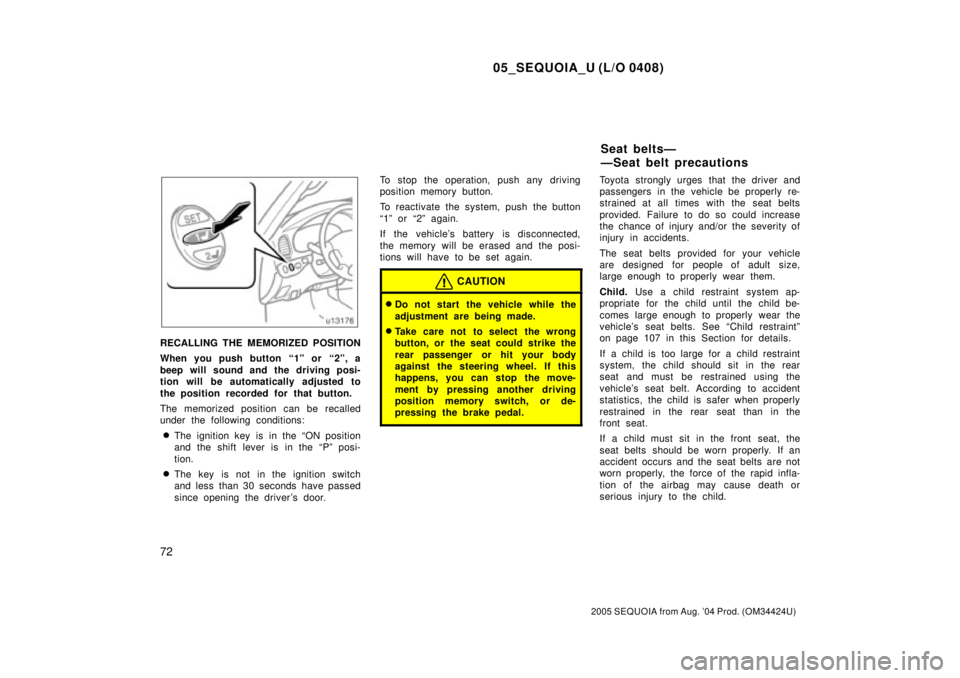

RECALLING THE MEMORIZED POSITION
When you push button ª1º or ª2º, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:

The ignition key is in the ªON position
and the shift lever is in the ªPº posi-
tion.

The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver 's door.To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
ª1º or ª2º again.
If the vehicle's battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION

Do not start the vehicle while the
adjustment are being made.

Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See ªChild restraintº
on page 107 in this Section for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat beltsÐ
ÐSeat belt precautions

05_SEQUOIA_U (L/O 0408)
214
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Compact disc player
Push ª
º while the track is playing.
ª
º will appear on the display. When
the track ends, it will automatically be
replayed. This process will be continued
until you push the button again to turn off
the repeat feature.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the ªSCANº button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the ªSCANº but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.
Compact disc player
Push ª
º to scan the tracks on a spe-
cific disc. ª
º will appear on the dis-
play and the player will scan all the tracks
on the disc you are listening to. To select
a track, push ªSCANº again. If the player
scanned all the tracks on the disc, it will
stop scanning.SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release ª
º or ªº side of the ªSEEK/
TRACKº button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.

05_SEQUOIA_U (L/O 0408)
220
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The ªRDSº button turns the RDS on and
off. This button is operational except in
AM mode.
To turn on the RDS, push and hold this
button until you hear a beep and ªRDSº
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and ªRDS SEARCHº will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and ªRDS
SEARCHº will flash on the display.
When the RDS stations are found,
ªFOUNDº and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, ªNO
RDS STº will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.RPT (Repeat)
Cassette player
Push ªRPTº (preset button 2) while the
track is playing. ª
º will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat featuresÐYou can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release ªRPTº (preset
button 2) while the track is playing.
ª
º will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.Repeating a disc:
Push and hold ªRPTº (preset button 2)
until you hear a beep. ª
º will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the ªSCANº button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the ªSCANº but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.
