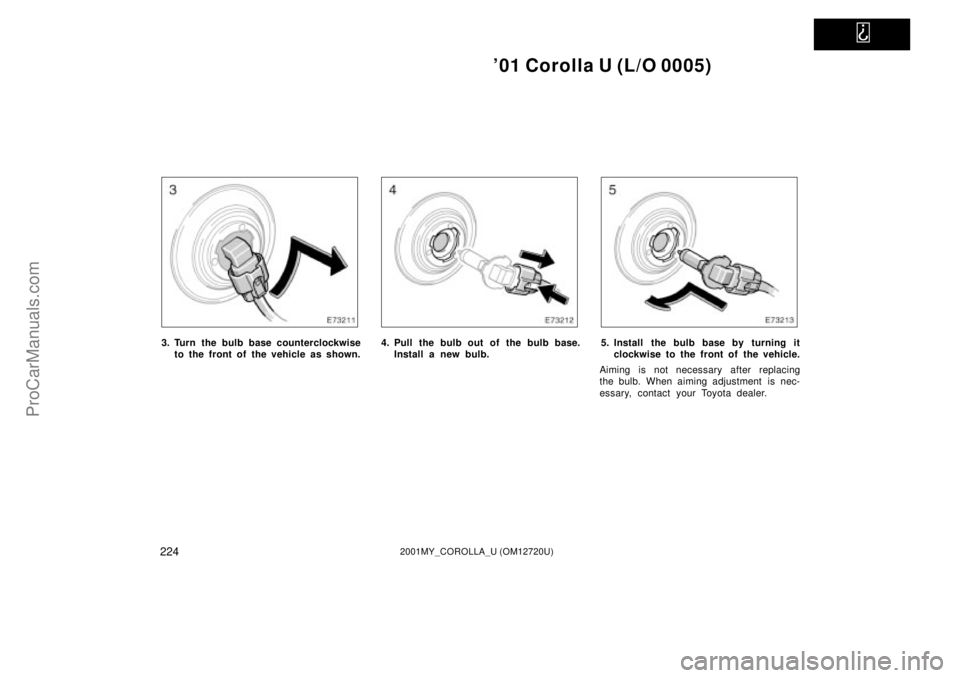

3. Turn the bulb base counterclockwise
to the front of the vehicle as shown.4. Pull the bulb out of the bulb base.
Install a new bulb.5. Install the bulb base by turning it
clockwise to the front of the vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
ProCarManuals.com

'01 Corolla U (L/O 0005)
2252001MY_COROLLA_U (OM12720U)
ÐFront fog lights
1. Loosen the retainer nut and take out
the beam unit.2. Turn the cover counterclockwise and
remove it.3. Disconnect the cords.
ProCarManuals.com

'01 Corolla U (L/O 0005)
2262001MY_COROLLA_U (OM12720U)
4. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install the bulb, align the cutouts of the
bulb with the protrusions of the mounting
hole.5. Connect the cords and install the
cover by turning it clockwise.
6. Install the fog light and tighten the
nut.Use a Phillips±head screwdriver.
ÐParking/front side marker/
front turn signal lights
ProCarManuals.com

'01 Corolla U (L/O 0005)
2272001MY_COROLLA_U (OM12720U)

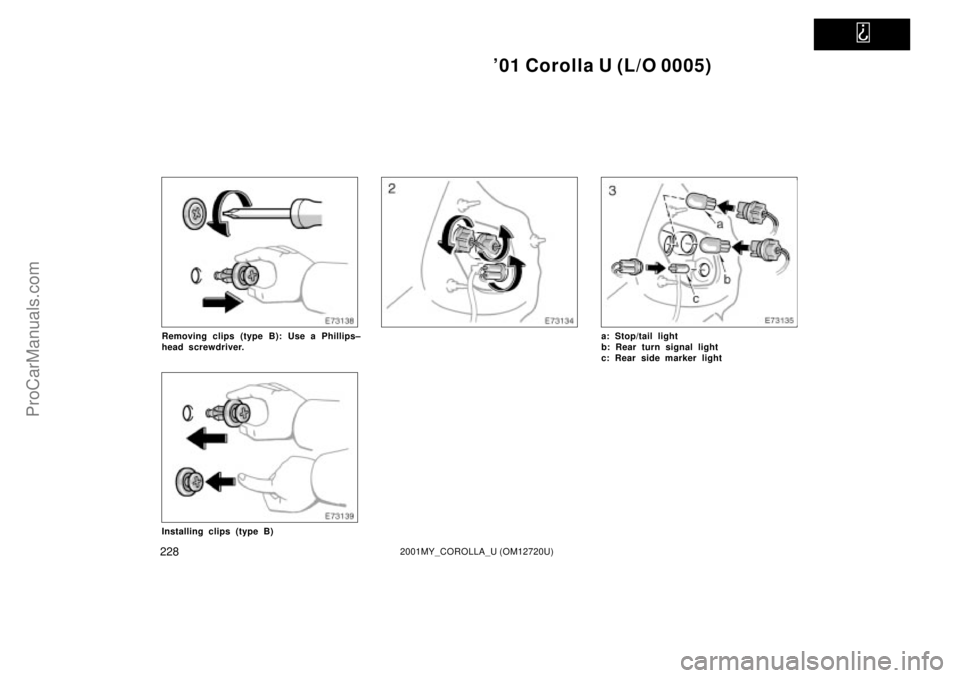

Remove and install the clips as shown in
the following illustrations.Removing clips (type A): Use a flat±bladed
screwdriver or equivalent.
Installing clips (type A)
ÐRear side maker, rear turn
signal, and stop/tail lights
ProCarManuals.com

'01 Corolla U (L/O 0005)
2282001MY_COROLLA_U (OM12720U)
Removing clips (type B): Use a Phillips±
head screwdriver.
Installing clips (type B)
a: Stop/tail light
b: Rear turn signal light
c: Rear side marker light
ProCarManuals.com

'01 Corolla U (L/O 0005)
2292001MY_COROLLA_U (OM12720U)

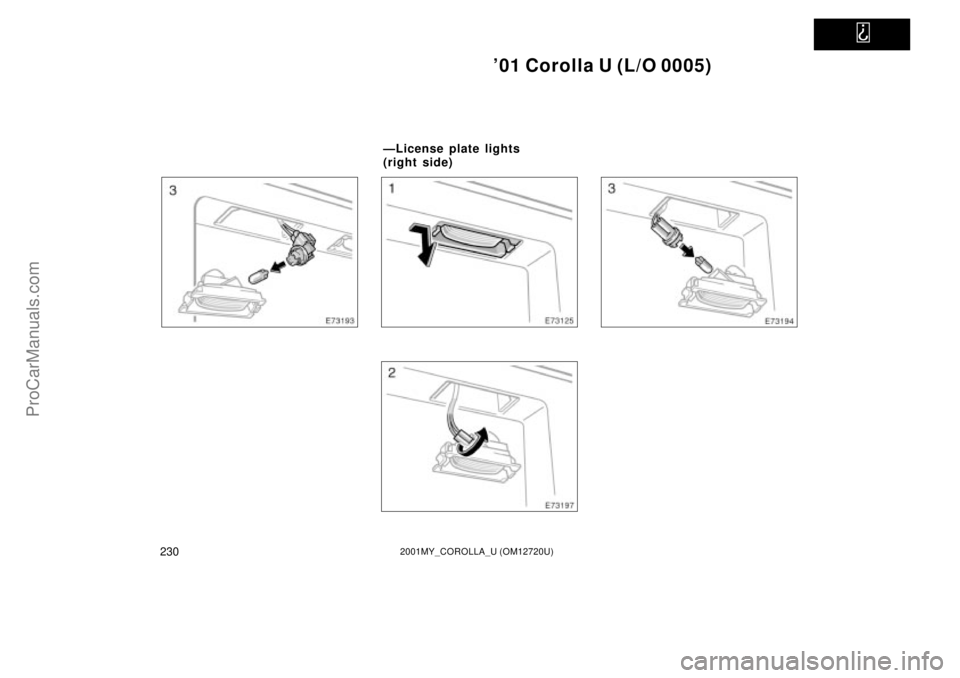

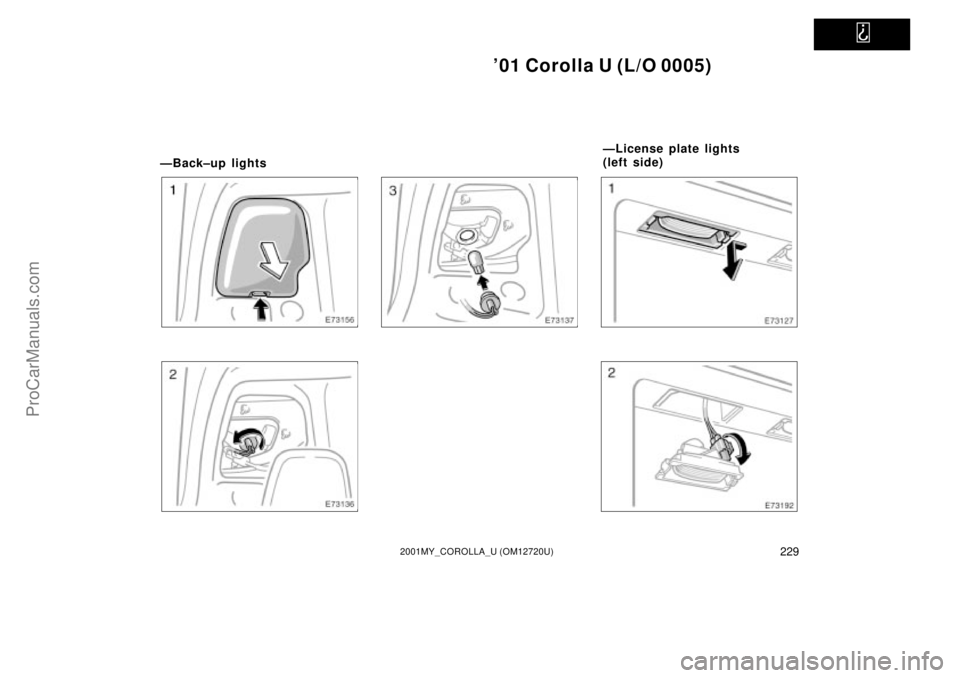

ÐBack±up lights
ÐLicense plate lights
( lef t sid e)
ProCarManuals.com

'01 Corolla U (L/O 0005)
2302001MY_COROLLA_U (OM12720U)
ÐLicense plate lights
(right side)
ProCarManuals.com

'01 Corolla U (L/O 0005)
2312001MY_COROLLA_U (OM12720U)

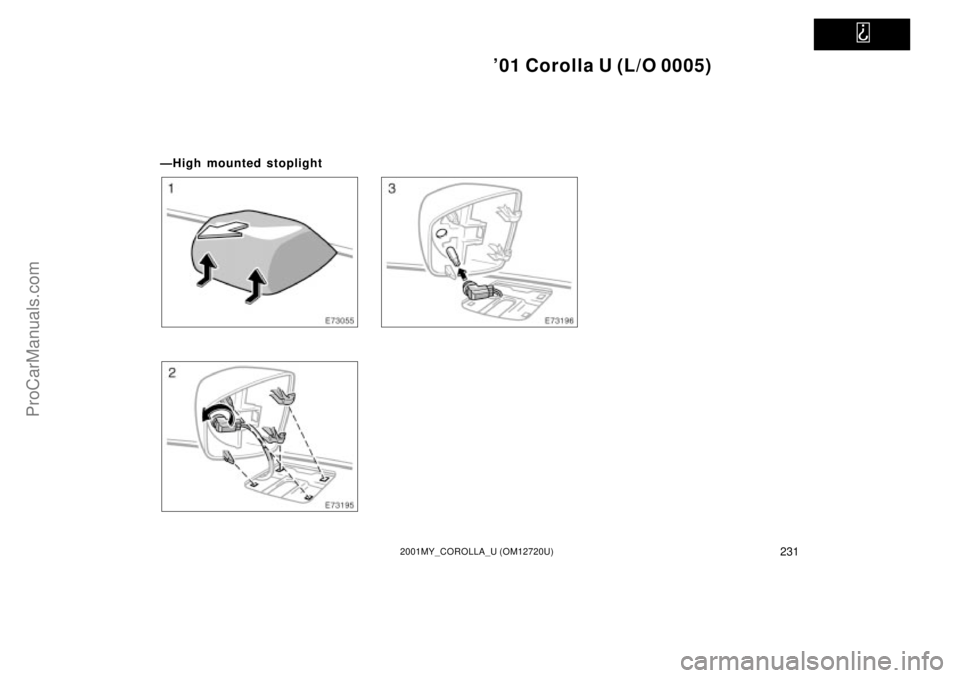

ÐHigh mounted stoplight
