In the following cases, contact your Toyota
dealer as soon as possible:

The SRS side airbags have been in-
flated.

The portion of the doors (shaded in the
illustration) were involved in an acci-
dent that was not severe enough to
cause the SRS side airbags to inflate.

The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. See ªSeat beltsº for
details.
CAUTION

For effective protection in automo-
bile accidents and sudden stops,
children must be properly re-
strained using a seat belt or child
restraint system depending on the
age and size of the child. Holding
a child in your arms is not a sub-
stitute for a child restraint system.
In an accident, the child can be
crushed against the windshield, or
between you and the vehicle's inte-
rior.
Child restraintÐ
ÐChild restraint precautions
ProCarManuals.com

'01 Corolla U (L/O 0005)
492001MY_COROLLA_U (OM12720U)

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
and is put on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.

Never put a rear±facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear±facing child restraint system
is put on the front seat.

Unless it is unavoidable, do not put
a forward±facing child restraint sys-
tem on the front seat.

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. On vehicles with side airbags,
do not allow the child to lean
against the front door or around
the front door even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.

Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.
ÐChild restraint system
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer 's
instructions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er 's instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer of the system. General di-
rections are also provided under the fol-
lowing illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.
ProCarManuals.com

'01 Corolla U (L/O 0005)
502001MY_COROLLA_U (OM12720U)
CAUTION

Never put a rear±facing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rear±facing child restraint system
is put on the front seat.

Unless it is unavoidable, do not put
a forward±facing child restraint sys-
tem on the front seat.

A forward±facing child restraint sys-
tem should be allowed to be put on
the front seat only when it is un-
avoidable. Always move the seat as
far back as possible, because the
force of a deploying airbag could
cause death or serious injury to the
child. On vehicles with side airbags,
do not allow the child to lean
against the front door or around
the front door even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
inflates, and the impact could cause
death or serious injury to the child.

After installing the child restraint
system, make sure it is secured in
place following the manufacturer 's
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it in the trunk or somewhere other than
the passenger compartment. This will pre-
vent it from injuring passengers in the
event of a sudden stop or accident.
ProCarManuals.com

'01 Corolla U (L/O 0005)
512001MY_COROLLA_U (OM12720U)
ÐBuilt±in child restraint

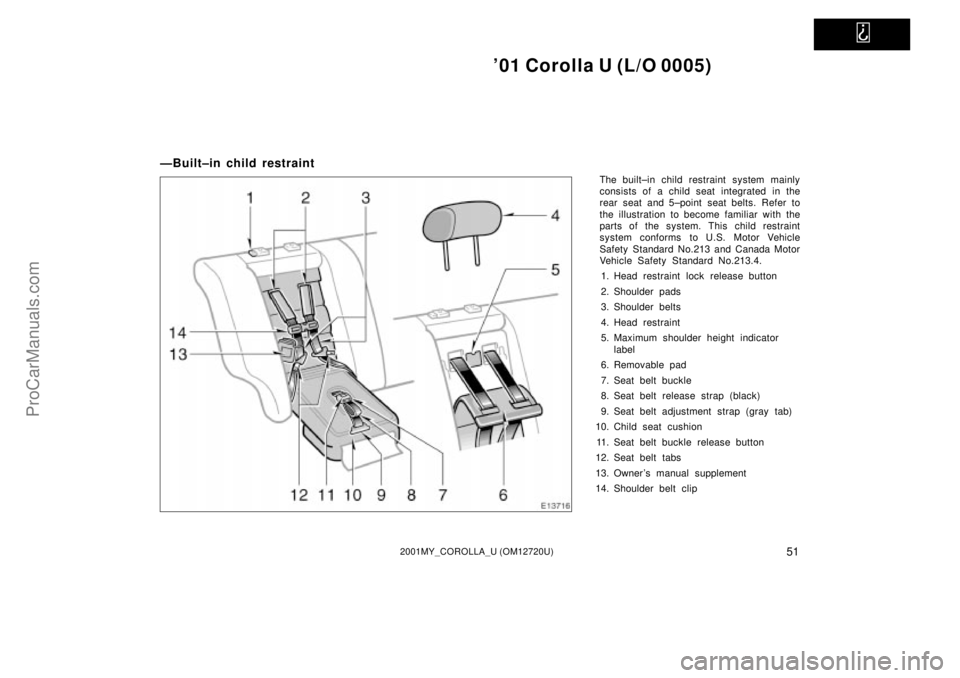

The built±in child restraint system mainly
consists of a child seat integrated in the
rear seat and 5±point seat belts. Refer to
the illustration to become familiar with the
parts of the system. This child restraint
system conforms to U.S. Motor Vehicle
Safety Standard No.213 and Canada Motor
Vehicle Safety Standard No.213.4.
1. Head restraint lock release button
2. Shoulder pads
3. Shoulder belts
4. Head restraint
5. Maximum shoulder height indicator
label
6. Removable pad
7. Seat belt buckle
8. Seat belt release strap (black)
9. Seat belt adjustment strap (gray tab)
10. Child seat cushion
11. Seat belt buckle release button
12. Seat belt tabs
13. Owner 's manual supplement
14. Shoulder belt clip
ProCarManuals.com

'01 Corolla U (L/O 0005)
522001MY_COROLLA_U (OM12720U)
This child restraint is designed for use
only by children who weigh between 10
and 30 kg (22.1 and 66.1 pounds), and
whose height is between 85 and 127 cm
(33.5 and 50.0 inches).
The child should be at least one year
old and must be capable of sitting up-
right alone and whose shoulder height
is at or below the maximum shoulder
height indicator.
It is important to use a rear±facing
child restraint until the child is about
a year old. A rear±facing restraint gives
the child's head, neck and body the
support they would need in a crash.
See ªÐChild restraint systemº for more
information.
If your child's shoulders are above the
indicator position, do not use the built±
in child restraint. Your child should use
the vehicle's seat belts.
According to accident statistics, children
are safer when properly restrained in the

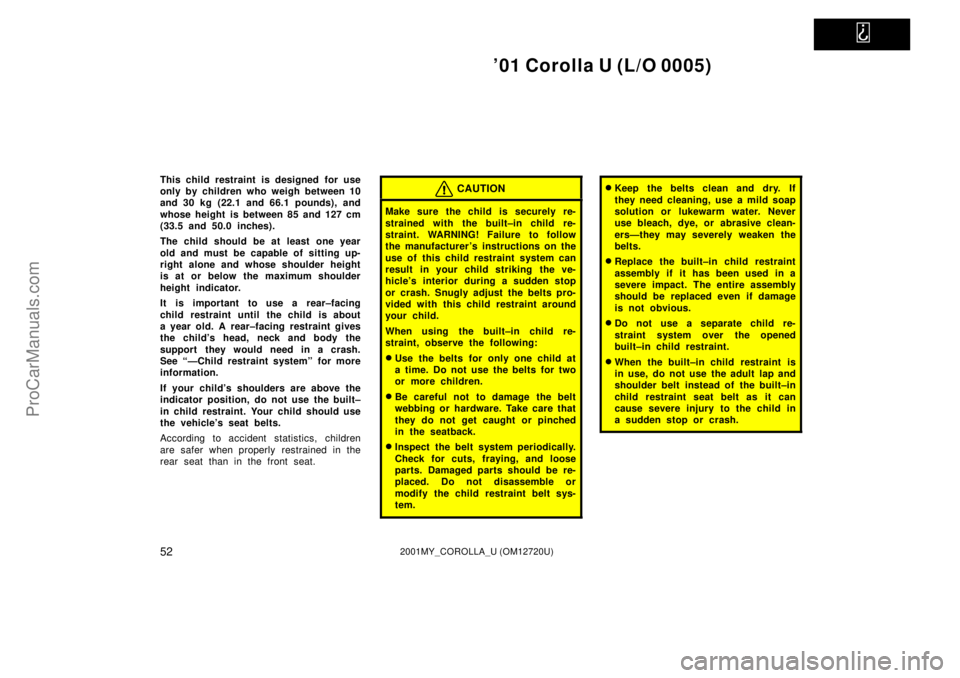

rear seat than in the front seat.CAUTION
Make sure the child is securely re-
strained with the built±in child re-
straint. WARNING! Failure to follow
the manufacturer 's instructions on the
use of this child restraint system can
result in your child striking the ve-
hicle's interior during a sudden stop
or crash. Snugly adjust the belts pro-
vided with this child restraint around
your child.
When using the built±in child re-
straint, observe the following:

Use the belts for only one child at
a time. Do not use the belts for two
or more children.

Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seatback.

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the child restraint belt sys-
tem.

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts.

Replace the built±in child restraint
assembly if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

Do not use a separate child re-
straint system over the opened
built±in child restraint.

When the built±in child restraint is
in use, do not use the adult lap and
shoulder belt instead of the built±in
child restraint seat belt as it can
cause severe injury to the child in
a sudden stop or crash.
ProCarManuals.com

'01 Corolla U (L/O 0005)
532001MY_COROLLA_U (OM12720U)

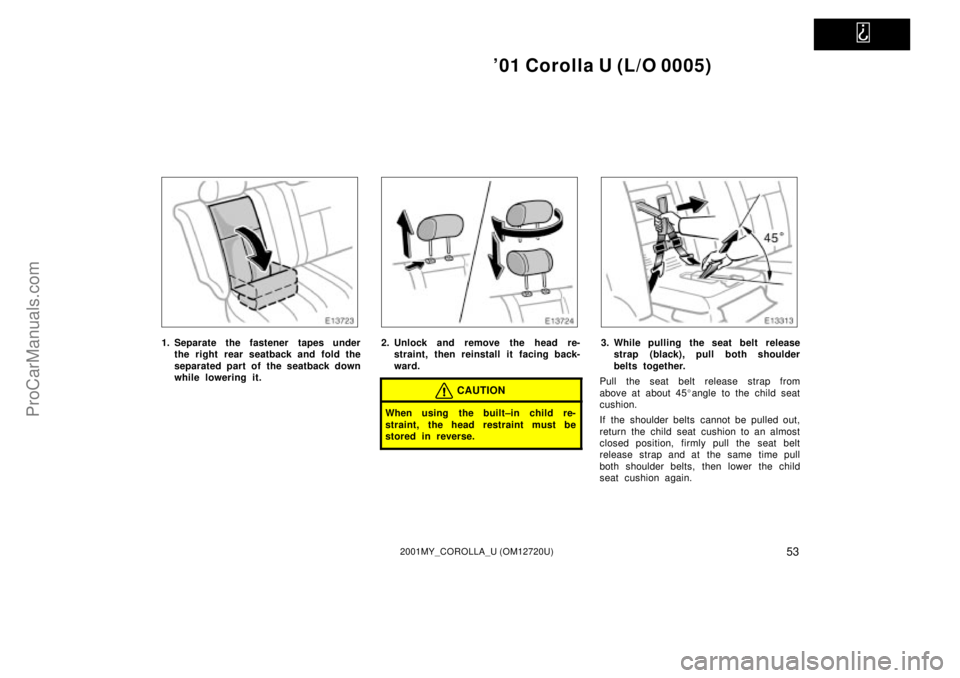

1. Separate the fastener tapes under
the right rear seatback and fold the
separated part of the seatback down
while lowering it.2. Unlock and remove the head re-
straint, then reinstall it facing back-
ward.
CAUTION
When using the built±in child re-
straint, the head restraint must be
stored in reverse.
3. While pulling the seat belt release
strap (black), pull both shoulder
belts together.
Pull the seat belt release strap from
above at about 45angle to the child seat
cushion.
If the shoulder belts cannot be pulled out,
return the child seat cushion to an almost
closed position, firmly pull the seat belt
release strap and at the same time pull
both shoulder belts, then lower the child
seat cushion again.
ProCarManuals.com

'01 Corolla U (L/O 0005)
542001MY_COROLLA_U (OM12720U)
4. Compress the shoulder belt clip to
separate the right and left shoulder
belts.5. Pull down the seatback part of the
removable pad. Make sure the child's
shoulders are at or below the maxi-
mum shoulder height indicator label.
The removable pad is attached by fasten-
er tapes.
CAUTION
If your child's shoulders are above
the maximum shoulder height indica-
tor label, do not use the built±in child
restraint. Your child should use the
adult lap and shoulder belt.
6. Press the removable pad against the
fastener tapes and install the pad to
the seatback. Make sure the belts go
through the slots in the pad.
CAUTION
If you have removed the removable
pad for cleaning etc., do not use the
built±in child restraint without the
pad.
ProCarManuals.com

'01 Corolla U (L/O 0005)
552001MY_COROLLA_U (OM12720U)

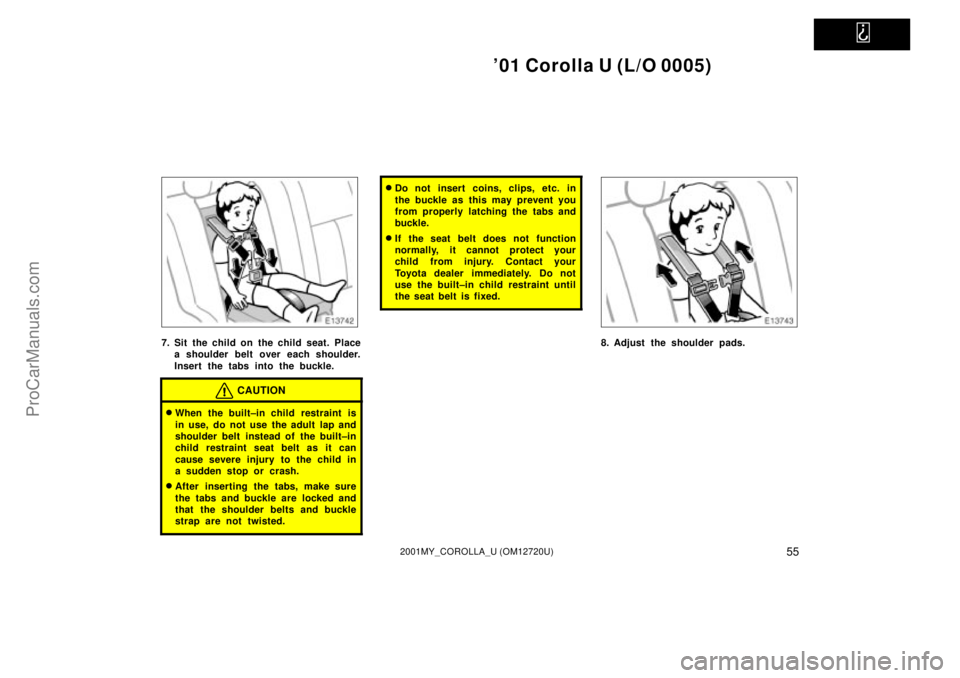

7. Sit the child on the child seat. Place
a shoulder belt over each shoulder.
Insert the tabs into the buckle.
CAUTION

When the built±in child restraint is
in use, do not use the adult lap and
shoulder belt instead of the built±in
child restraint seat belt as it can
cause severe injury to the child in
a sudden stop or crash.

After inserting the tabs, make sure
the tabs and buckle are locked and
that the shoulder belts and buckle
strap are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tabs and
buckle.

If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the built±in child restraint until
the seat belt is fixed.
8. Adjust the shoulder pads.
